BRIEF

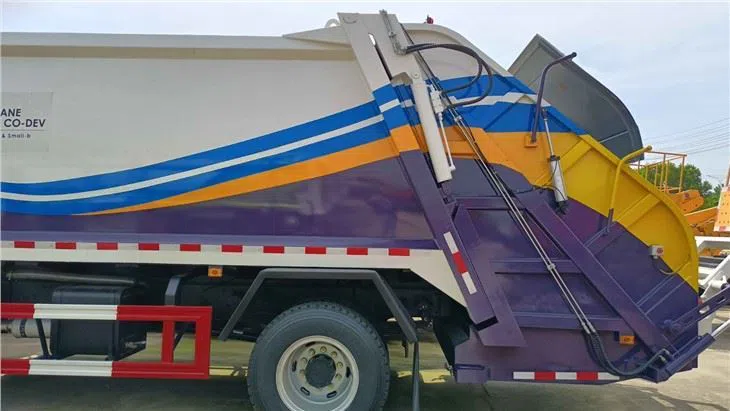

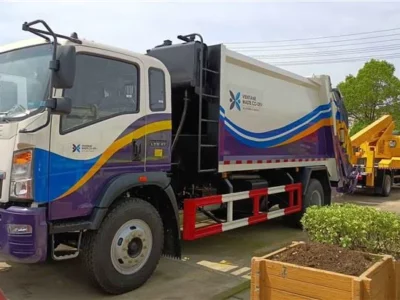

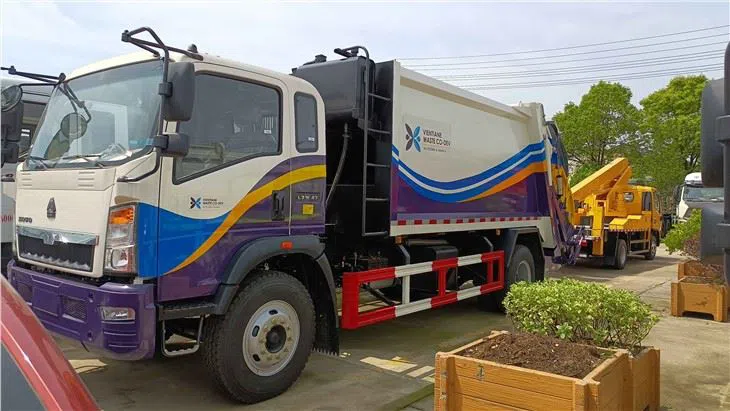

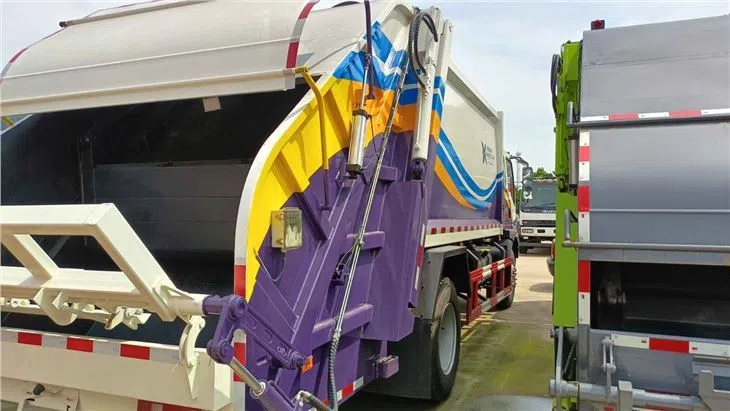

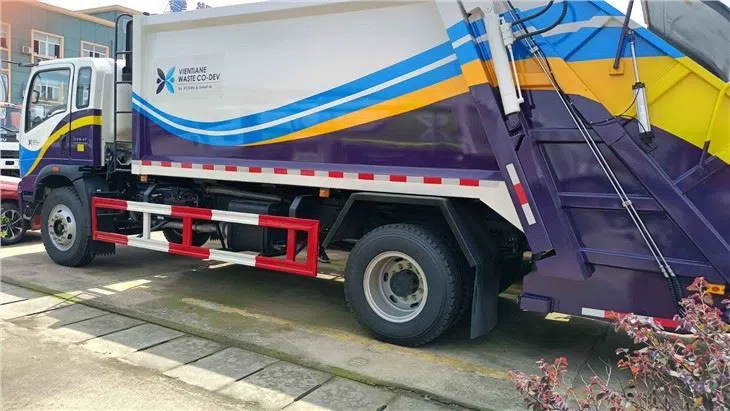

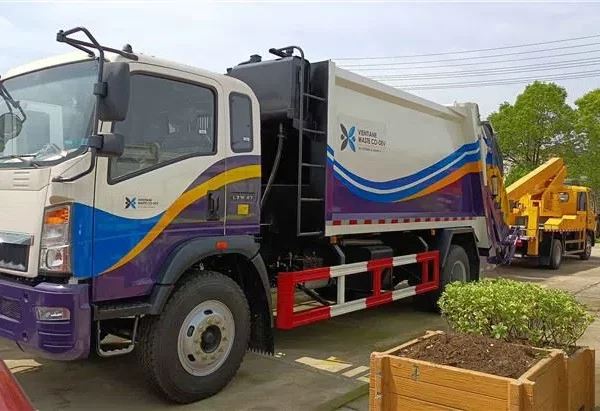

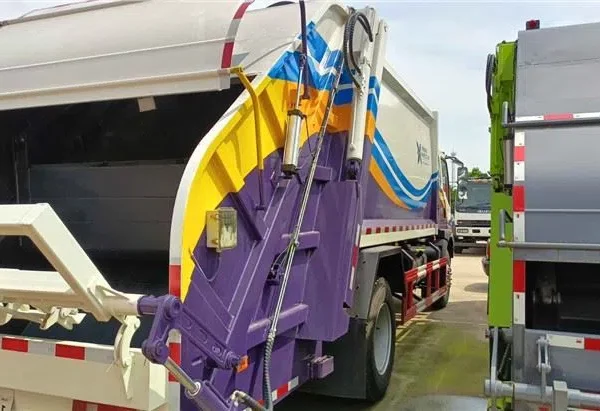

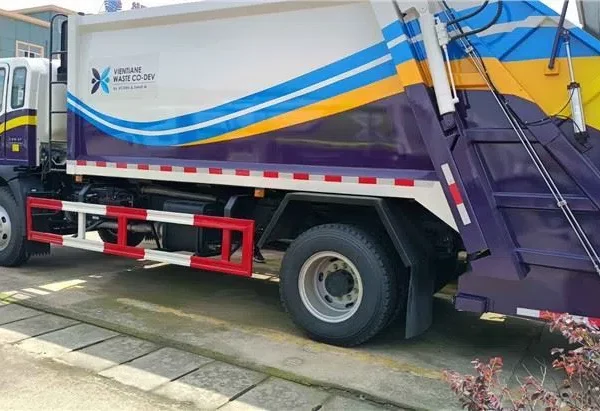

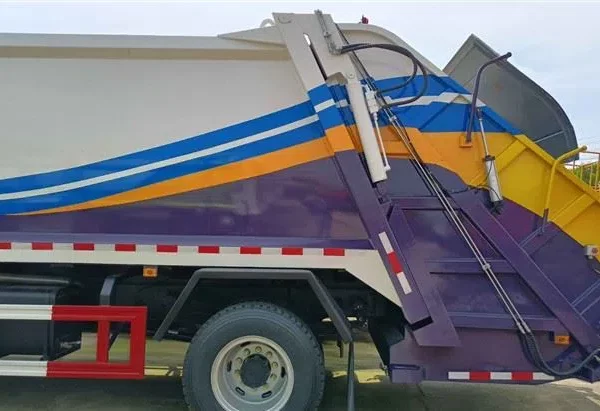

The HOWO Press Pack Commercial Trash Compactor Truck is the solid waste collection vehicle designed for lifting and unloading the garbage from garbage bins/containers, compaction and transportation to dumping ground/transfer stations/processing plants. The garbage compactor truck has a container volume of 12CBM, mounted on SINOTRUK HOWO 4X2 chassis truck.It is fitted with standard garbage bin lifter capable of unloading garbage from 240 Ltrs, 660 Ltrs. and 1100 Ltrs. Bins.
features
-Garbage container is 12CBM, two-way compression, and the compression ratio is 0.6~0.8t/m3.
-Optional garbage bin tippers: carter tipper, dust-cover tipper, shovel loader, on-ground spacious lifter etc.
-The operating system adopts the German Siemens PLC one-key control system.
-The hydraulic system adopts Yangzhou Zhongmei multi-way valve, Hefei Changyuan oil pump, the whole vehicle Hypris (joint venture brand) hydraulic oil cylinder, and Japan Valka sealing ring.
-Installed with back pressure valve, increase the loading capacity by about 30% and greatly improve the use efficiency.
-Removable rear hopper locking hook, and the refuse body has a four-layer waterproof design to solve the problem of secondary pollution caused by sewage leakage.
specification
|
Engine |
|
|
Make/Model |
WEICHAI/WD615.62 |
|
Type |
Diesel Engine |
|
Engine System |
4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 6 Cylinders |
|
Output Power@ speed |
266hp@2200rpm |
|
Displacement |
9.726L |
|
Max. torque @ Speed |
1100N.m@1100-1600rpm |
|
Emission standard |
Euro 2 |
|
Transmission |
|
|
Model |
HW19710 |
|
Gears |
10F+2R |
|
Operation |
Manual |
|
Cabin |
|
|
Type |
Steel construction, Single Row, Flat |
|
Passenger No. |
3 |
|
Body and Compaction System |
|
|
Capacity |
12CBM |
|
Material |
Weather-resistant steel, high corrosion resistance |
|
Design |
Sealed leakage proof |
|
Compaction Ratio |
1:2 – 1:3 |
|
Containers Lifting Devices |
High capacity articulated lifter works in minimum two stages by four double effects hydraulic cylinders to ensure lifting and lowering of containers smoothly. Lifting weight capacity not less than 800 kg. |
|
Control System |
Equipped with three sets of automatic, manual control and wireless remote control modes, it can control the operation of the garbage truck in the driver’s cab, the middle of the garbage, and the rear of the garbage. |
