Brief

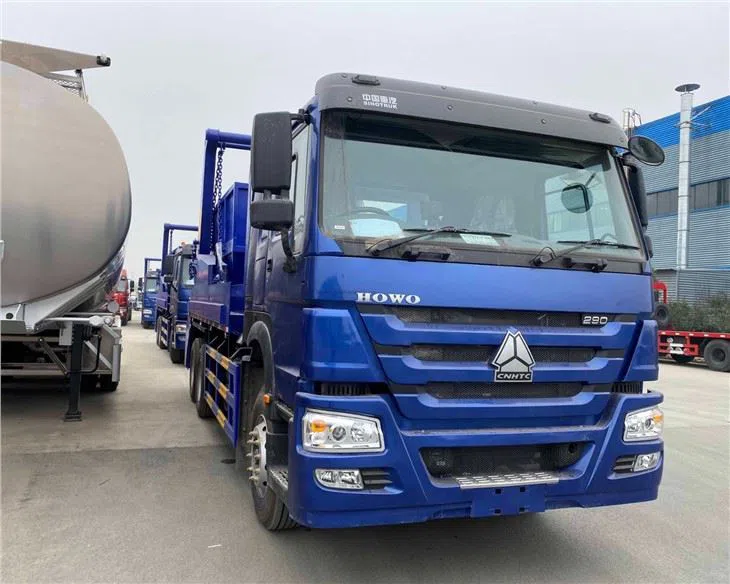

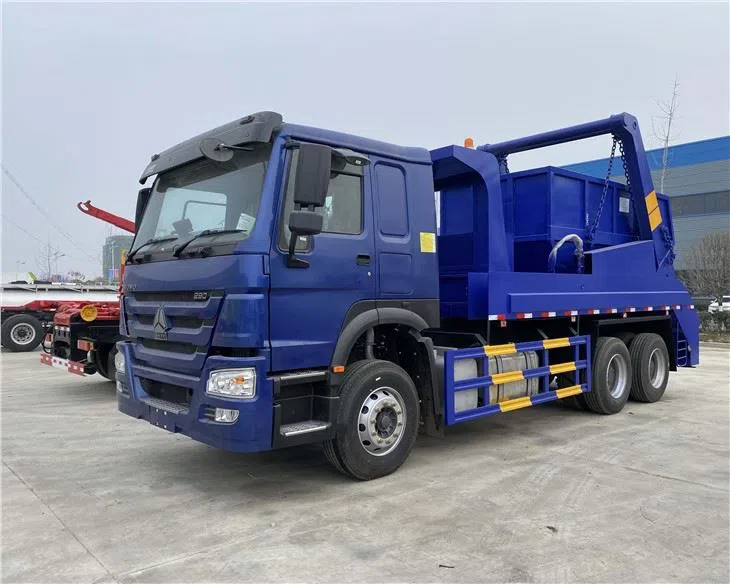

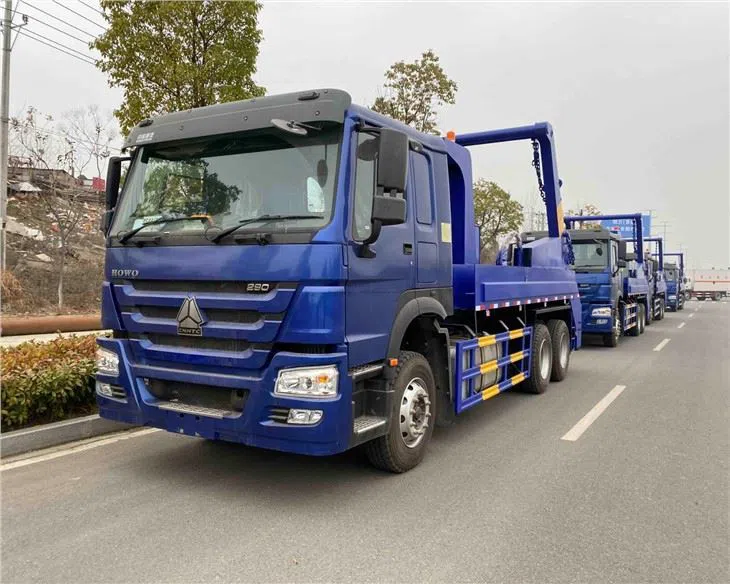

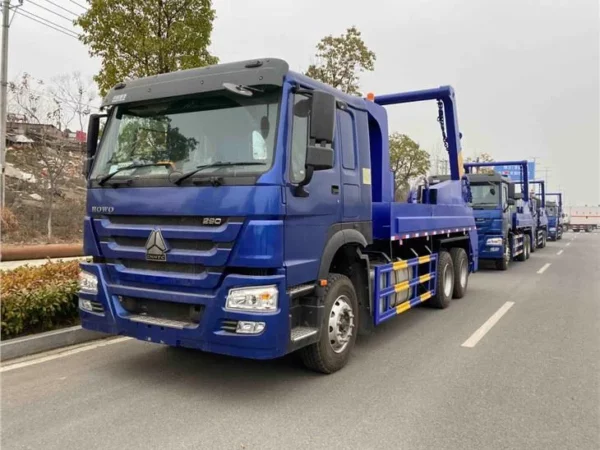

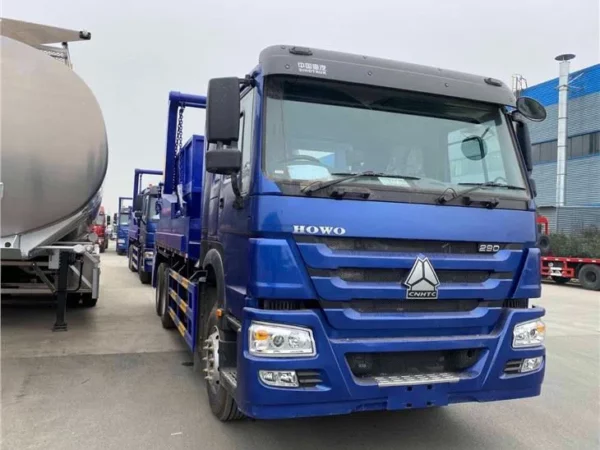

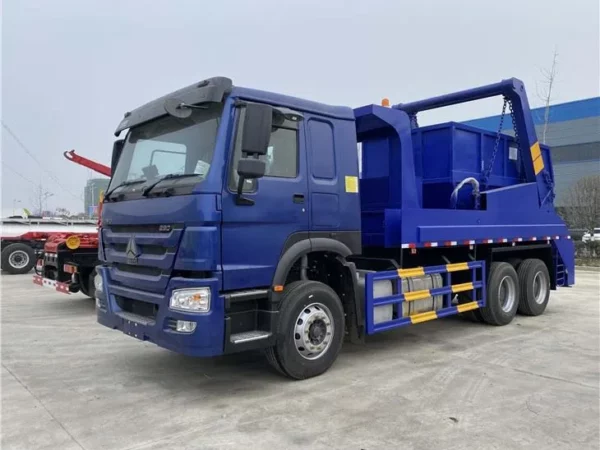

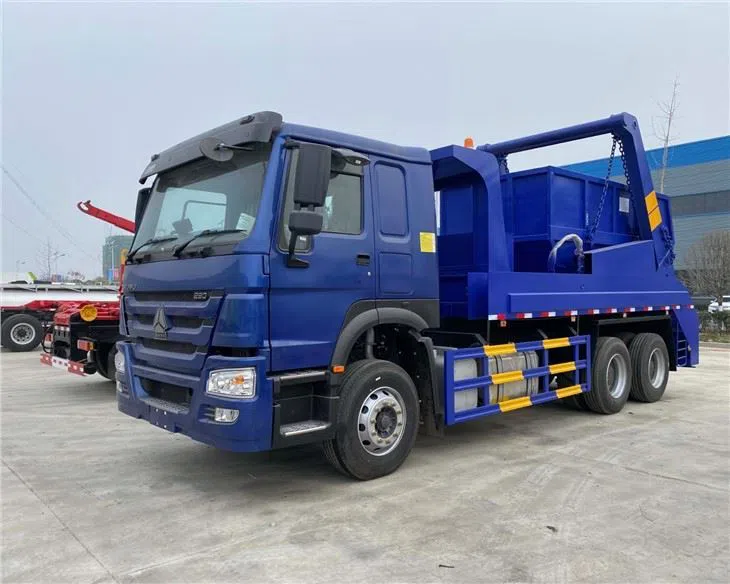

HOWO Heavy Skip Bin Loader is also called Swing Arm Garbage Truck, skip refuse truck, skip collection truck, skip loader garbage truck. Skip Loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use. It could be equipped with a cover to prevent dropping any rubbish.
features
Multiple Garbage Compartments

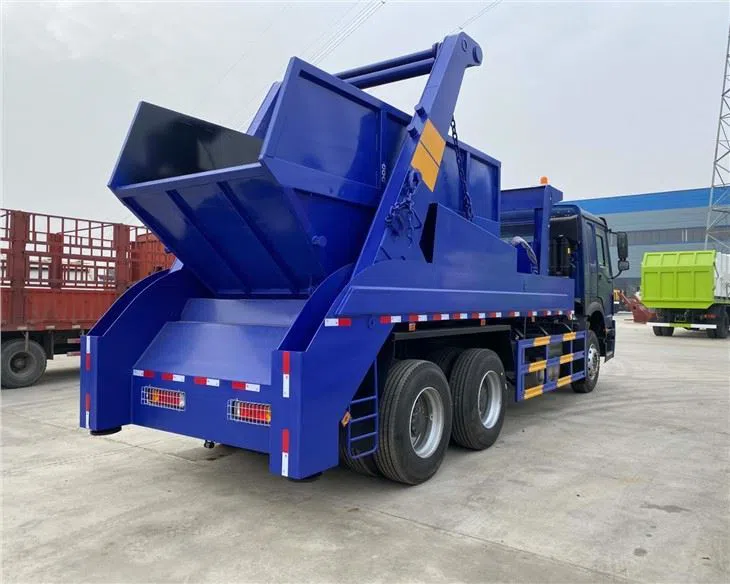

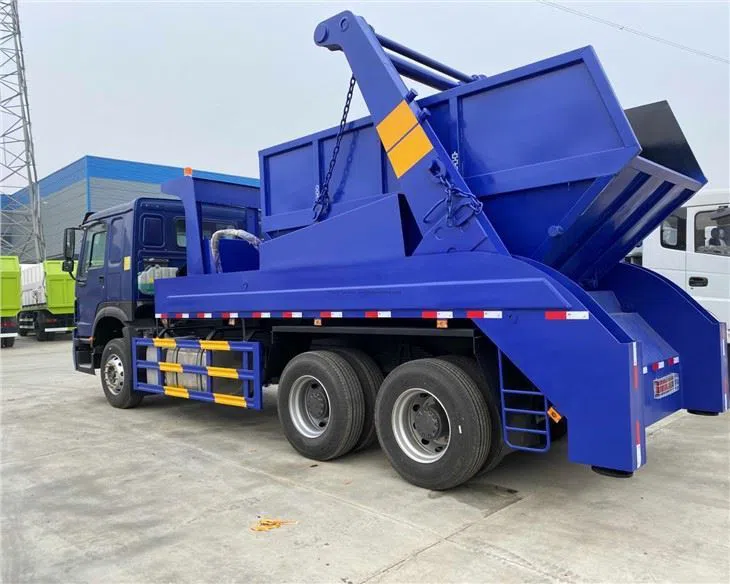

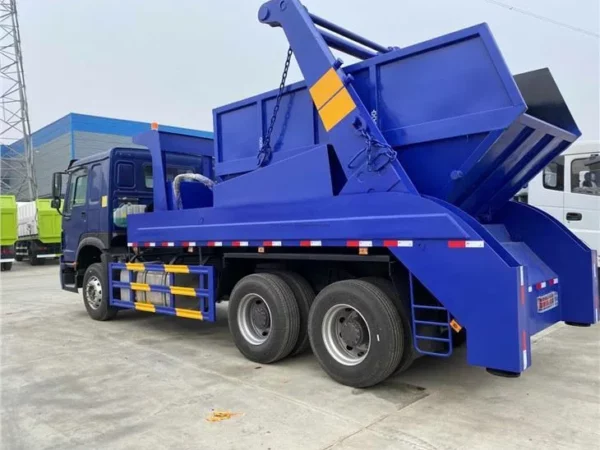

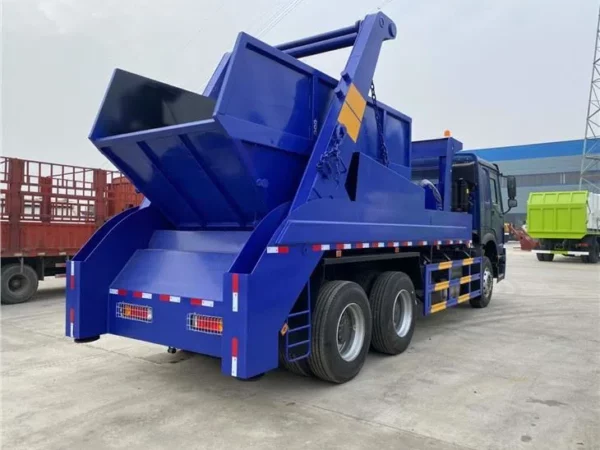

Swing Arm Mechanism
The swing arm mechanism is operated by a manifold valve to control the oil cylinder, which drives the swing arm to rotate, lift and dump the garbage bucket.
Swing Arm Garbage Hopper
Open and close freely, one truck can be with multiple buckets.
Operating System
The conversion of various functions is realized through this system. Before operating the multi-way reversing valve, the power take-off should be hung to drive the oil pump to work. By manipulating the multi-way reversing valve, the telescopic and loading and unloading of the outrigger can be completed. By operating the throttle handle next to the multi-way reversing valve, the speed of the engine can be controlled, thereby adjusting the working speed of the flow changing mechanism of the system.
Hydraulic System
The components of the hydraulic system includes hydraulic locks, oil filters, oil pumps, oil tanks, balance valves, hydraulic cylinders, multi-way reversing valves and pipelines are used top brand to ensure the reliabilityThe safety relief valve controls the pressure of the hydraulic system and automatically overflows when the rated pressure is exceeded.
specification
| Engine | |
| Make/Model | SINOTRUK/WD615 |
| Type | Diesel Engine |
| Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Output Power@ speed | 290HP |
| Transmission | |
| Make/Model | HW19710 |
| Gears | 10-Speed |
| Operation | Manual |
| Body and Compaction System | |
| Capacity | 12CBM |
| Maximum Lifting Weight | 20Tons |
| Material | High strength carbon steel, 4mm side, 5mm bottom |
