Brief:

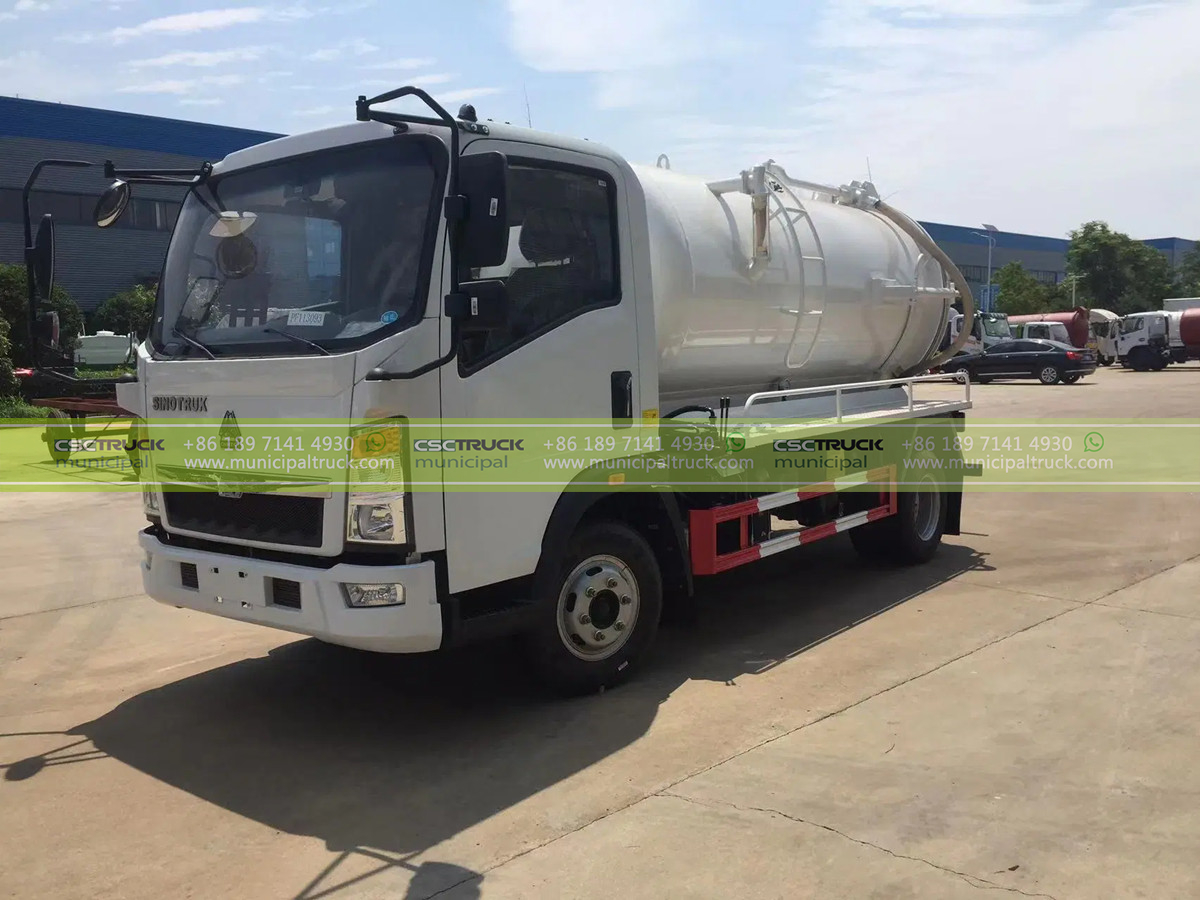

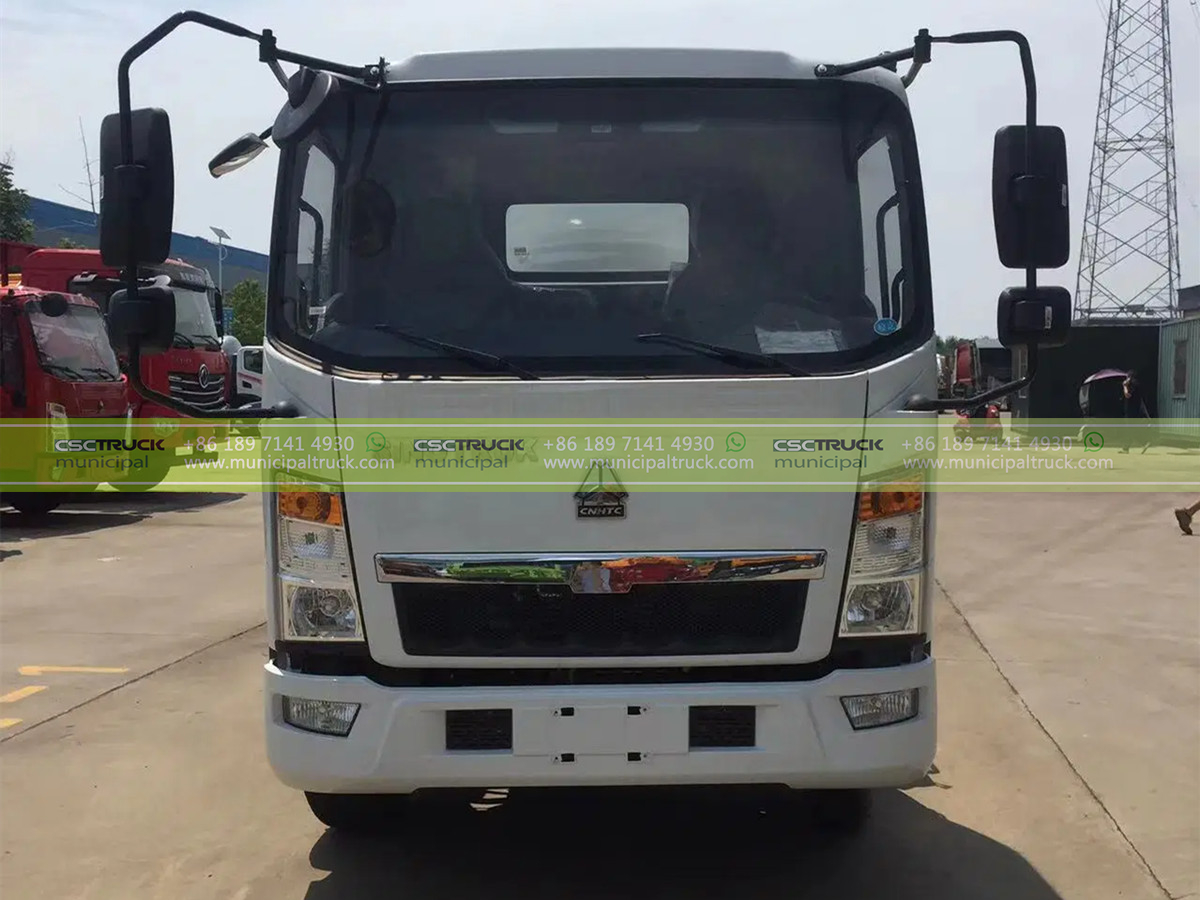

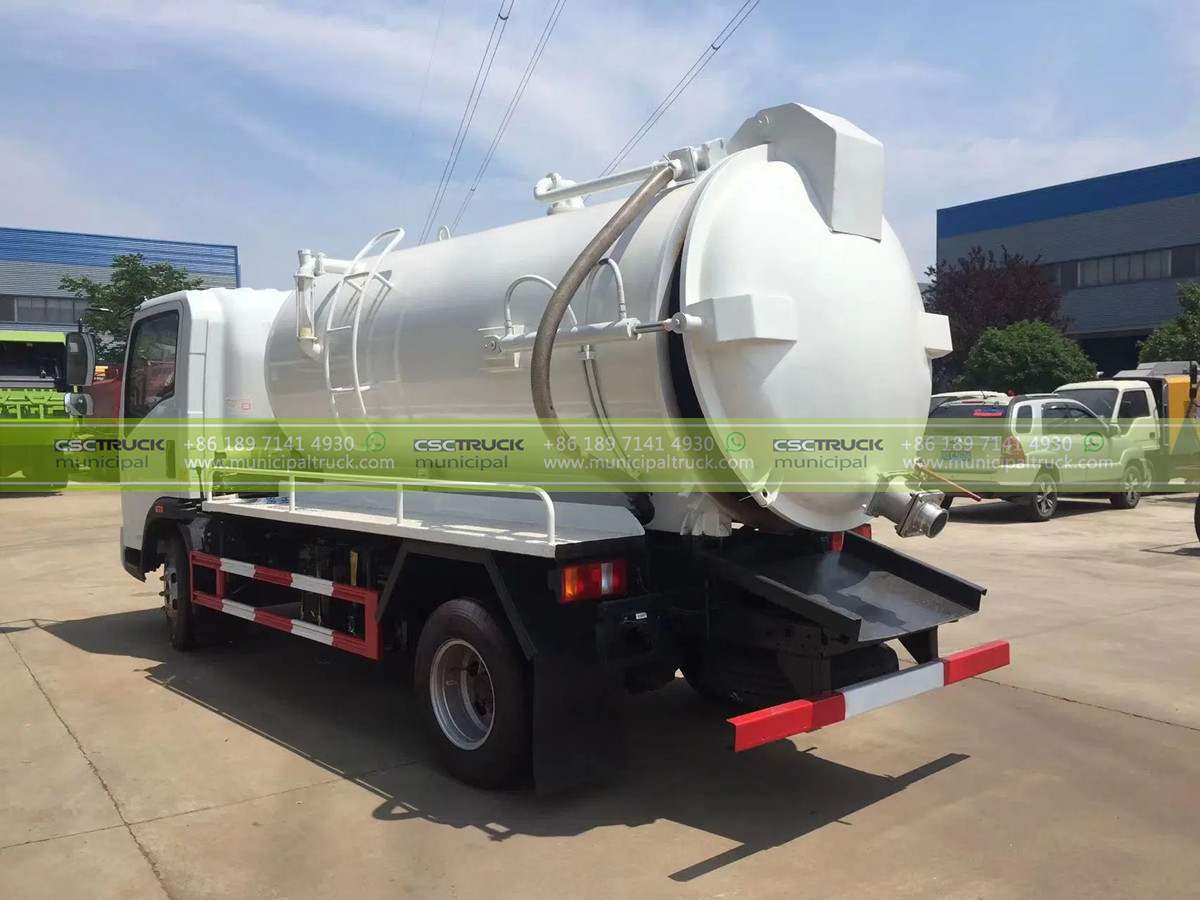

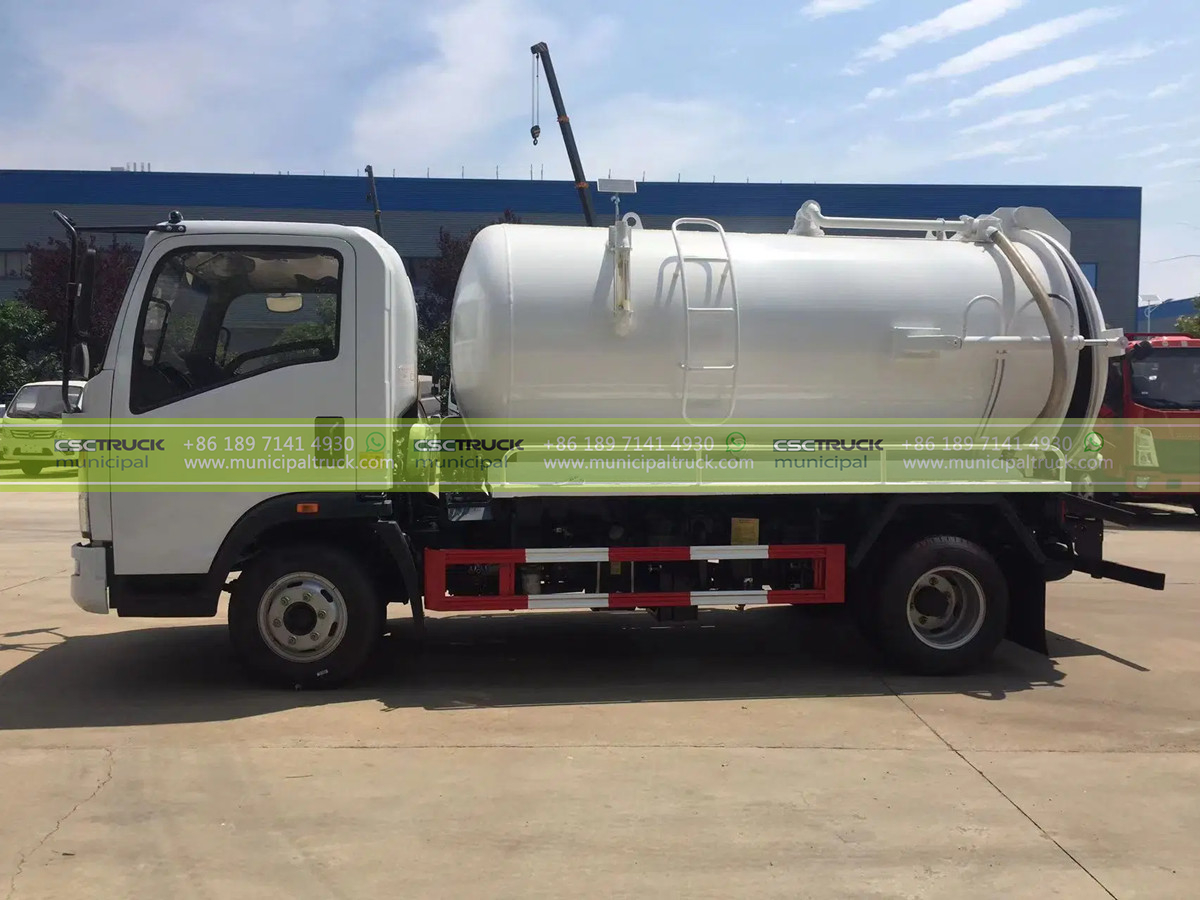

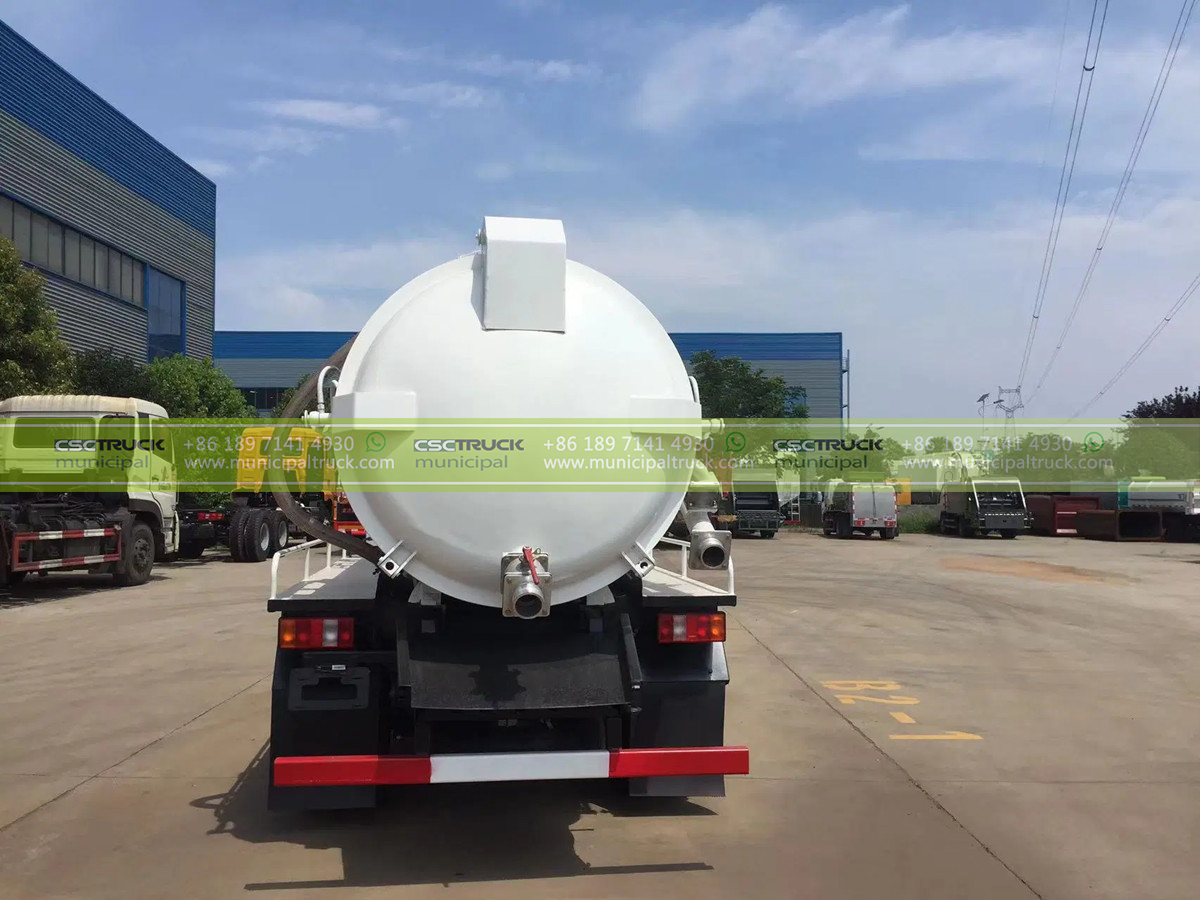

The HOWO 20 CBM Sewage Suction Truck is a powerful and efficient solution for the collection and transportation of sewage and other liquid waste. It is designed for both reliability and ease of operation in various environmental conditions, making it an ideal choice for sewage management.
This sewage suction truck is a reliable and efficient solution for sewage collection and transportation, equipped with a powerful vacuum pump and designed for easy operation and durability in demanding conditions.
Features:
- Chassis:
- Country of Origin: China
- Manufacturer: CSCTRUCK, China
- Brand: HOWO
- Overall Dimension (mm): 7990 x 2500 x 3400 mm
- Wheelbase (mm): 3360 mm
- Curb Weight (kg): 5660 kg
- Loading Volume: 5 CBM, 5000 liters
- Approach/Departure Angle (°): 27/20 degrees
- Front/Rear Overhang (mm): 1250/2505 mm
- Wheel Truck (Front/Rear) (mm): 1800/1860 mm
- Max Driving Speed (km/h): 95 km/h
- Steering Gear: Power steering
- Tire:
- Quantity: 7pcs with one spare tire
- Specification: 7.00R16
- Transmission: Manual type; 5 Forward Gear, 1 Backward Gear
- Cab: A/C installed, one row and a half, two doors
- Engine:
- Brand: HOWO
- Fuel Type: Diesel
- Displacement (ml): N/A
- Power (kW): N/A
- Horsepower (hp): N/A
- Maximum Torque: N/A
- Intake Form: N/A
- Emission Standard: N/A
- Sewage Suction System:
- Sewage Tanker:
- Capacity: 20 CBM
- Material: High-strength steel
- Dumping System: Middle Tipper, Hydraulic Controlled Rear Door, and Middle lifting
- Rear Door: Hydraulic controlled with sewage drain pipe
- Pump: High Efficiency Weilong 68/400 Vacuum Suction Pump made in China
- Pump System: 108mmΦ suction pipe, suction time ≤5 min, effective suction range ≥8 meters, max vacuum degree ≤15 Kpa, dump angle ≥45 degrees
- Vacuum Pressure: -0.092Mpa
- Sewage Pipe: 8 meters of Rubber Pipe (one unit pipe)
- Other Parts: Water-gas separator, Oil-gas separator, Four-way valve, Safety valve, Anti-overflow valve, Anti-overflow warning device
- Sewage Tanker:
SPECIFICATIONS:
| Condition | 4X2, New Condition, LHD |
|---|---|
| Chassis | |
| Country of Original | China |
| Manufacturer | CSCTRUCK |
| Brand | HOWO |
| Overall Dimension (mm) | 7990 x 2500 x 3400 mm |
| Wheelbase (mm) | 3360 mm |
| Curb Weight (kg) | 5660 kg |
| Loading Volume | 5 CBM, 5000 liters |
| Approach/Departure Angle (°) | 27/20 degree |
| Front/Rear Overhang (mm) | 1250/2505 mm |
| Wheel Truck (Front/Rear) (mm) | 1800/1860 mm |
| Max Driving Speed (km/h) | 95 km/h |
| Steering Gear | Power steering |
| Tire | Quantity |
| Specification | |
| Transmission | Manual type; 5 Forward Gear, 1 Backward Gear |
| Cab | A/C installed, one row and a half, two doors |
| Engine | Brand |
| Fuel type | |
| Displacement (ml) | |
| Power (kW) | |
| Horsepower (hp) | |
| Maximum Torque | |
| Intake Form | |
| Emission Standard | |
| Sewage Suction System | |
| Sewage Tanker | Capacity |
| Material | |
| Dumping System | Middle Tipper, Hydraulic Controlled Rear Door, and Middle lifting |
| Rear Door | Hydraulic controlled with sewage drain pipe |
| Pump | High-Efficiency Weilong 68/400 Vacuum Suction Pump made in China |
| Pump System | 108mmΦ suction pipe, suction time ≤5 min, effective suction range ≥8, max vacuum degree ≤15 Kpa, dump angle ≥45 |
| Vacuum Pressure | -0.092Mpa |
| Sewage Pipe | 8 meters Rubber Pipe (one unit pipe) |
| Other Parts | Water-gas separator, Oil-gas separator, Four-way valve, Safety valve, Anti-overflow valve, Anti-overflow warning device |
