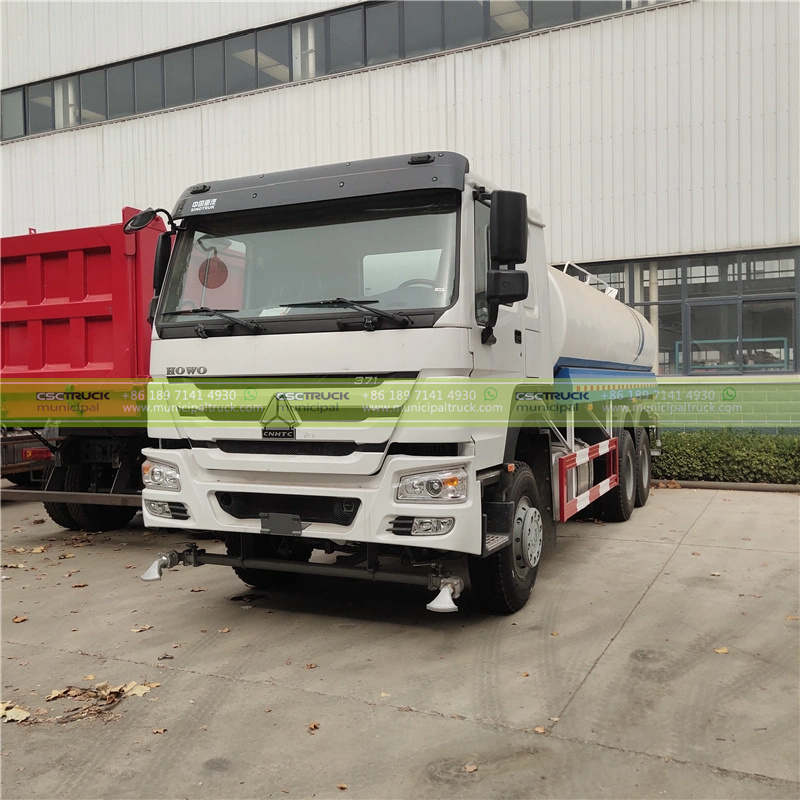

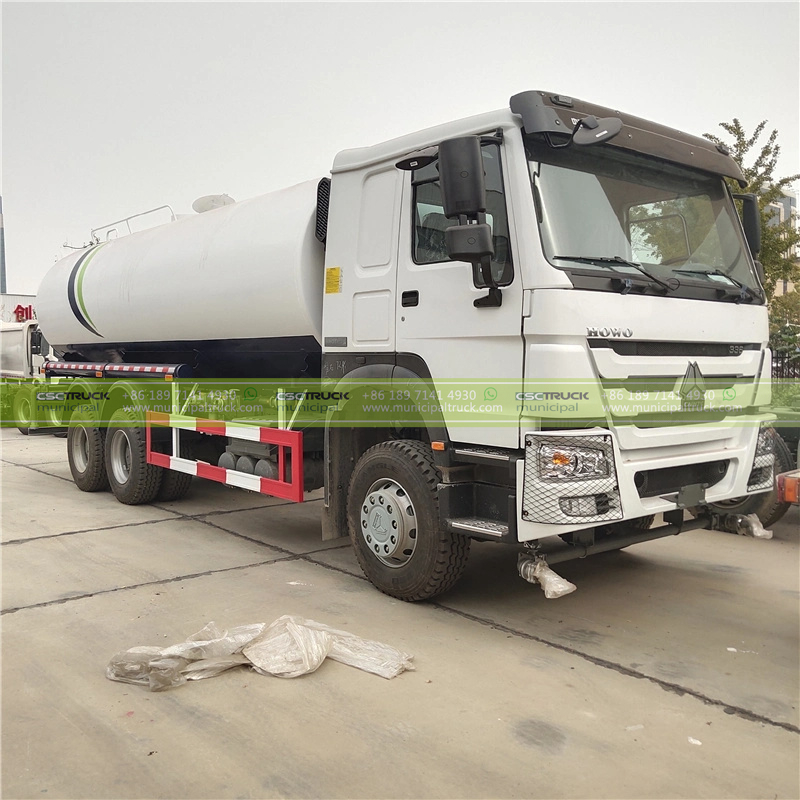

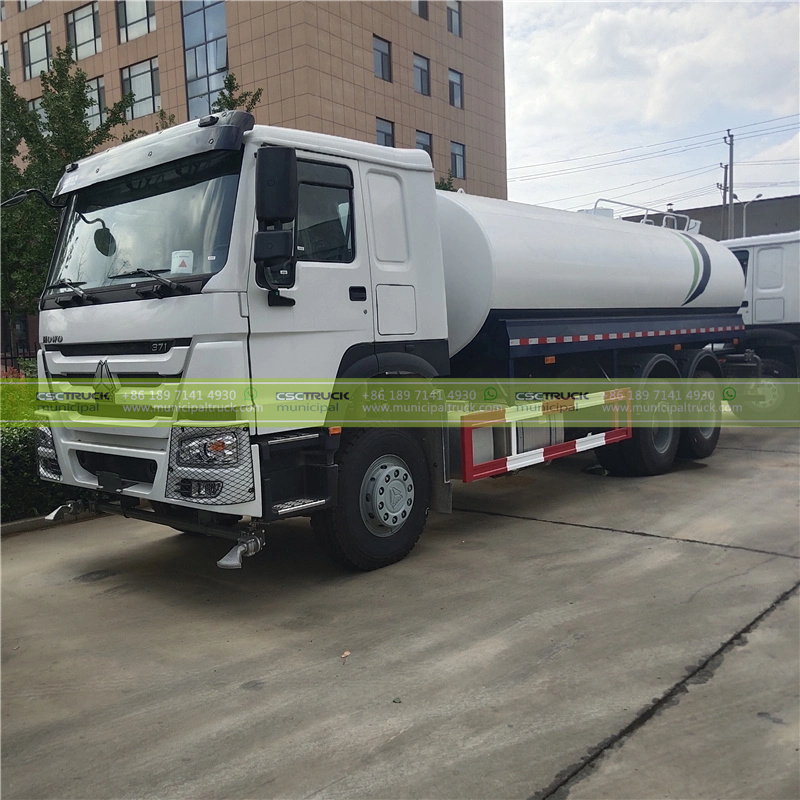

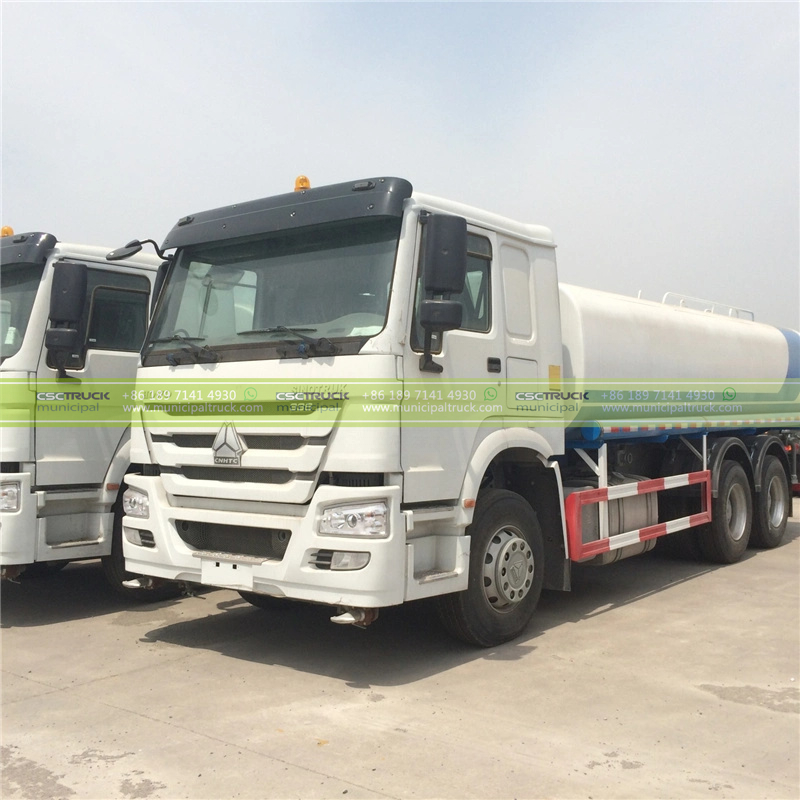

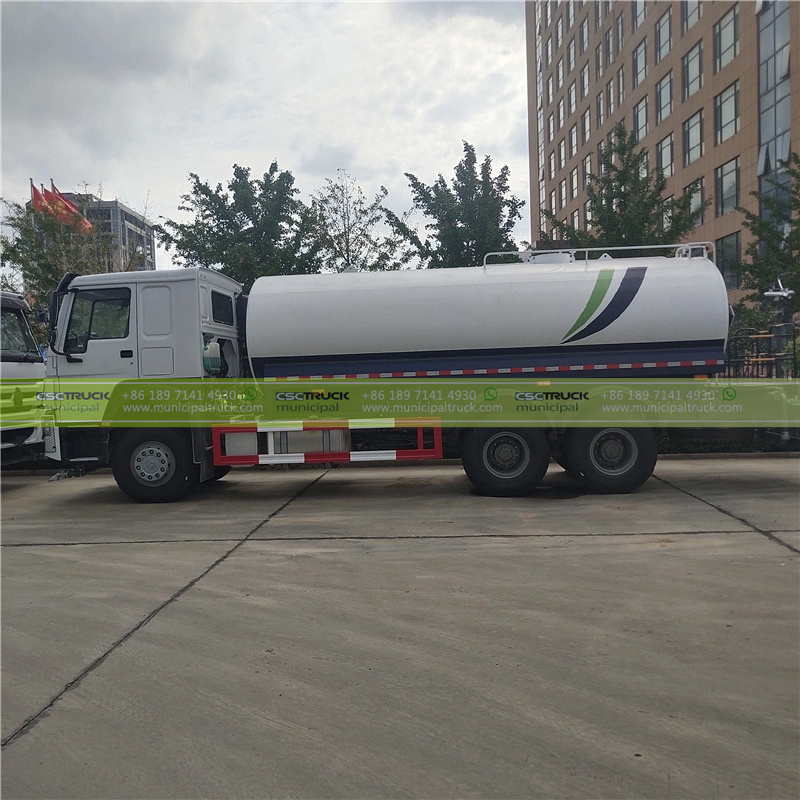

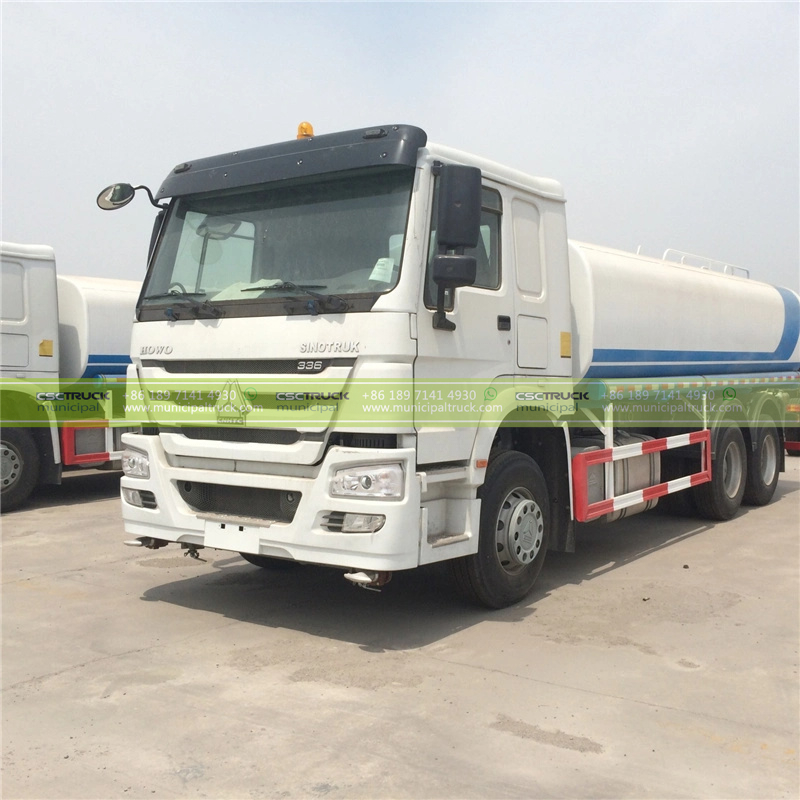

HOWO 30 Ton Water Sprinkler Tank Truck

BRIEF:

The HOWO 30 Ton Water Sprinkler Tank Truck is a robust and versatile vehicle designed for transporting and spraying water. It offers exceptional performance with a powerful engine, durable construction, and a spacious, comfortable cabin for the driver. This truck is equipped to handle a variety of applications, from dust suppression to fire control and road maintenance.

FEATURES:

Engine:

• Model: WD615.47, Euro 2 emission standard
• Type: 4-stroke direct injection diesel engine
• Cylinders: 6 cylinders in line with water cooling
• Output: Maximum 371hp Euro 2
• Torque: 1450Nm at 1300~1600 rpm
• Displacement: 9.726L
• Compression Ratio: 17:1
• Fuel Efficiency: Specific fuel consumption of 198g/kWh
• Cooling System: Efficient cooling system with a long-term filling capacity of 40L
• Clutch: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operated with air assistance

Transmission:

• Model: HW19710, 10 forward and 2 reverse gears
• Transmission Ratios: Multiple ratios for versatile performance

Axles and Suspension:

• Front Axle: New HF9 series with a drum brake system
• Rear Axle: HC16 pressed axle housing, single reduction, and differential locks between axles; equipped with a drum brake system
• Chassis Frame: High-strength U-profile frame with reinforced subframe
• Suspension: Semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer in the front, semi-elliptic leaf springs and bogie springs in the rear
• Spare Wheel: Provided with one spare wheel

Steering:

• Model: ZF8118 hydraulic steering with power assistance
• Steering Ratio: 22.2-26.2:1

Braking System:

• Service Brake: Dual-circuit compressed air brake for reliable stopping power
• Parking Brake: Spring energy-activated, compressed air-operated rear wheel parking brake
• Auxiliary Brake: Engine exhaust brake for enhanced braking control

Wheel & Tires:

• Rims: 8.5-20, 10 hole-steel
• Tire Size: 12R22.5 for all-terrain capability

Driver’s Cab:

• Type: HW76 Long cab with all-steel forward control design
• Comfort: 55° hydraulic tilting to the front, adjustable seats, heating & ventilation system, air conditioner, and stereo radio/cassette recorder
• Safety: Equipped with safety features including sun visor, safety belt, and more

Electrical System:

• Voltage: Operating at 24V, negative ground
• Starter: 24V, 7.5KW
• Alternator: 3-phase, 28V, 1540W
• Batteries: Two 12V, 165Ah batteries
• Lighting: Includes cigar-lighter, horn, headlamp, fog light, brake lights, indicators, and reverse lamp

Dimensions and Performance:

• Wheelbase: 4600+1350 mm
• Approach Angle: 19°
• Departure Angle: 23°
• Carriage Dimension: 7650x2400x800 mm with 3mm floor and 1.5mm side
• Weight: Permissible loading capacity of 25,000 kg, dead weight of 11,050 kg
• Maximum Speed: 78 km/h (reference data)
• Gradeability: 36%
• Ground Clearance: 314 mm
• Turning Radius: 15 meters
• Fuel Consumption: 40 L/100km (reference data)

This water sprinkler tank truck is a reliable and efficient choice for various water transportation and spraying needs. Its detailed features ensure optimal performance, safety, and driver comfort, making it suitable for diverse applications in challenging conditions.



SPECIFICATIONS:

Attribute	Specification
Model NO.	Sinotruk Howo
Tire Certification	ECE, GCC, ISO, DOT
Horsepower	351-450hp
Dumping Type	Front Lifting Style
Tire Design	Radial
Cab	HW76
Condition	New
Fuel Tank	300L
Side	6mm
Floor	8mm
Front Axle	Hf9
Rear Axle	Hc16
Tyres	12.00r20, 10 Pieces with 1 Spare Tire
Transmission	Hw19710
Origin	China
Yearly Production Quantity (pieces)	500
Monthly Production Quantity (pieces)	500
