BRIEF:

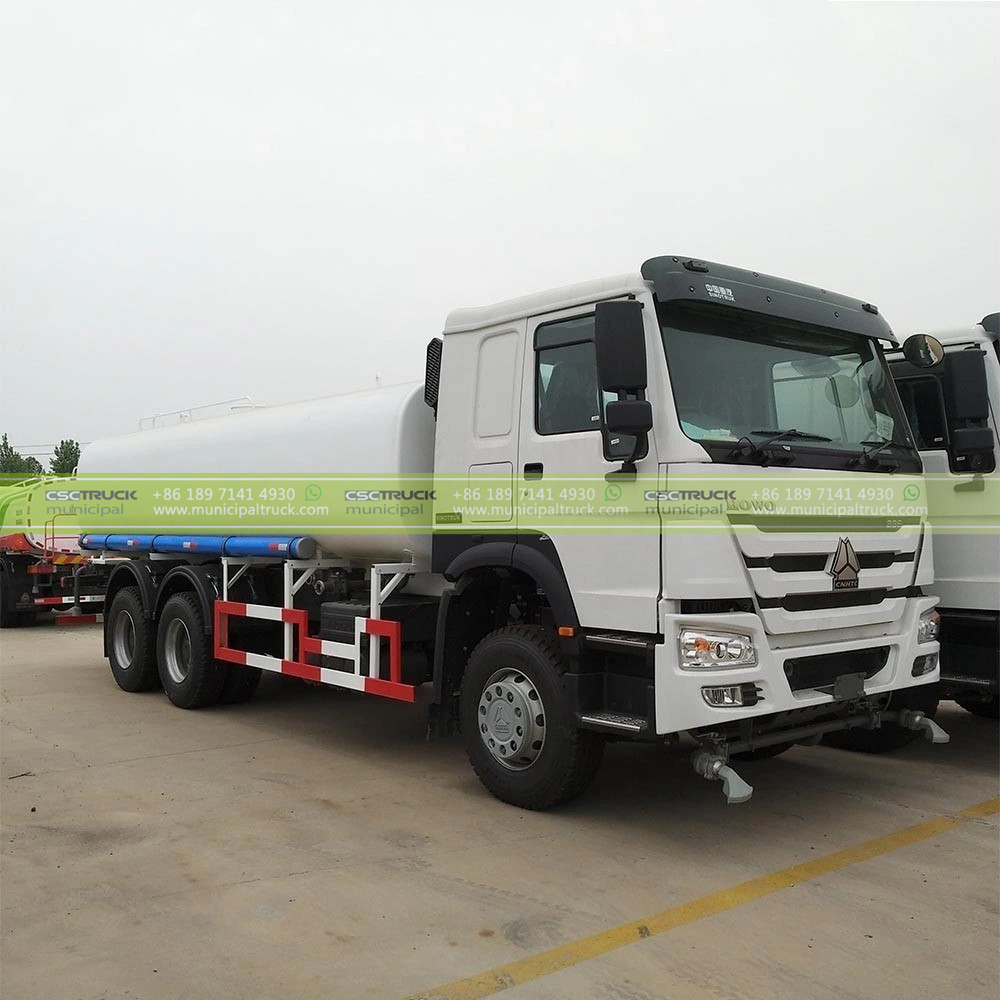

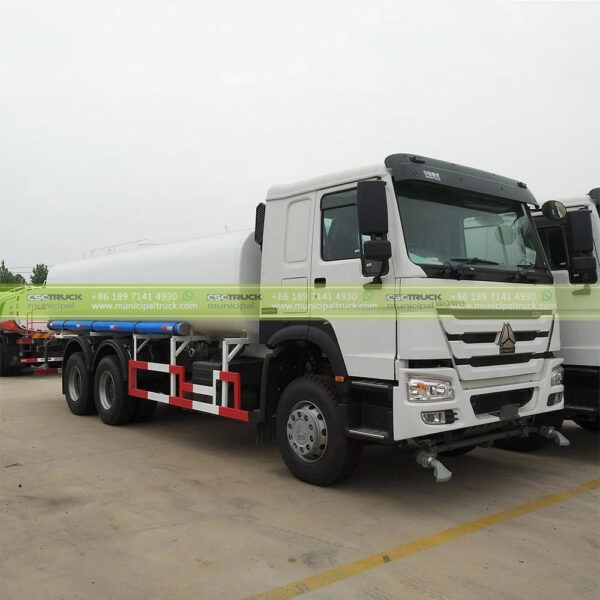

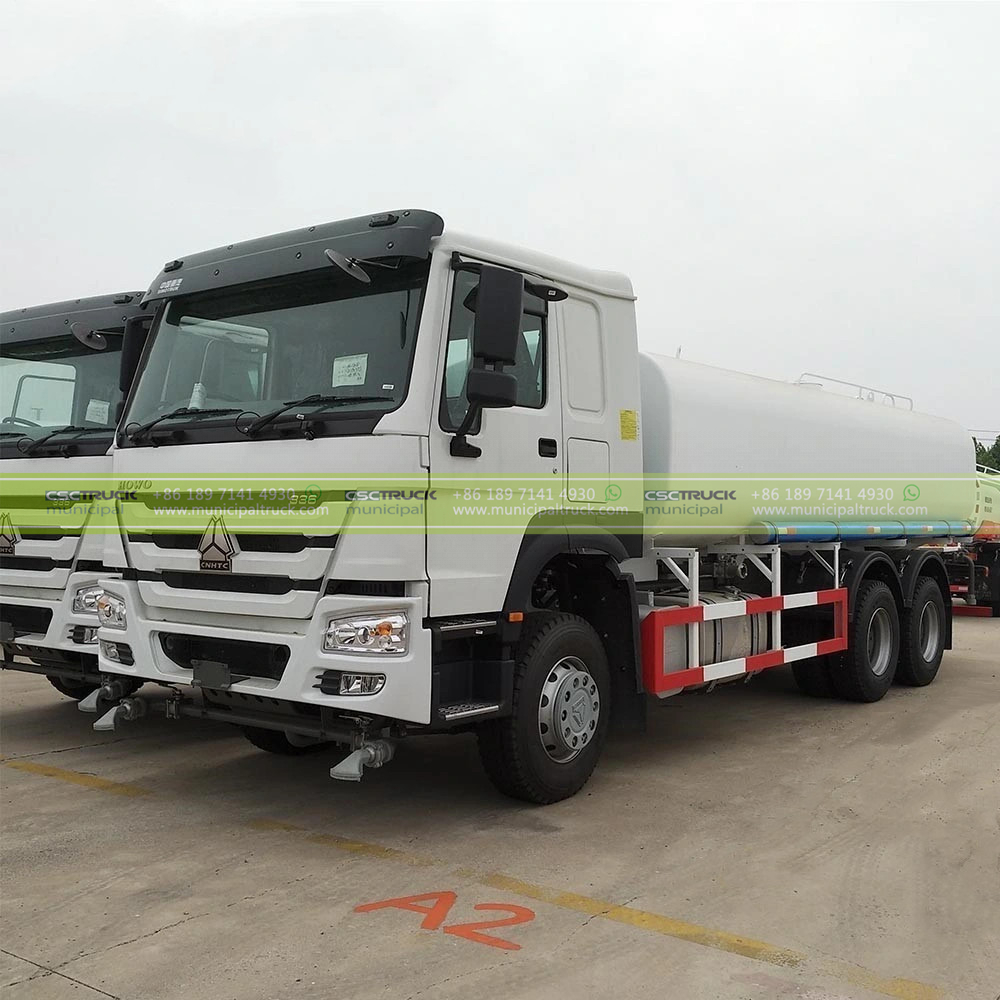

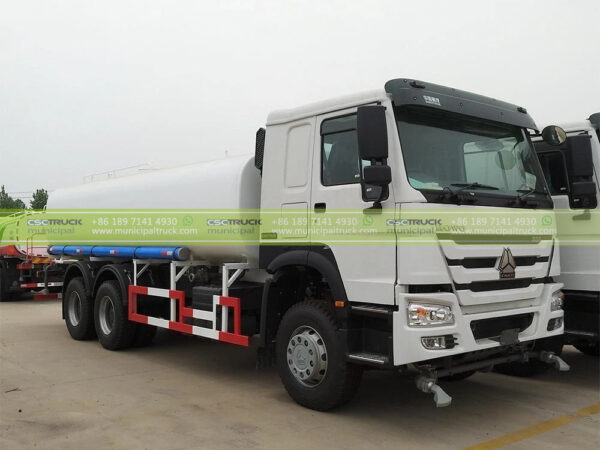

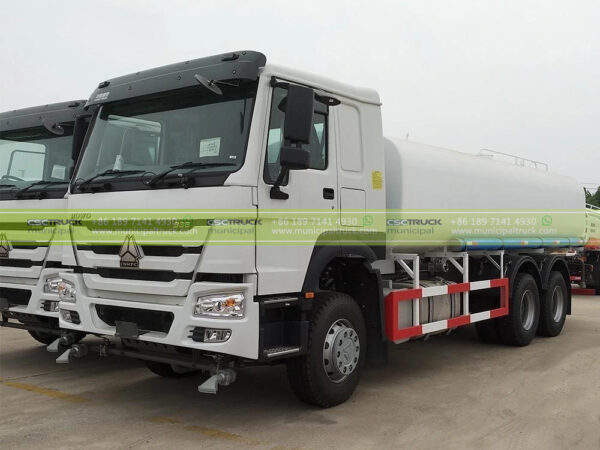

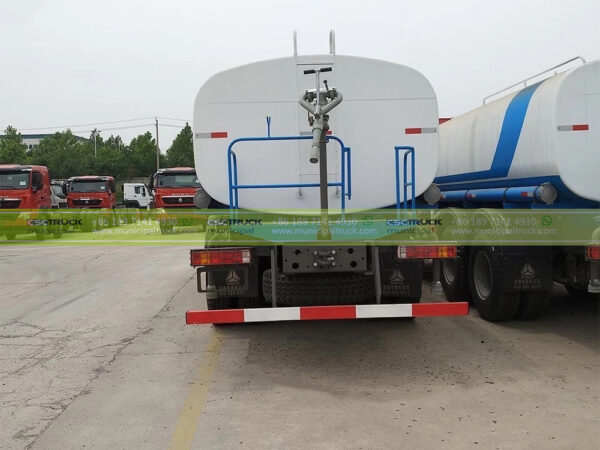

The Sinotruk HOWO 20 Ton Water Sprinkler Tanker Truck is a robust and reliable vehicle designed to efficiently transport and distribute water for various applications. With a spacious L2000 cab and a powerful engine, this truck offers excellent performance and ease of operation. It is ideal for tasks such as road dust control, agricultural irrigation, and emergency fire-fighting.
This water sprinkler tanker truck is designed to excel in demanding water distribution tasks, offering a powerful engine, spacious cab, large tank capacity, and robust chassis to ensure efficiency, reliability, and operator comfort in a variety of applications.
FEATURES:
Powerful and Efficient Engine:
- Equipped with a high-performance WD615.62 engine with Steyr technology, delivering 266 HP for robust and reliable performance.
- Water-cooled, four strokes, and features 6 cylinders in line with water cooling, turbocharged and inter-cooling, and direct injection.
- Complies with EURO 2, EURO 3, EURO 4, EURO 5 emission standards for reduced environmental impact.
Spacious and Comfortable Cab:
- The L2000 cab provides a comfortable and ergonomic workspace for the driver.
- The original double-row seating configuration accommodates 2 persons in the front row and 3 persons in the back row, ensuring ample space for the crew.
- Designed for long-haul journeys with minimal driver fatigue.
Large Tank Capacity:

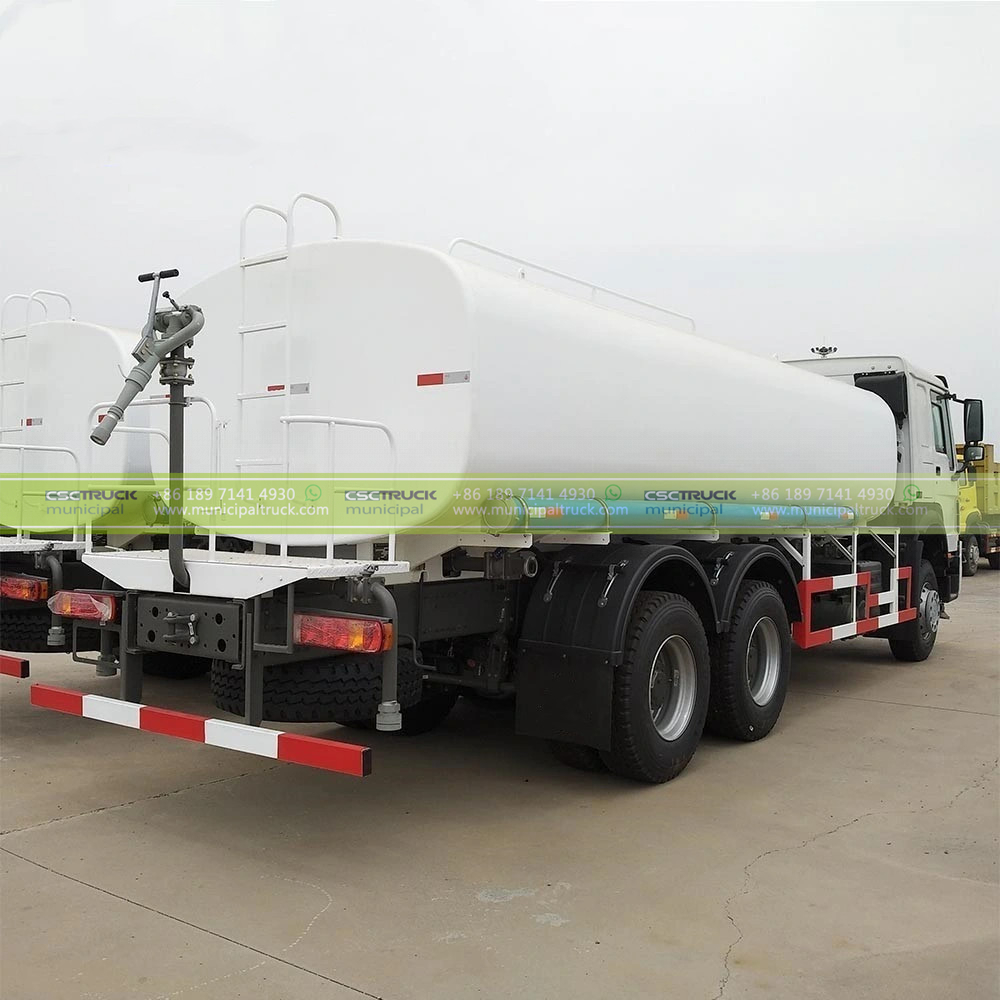

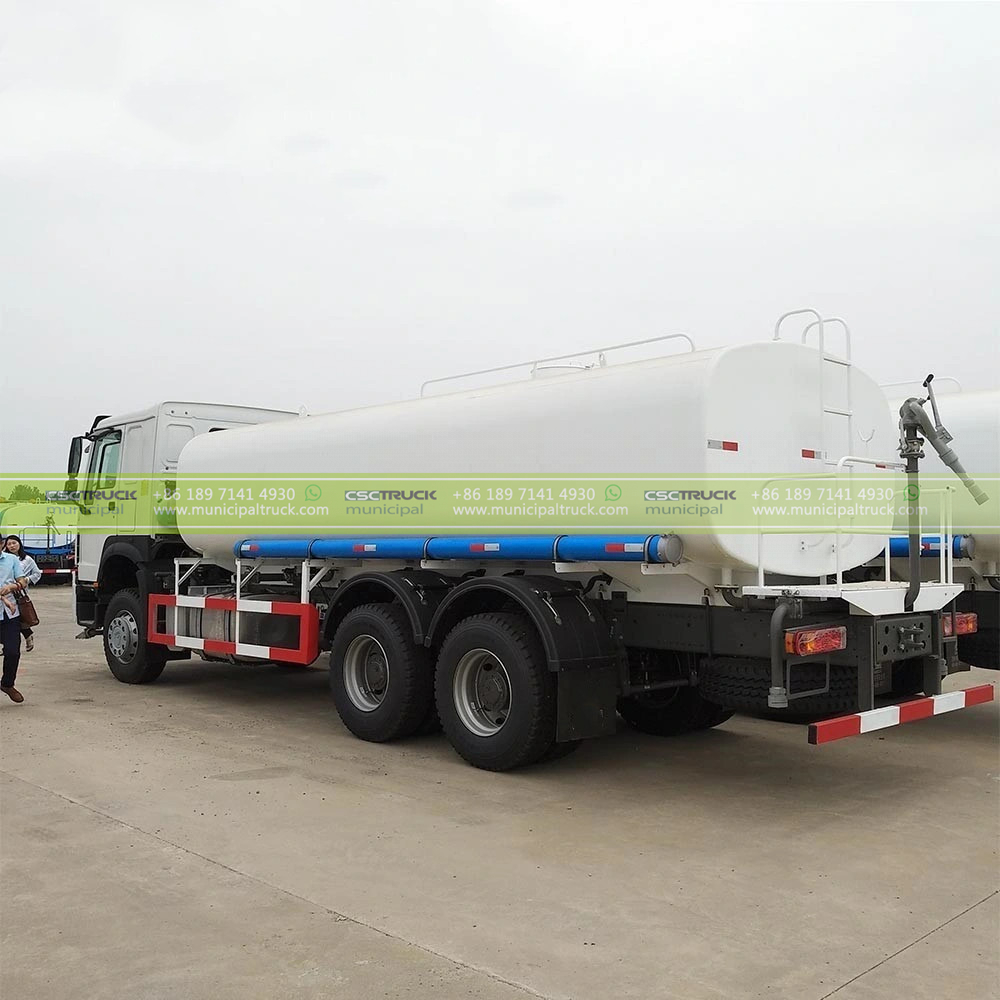

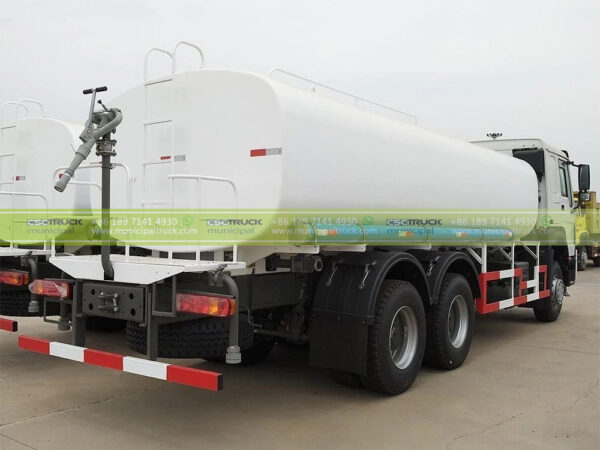

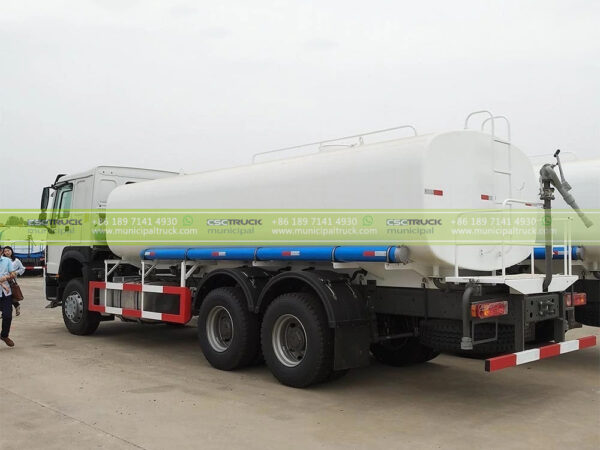

- Features a generous 20 m³ tank capacity, making it suitable for various water distribution tasks.
- Ideal for applications such as road dust control, agricultural irrigation, and emergency fire-fighting.
Sturdy Chassis and Suspension:
- Built on a robust HOWO chassis, known for its durability and reliability.
- Utilizes a steel fuel tanker with a 160L capacity for extended operational range.
- Front suspension consists of a 7-leaf spring with shock absorbers, while the rear features a 9+6-leaf spring setup for enhanced stability.
Smooth Transmission:
- Equipped with a HW13710 transmission with 10 forward gears and 2 reverse gears, providing precise control and smooth shifting.
Advanced Brake System:
- Ensures safety with a dual-circuit compressed air brake system for efficient stopping power.
- Features a power spring brake acting on the rear wheels and an engine exhaust brake for additional control.
Excellent Maneuverability:
- The front axle incorporates steering with a double T-cross-section beam, enhancing maneuverability and ease of handling.
- The rear axle features a pressed axle housing and central double reduction with differential locks between axles and wheels for optimal traction.
Customization Options:
- Various color options are available to suit your preferences and branding.
- Equipped with 11.00-20 tires, including a spare unit, for enhanced durability and reliability on various terrains.
Reliable Electrical System:
- Features a robust electrical system with 2X12V/165Ah batteries, a 28V-1500kw alternator, and a 7.5Kw/24V starter for consistent performance.
SPECIFICATIONS:
| Attribute | Specification |
|---|---|
| Truck Brand | SINOTRUK-HOWO |
| Driving Type | Left-hand driving |
| Dimension (L x W x H) | 9896mm x 2500mm x 3680mm |
| Approaching angle/Departure angle | 10/12 |
| F/R Track Base (mm) | 1939/1958 |
| Tank Capacity (m³) | 20 |
| Medium | Diesel |
| Wheelbase (mm) | 4600+1350 |
| Max Speed (km/h) | 90 |
| Curb Weight (kg) | 8000 |
| Loading Weight (kg) | 11890 |
| Engine | |
| Model | WD615.62, water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and inter-cooling, direct injection |
| Fuel Type | Diesel |
| Horse Power, max (kW/rpm) | 266 HP |
| Emission | EURO 2, EURO 3, EURO 4, EURO 5 |
| Fuel Tanker Capacity (L) | 350 |
| Transmission | |
| Model | HW13710, 10 forward & 2 reverse |
| Brake System | |
| Service Brake | Dual circuit compressed air brake |
| Parking Brake | Spring energy, compressed air operating on rear wheels |
| Auxiliary Brake | Engine exhaust brake |
| Steering System | |
| Model | JL80Z |
| Front Axle | Steering with a double T-cross-section beam |
| Rear Axle | Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Color | Optional |
| Tire | |
| Tire Size | 11.00-20 |
| Tire Quantity | 10 + 1 spare |
| Electrical System | |
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | L2000 cab |
