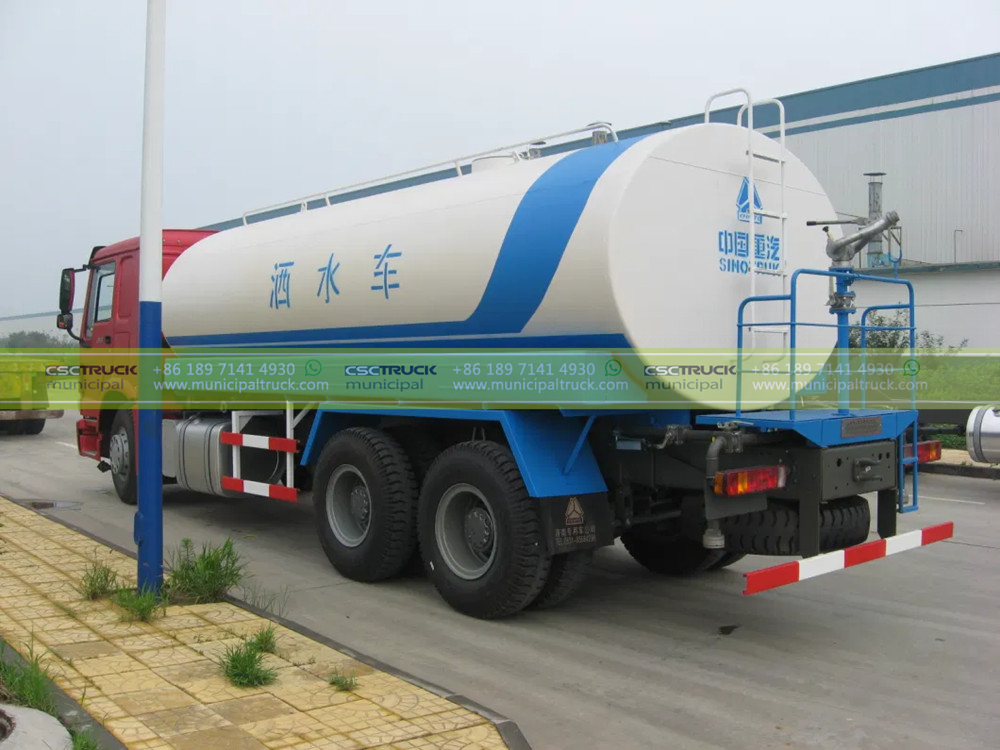

HOWO 25 Ton Water Tanker Sprinkler Truck

Brief:

The HOWO 25 Ton Water Tanker Sprinkler Truck, manufactured by CSCTRUCK, is a robust and versatile vehicle designed for efficient water transportation and distribution. With a focus on superior performance and reliability, this truck is engineered to meet various water supply needs while adhering to strict safety and environmental standards.

This water tanker sprinkler truck is a reliable and efficient solution for various water supply and distribution needs, making it an ideal choice for municipalities, construction sites, and agricultural applications. With its robust construction, exceptional performance, and advanced features, it offers a dependable and cost-effective solution for water transport and distribution challenges.

Features:

1. Impressive Load Capacity: The truck boasts a curb mass of 12,890 kg and a full-loaded mass of 25,000 kg, ensuring it can handle substantial water volumes without compromising stability.

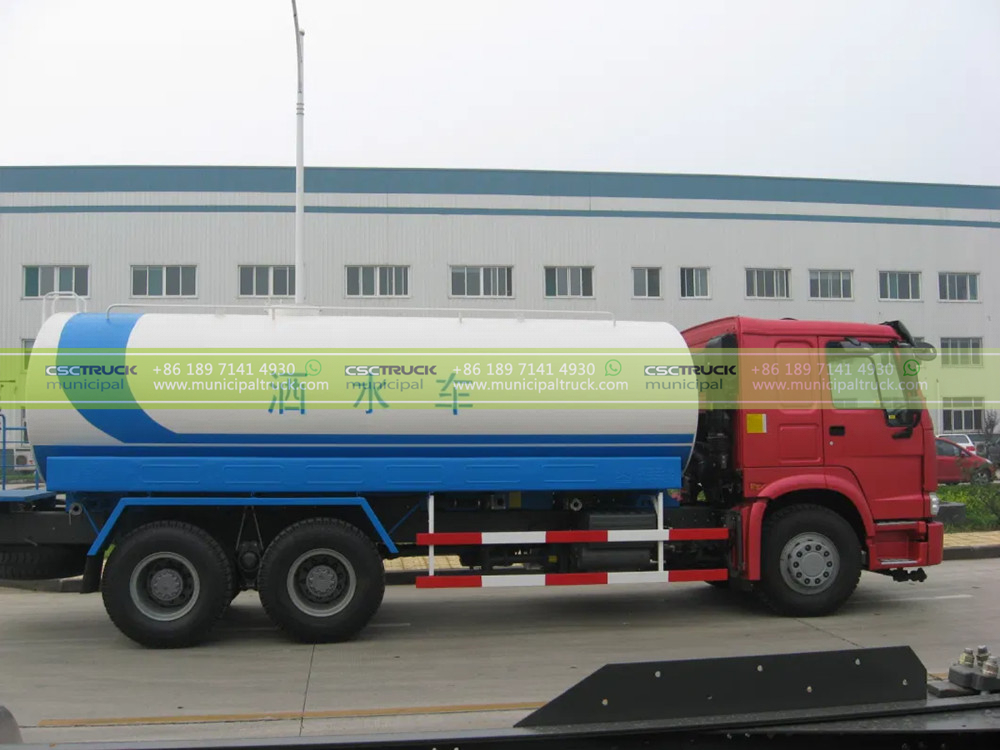

2. Optimal Dimensions: Its external dimensions, including a length of 9,630 mm, width of 2,496 mm, and height of 3,480 mm, offer a harmonious balance between maneuverability and substantial water tank capacity.
3. Exceptional Performance: Equipped with a potent WD615.87 engine delivering 290HP, this truck ensures efficient water delivery even over challenging terrains. The EURO II emission and turbo-charging technology contribute to reduced emissions and increased fuel efficiency.
4. Enhanced Mobility: The truck features a wheelbase of 4,350 + 1,350 mm and a minimum ground clearance of 295 mm, allowing it to navigate diverse landscapes effortlessly. It achieves a maximum speed of 90 km/h and an economic speed of 82 km/h while maintaining stability with an approach/departure angle of 10/12 degrees.
5. Effortless Maneuvering: With a minimum turning diameter of 24 meters, this water tanker truck can easily access confined spaces, making it suitable for urban and rural environments alike.

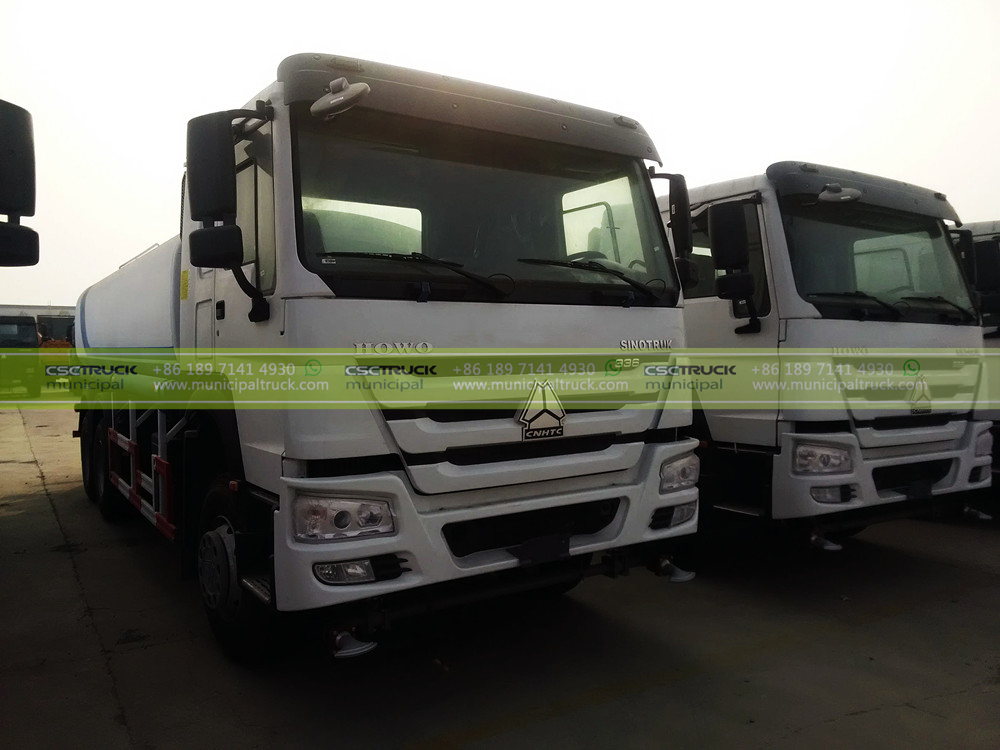

6. Driver Comfort: The spacious L2000 cab offers a comfortable and ergonomic workspace for the driver, complete with air conditioning for a pleasant driving experience.

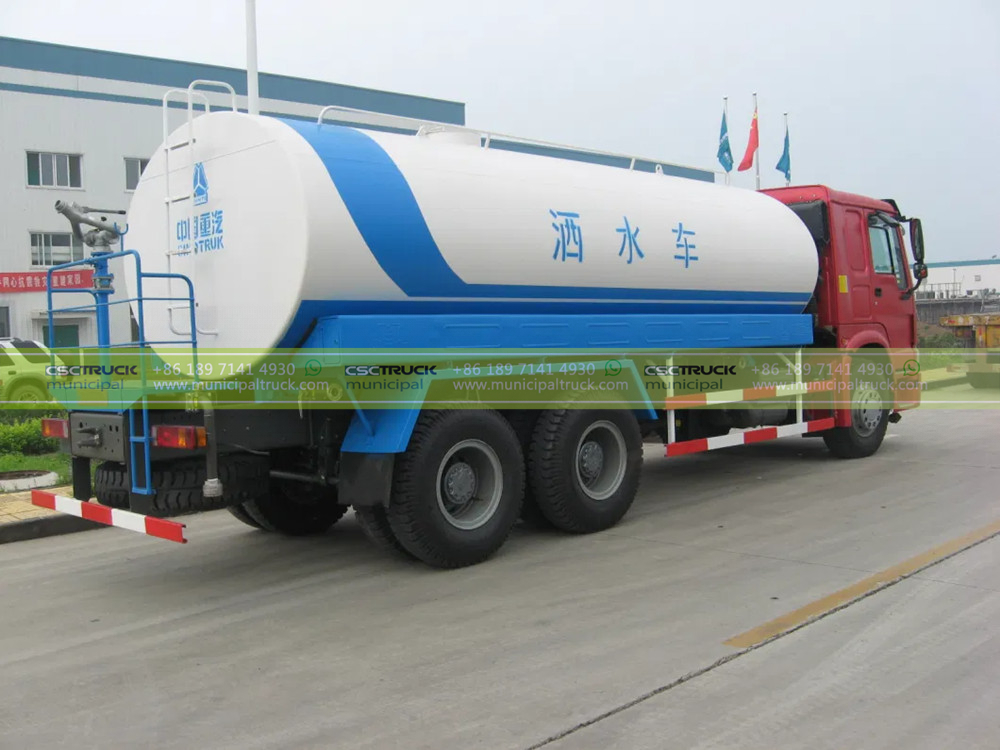

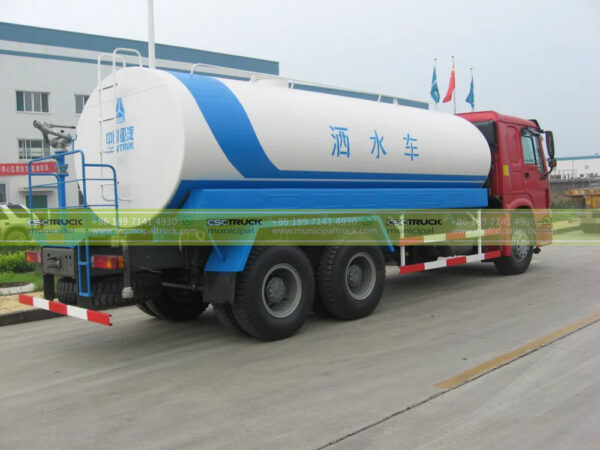

7. Durable Build: The tank, measuring 6,400 × 2,300 × 1,800mm, is constructed with 5mm thick carbon steel, ensuring durability and longevity. Its effective volume of 20m³ allows for substantial water storage.
8. Efficient Water Distribution: Equipped with a high-flow water pump capable of a 60m³/h flux, the truck facilitates efficient water distribution. It features both front and rear spray systems with a sprinkling width of 14-18 meters.

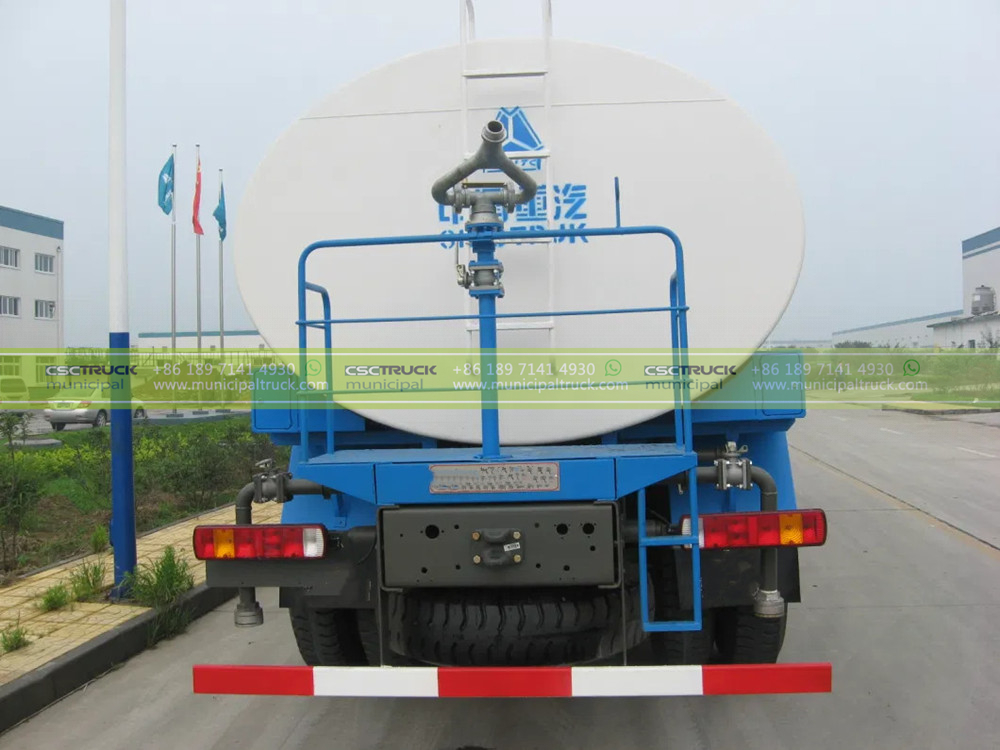

9. Versatile Water Cannon: The rear working platform is equipped with a high-pressure water cannon with an impressive range of 26 meters, ensuring versatile and effective water delivery.
10. Enhanced Functionality: The vehicle also features pressure discharge, self-suction capabilities, a side sprinkler, and essential safety components including fire valves, water valves, and filter gauze for optimal performance and safety.



SPECIFICATIONS:

Technical Parameters	Specifications
Brand	CSCTRUCK
Weight Parameter
Curb Mass (kg)	12,890
Full Loaded Mass (kg)	25,000
Dimension Parameter
External Size (mm)	Length (mm) – 9,630
	Width (mm) – 2,496
	Height (mm) – 3,480
Wheel Base (mm)	4,350 + 1,350
Min Ground Clearance (mm)	295
Performance Parameter
Max. Speed (km/h)	90
Economic Speed (km/h)	82
Approach/Departure Angle	10/12
Min Turning Diameter (m)	24
Vehicle Configuration
Cab	L2000 one bunk, with air conditioner
Engine	Model – WD615.87
	Power – 290HP
	EURO II Emission
	Displacement – 9,726cc
	Turbo-charging, Inter-cooler
	6 Cylinder In-Line
Gear Box	HW13710, With Power Takeoff
Rear Axle	HW1279
	Loading Capacity – 11,500 X 2 kg
	Caster Housing Ratio – 4.3
Steering System	D39, Hydraulic Steering With Power Assistance (Right Hand Drive)
Tire	12R22.5 Vacuum Tires, 11 Units
Water Tank Parameter
Overall Dimension of Tank	6,400 × 2,300 × 1,800mm
Effective Volume of Tank	20m³
Tank Wall Thickness	5mm Carbon Steel
Water Pump Flow	60m³/h Flux
Additional Features	Front Spray (Sprinkling Width 14-18m)
	Rear Sprinkle (Sprinkling Width 14-18m)
	Rear Working Platform with High-Pressure Water Cannon (Range 26m)
	Pressure Discharge, Self-Suction, Side Sprinkler
	Fire Valve, Water Valve, and Filter Gauze
