| Chassis | |
| Size | 5970×2000×2550(mm) |
| GVW/Curb Weight | 7,300kg/4,800kg |
| Wheelbase | 3,360mm |
| Front/Rear Axle | 2.58/4.72T |
| Tire | 7.00R16 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | ISUZU/4KH1CN5HS/130hp/Euro 5 |
| Transmission | |
| Make/Model | ISUZU/MSB |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | ISUZU 600P 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 5,000L |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
|
Sprinkler Pump |
Front flushing, side spraying, rear sprinkling nozzle and platform with water cannon and water gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |

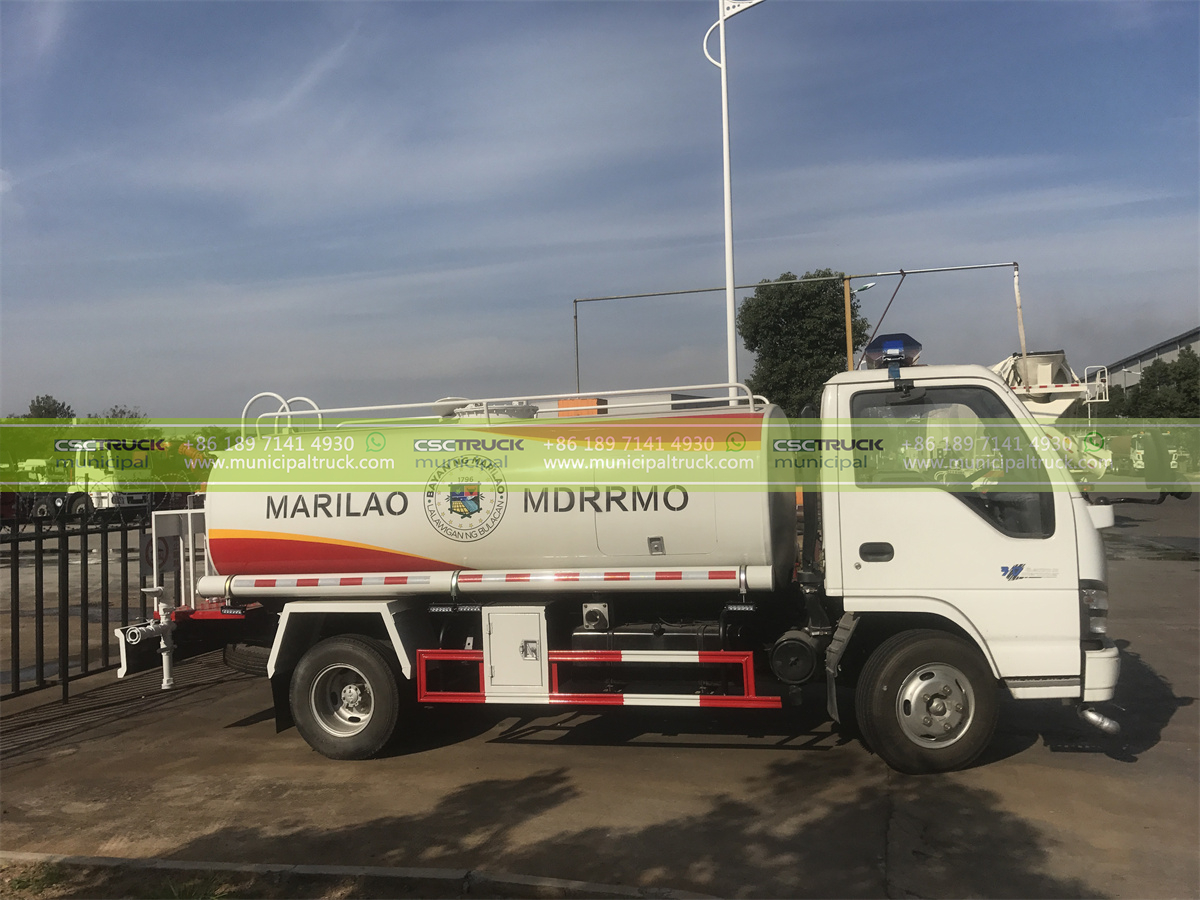

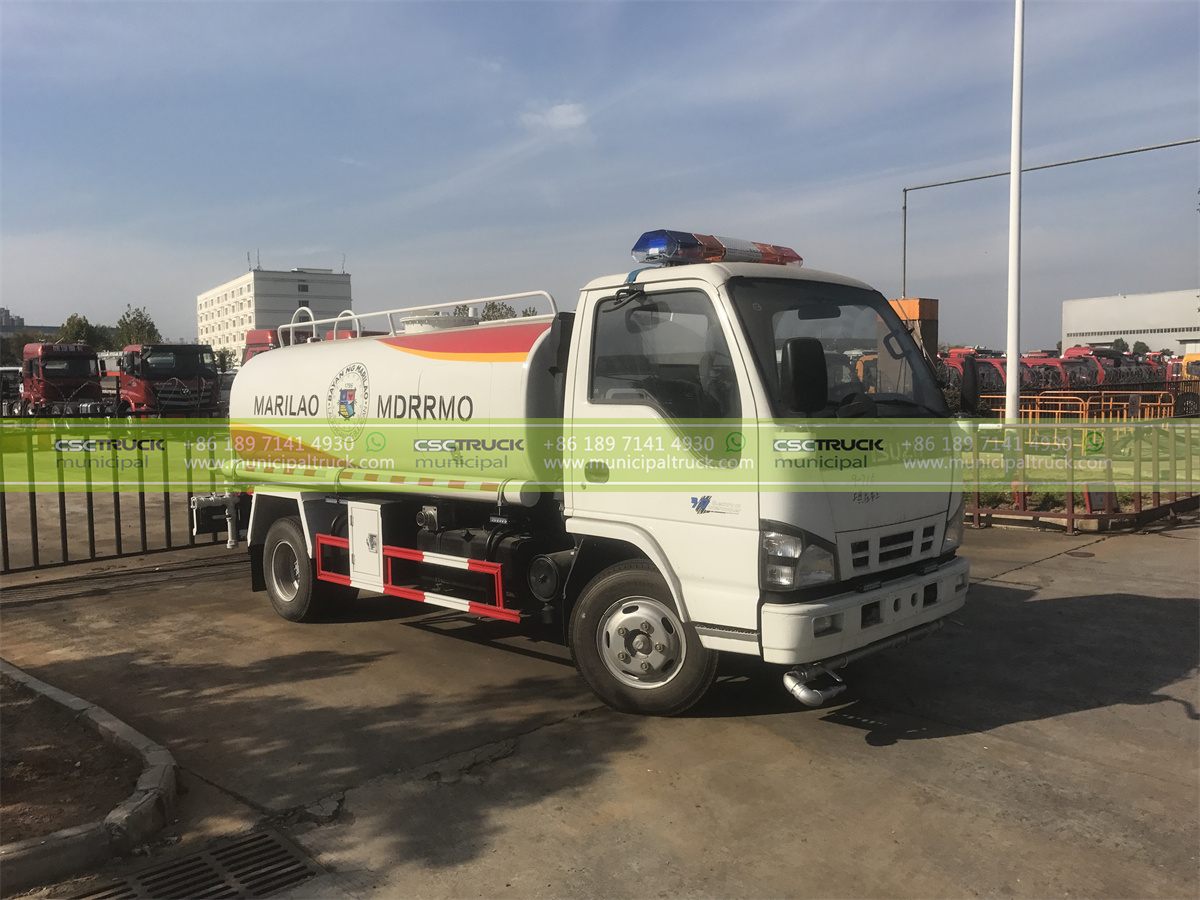

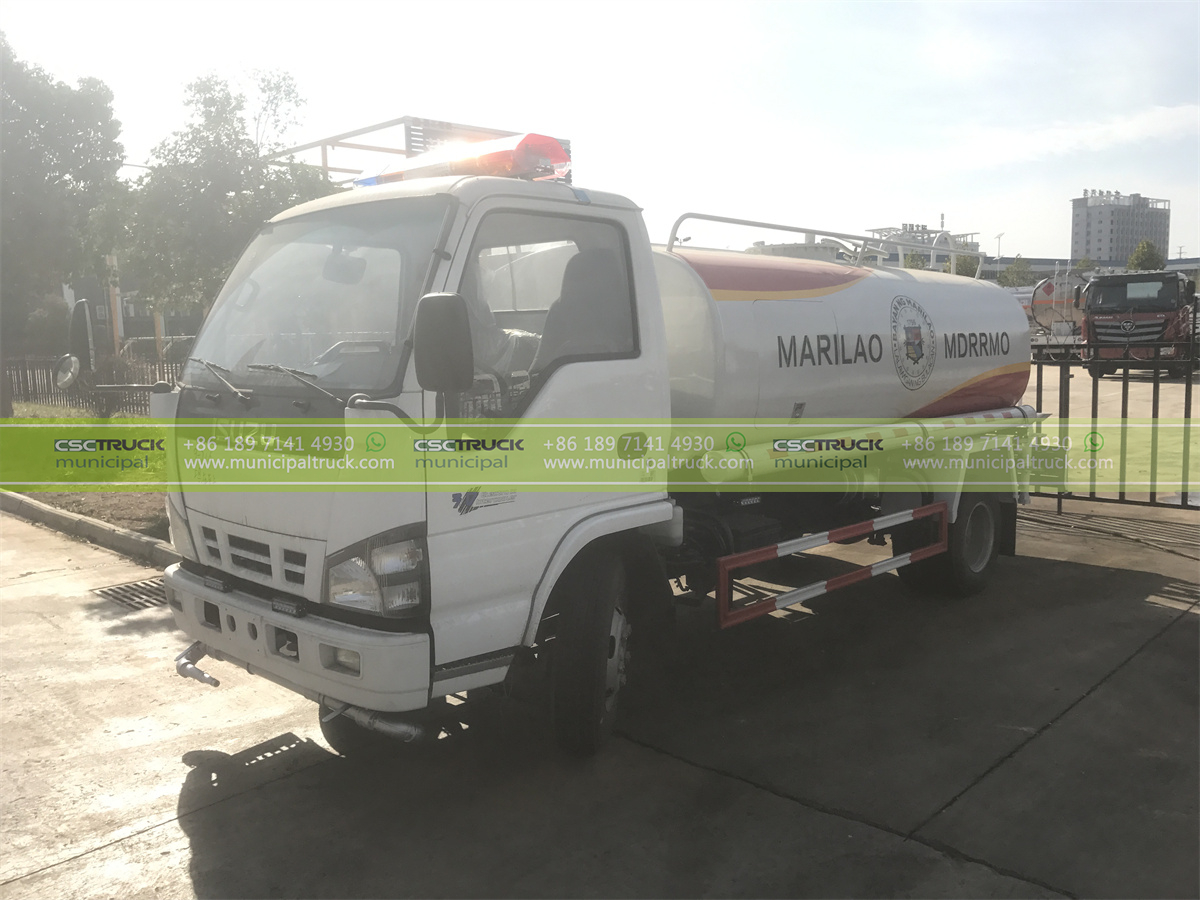

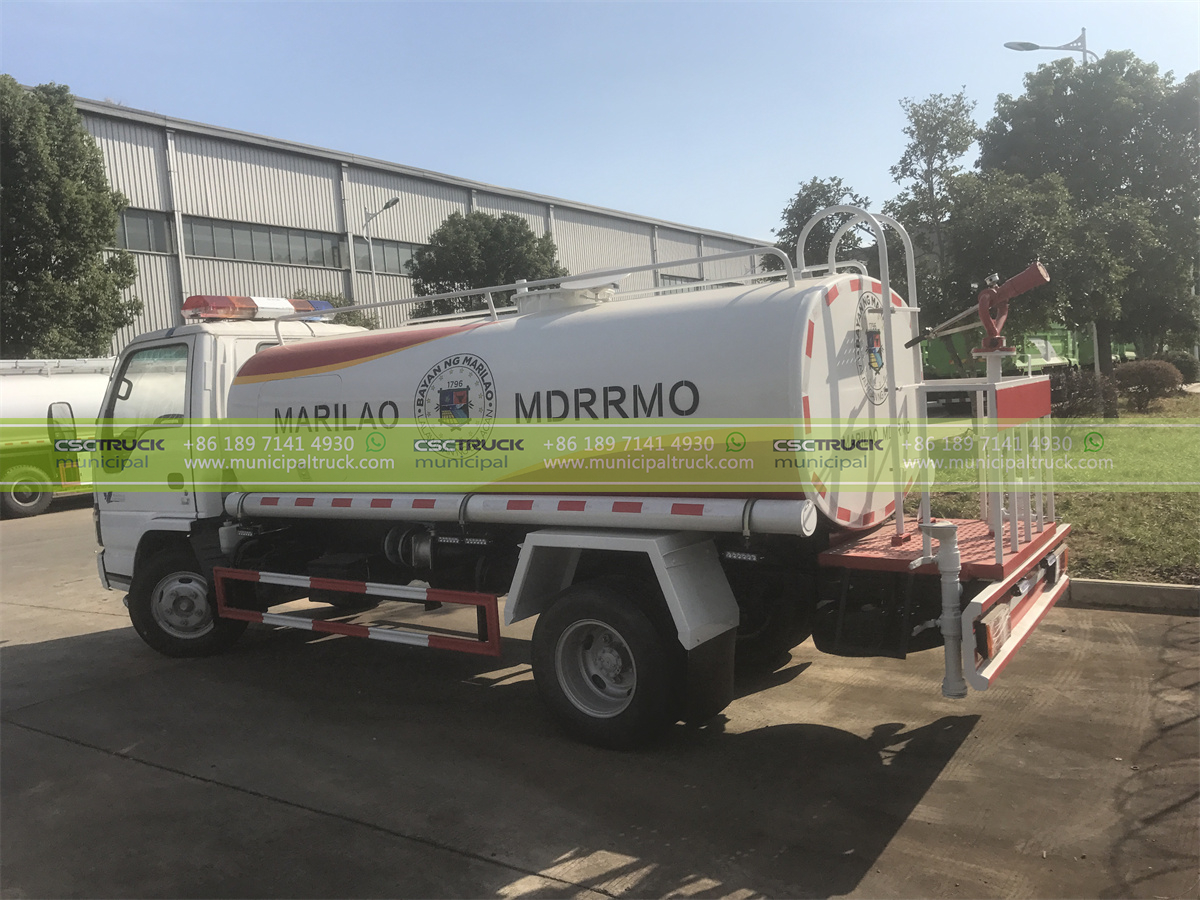

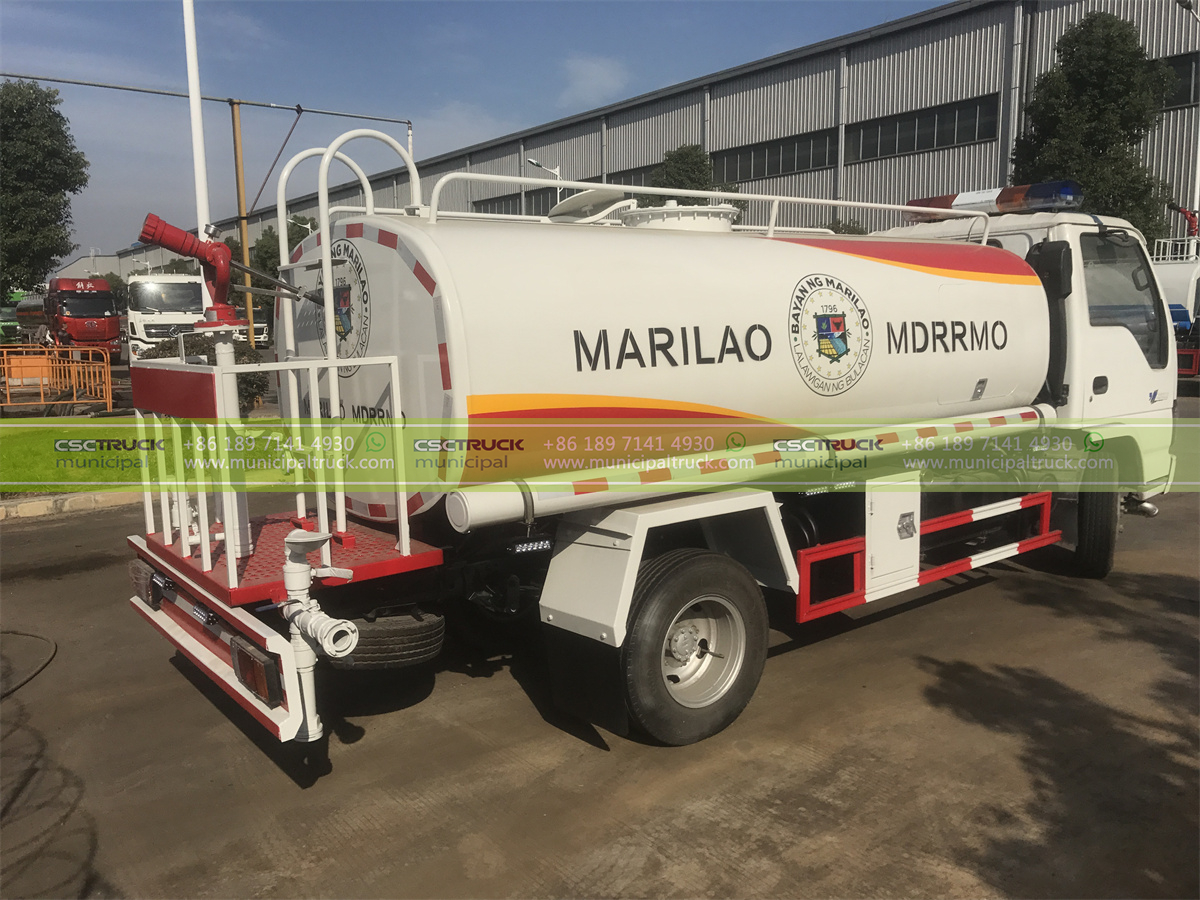

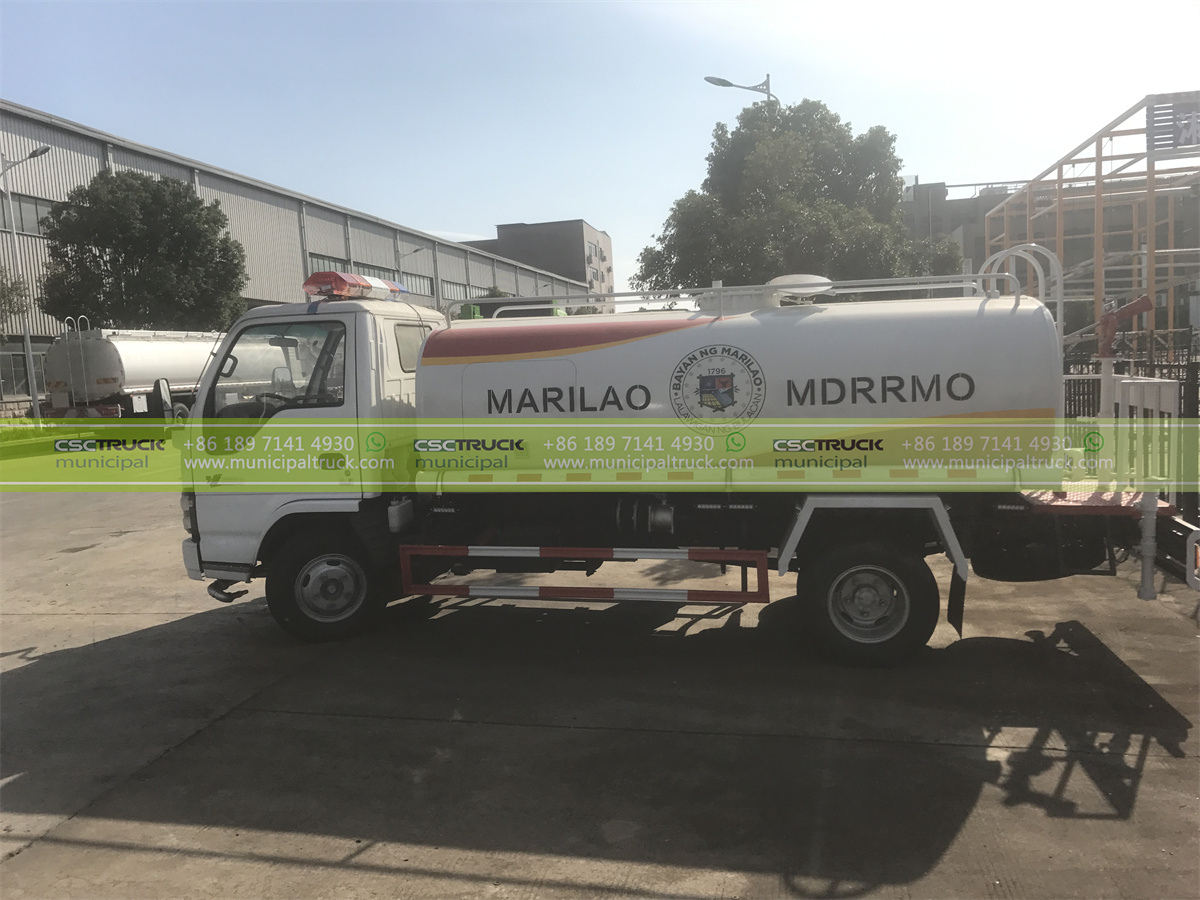

ISUZU 5,000L Water Spray Truck
| Make/Model | CSCTRUCK/WS05QL130L5 |
| GVW | 7,300kg, Medium Duty Vehicle |
| Cab Truck | ISUZU 600P 4×2 Day Cab |
| Engine | ISUZU/4KH1CN5HS/130hp/Euro 5 |
| Transmission | ISUZU/MSB manual 5+1 Speed |
| Water Tank Capacity | 5,000 Liters,5 Cubic Meters,1321 Gallon |
| Certification | CCC, ISO14001:2015, ISO45001∶2018, ISO9000, ISO9001:2015, RoHS |
|---|---|
| Chassis Truck | ISUZU |
| Color | Customized Color |
| Condition | New |
| Country of Origin | |
| Customized | Yes |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Emission Standard | Euro V |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | LHD |
| Terms of Payment | T/T |
| Truck Class | Medium Duty |
| Warranty Period | 12 Months |
