SUMMARY:

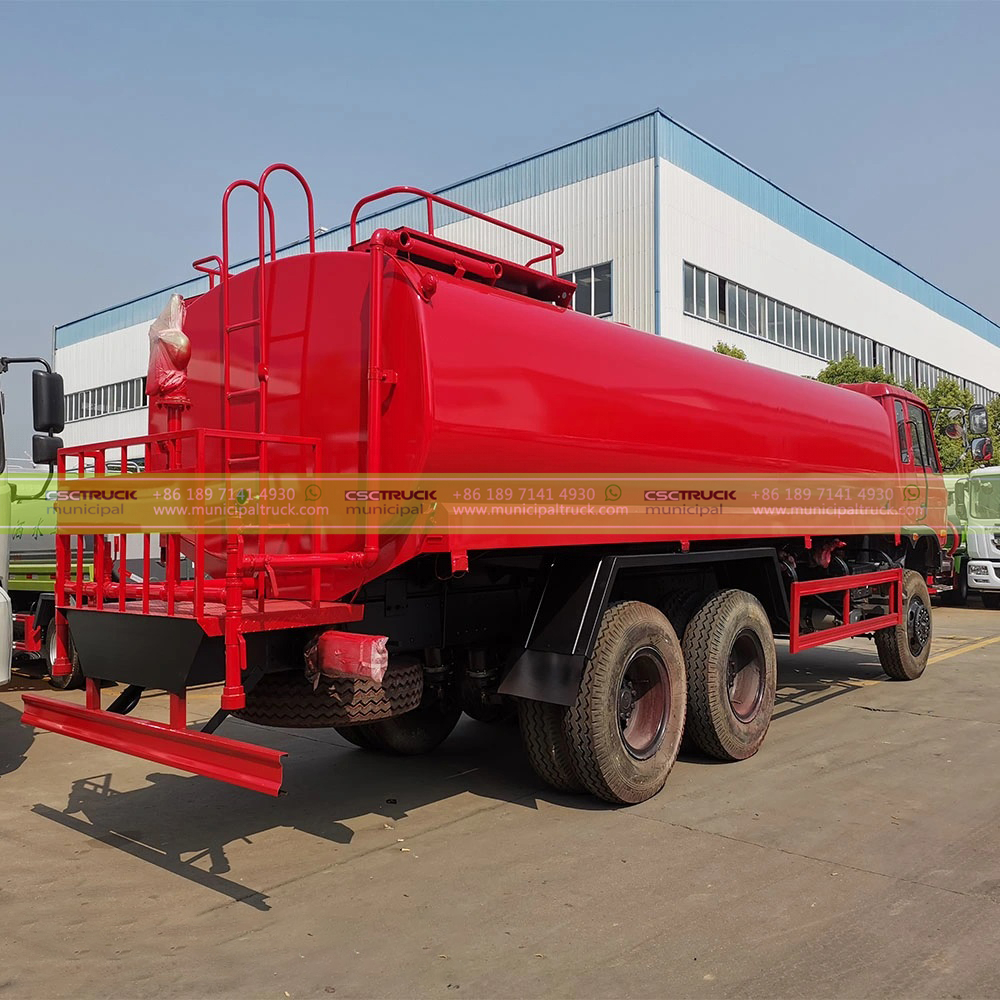

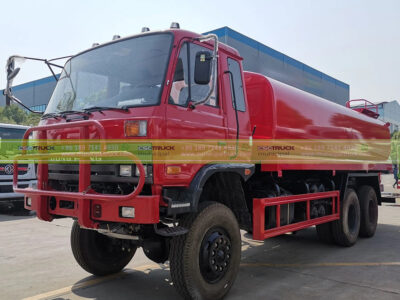

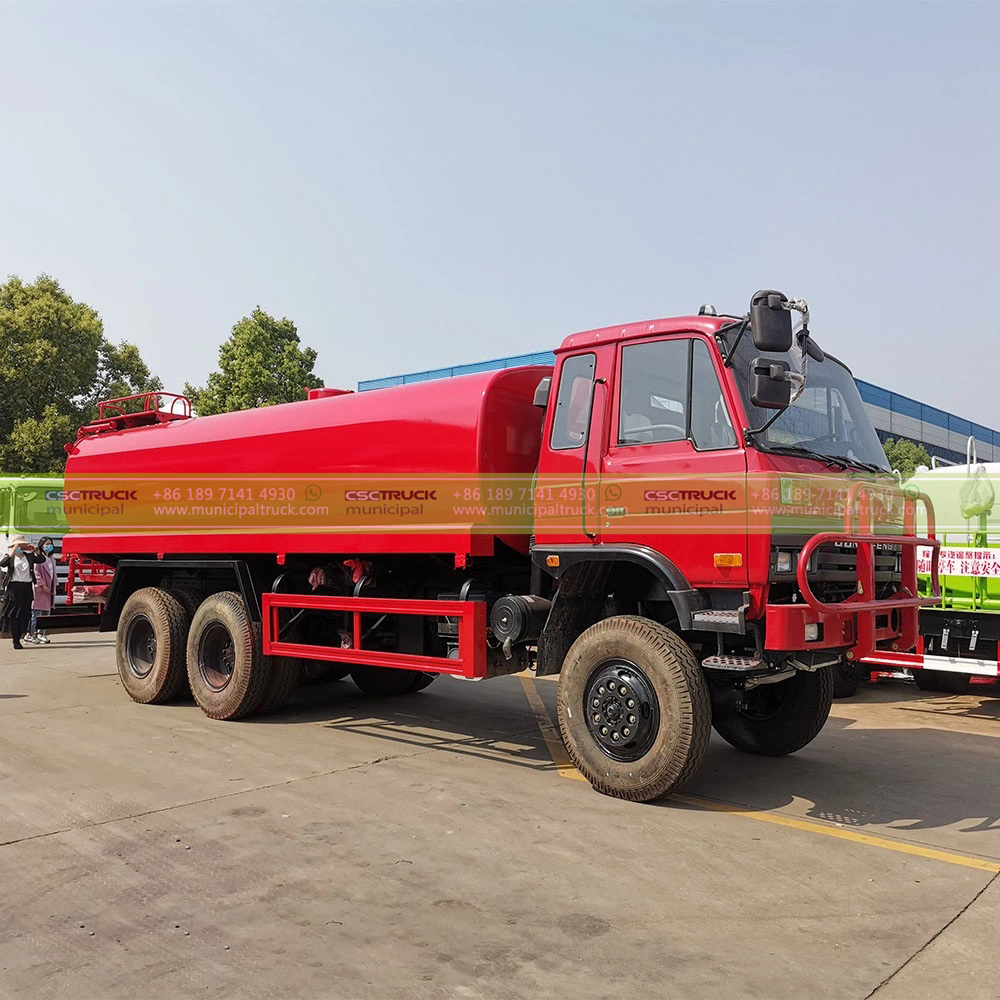

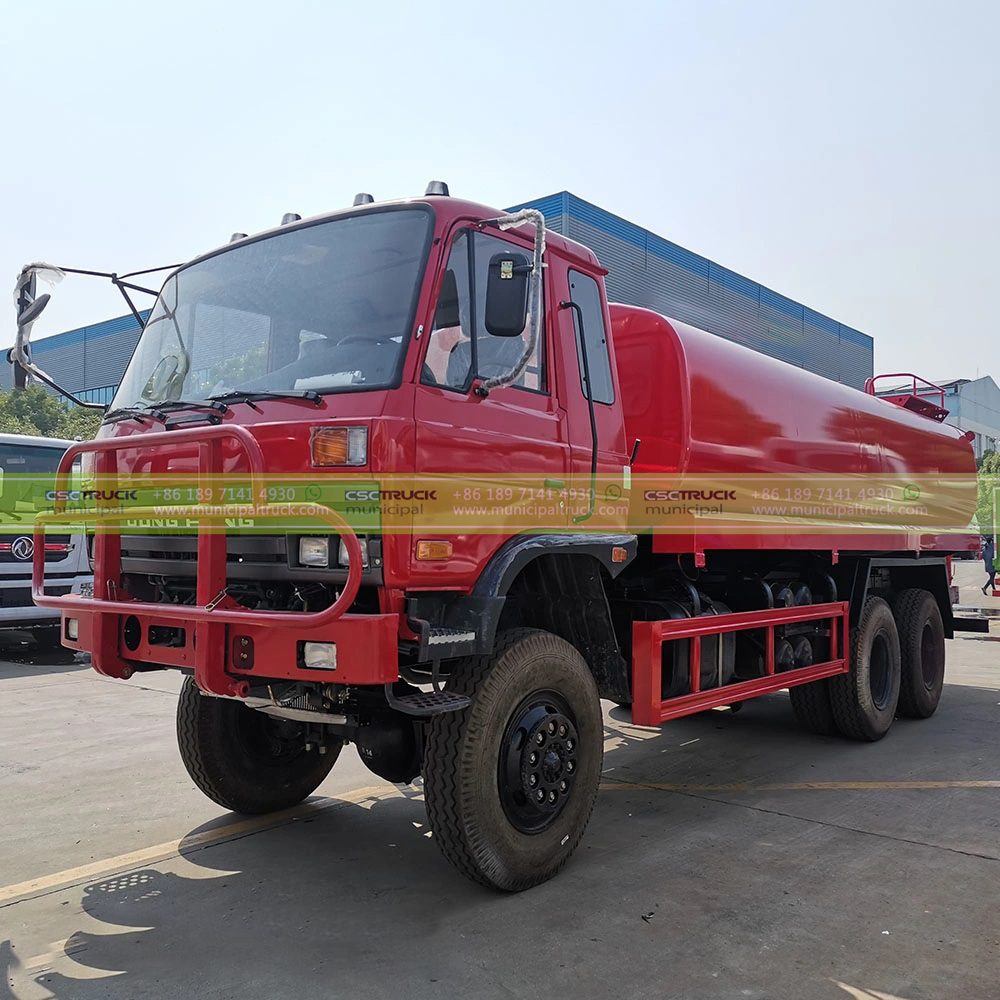

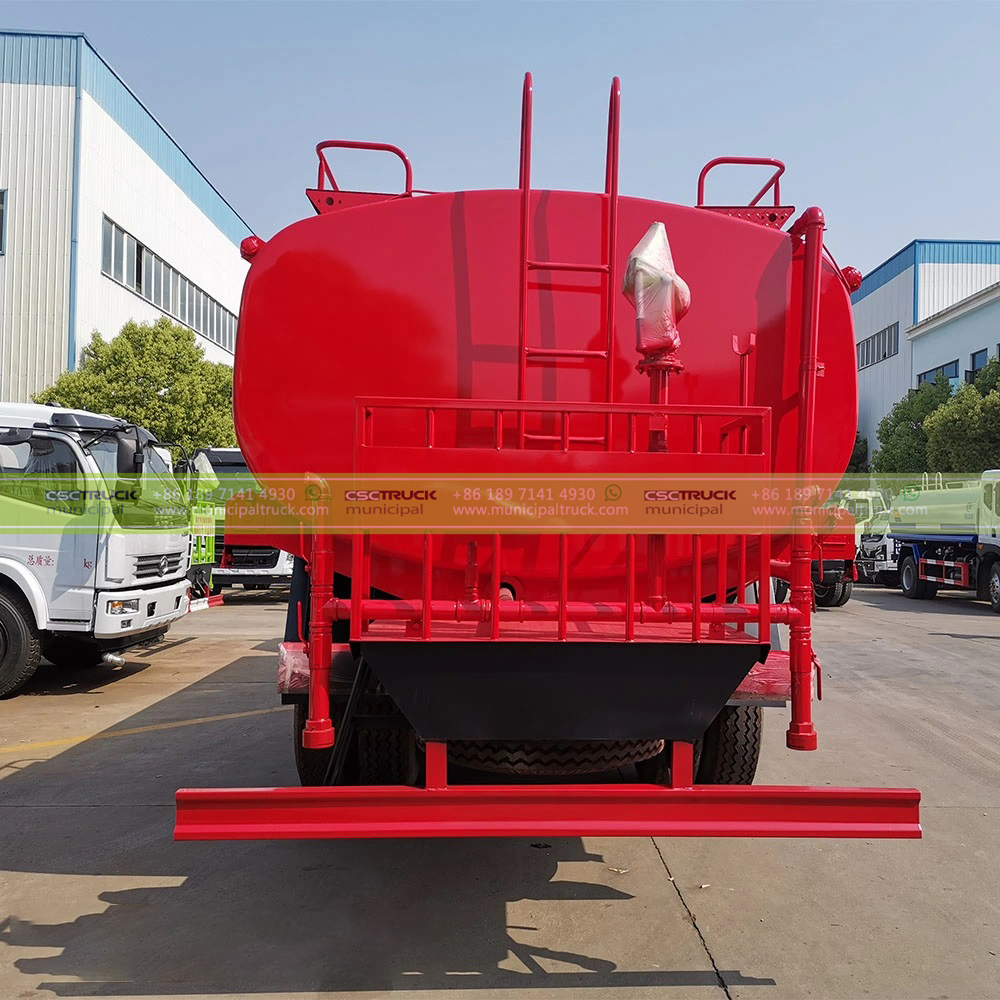

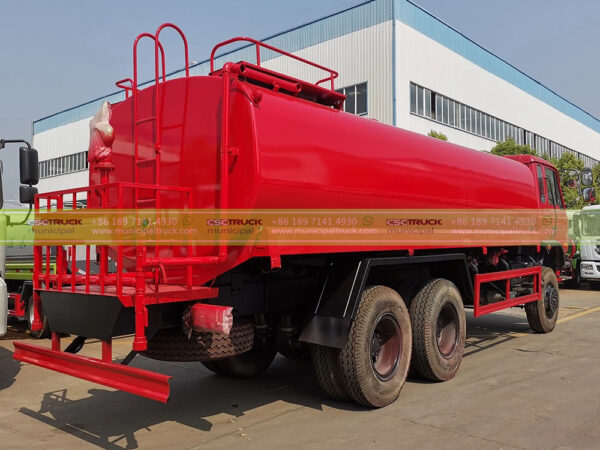

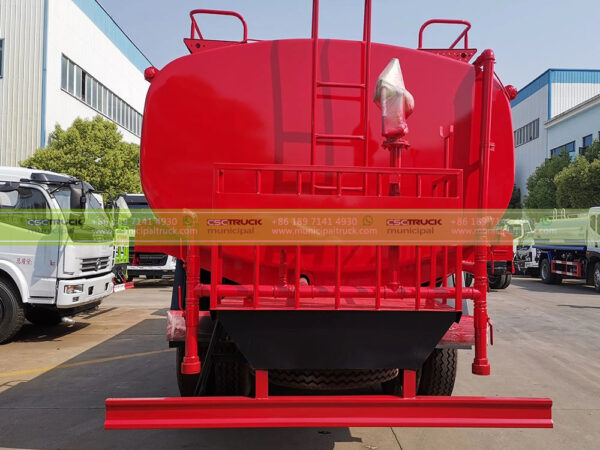

The DONGFENG Military Water Sprinkler Truck is a robust and efficient vehicle designed to fulfill water sprinkling and spraying needs in a variety of applications. With its powerful engine, comprehensive body system, and advanced features, this truck is optimized for military and civilian use, ensuring effective and precise water distribution.
This Water Sprinkler Truck offers high-capacity water storage, efficient distribution capabilities, and advanced components to meet a wide range of water-spraying requirements, making it a reliable choice for both military and civilian applications.
FEATURES:
- Chassis Size: 8,415 × 2,430 × 2,920mm
- GVW/Curb Weight: 18,000kg/6,340kg
- Wheelbase: 4,500mm
- Front/Rear Axle: 6.5/11.5T
- Tire: 10.00R20, equipped with 6+1 tires
- Engine Type: Diesel
- Engine Make/Model: WEICHAI/WP6.240, 240hp, Euro 3 emission standard
- Transmission Make/Model: FAST/8JS, 8 forward gears and 2 reverse gears, operated manually
- Cabin: FOTON AUMARK 4×2 Day Cab, Left-hand Drive, Steel construction, Single Row, accommodates up to 3 passengers
- Body System:

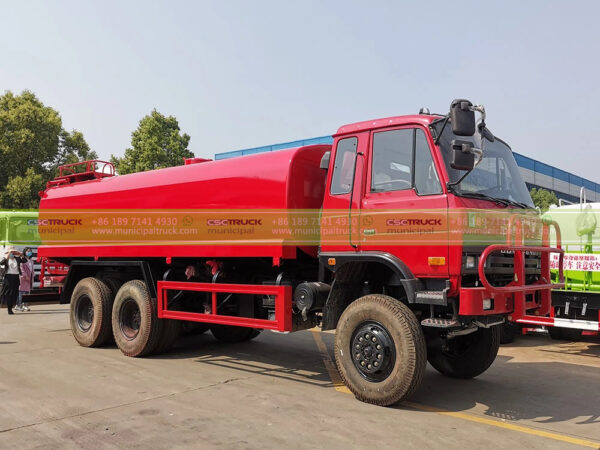

- Tanker Capacity: 12CBM
- Shape: Optimized design for efficient water storage and distribution
- Material: Tank body constructed from durable Stainless Steel 304
- Thickness: Tank Body 6mm for longevity and reliability
- Performance:
- Spraying Width: Achieves a spraying width of ≥14m
- Canon Range: Covers a canon range of ≥35m
- Suction Height: Can suction water from heights greater than 7m
- Full Tank Suction Time: Fills the tank in under 15 minutes
- Equipment:
- Sprinkler Pump: Equipped with a high-performance stainless steel self-priming sprinkler pump
- Flow Rate: Provides a flow rate of 60m³/h
- Lift Height: Capable of lifting water up to 90m
- Self-priming Height: Self-priming from heights of up to 7m
- Other Parts: Includes self-flow valve (1pc), fire joint (1pc), and water pipe (2pcs)
- Water Cannon: Features a 360-degree rotatable water cannon with adjustable water flow settings for various levels of water distribution, from heavy rain to mist.
- Sprinkler Pump: Equipped with a high-performance stainless steel self-priming sprinkler pump
Specifications:
| Chassis | |
| Size | 8,415×2,430×2,920mm |
| GVW/Curb Weight | 18,000kg/6,340kg |
| Wheelbase | 4,500mm |
| Front/Rear Axle | 6.5/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP6.240/240hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/8JS |
| Gears | 8F+2R |
| Operation | Manual |
| Cabin | |
| Driving | FOTON AUMARK 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 12CBM |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
|
Sprinkler Pump |
Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and water gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
