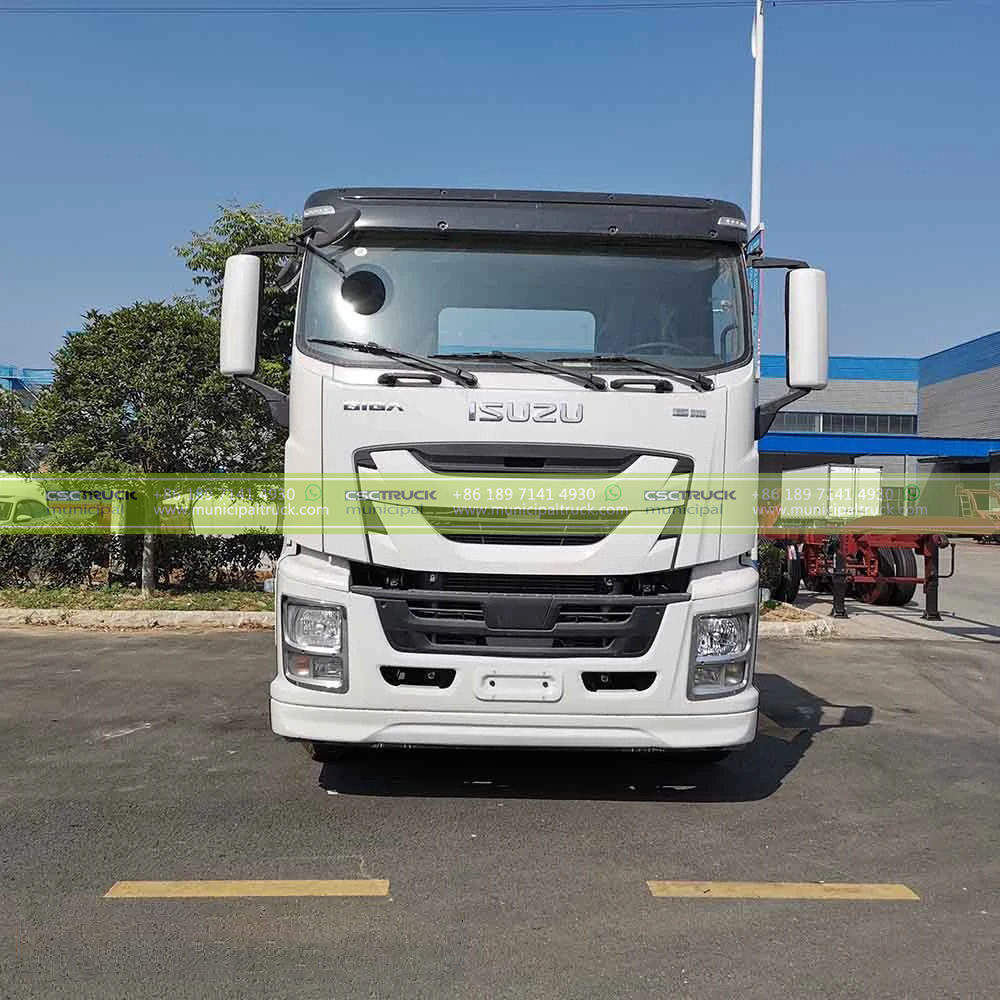

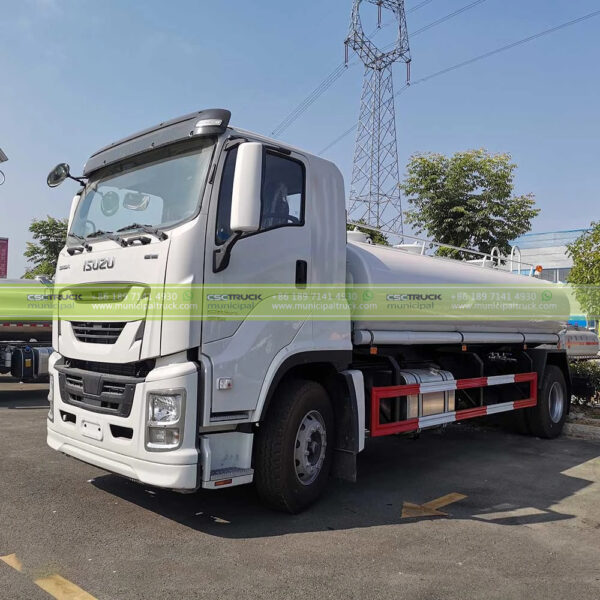

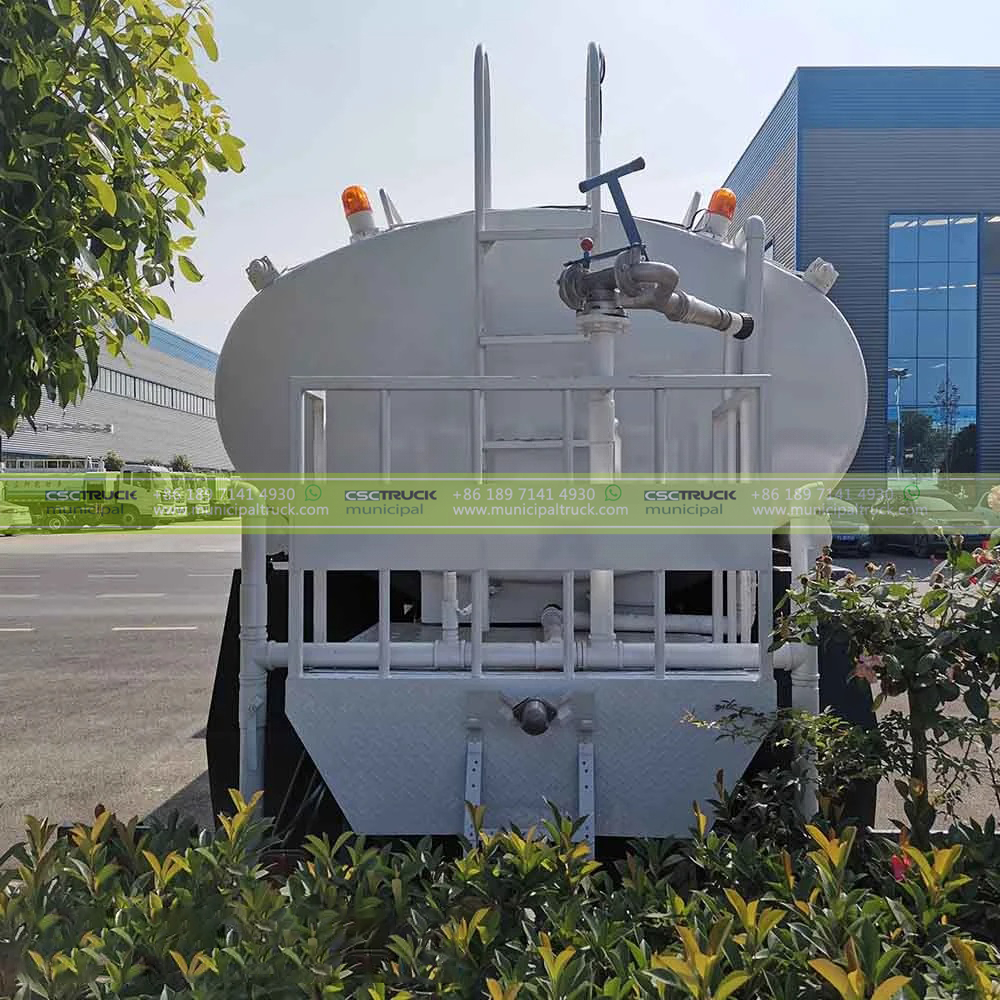

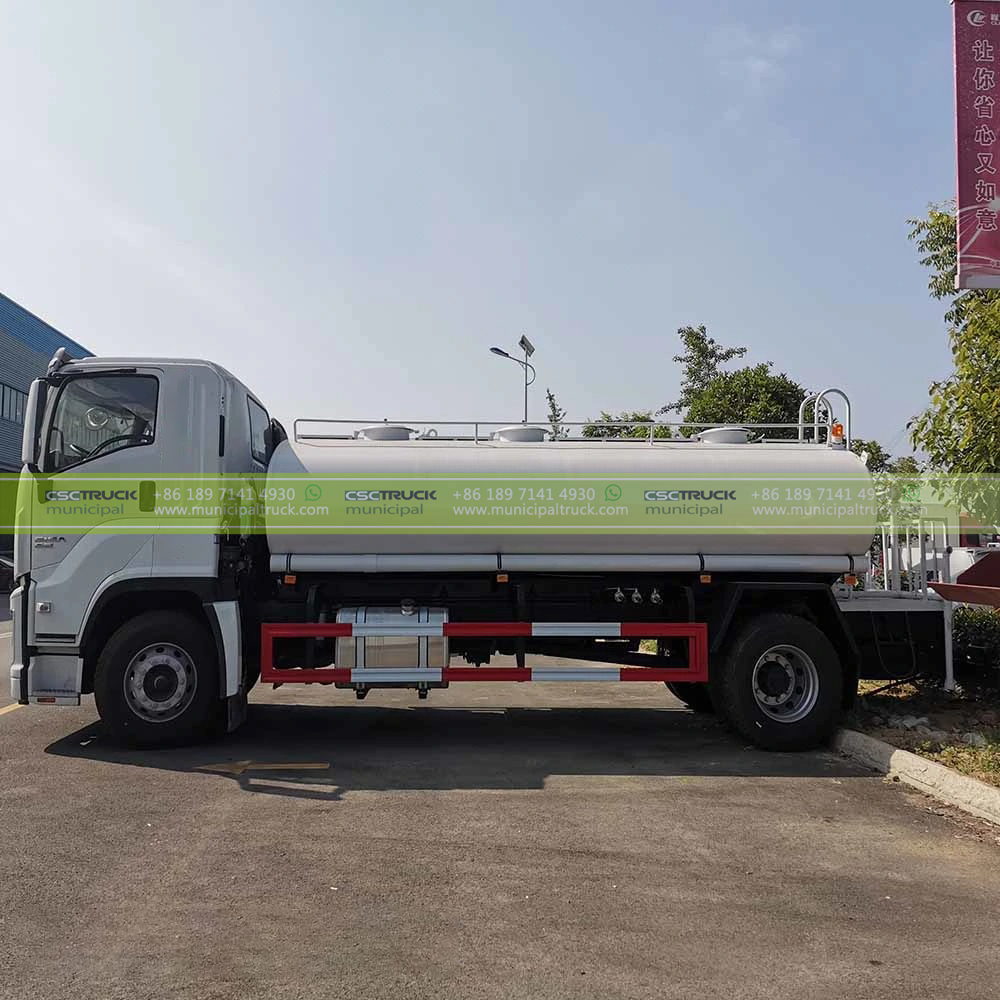

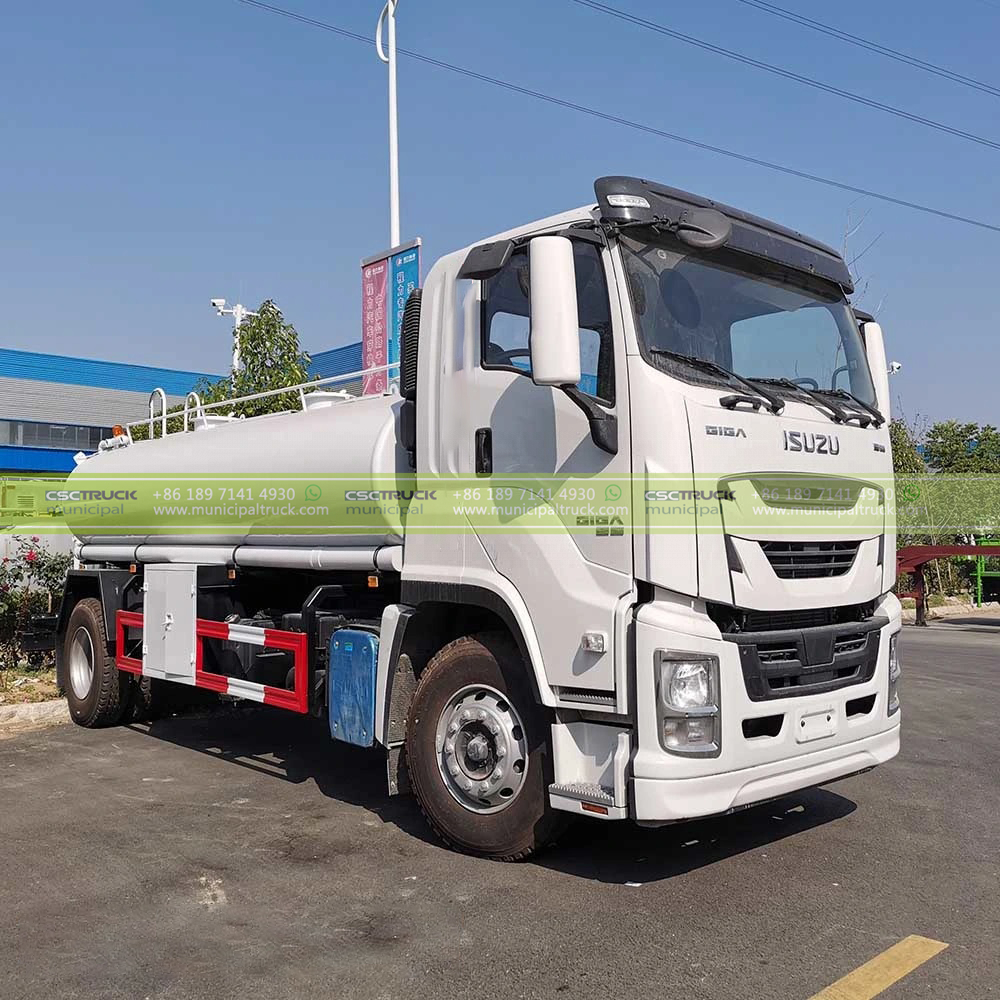

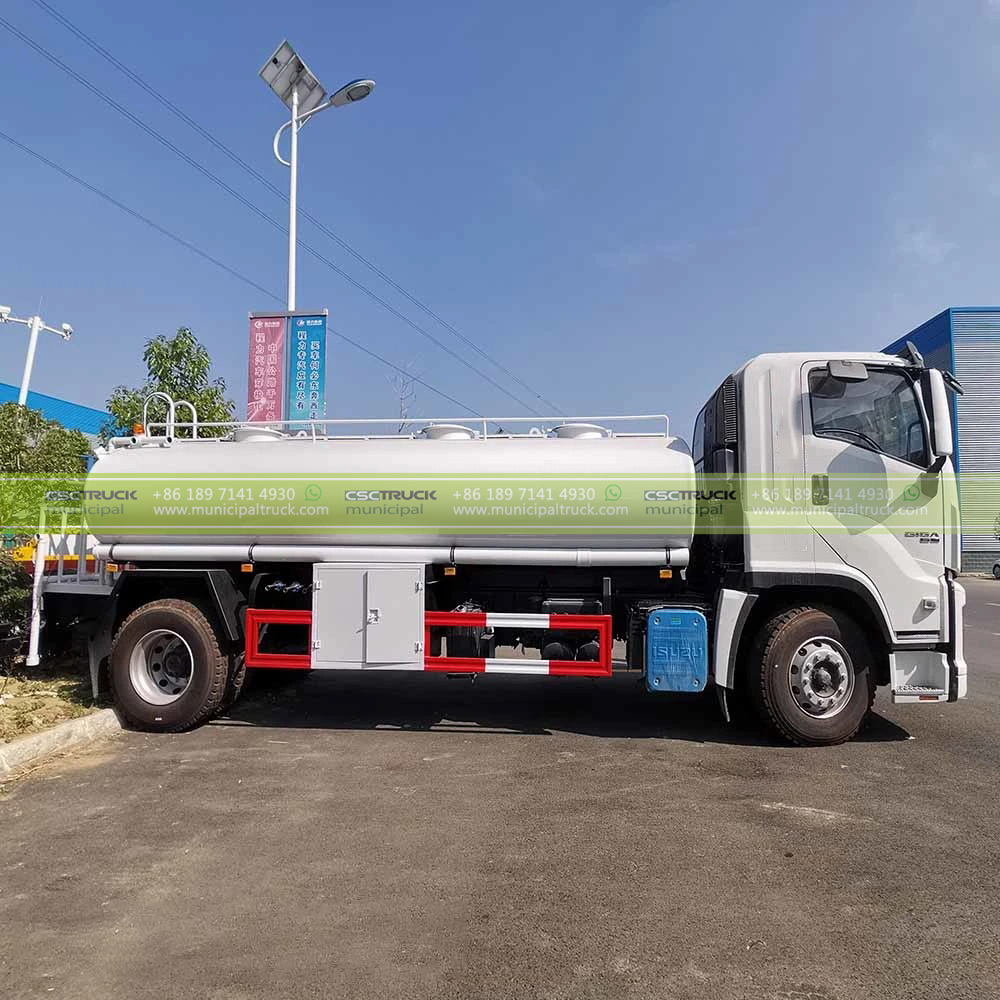

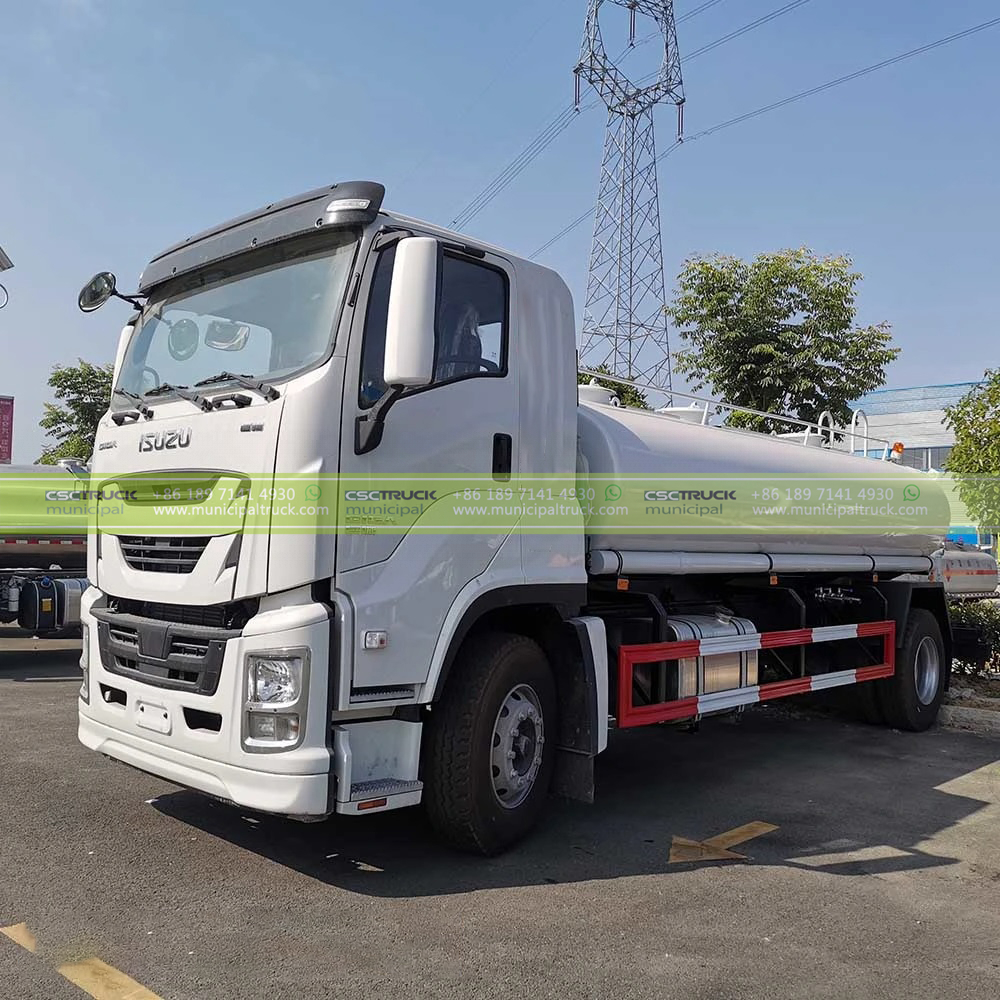

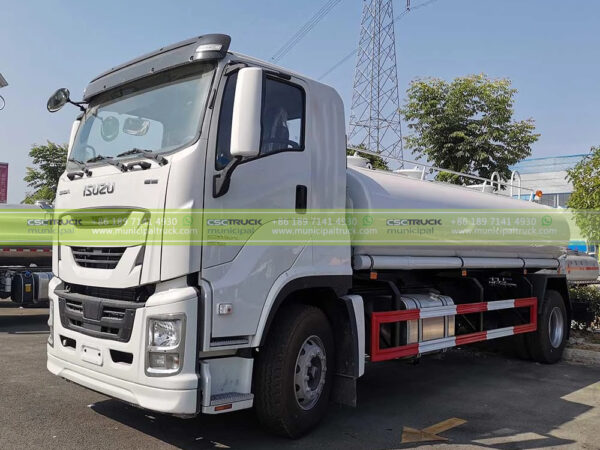

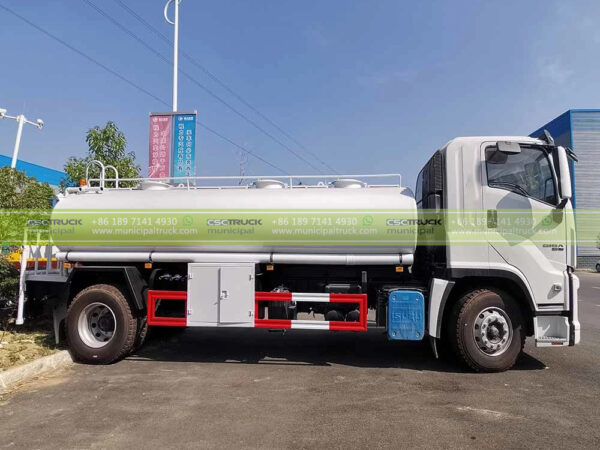

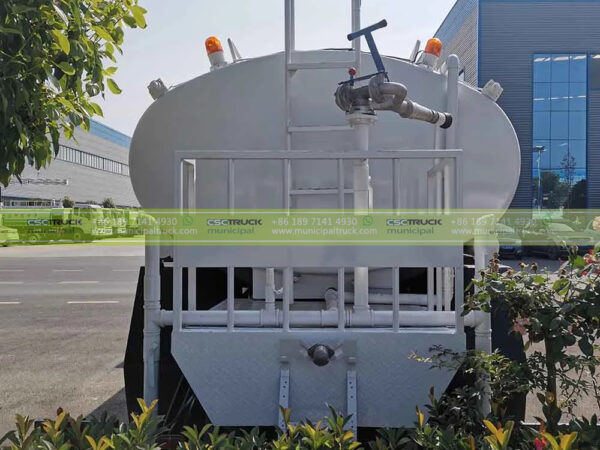

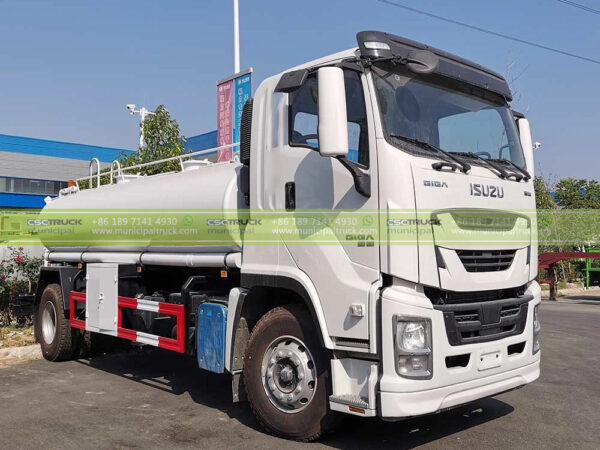

ISUZU 16CBM Water Tank Sprayer

Chassis
Size	7,500×2,450×3,150(mm)
GVW/Curb Weight	18,000kg/9,800kg
Wheelbase	5600mm
Front/Rear Axle	6.5/11.5T
Tire	12.00R20 6+1 tires
Engine
Type	Diesel
Make/Model	ISUZU/6UZ1-TCG51/350hp/Euro 5
Transmission
Make/Model	FAST/10JS90A
Gears	10F+2R
Operation	Manual

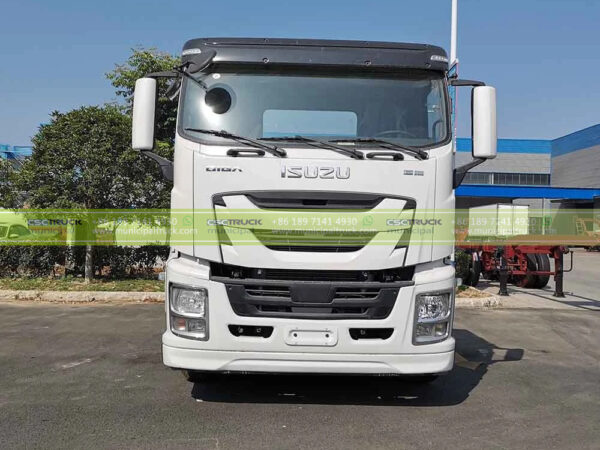

Cabin
Driving	ISUZU GIGA 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Body System

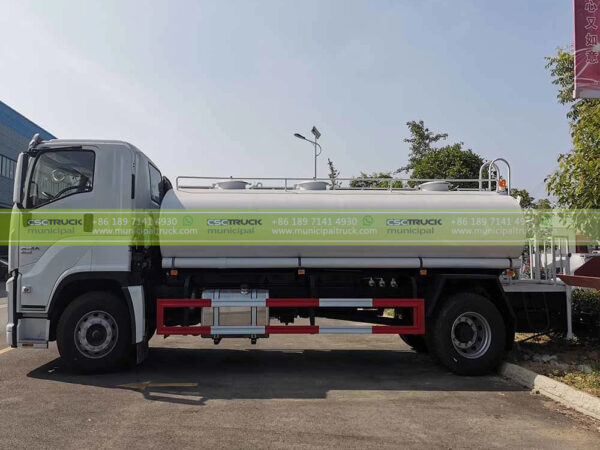

Tanker Capacity	16,000L
Shape
Material	Stainless steel 304
Thickness	Tank Body 6mm
Performance
Spraying Width(m)	≥14m
Canon Range(m)	≥35m
Suction Height	>7m
Full Tank Suction Time	<15 minutes
Equipment
Sprinkler Pump	Front flushing, side spraying, rear sprinkling nozzle and platform with water cannon and water gun. The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle and mist.
Type	Stainless steel self-priming sprinkler pump
Flow Rate	60m³/h
Lift Height	90m
Self-priming Height	7m
Other Parts
Include	Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs

Certification	CCC, ISO14001:2015, ISO45001∶2018, ISO9000, ISO9001:2015, RoHS
Chassis Truck	ISUZU
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	4×2
Emission Standard	Euro V
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Heavy Duty
Warranty Period	12 Months
