BRIEF

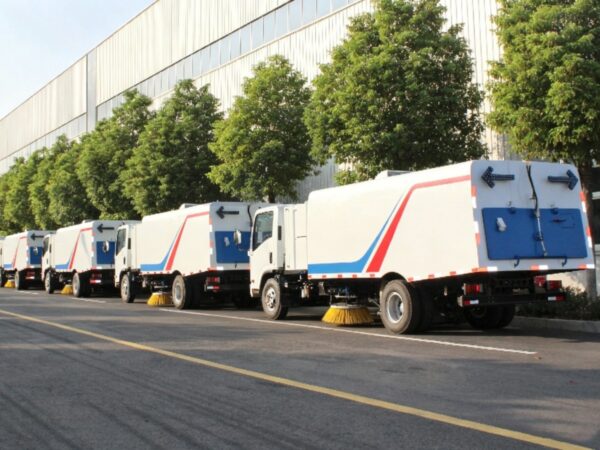

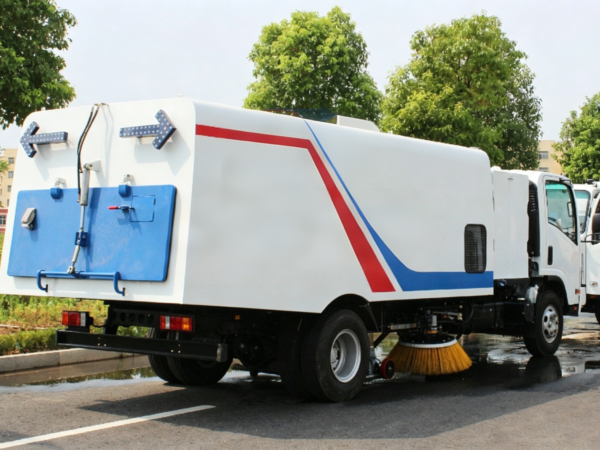

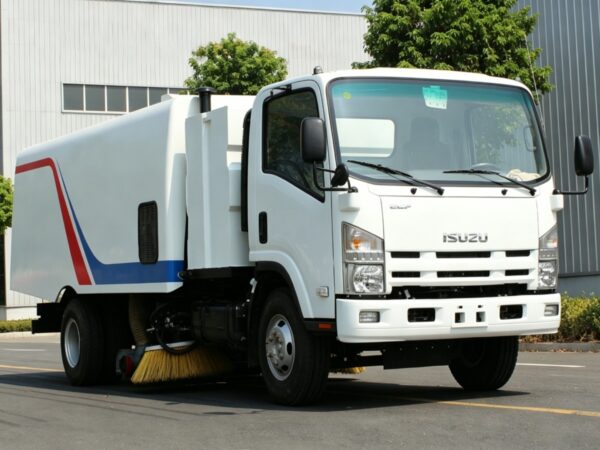

The ISUZU 700P Airport Runway Sweeper Truck is a high-performance regenerative air sweeper built on the reliable ISUZU 700P chassis, specially designed for cleaning airport runways, taxiways, aprons, and ramps. Combining powerful suction technology with mechanical sweeping, it provides efficient FOD (Foreign Object Debris) removal to eliminate debris such as gravel, metal fragments, and other hazards that may affect aircraft safety. It is also suitable for municipal roads, public areas, and industrial sites.

Powered by the ISUZU 4KH1-TCG40 diesel engine (190 HP) and matched with an ISUZU 6-speed manual transmission, the sweeper delivers stable performance and excellent fuel efficiency. The independent Cummins B140 auxiliary engine drives the suction and hydraulic systems, allowing optimized operation. Equipped with a 5m³ stainless steel dust bin, 4m³ water tank, four wear-resistant brushes, and an adjustable sweeping width of 3.0–3.5 meters, it achieves high cleaning efficiency with a maximum capacity of up to 64,000 m²/h.

Designed for durability and easy maintenance, the sweeper uses high-quality hydraulic and electrical components to ensure reliable operation in demanding airport environments. The regenerative air system reduces dust during cleaning, while the water spray system improves air quality and visibility. With strong maneuverability, efficient waste unloading, and low operating costs, the airport sweeper truck provides airports and large facilities with a reliable long-term cleaning solution.

FEATURE

1. Reliable ISUZU 700P Chassis
Built on the trusted ISUZU 700P chassis, this sweeper offers excellent durability, stable driving performance, and easy maintenance support, making it suitable for long-term airport and municipal operations.

2. Powerful ISUZU 4KH1-TCG40 Engine (190 HP)
The turbocharged diesel engine delivers strong power output and efficient fuel consumption, ensuring reliable performance even during continuous high-intensity cleaning tasks.

3. Independent Cummins B140 Sweeping Power System
The dedicated auxiliary engine independently powers the suction fan and hydraulic system, allowing the main engine to focus on driving while improving sweeping efficiency and reducing overall fuel consumption.

4. Large-Capacity Stainless Steel Tanks
The 5m³ dust hopper and 4m³ water tank are made from corrosion-resistant stainless steel, providing excellent durability in harsh environments while reducing maintenance requirements.

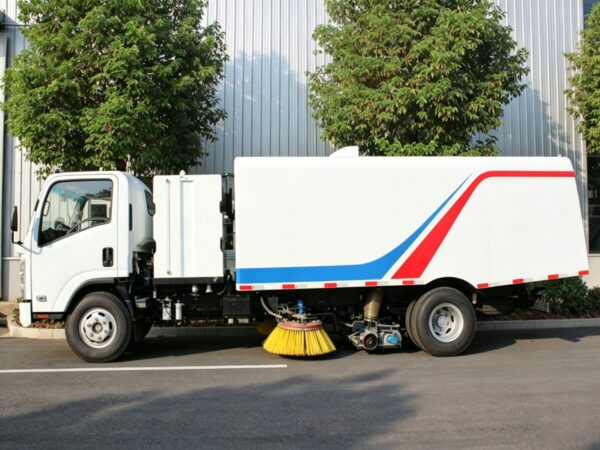

5. Heavy-Duty Brush Sweeping System
Equipped with four 900mm wear-resistant brushes, the system provides strong debris collection capability. The low-maintenance rotating mechanism ensures stable performance during frequent operations.

6. Smart Obstacle-Avoidance Brush Technology
The patented brush protection system automatically reduces the risk of damage when working around runway lights, signs, and other airport infrastructure, extending brush service life.

7. Advanced Regenerative Air Sweeping Technology
The high-efficiency airflow system lifts and captures fine dust and debris while minimizing secondary dust pollution, helping maintain cleaner and safer airfield surfaces.

8. Premium Hydraulic Components
Using high-quality hydraulic motors and control valves, the system delivers precise operation, reliable performance, and improved durability under demanding working conditions.

9. Efficient Suction and Dust Control System
The maintenance-free suction fan provides consistent airflow and powerful debris collection, while the water spray system suppresses airborne particles and improves cleaning quality.

10. Flexible Cleaning Coverage
With an adjustable working width of 3.0–3.5 meters, the sweeper can adapt to different airport areas, including runways, taxiways, aprons, and industrial roads.

11. Operator-Friendly Control System
All major sweeping functions are integrated into the cabin controls, allowing operators to manage cleaning operations conveniently from a comfortable air-conditioned environment.

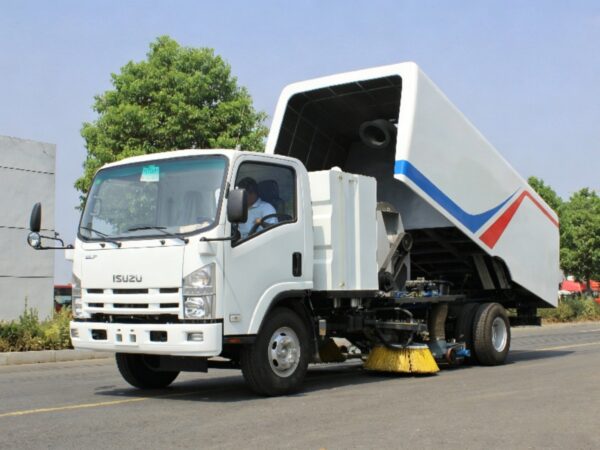

12. Fast Waste Unloading System
The hydraulic tipping mechanism with a dumping angle above 40° enables quick and complete discharge of collected debris, improving overall productivity.
