BRIEF

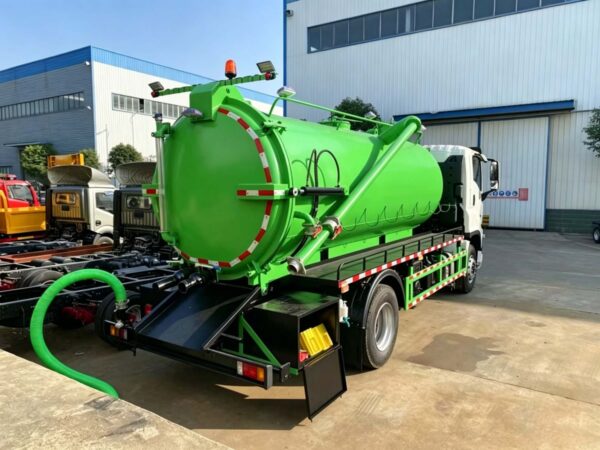

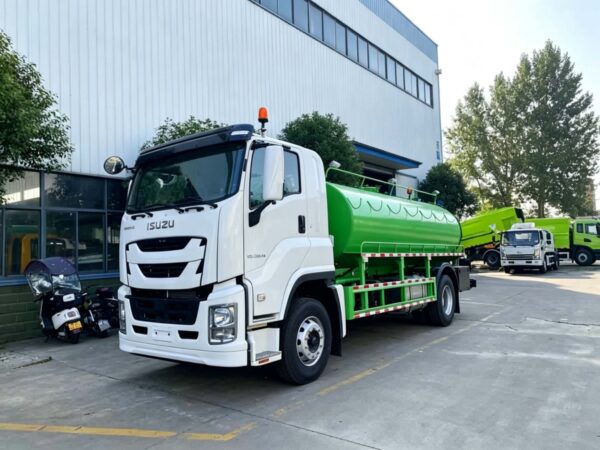

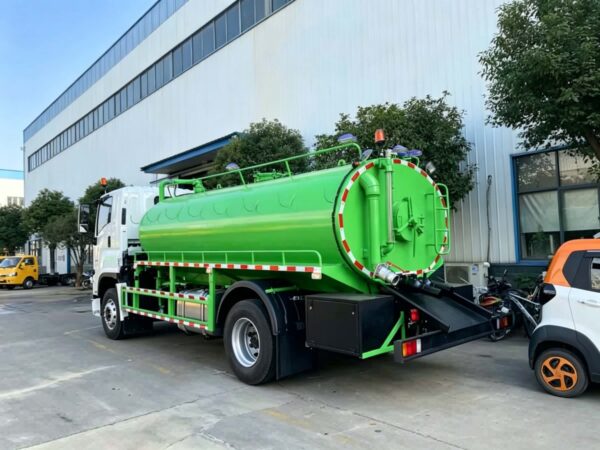

The ISUZU FTR 12000L Vacuum Sewage Truck is a high-performance sanitation vehicle designed for efficient sewage suction, transportation, and discharge in municipal, industrial, and construction applications. Built on the reliable ISUZU FTR chassis, this vacuum truck combines strong carrying capacity, dependable engine performance, and durable tank construction to handle demanding vacuum operations with ease.
Powered by the trusted ISUZU 4HK1-TC60 diesel engine delivering 205 HP, the truck provides stable power output and excellent fuel efficiency for continuous heavy-duty work. Equipped with a 12,000-liter vacuum tank, an advanced suction system, and a user-friendly hydraulic dumping mechanism, the vehicle is ideal for cleaning septic tanks, sewers, drainage systems, and industrial waste pits.
With its durable structure, efficient vacuum pumping system, and operator-oriented design, the ISUZU FTR vacuum sewage truck offers a reliable and cost-effective solution for modern waste management operations.
FEATURE
1. Trusted ISUZU Engine System for Heavy-Duty Vacuum Operations
The truck is powered by the proven ISUZU 4HK1-TC60 diesel engine with:
- 5,193 ml displacement
- 205 HP output
- Euro VI emission standard
The engine delivers stable torque and reliable performance for continuous sewage suction tasks. Paired with the 6-speed manual transmission (6F + 1R), it ensures smooth gear shifting and efficient driving performance even under full tank load conditions.
2. Durable ISUZU FTR Chassis with Excellent Stability
Built on the robust ISUZU QL1180 4×2 left-hand drive chassis, the truck features:
- 4,500 mm wheelbase
- Gross vehicle weight: 18,000 kg
- Front axle capacity: 6,300 kg
- Rear axle capacity: 13,000 kg
The reinforced chassis structure provides excellent load-bearing capability and driving stability during transportation and vacuum operations.
3. Large-Capacity 12CBM Vacuum Tank
The vacuum tank is manufactured from 6 mm high-strength carbon steel, offering excellent durability and corrosion resistance. Main tank specifications include:
- Tank capacity: 12,000 liters
- Anti-corrosion interior treatment
- Hydraulic lifting system for easy dumping
- Rear self-flowing outlet for quick discharge
The large-capacity design improves working efficiency by reducing unloading frequency during operation.
4. Efficient Vacuum Pump System
The truck is equipped with a reliable water-circulating vacuum pump designed for fast sewage extraction and stable suction performance. The vacuum system includes:
- 8-meter suction hose (φ102 mm)

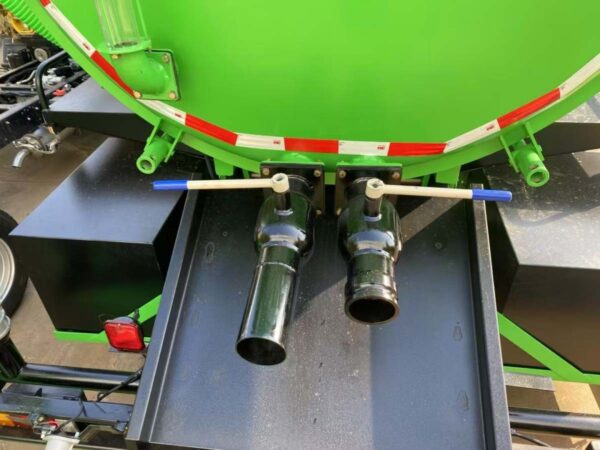

- 100 mm suction port
- 150 mm drain ball valve
- Oil-water separation protection system
- Overflow protection device
The powerful suction system enables efficient operation in septic tank cleaning, sewer maintenance, and sludge transportation applications.
5. User-Friendly and Safe Operation
To improve operator convenience and working safety, the truck is equipped with:
- Hand-washing device
- Pressure gauge and viewing window
- Fully accessible rear discharge structure
- Easy maintenance and cleaning design
- Air-conditioned ISUZU single-row cabin for driver comfort
The ergonomic layout reduces labor intensity while improving operational efficiency.
6. Ideal Applications
The ISUZU FTR 12000L Vacuum Sewage Truck is suitable for:
- Septic tank cleaning
- Sewer and drainage maintenance
- Industrial sludge transportation
- Municipal sanitation projects
- Construction site wastewater handling
Its strong suction capability, reliable ISUZU powertrain, and durable tank structure make it an ideal solution for professional sewage management operations.
SPECIFICATION
| Chassis Specification | |
| Chassis Model | ISUZU FTR |
| Driving Model | 4×2, Left Hand Drive |
| Cab |
|
| Dimension | 9000 × 2500 × 3200 mm |
| Wheelbase | 4500 mm |
| Gross Vehicle Weight | 18,000 kg |
| Curb Weight | 8,765 kg |
| Front Axle Loading Capacity | 6,300 kg |
| Rear Axle Loading Capacity | 13,000 kg |
| Axle Number | 2 |
| Engine |
|
| Transmission |
|
| Tire |
|
| Upper Specifications | |
| Tank |
|
| Suction Pipe |
|
| Drain Ball Valve | 150 mm |
| Suction Port | 100 mm |
| Pump | Chinese water-circulating pump |
| Other |
|
