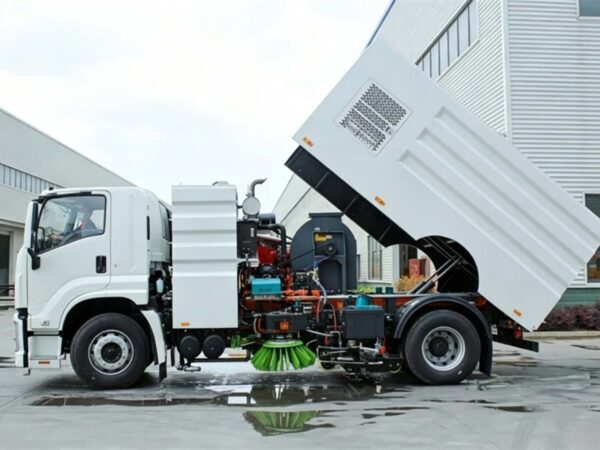

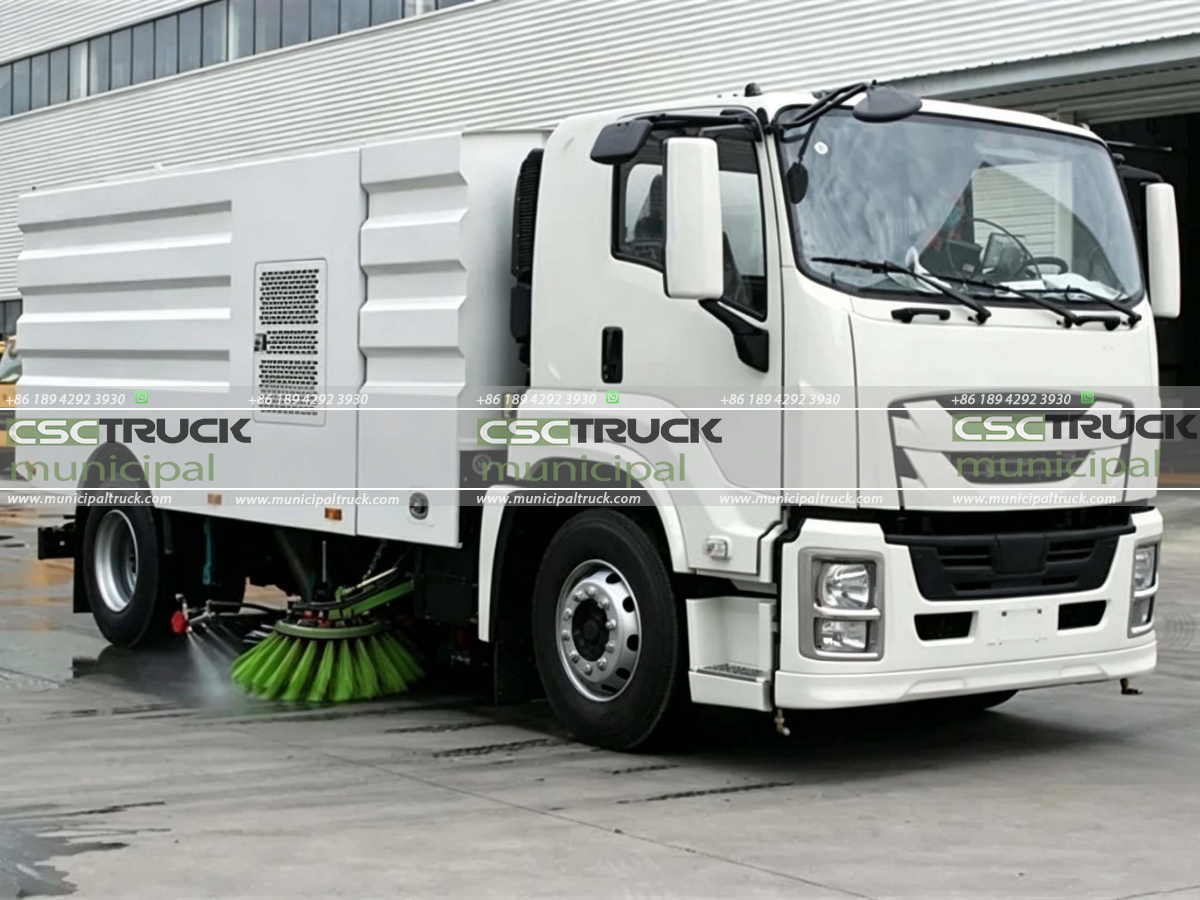

BRIEF

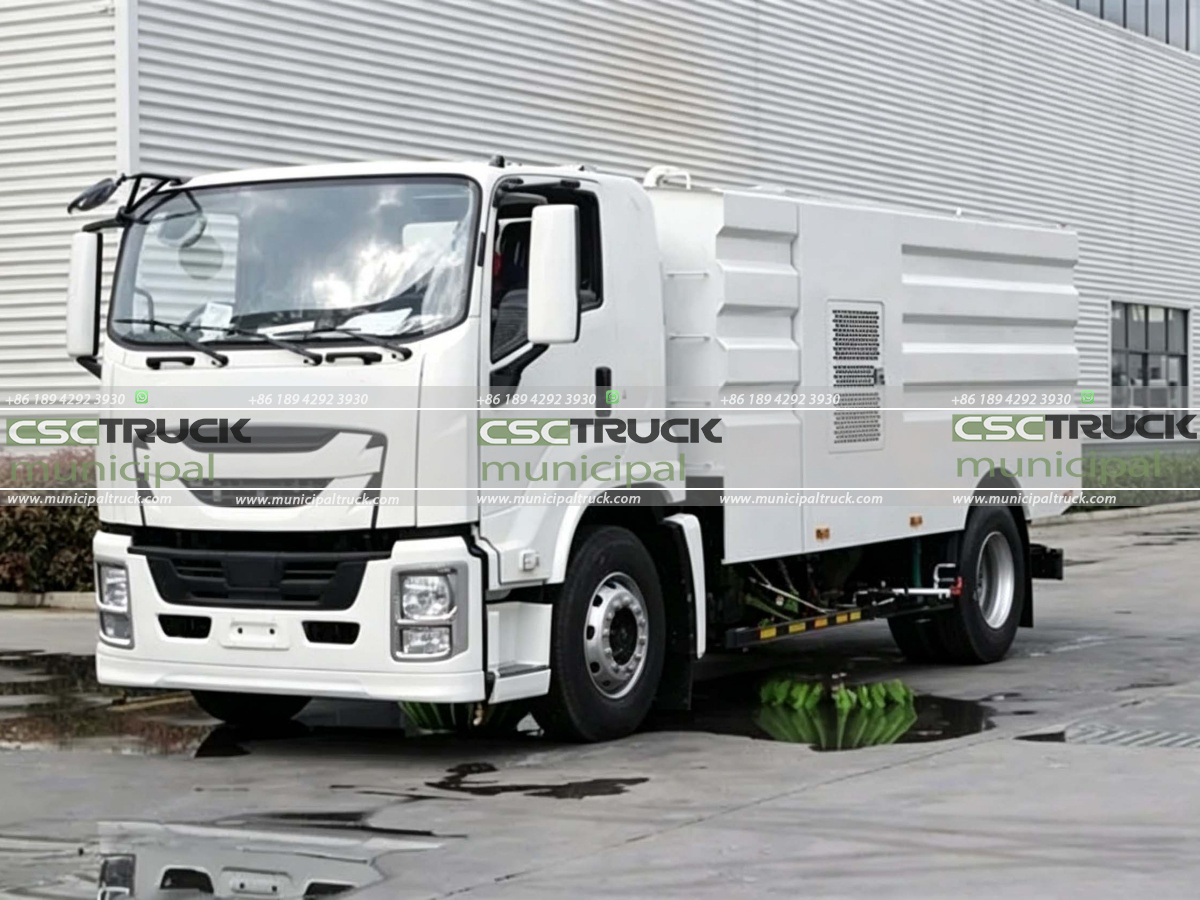

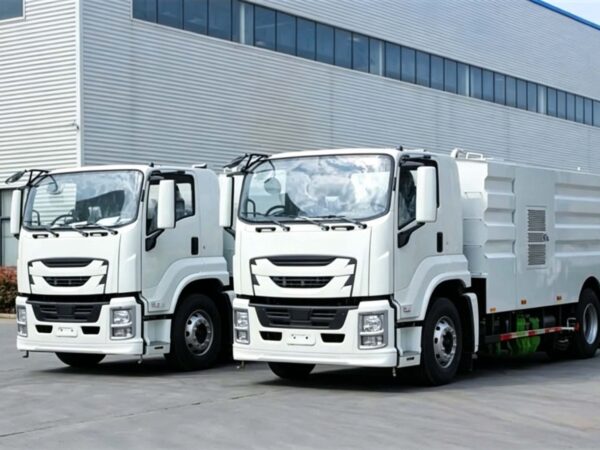

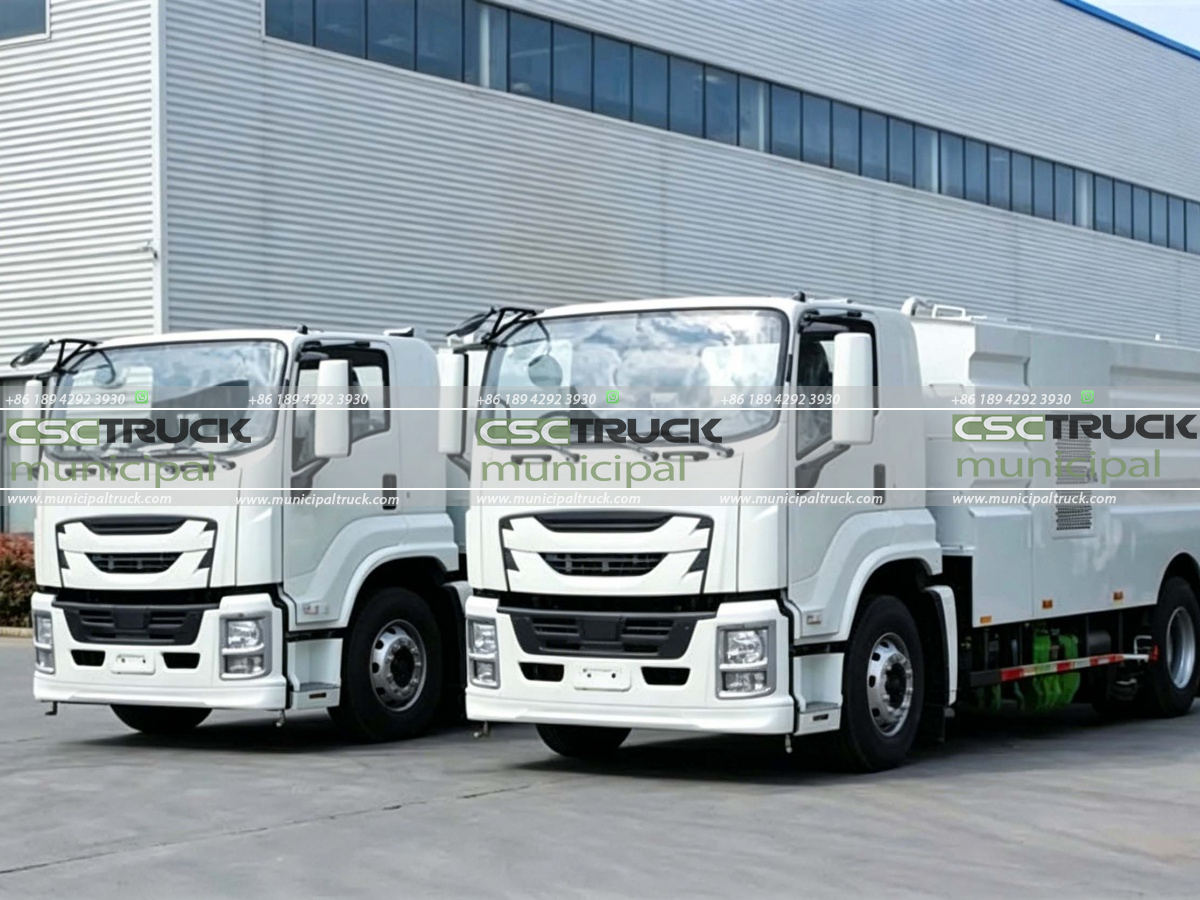

Powered by the ISUZU 6HK1-TCG61 diesel engine, the ISUZU FVR 15CBM Road Sweeper Truck delivers a powerful 177kW (240HP) output, providing reliable performance for demanding urban cleaning operations. This 6-cylinder inline engine features advanced water cooling, turbocharging, and intercooling technologies, achieving an ideal combination of power, fuel efficiency, and operational stability. Meeting Euro VI emission standards, the vehicle effectively reduces exhaust emissions and supports cleaner, more sustainable urban environments.
At the core of the vehicle is an advanced sweeping and washing system designed for maximum efficiency. It is equipped with a 9m³ stainless steel water tank and a 6m³ stainless steel debris hopper, both offering excellent corrosion resistance, easy maintenance, and extended service life. The dual centrally mounted brush system provides a sweeping width of 3.2–3.5 meters and a washing width of 3.8–4.1 meters, ensuring wide-area coverage in a single pass. With a maximum cleaning capacity of 70,000 m²/h and an adjustable sweeping speed of 5–15 km/h, the truck delivers flexible, efficient performance across various road conditions and cleaning requirements.
A centrally installed suction plate with a maximum suction diameter of 110mm ensures powerful collection of dust, gravel, and road debris. The high-pressure washing system operates at 10MPa, driven by a reliable CUMMINS B170 auxiliary engine (170HP) to provide consistent cleaning power. Equipped with a CAN bus intelligent control system and Siemens control switches, the sweeper truck offers precise operation, improved automation, and enhanced user convenience.
Designed with operator comfort and long-term reliability in mind, the sweeper incorporates Sanyo motors and maintenance-free fans to reduce operating costs and minimize downtime. The German PINFL high-pressure water pump ensures stable performance and extended durability even under intensive working conditions. A 20-meter water hose reel and integrated high-pressure water unit expand the truck’s versatility for multiple cleaning applications. In addition, the built-in water level alarm system provides timely refilling alerts, helping maintain continuous operation and avoid unexpected interruptions.
FEATURES
Powertrain & Environmental Compliance
- High-performance diesel engine: Powered by the 6HK1-TCG61 diesel engine, delivering 177kW (240HP). The 6-cylinder inline design with water cooling, turbocharging, and intercooling ensures strong power and excellent fuel economy.
- Low emission standard: Meets Euro VI emission requirements, significantly reducing exhaust pollutants and meeting the strict environmental protection standards of modern cities.
Sweeping & Debris Collection System
- Large-capacity, corrosion-resistant tanks: Equipped with a 9m³ stainless steel water tank and a 6m³ stainless steel dustbin, offering corrosion resistance, easy cleaning, and extended service life.

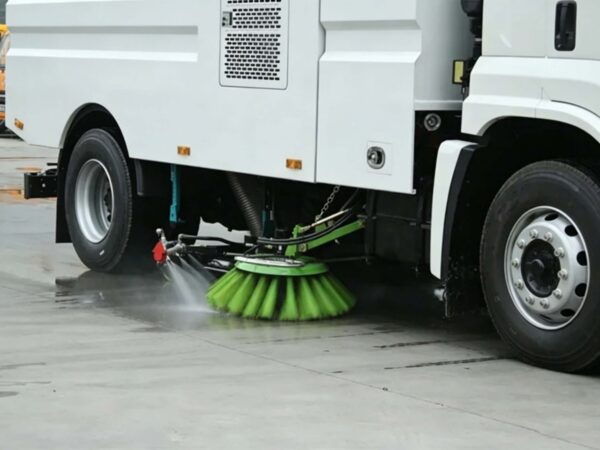

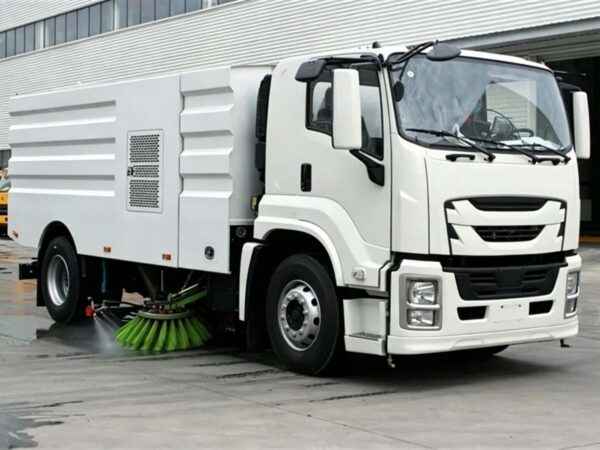

- Efficient sweeping width: Two centrally mounted brush discs provide a sweeping width of 3.2–3.5m and a washing width of 3.8–4.1m.
- Superior sweeping capacity: Maximum sweeping efficiency reaches 70,000 m²/h, with an adjustable sweeping speed of 5–15 km/h to suit different road conditions and cleaning needs.
Suction & High-pressure Washing System
- Powerful suction: Centrally located suction plate with a maximum suction diameter of 110mm, effectively removing road debris and dust.
- High-pressure water system: Operating pressure of 10MPa, powered by a CUMMINS B170 auxiliary engine (170HP), providing strong support for high-pressure cleaning.
- Durable high-pressure pump: German PINFL high-pressure water pump ensures stable, reliable, and long-lasting performance.
Intelligent Control & Operational Convenience
- CAN bus control system: Combined with Siemens control switches for intelligent, user-friendly operation, greatly improving work efficiency.
- Water level alarm: Promptly alerts the operator to refill the water source, preventing work interruptions due to water shortage.
User-friendly Design & Low Maintenance
- Maintenance-free components: Equipped with Sanyo motors and maintenance-free fans, reducing maintenance costs and user hassles.
- Long high-pressure hose reel: 20m water hose reel with high-pressure water unit for flexible operation, meeting cleaning needs in various scenarios.
SPECIFICATION
| Category | Item | Parameters |
|---|---|---|
| General | Chassis Model | ISUZU FVR |
| Drive Type | 4×2, left hand drive | |
| Gross Vehicle Weight | 19,300 kg | |
| Curb Weight | 10,200 kg | |
| Overall Dimensions L×W×H | 8,650×2,550×3,000 mm | |
| Engine | Fuel Type | Diesel |
| Model | 6HK1-TCG61 | |
| Power | 177 kW / 240 HP | |
| Emission Standard | Euro VI | |
| Displacement | 7.79 L | |
| Engine Type | 6 cylinders in line, water cooling, turbo-charged, inter-cooling, diesel engine | |
| Chassis | Front Axle Load | 6,300 kg |
| Rear Axle Load | 13,000 kg | |
| Tires | 295/80R22.5, 6+1 pcs | |
| Wheelbase (mm) | 4500 | |
| Gear Box | FAST, manual type, 8F+1R | |
| Brake | Air brake | |
| Approach/Departure Angle (°) | 17 / 18 | |
| Front/Rear Suspension (mm) | 1,400 / 1,980 | |
| Leaf Spring No. | 9 / 7+7 | |
| Sweeping System | Water Tank Volume | 9m³ |
| Dust Tank Volume | 6m³ | |
| Tank Material | Stainless steel | |
| Brushes | 2 units brush disc, mid-mounted | |
| Suction Plate | Mid-mounted | |
| Sweeping Width | 3.2 ~ 3.5 m | |
| Washing Width | 3.8 ~ 4.1 m | |
| Maximum Cleaning Capacity | 70,000 m²/h | |
| Sweeping Speed | 5 ~ 15 km/h | |
| Cleaning Rate | 95% | |
| Max. Suction Diameter (mm) | 110 | |

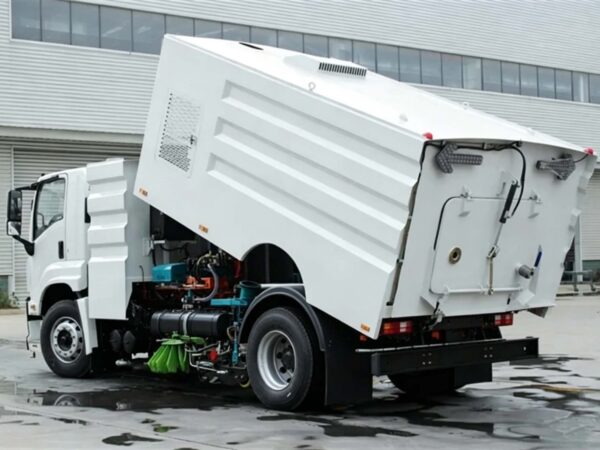

| Discharging Angle (°) | ≥45 | |
| High-Pressure Water System Pressure | 10 MPa | |
| Auxiliary Engine Model | CUMMINS B170 | |
| Auxiliary Engine Power | 170 HP | |
| Control System | CAN bus control system, Siemens control switch, two-way operation button | |
| Others | Accessories | Sanyo motor, maintenance-free fan, German PINFL high-pressure water pump,
20-meter hose reel with high-pressure water gun, water level alarm device, etc. |
