BRIEF

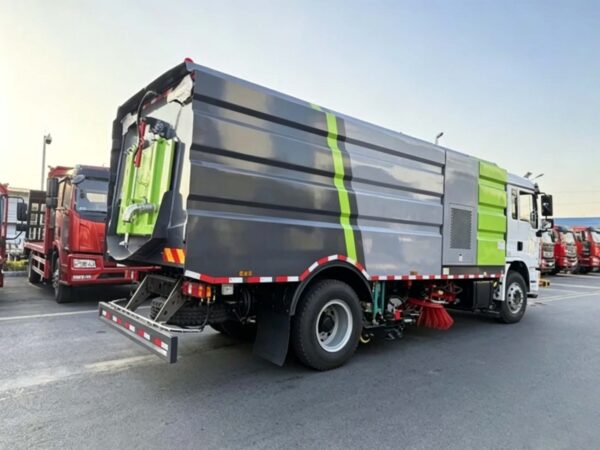

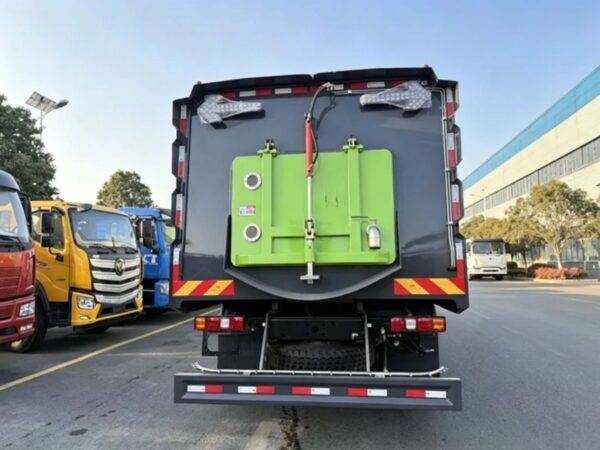

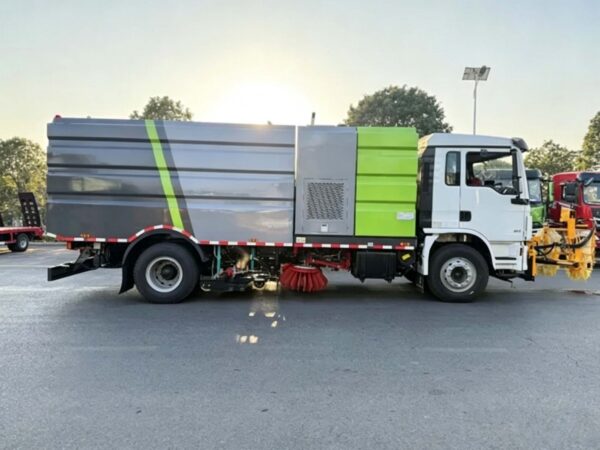

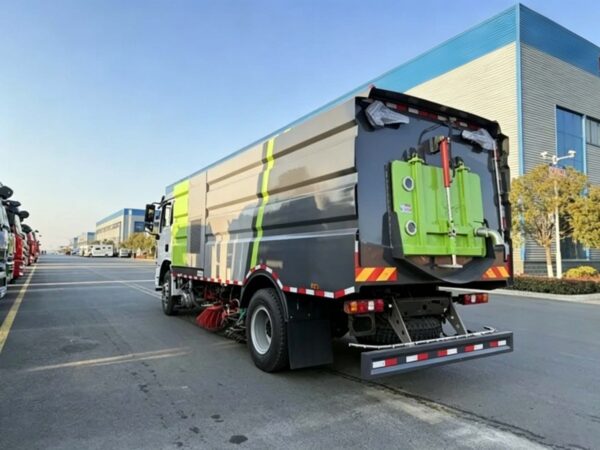

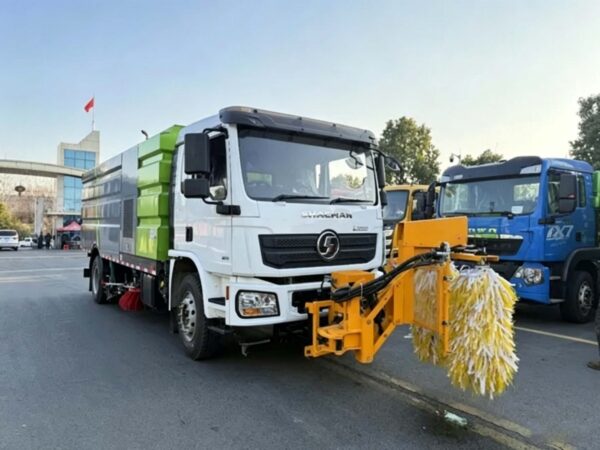

The SHACMAN L3000 Fence Sweeper Truck is a high-performance sanitation vehicle designed for urban road sweeping, dust suppression, and waste collection. Equipped with a 7,000L stainless steel water tank and a 9m³ stainless steel garbage hopper, it delivers an extended working range and reliable cleaning performance for city roads, industrial parks, construction sites, and airport aprons. Powered by the trusted Cummins B170 33 diesel engine and a durable commercial chassis, it offers excellent power, fuel economy, and long-term reliability.

The advanced sweeping system achieves ≥96% cleaning efficiency with a maximum cleaning capacity of 48,000 m²/h. Featuring an adjustable sweeping width of 2,800–3,200 mm and flexible operating speeds (sweeping 3–15 km/h; washing 15–20 km/h), the truck adapts to various road conditions. The 4mm stainless steel water tank and hopper provide strong corrosion resistance, while the high-pressure self-cleaning system simplifies maintenance and improves operational efficiency.

Built for demanding environments, the sweeper is equipped with a pneumatic dual-circuit braking system, heavy-duty suspension, 9R22.5 tires, and ≥30% gradeability for stable performance on urban roads and slopes. The comfortable cabin features right-hand drive, air conditioning, and seating for two operators. With its low-noise operation, reliable performance, and efficient cleaning capability, this fence sweeper truck is a cost-effective solution for municipal sanitation, industrial cleaning, and export applications.

FEATURE

1. Powertrain & Chassis

• Cummins B170 33 Diesel Engine – Delivers 170 hp with proven reliability, strong durability, and global service support. Designed for efficient operation, it provides an excellent balance of power output, fuel economy, and long-term performance.
• Manual 5-Speed Synchronized Gearbox – Ensures smooth gear shifting, reduced transmission wear, and improved driving comfort, especially during frequent urban stop-and-go operations.
• 4×2 Rear-Axle Drive – Provides stable traction, simple structure, and easy maintenance, making it ideal for urban road cleaning applications.
• Heavy-Duty Steel Plate Spring Suspension (8/10+7) – Designed for high load capacity and stable handling, even under full-load conditions with water and collected debris.
• Pneumatic Dual-Circuit Drum Braking System – Provides reliable braking performance and enhanced safety with a backup circuit design.
• Right-Hand Drive Cabin – Features a 2-seat layout, air conditioning, and excellent visibility, ensuring operator comfort during long working hours.

2. Sweeping & Washing System

• 7,000L Stainless Steel Water Tank – Made from 4mm stainless steel for excellent corrosion resistance and long service life. The large capacity supports extended cleaning operations with fewer refills.
• 9m³ Stainless Steel Garbage Hopper – Built with 4mm stainless steel to withstand harsh working environments. The integrated high-pressure self-cleaning system simplifies maintenance and helps prevent residue buildup and odors.
• Adjustable Cleaning Width – Offers 2,800–3,200 mm sweeping coverage, allowing flexible operation on different road conditions.
• Flexible Operating Speeds – Sweeping speed of 3–15 km/h ensures efficient debris collection, while washing speed of 15–20 km/h provides effective dust suppression and road cleaning.
• High Cleaning Efficiency – Achieves ≥96% sweeping efficiency with a maximum cleaning capacity of 48,000 m²/h, improving productivity for large-scale sanitation operations.

3. Performance & Maneuverability

• Strong Gradeability ≥30% – Handles slopes, ramps, and uneven terrain with confidence, suitable for urban areas and challenging environments.
• Minimum Turning Radius of 8m – Provides excellent maneuverability in narrow streets, residential areas, and crowded city zones.
• Dumping Angle ≥45° – Enables fast and complete waste unloading, reducing operation downtime.
• Maximum Driving Speed 99 km/h – Allows quick movement between working areas and improves fleet efficiency.

4. Durability & Low Maintenance

• Full Stainless Steel Construction – The water tank and garbage hopper use corrosion-resistant stainless steel, extending service life and reducing maintenance costs.
• High-Pressure Self-Cleaning System – Automatically cleans the hopper interior, minimizing manual labor and improving daily maintenance efficiency.
• Reliable Pneumatic Braking System – Features a durable design with convenient servicing and widely available components.
• 9R22.5 Tires (6 + 1 Spare) – Heavy-duty radial tires provide excellent durability and include a spare wheel to reduce downtime caused by tire damage.
