features

-Ancillary Engine

Four stroke water cooing ,direct injection diesel engine, 57kW@2400r/min.

-Air Blower

High pressure , centrifugal ,sweeping truck specific used blower, driven by ancillary engine , automatic clutch, V belt powered. Working speed is 2600～2900r/min.

-Hydraulic System

It is composited of Gear pump, Gerotor motors, Hydraulic cylinders, solenoid valves, IC, manual pump etc.

-Washing system

Electric water pump、water filter, nozzle, water tanker etc.

-Sweeping System

Four disc typed brooms equipped between front and rear axle , symmetric in right and left side of the truck drive by gerotor motors.

specification

Overall Size	5950×1990×2445 mm
Wheelbase	3360mm
GVW	7300 kg
Vehicle Weight	4900 kg
Chassis Make/ Model	ISUZU/ QL1060A1
Chassis Engine	4KH1-TCG40
Chassis Engine Power	88kw/ 3600/ r/min
Auxiliary Engine	JE493G3-201
Auxiliary Engine Power	57kw/ 3600/ r/min
Cab	Full steel constructed
Air-conditioning	Heating & Cooling
Max. Sweeping Swath	2700 mm
Sweeping Capacity	65000 m2/h
Sweeping Speed	3 ～ 10 km/h
Dust Suppression Speed	10 ～ 20 km/h
Sweeping Efficient Ratio	≥90%
Suction Debris	110 mm
Air Speed	50 ～ 65 m/s
Negative Pressure	2.94 Kpa
Oil Consumption on Sweeping	≤6 L/h
Oil Consumption on Driving	16.4 L/h
Hopper Volume	5 m3
Water Tank Volume	0.63 m3

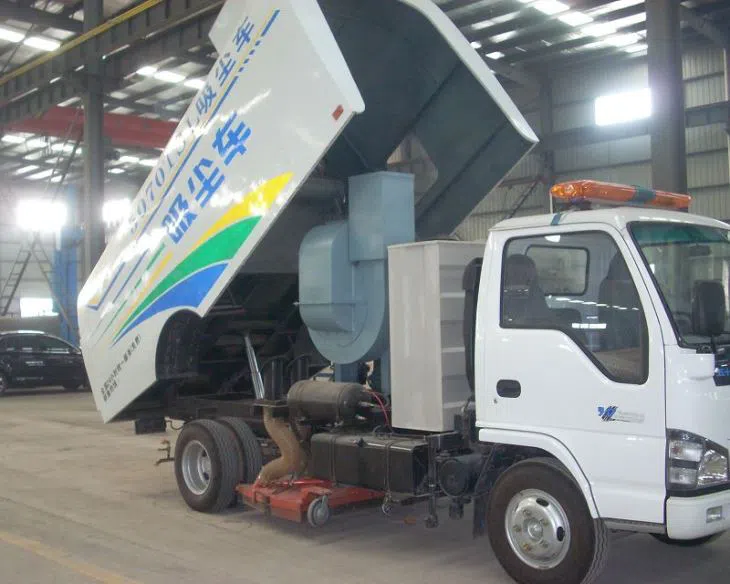

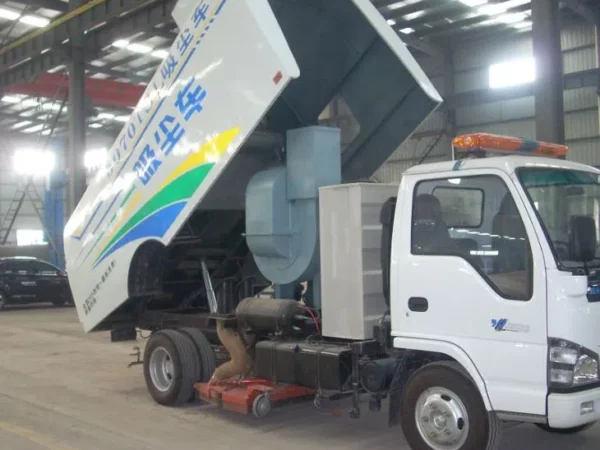

Hope Dumping	≥45°
Gradeability	20 %
Turning Radius	13.6 m
Brake Distance (full loaded)	≤10 m @ 30km/h
Max Drive Speed	105 km/h
Loading Capacity	6435 kg
