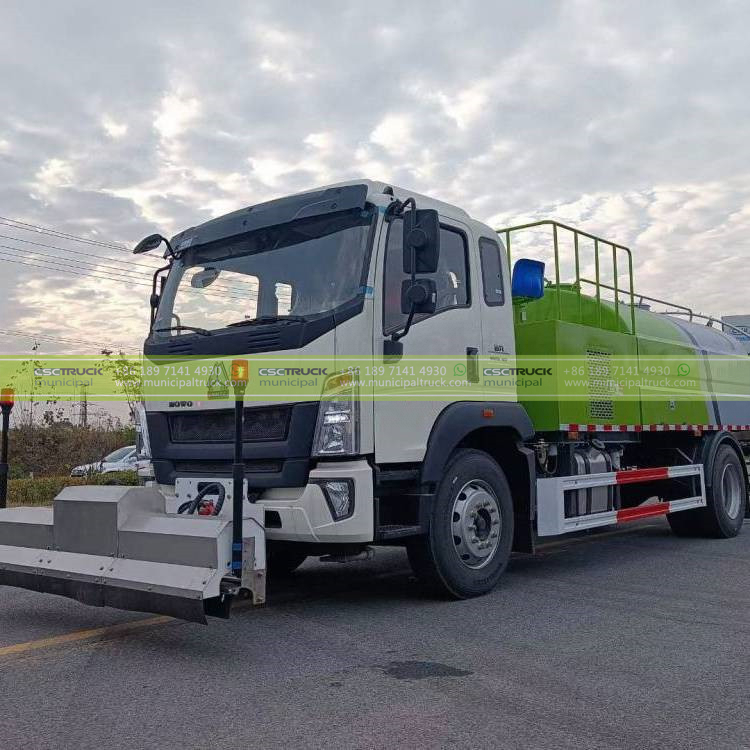

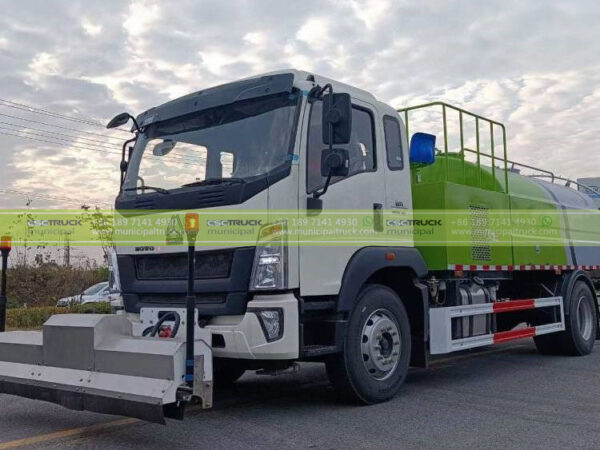

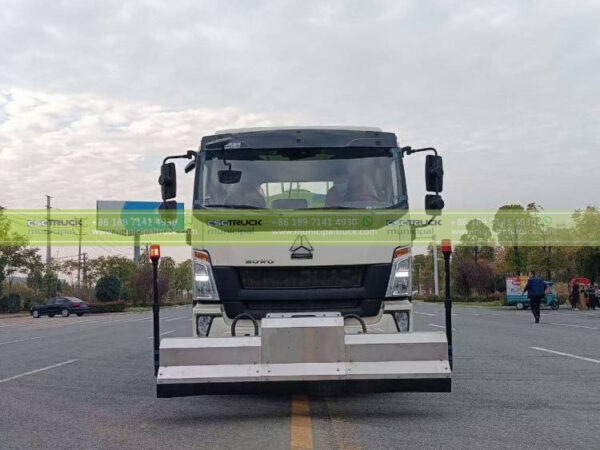

CSCTRUCK’s SINOTRUK 10,000L water jet cleaner sweeper is an efficient and reliable vehicle designed for road cleaning and maintenance.
This SINOTRUK 10,000L water jet cleaner sweeper is a high-quality product from CSCTRUCK, designed to provide effective and efficient cleaning and maintenance of roads. With its powerful engine, reliable transmission, and advanced high-pressure jetting pump, this vehicle can quickly and effectively clean up debris and dust, making it an essential tool for maintaining clean and safe roads.

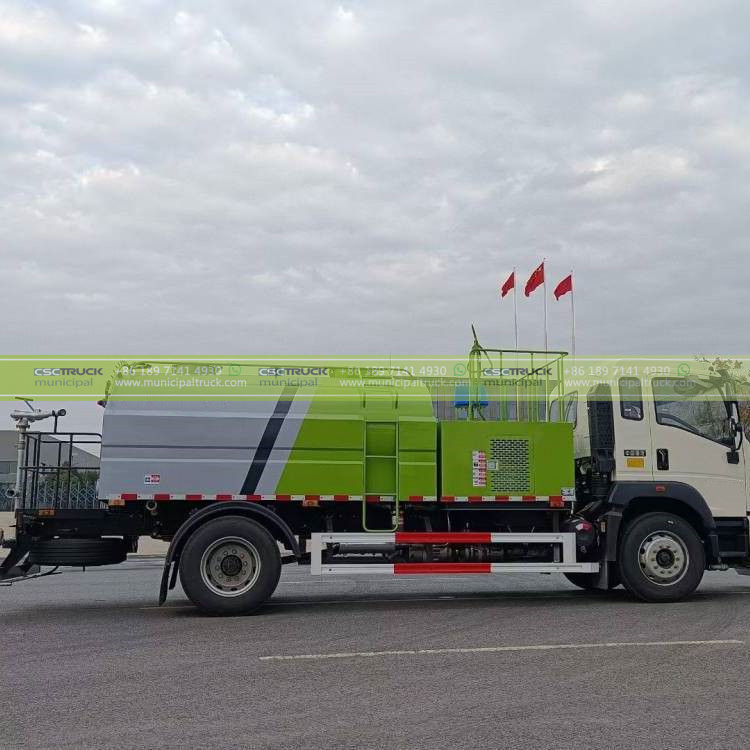

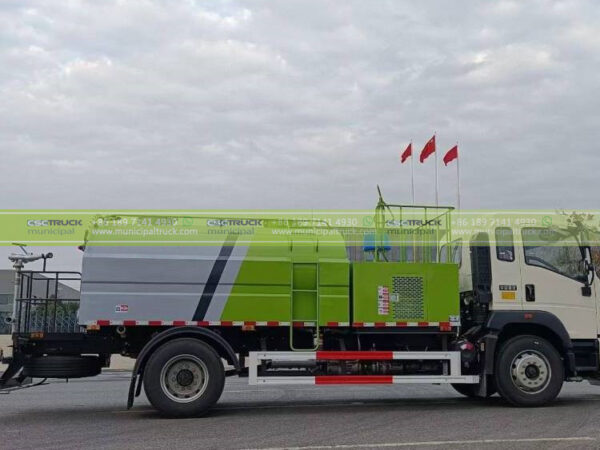

The chassis of this water jet cleaner sweeper is made by SINOTRUK, a reputable brand known for producing high-quality trucks. The size of the vehicle is 8,400×2,500×3,000mm, with a GVW/Curb Weight of 18,000kg/8,200kg. The wheelbase is 4,500mm, and the front/rear axle is 6.5T/11.5T. The tire is 10.00R20 6+1 tires, providing stability and traction.
Engine and Transmission
This water jet cleaner sweeper is powered by a diesel engine from SINOTRUK with a model of WD615.62, which delivers 270 horsepower and is compliant with Euro 2 standards. The transmission system is a SINOTRUK HW19710, which provides 10 forward gears and 2 reverse gears. The operation is manual, making it easy to operate and control.
Body System and Performance

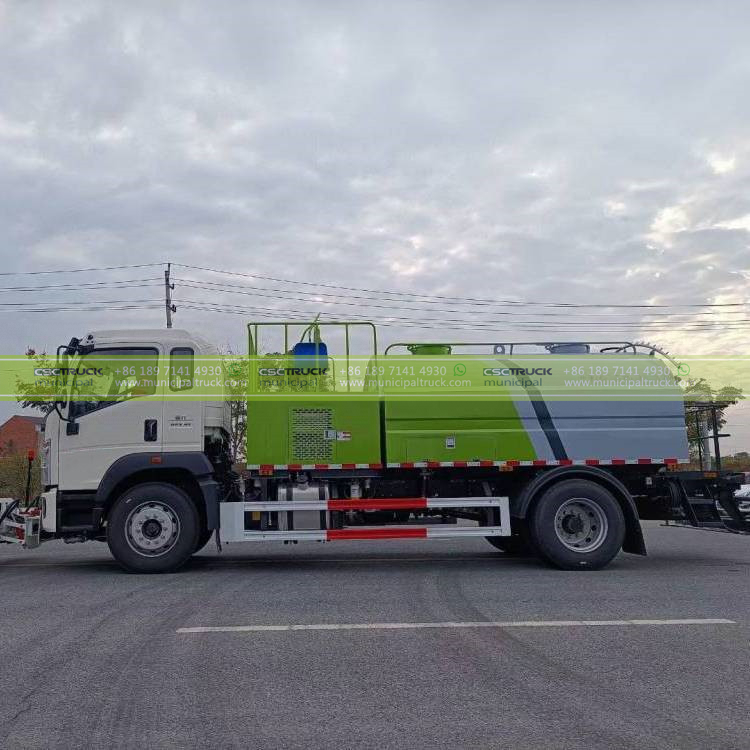

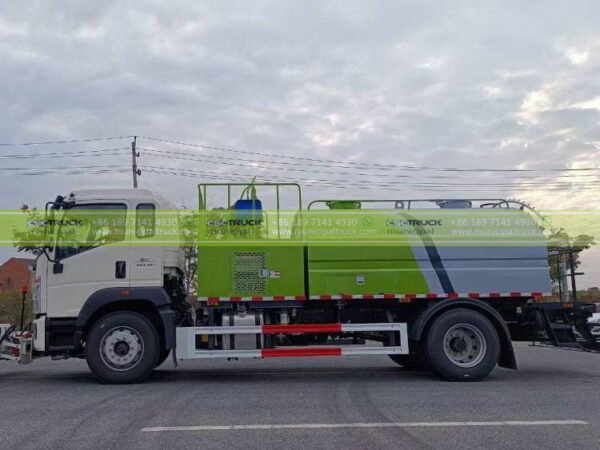

The body system of this vehicle has a capacity of 10,000L and is made of Q235B Carbon Steel, with a shell cover thickness of 8mm and a tank body thickness of 6mm. The high-pressure jetting pump is driven by a PTO and can operate at a working pressure of 16-24Mpa, with a water flow rate of 75~275LPM. The water tank can be installed at the front or side of the vehicle.
In terms of performance, the water flow speed is 120LPM and the water gun range is ≥38m. Basic equipment includes a high-pressure pump, hose reel, water cannon, and basic tool kit. Optional equipment includes a tanker material made of stainless steel and an elevating platform high cannon.
In summary, the SINOTRUK 10,000L Water Jet Cleaner Sweeper from CSCTRUCK is a top-of-the-line vehicle that combines high-quality components, a powerful engine and transmission, and advanced cleaning technology. It is a reliable and efficient tool for maintaining clean and safe roads, making it an ideal choice for municipalities, contractors, and other organizations responsible for road maintenance.
|Tire||10.00R20 6+1 tires|
|Driving||SINOTRUK HOWO 4×2 Day Cab, Left-hand Drive|
|Type||Steel construction, Single Row, Flat|
|Material||Q235B Carbon Steel|
|Thickness||Shell Cover 8mm, Tank Body 6mm|
|High-Pressure Jetting Pump|
|Water Flow Rate||75~275LPM|
|Water Tank||Front or side installed|
|Water Flow Speed||120LPM|
|Road Flushing Width||2.5~3.5m|
|Water Gun Range||≥ 38m|
|Basic Equipment||High-Pressure pump, hose reel, water cannon, basic tool kit
|Optional Equipment||Tanker material: stainless steel.

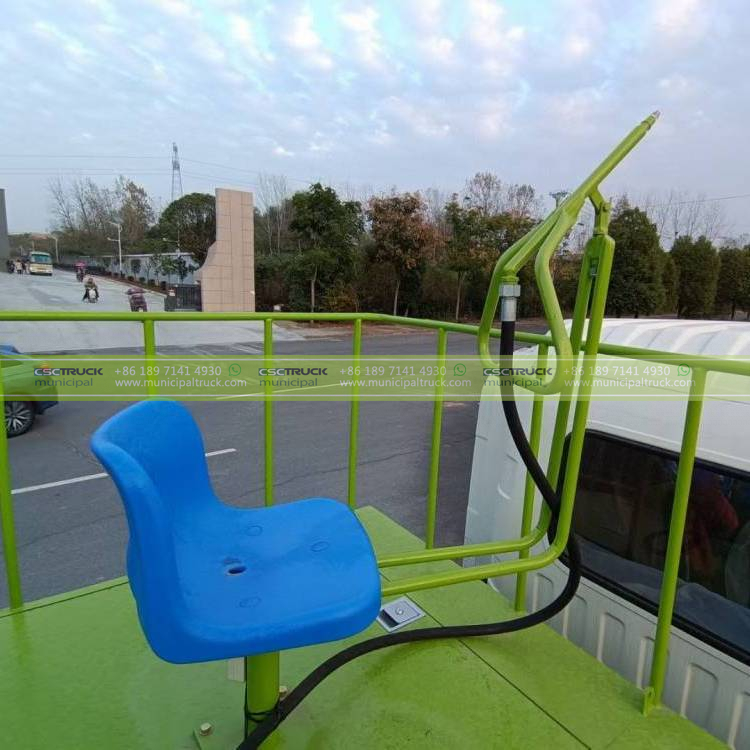

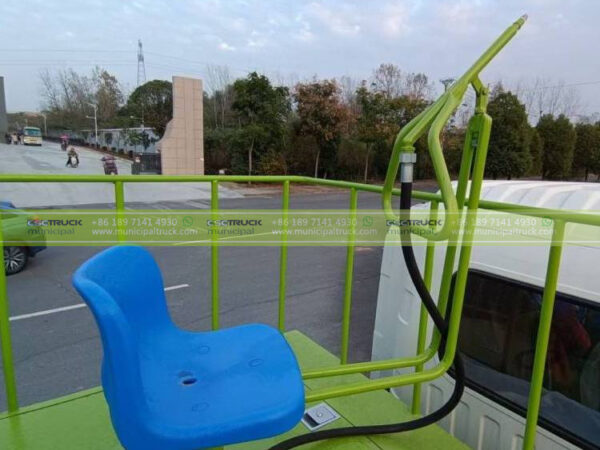

Elevating platformHigh cannon
