Brief

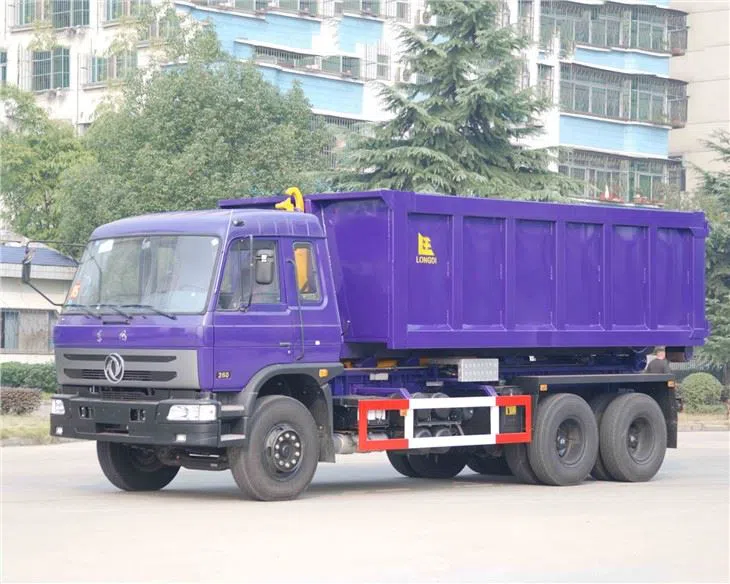

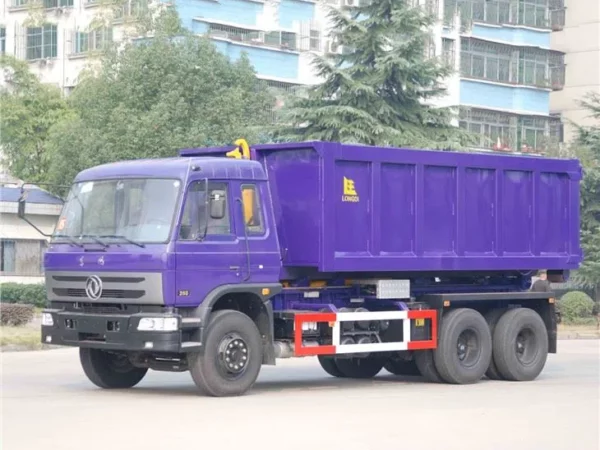

Hook Loader Garbage Truck is mainly used in sanitation municipal services to collect garbage. It is available with multiple buckets in one truck, which greatly improves work efficiency. With the increasing maturity of hook-arm garbage truck technology, The Hook Loader Garbage truck can also be used in large factories and mines to carry ash, sand, stone, soil, and other bulk building materials.
Hook Loader Garbage Truck is composed of an operating system and a hydraulic system. The hydraulic system consists of a lift cylinder. The garbage container is put down on the hook, and the next working cycle time is ≤ 50S. The feature of the garbage truck is that one truck can be equipped with multiple garbage containers, and realize the joint operation of one truck and multiple garbage containers and cyclic transportation, which fully improves the transportation capacity of the vehicle.
features

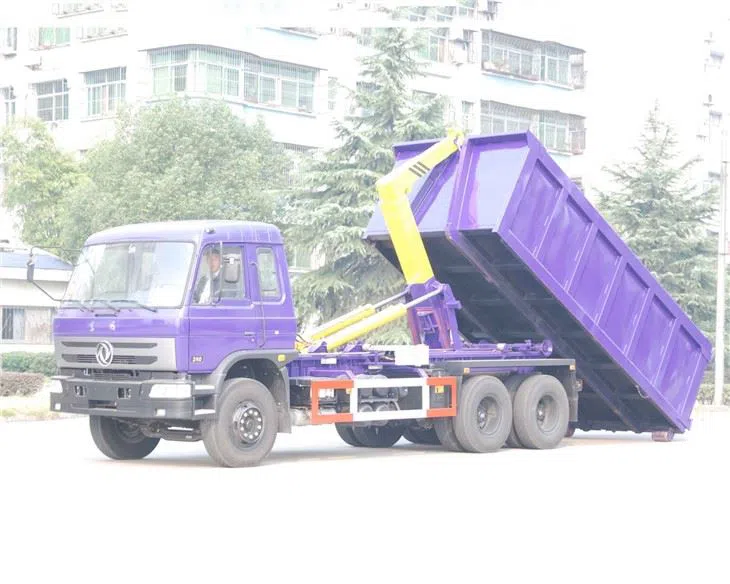

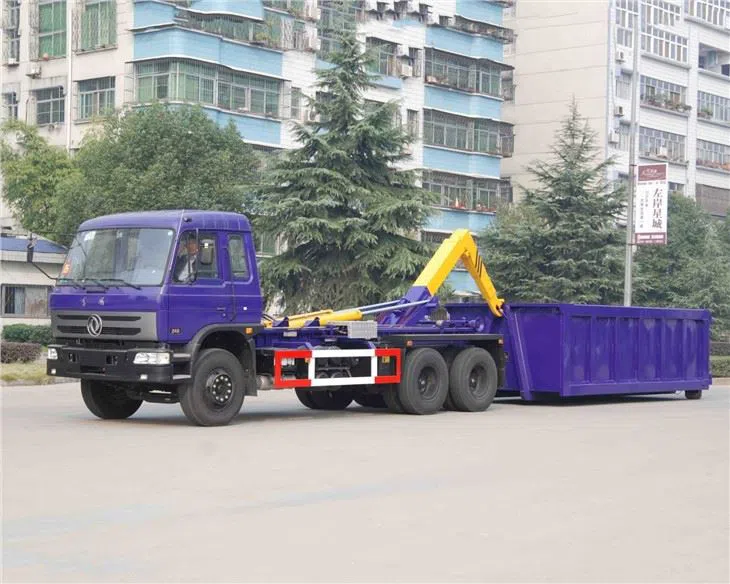

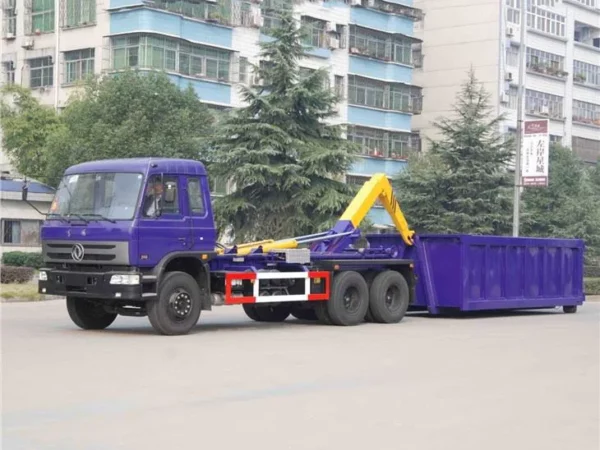

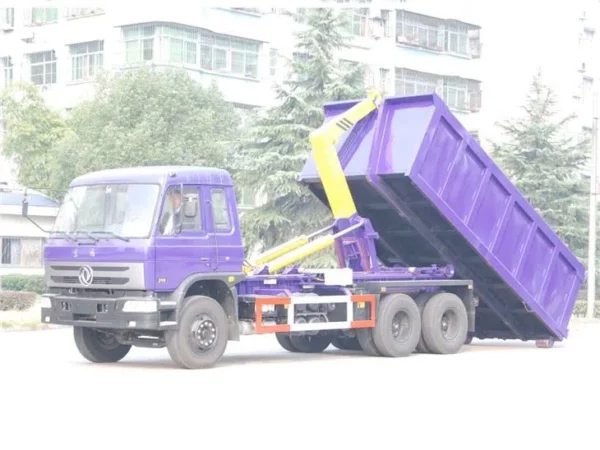

Structure: Hook boom was driven by a cylinder to flip. The garbage container will be loaded, unloaded, and lifted through a hook boom. Multi valves on the truck can be operated as well as the button in the cab. Two-direction balancing valve is installed on the boom which can control the garbage container’s loading and unloading speed. All hydraulic components are adopted from domestic popular brands products. Other designs and manufacturers followed our factory’s standards.
Hydraulic system assembly: Lifting, landing & sliding functions of hook.
specification
| Item | Specification |
| Hook loader | Designed for 16-18CBM garbage container(but garbage container will be supplied by client’s site locally) |
| Overall size | 8,740×2,510×3,160mm |
| Full pay loading | 25,000kg |
| Curb weight | 11,100kg(app.) |
| Capacity | 13,705kg(app.) |
| Engine power | 245HP |
| Max. driving speed | 89km/h |
| Wheelbase | 4350+1350mm |
| Emission Class Level | Euro 3 |
| Crew Numbers | 3 |
| Spring quantities | 8/10 |
| Front-wheel trace | 1860 |
| Rear wheel trace | 1750/1750 |
| Max. lifting weight | 20,000kg |
| Max. lifting angle | 49° |
| Lifting time | ≤39s |
| Loading time | ≤35s |
| Unloading time | ≤45s |
| Unloading fast time | ≤19s |
| The pressure of the hydraulic system | 30Mpa |
| The pressure of the pneumatic system | 0.4-0.6Mpa |
| The flow of the system’s oil | 100L/min |
