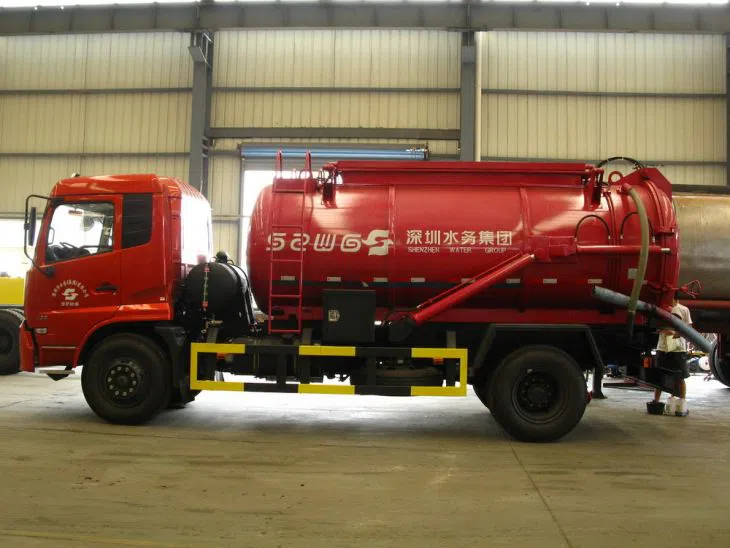

The Vacuum Tank Suction Truck is based on a Dongfeng Kingrun medium-duty truck chassis, with a suction septic tank, which is a medium-scale special vehicle for transporting sewage sludge, industrial liquids, or slurries from animal waste from livestock facilities or motorways cleaning.

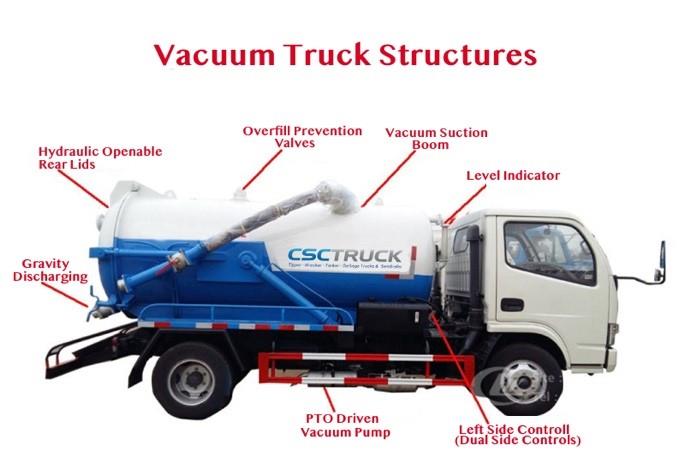

KEY FEATURES
● Operation Loading 8,000 Liters Of Sewage
● Round-shaped, Rear Lids Openable
● PTO Vacuum Pumping System
● Dongfeng KingRun Truck Chassis
● B190 33 (190hp) Dongfeng-Cummins Engine
TANK MAP
APPLICATION
FITTINGS
CHASSIS SPECIFICATION
| ● Cabin | Dongfeng Single Row, Tiltable |
| ● Drive Mode | 4 x 2 |
| ● Wheelbase | 4500mm |
| ● GVW | 14000kg |
| ● Engine Make | Dongfeng-Cummins |
| ● Engine Model | B190 |
| ● Gearbox | 6 speed |
| ● Front Axle | 4 Ton |
| ● Rear Axle | 10Ton |
| ● Tire | 10.00R20 |
| ● Brake | Air Brake |
PICK UP A CHASSIS
We offer vacuum tank trucks on a variety of chassis including ISUZU, HINO, UD, JAC, SINOTRUK, SHACMAN, BEIBEN, DONGFENG, available on any commercial chassis..
*Please scroll down to check the links to the Vacuum Tank Suction Truck chassis inventory. You may optional that choose above different brand of chassis for one of your tanks, or need a new tank for one of your truck chassis for mounting this Vacuum Suction Tank. There is the one you need.
