Chassis | |
Size | 11,000×2,500×3,270mm |
GVW/Curb Weight | 25,000kg/13,000kg |
Wheelbase | 4375+1400mm |
Front/Rear Axle | 9/16Tx2 |
Tire | 12.00R20 10+1 tires |
Engine | |
Type | Diesel |
Make/Model | WEICHAI/WP10.290E32/290hp/Euro2 |
Transmission | |
Make/Model | FAST/10JS90A |
Gears | 10F+2R |
Operation | Manual |
Cabin | |
Driving | SHACMAN H3000 6×4 Night Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Capacity | 20CBM |
Shape | Oval |
Material | Q235B Carbon Steel |
Thickness | Tank Body 6mm |
Vacuum Pump | Chinese famous brand |
Flow Rate | 45m3/h |
Ultimate Pressure | 7000pa |
Max Suction Lift | >6m |
Vacuum | >500mmHg |
Speed | 800~1400r/min |
Sewage Pipe | 5 meters |
Suction Time | ≤5min |
Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect windows, cleaning systems, hoist bases, oil-water separators, overflow valves, etc. |
Optional Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside the tank Anti-flow devices |

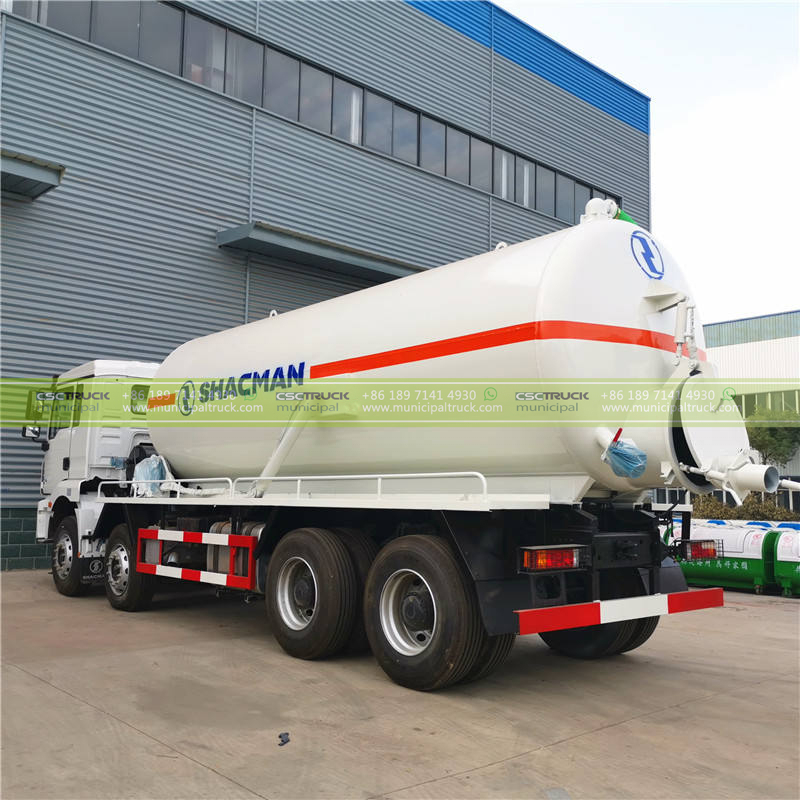

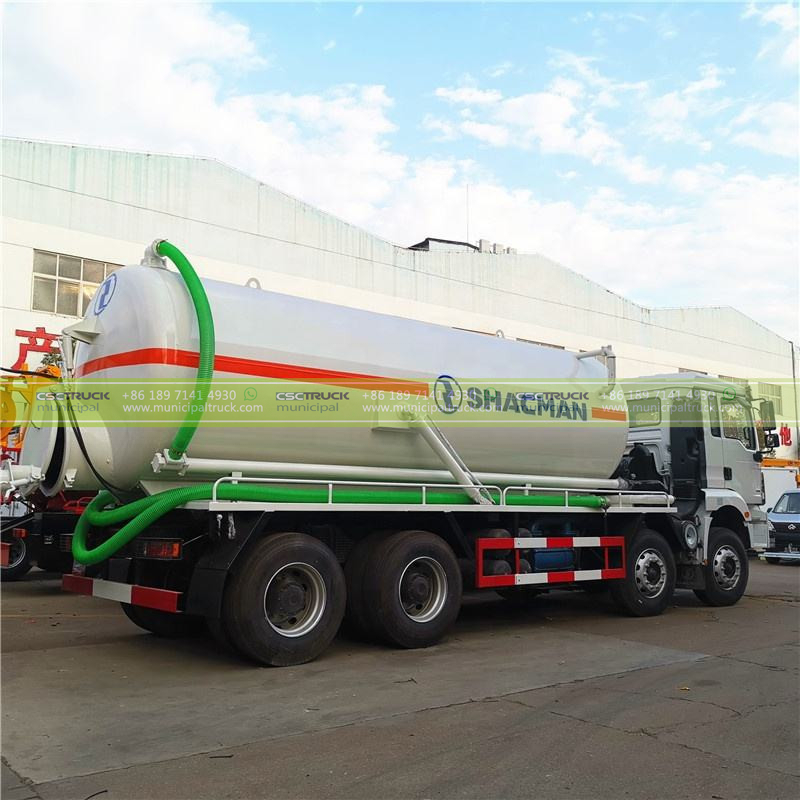

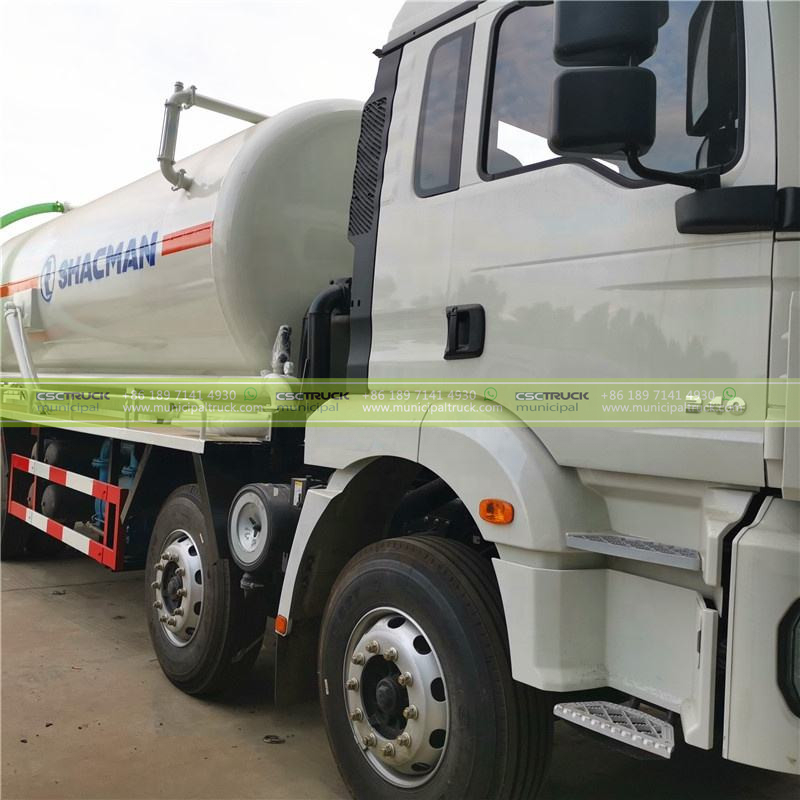

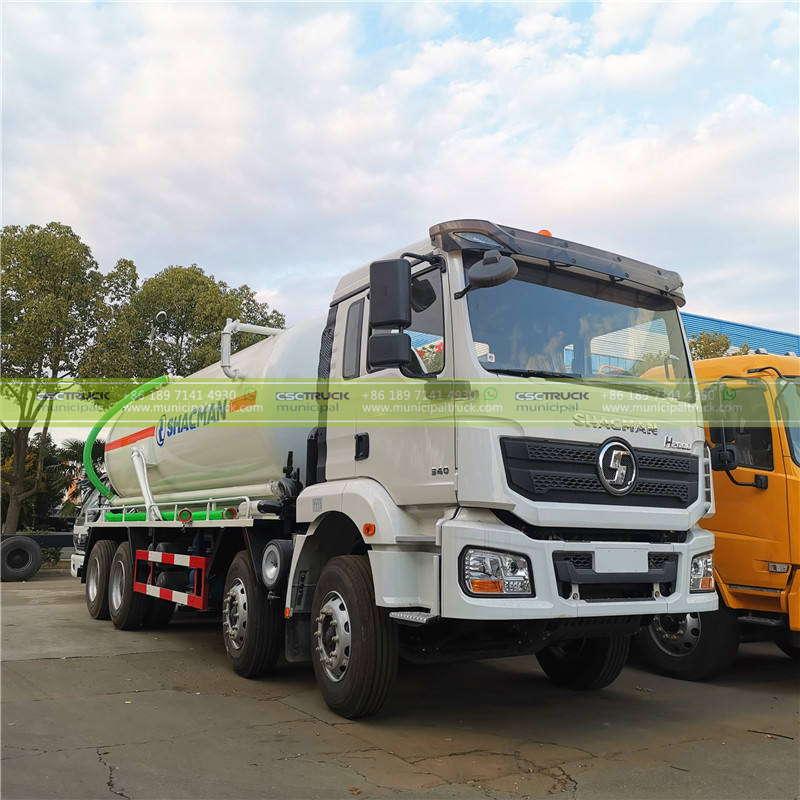

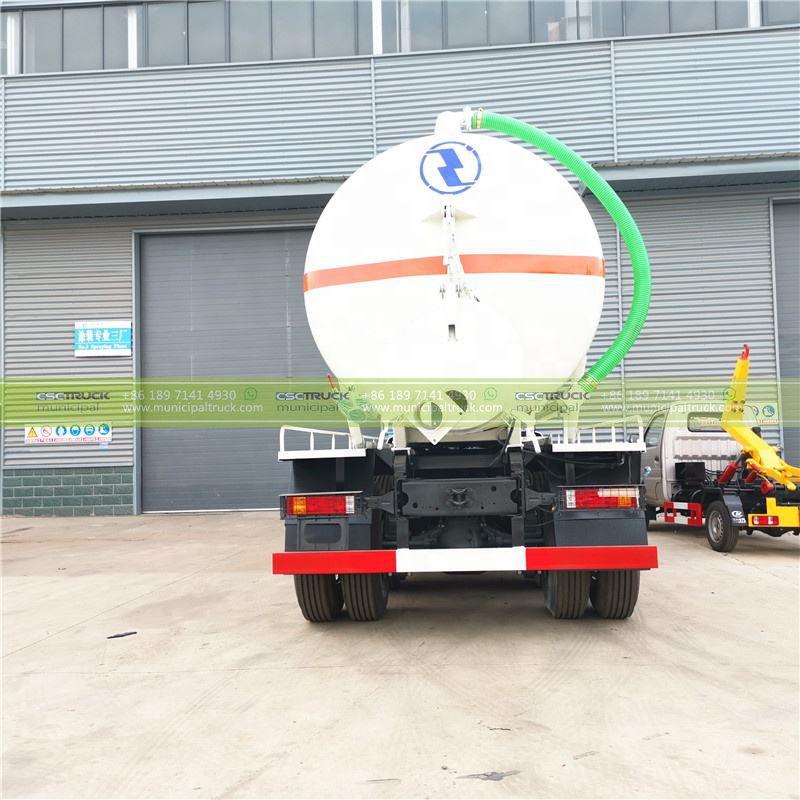

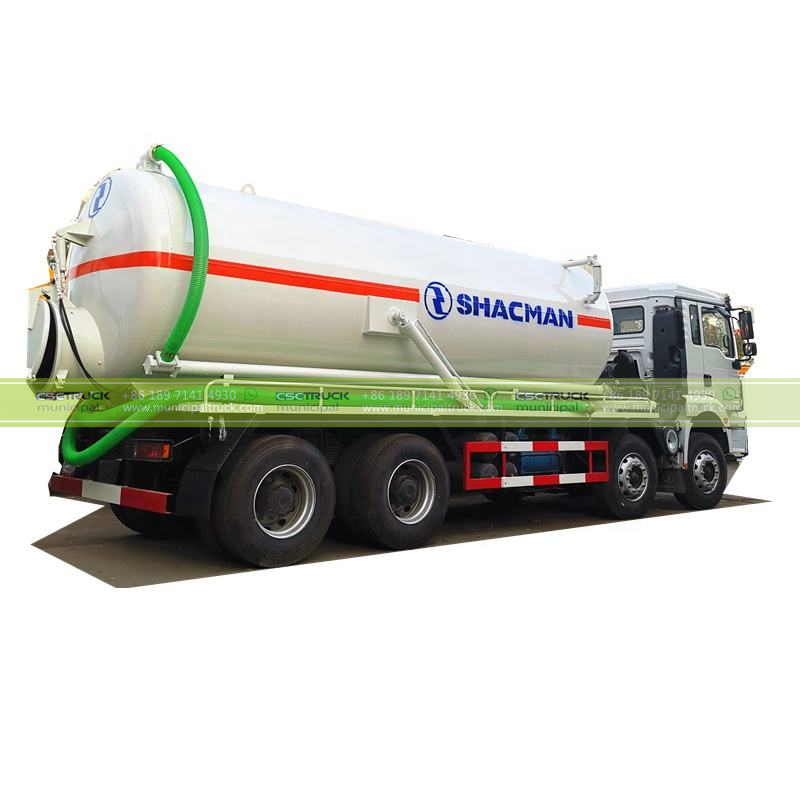

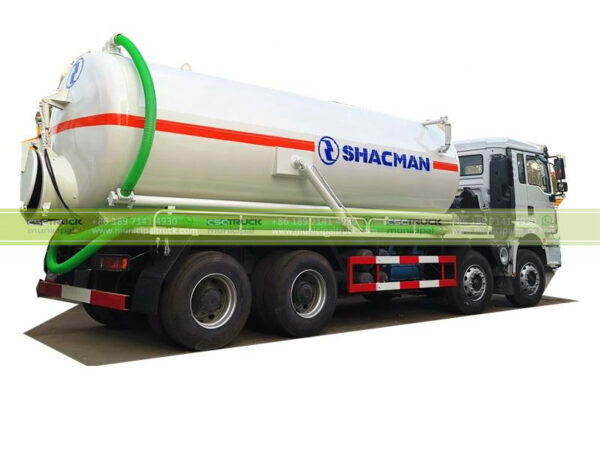

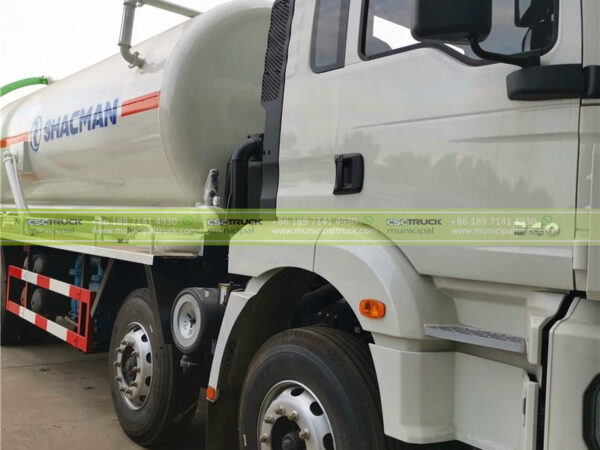

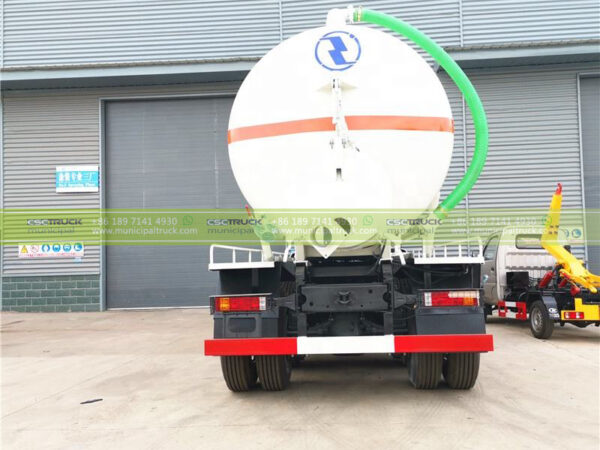

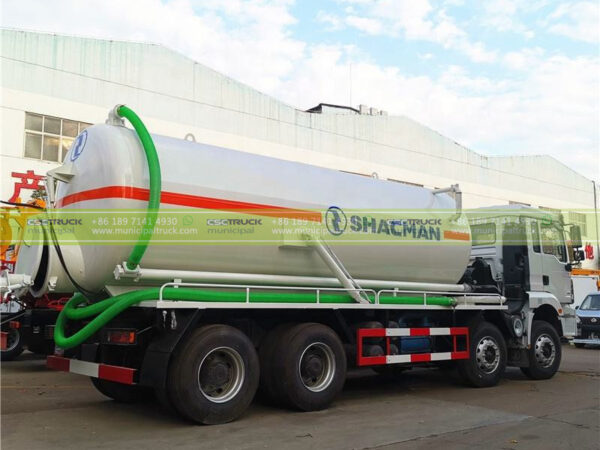

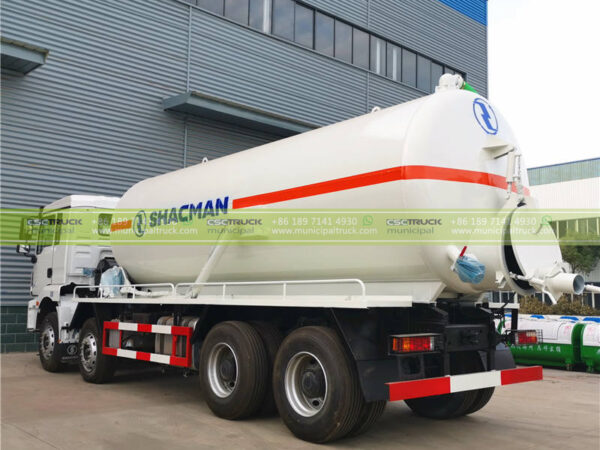

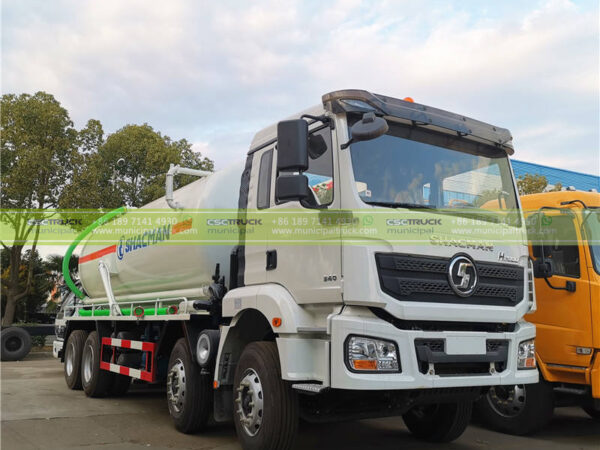

SHACMAN Septic Tank Vacuum Truck
Make/Model | CSCTRUCK/SC20SX290L2 |
GVW | 25,000kg, Heavy Duty Vehicle |
Cab Truck | SHACMAN H3000 6×4 Night Cab |
Engine | WEICHAI/WP10.290E32/290hp/Euro2 |
Transmission | FAST/10JS90A /manual 10+2 Speed |
Sludge Tank Capacity | 20,000 Liters, 20 Cubic Meters, 5283 Gallon |
Vacuum Pump | Weilong/JUROP/MORO Capacity 700LPM to 3333LPM |
