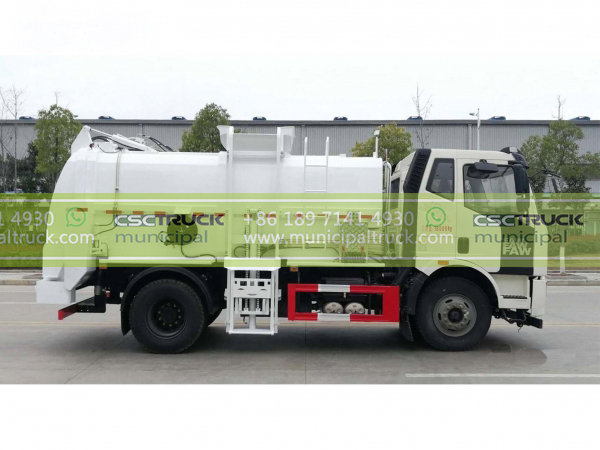

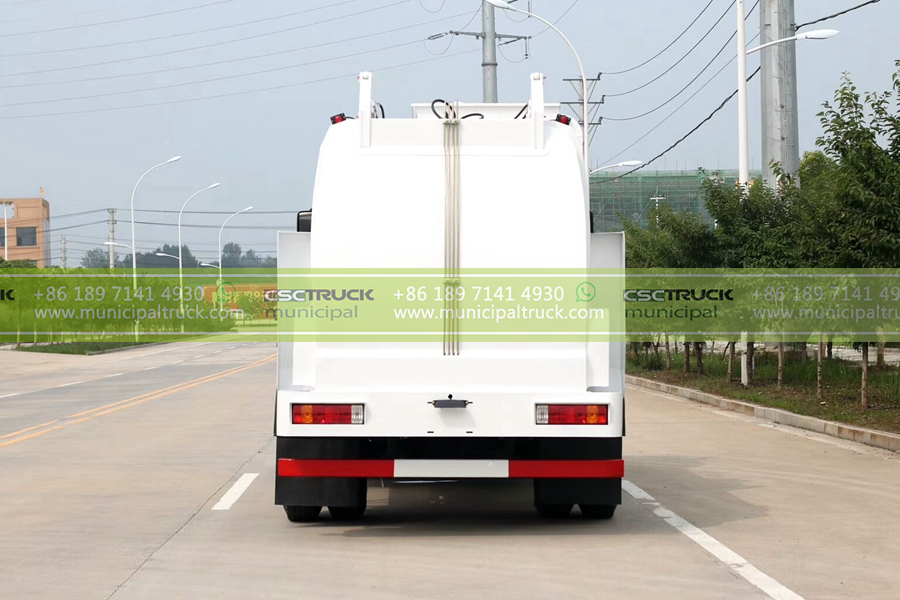

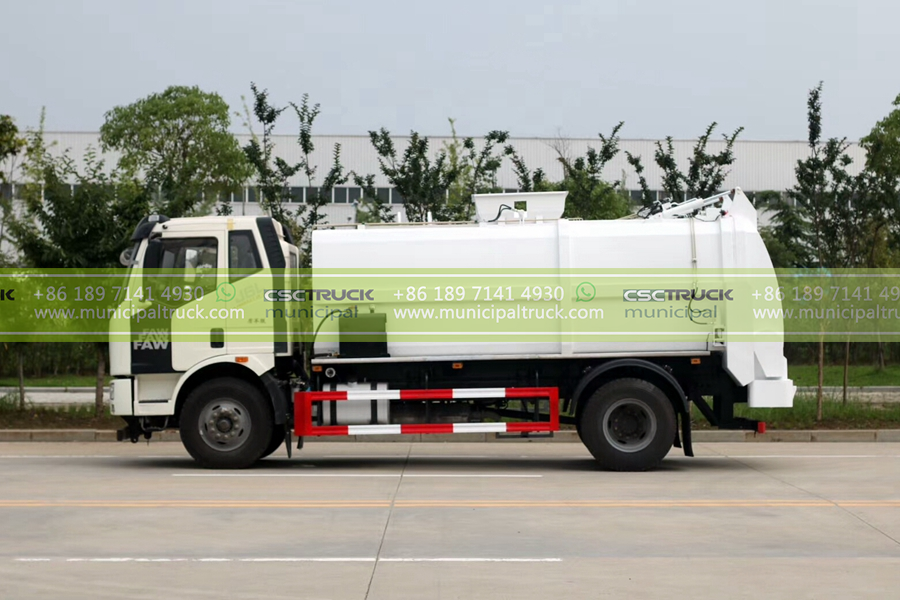

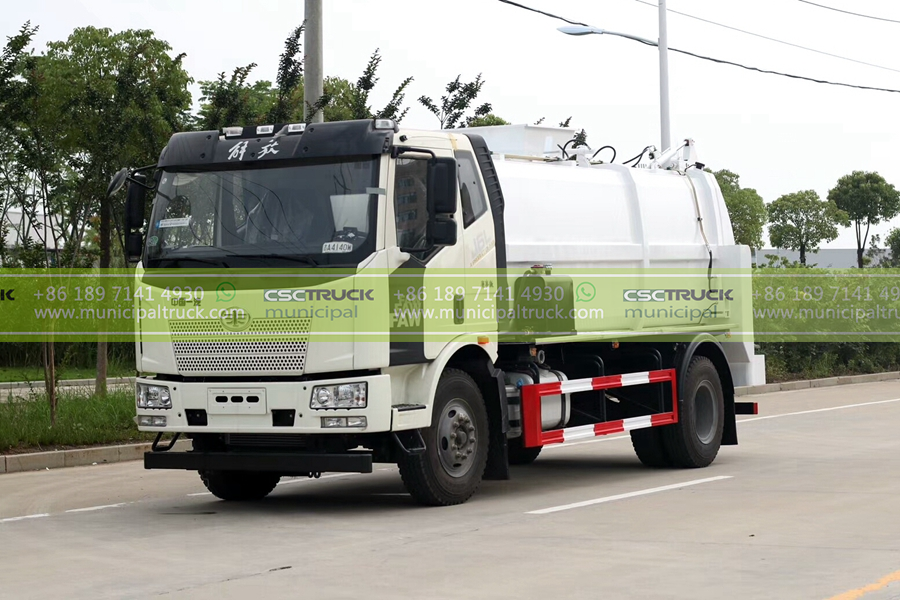

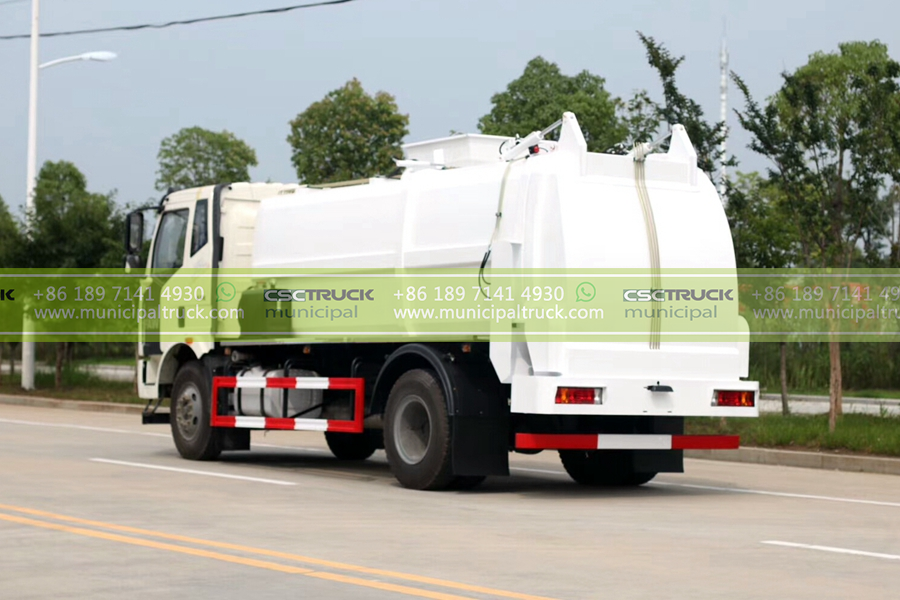

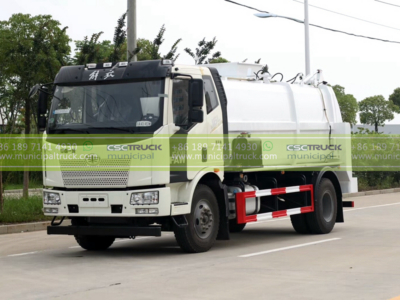

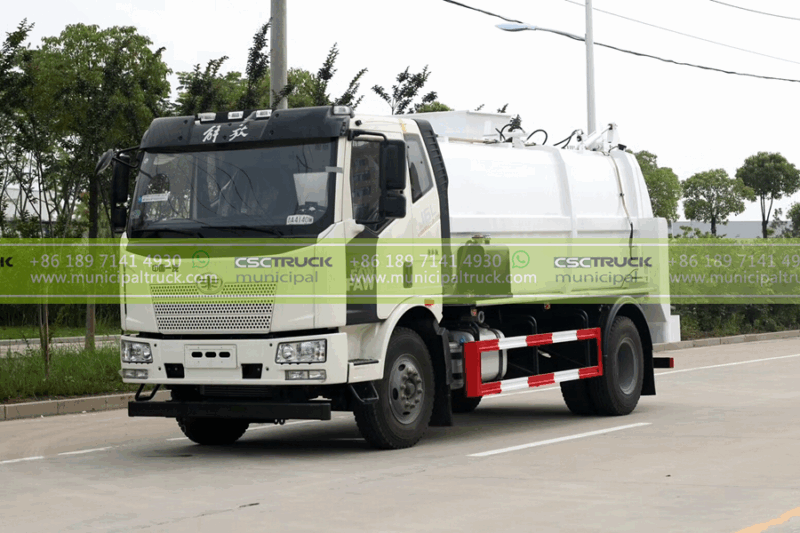

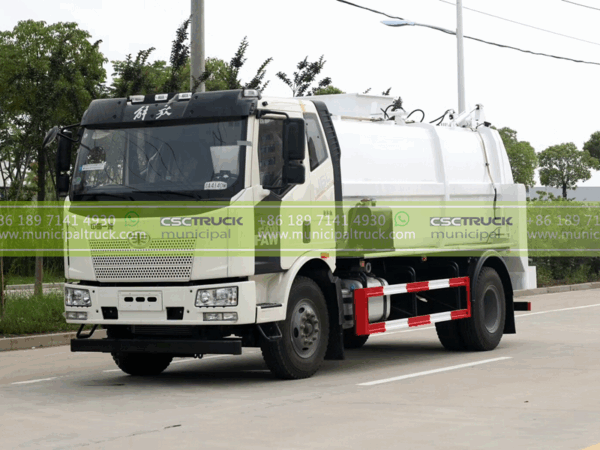

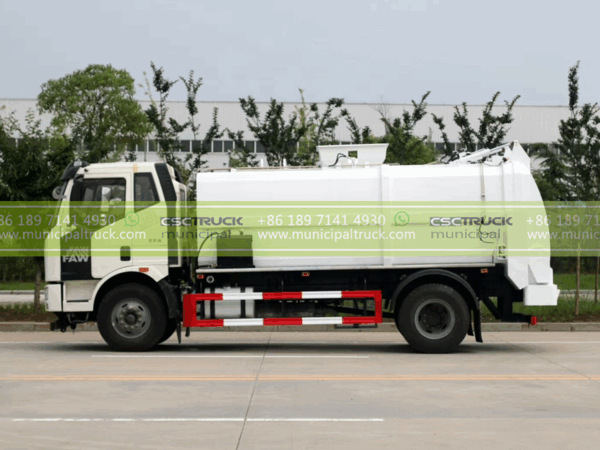

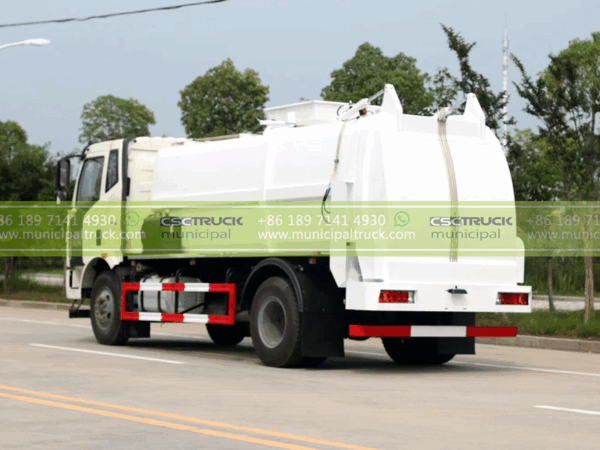

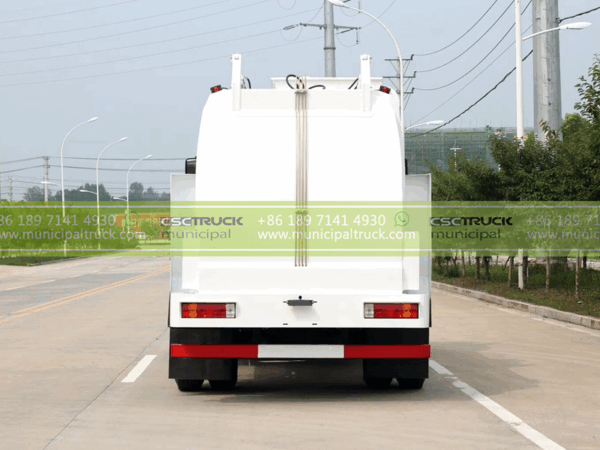

FAW 10CBM Side Loader Garbage Truck

Chassis
Size	6,720×2,860×2,720mm
GVW/Curb Weight	11,995/5,700kg
Wheelbase	4200mm
Front/Rear Axle	4.36T/7.635T
Tire	8.25R20 6+1 tires
Engine
Type	Diesel
Make/Model	WEICHAI/WP3NQ160E61/160hp/euro5
Transmission
Gears	6F+1R
Operation	Manual
Cabin
Driving	FAW 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Body Superstructure
Capacity	10 CBM
Material	Q235B Carbon Steel, 4mm thickness of the box
Design	Leakage proof design
Ways of loading	Side loading with bucket lifting system
Container Roll on Time	50~60s
Container Roll-off Time	40~50s
Control System	Manual control behind the cab
Main Structure	Body, hydraulic system, operation system, install push plate and strike-off board in the container.
Options	Left side loading or Right side loading; Automated side-loading equipment could be optional.

Certification	ISO9001:2015
Chassis Truck	FAW
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	4×2
Emission Standard	Euro V
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Medium Duty
Warranty Period	12 Months
