SUMMARY:

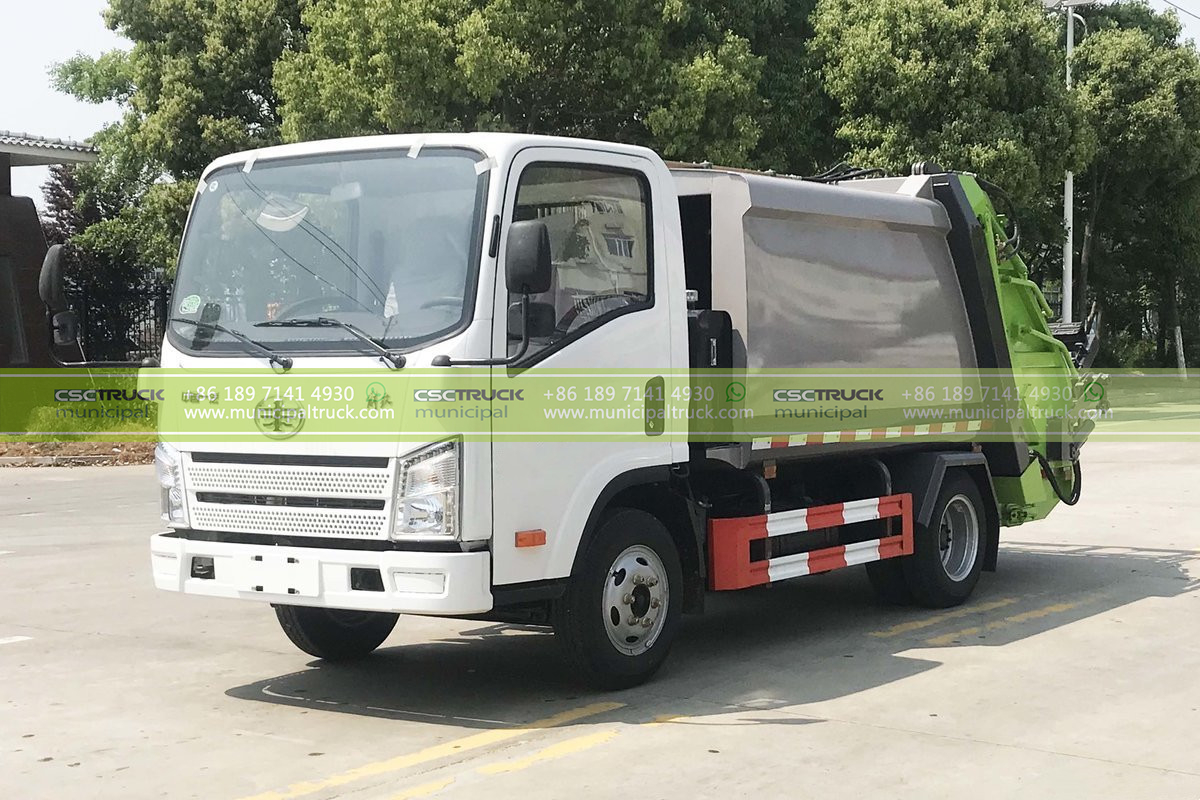

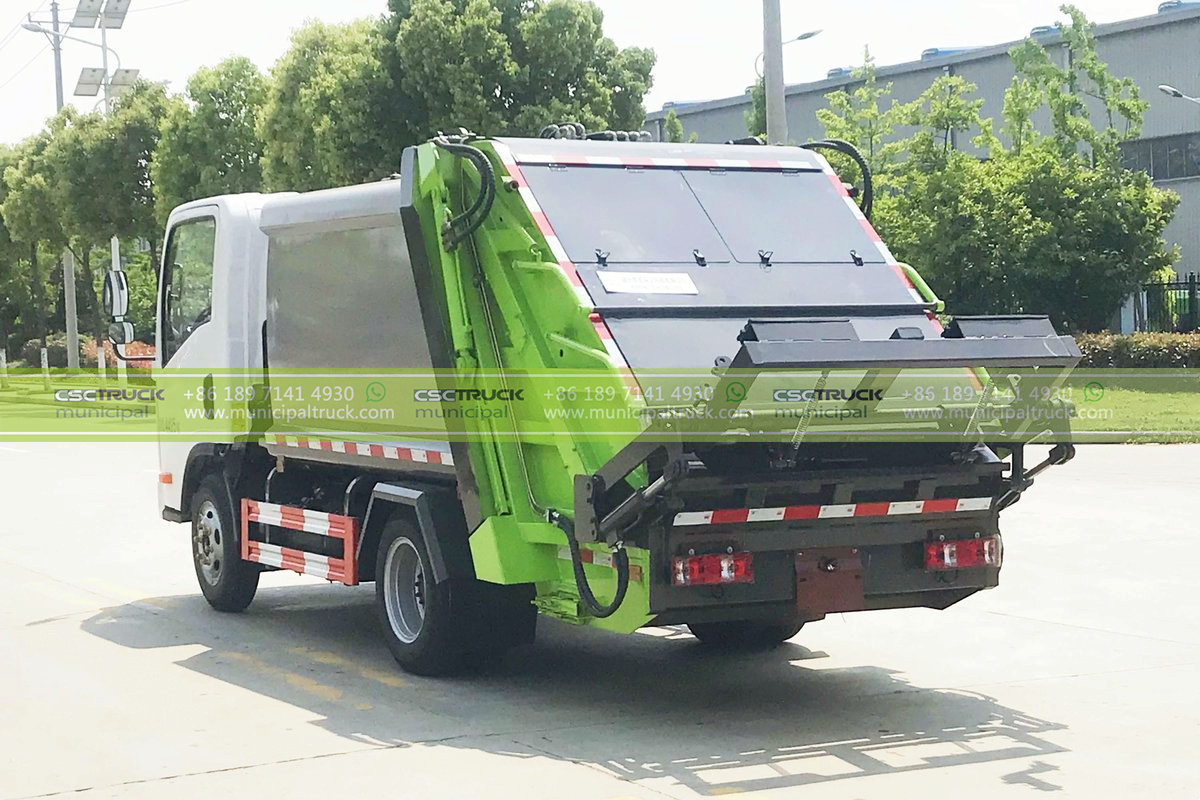

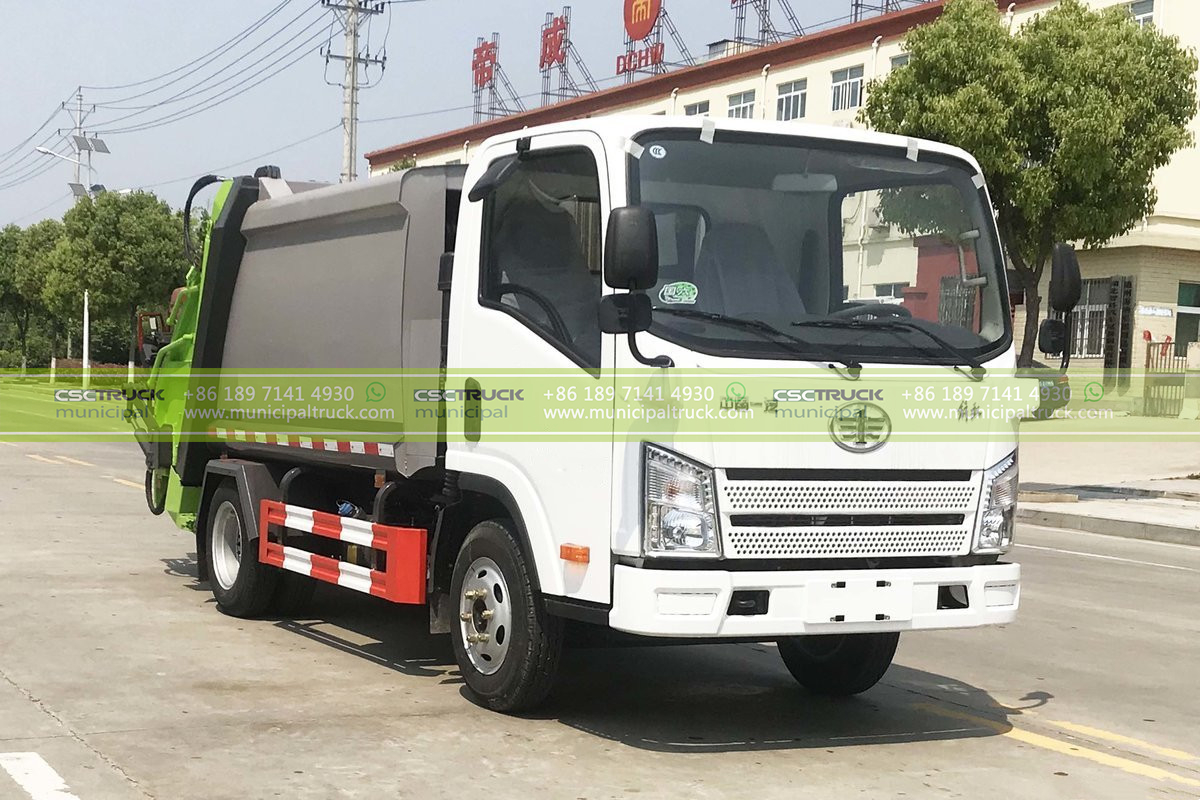

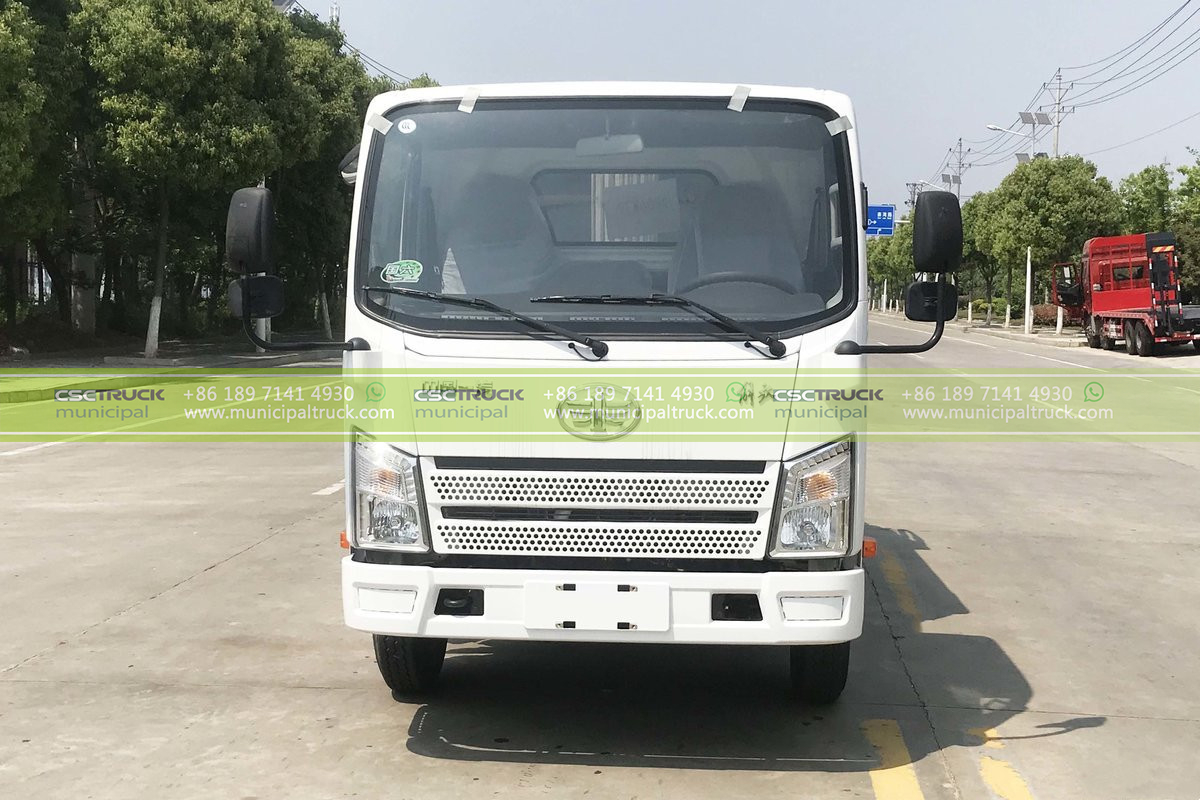

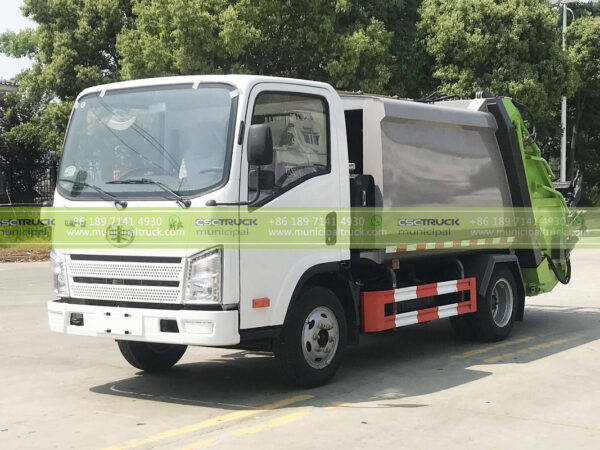

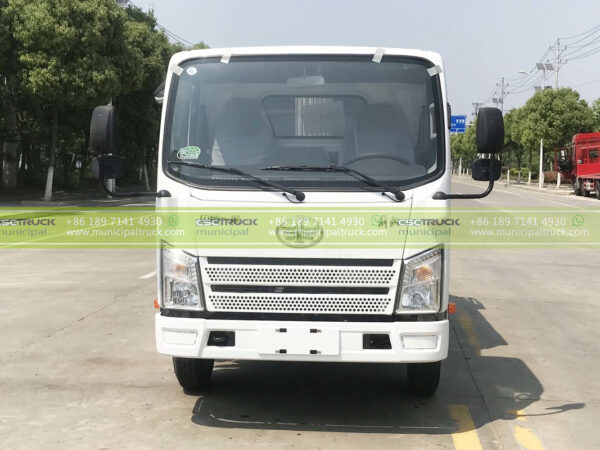

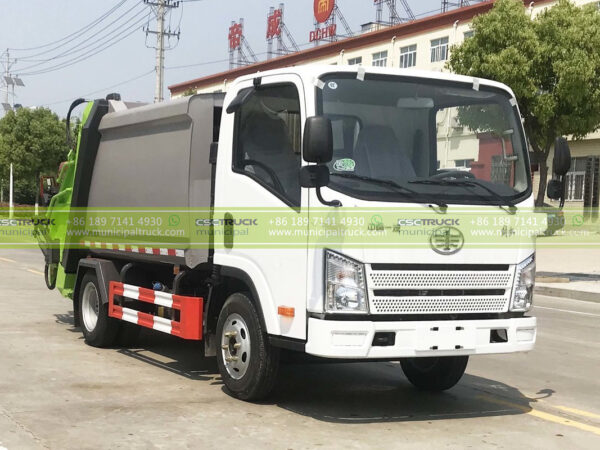

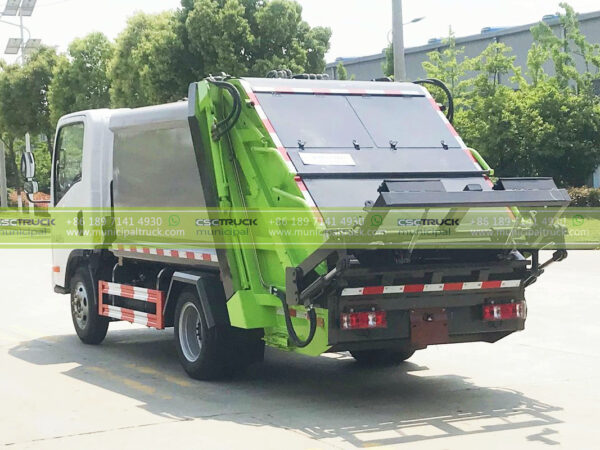

The FAW 20 CBM Rear Loader Compactor Garbage Truck is an efficient and versatile waste management solution designed to streamline garbage collection and disposal operations. With its detachable compactor design, powerful engine, and well-engineered chassis, this truck offers the capability to manage substantial quantities of waste while adhering to stringent emission standards. Its user-friendly features and environmentally conscious design make it a reliable choice for waste management tasks in urban and suburban settings.
The Rear Loader Garbage Truck combines a detachable compactor design, reliable engine performance, and thoughtful specifications to deliver an efficient and environmentally friendly waste management solution. Its adaptability and efficiency make it a valuable asset for organizations engaged in waste collection and disposal in diverse urban settings.
FEATURES:
- Drive Mode: Operating in a 4X2 drive mode, this truck provides excellent maneuverability and control, ensuring efficient waste collection activities in various environments.
- Wheelbase: The 2800mm wheelbase enhances stability and ease of operation during waste collection and transportation tasks.
- Type: As a “Detachable Compactor Truck,” this vehicle offers the convenience of a detachable compactor, making waste unloading and disposal more efficient.

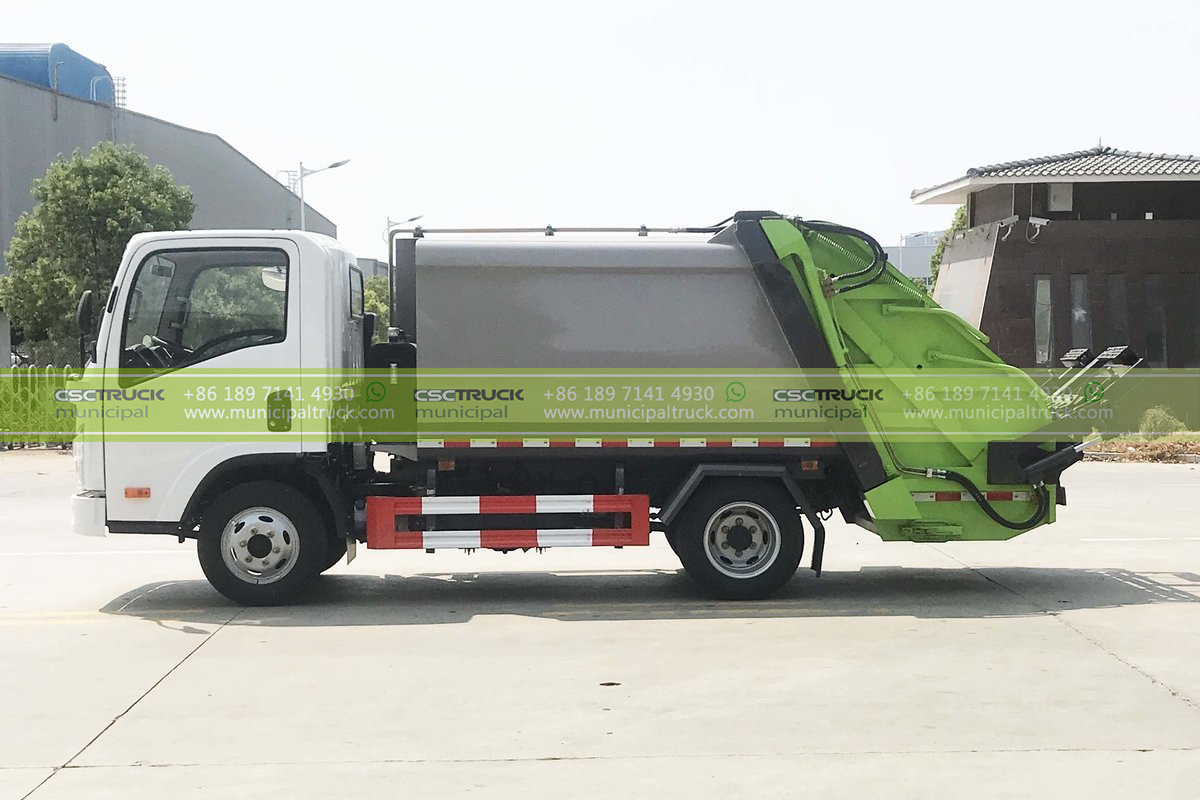

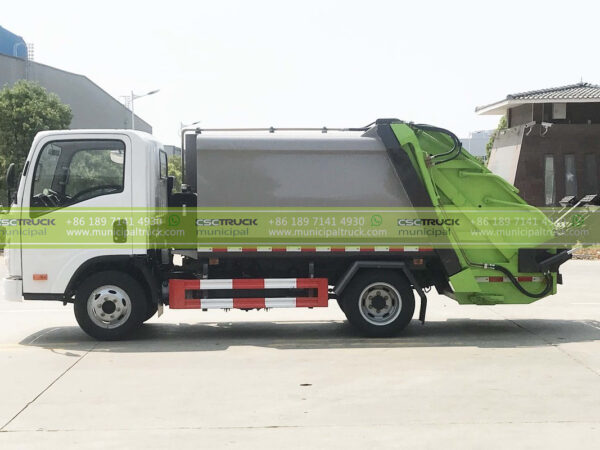

- Body Size: With a body size of 5.995×1.9×2.23 meters, the truck accommodates a large volume of waste while maintaining a compact footprint.
- Weight Capacities: The truck’s substantial gross weight of 4.495 tons and rated weight of 0.465 tons enable efficient waste management of varying load sizes.
- Front/Back Overhang: Featuring a front/back overhang of 1.155/1.76 meters, the truck ensures optimal accessibility and maneuverability in tight spaces.
- Front/Rear Wheelbase: The balanced front wheelbase of 1520mm and rear wheelbase of 1475mm contribute to the truck’s stability and control during waste collection activities.
- Engine Parameters: Powered by the Quanchai Q23-95E60 engine with a displacement of 2.3L, the truck delivers a maximum output power of 70kW (95 hp) at a rated speed of 3000rpm.
- Emission Standard: Complying with China VI emission standards, the engine maintains environmental sustainability while performing waste management tasks.
- Fuel Type: The engine operates on diesel fuel, offering a balance of power and efficiency to meet waste management demands.
- Upper Equipment Parameters: Identified by the vehicle announcement code HDW5040ZYSCA6, this truck’s upper equipment configuration is optimized for waste collection tasks.
- Upper Brand: Manufactured by Emperor Environmental Brand, the upper equipment reflects high standards of quality and performance.
- Transmission Parameters: Equipped with a 5-speed Transmission model, the truck provides smooth gear transitions and efficient power delivery during operation.
- Chassis Parameters: The FAW Jiefang chassis from the Hu VR series, model CA1041P40K50L1BE6A84, ensures robust construction for extended durability.
- Number of Spring Leaves: With 3/4 spring leaves, the truck maintains stability and ride quality even during challenging waste collection routes.
- Tires: The truck is equipped with 6 tires, adhering to specifications 6.50R16 and 195/70R15, ensuring stability, traction, and durability during waste collection tasks.
SPECIFICATIONS:
| Drive Mode | 4X2 |
| Wheelbase | 2800mm |
| Type | Detachable Compactor Truck |
| Body Size | 5.995×1.9×2.23 meters |
| Gross Weight | 4.495 tons |
| Rated Weight | 0.465 tons |
| Front/Back Overhang | 1.155/1.76 meters |
| Front/Rear Wheelbase | Front: 1520mm; Rear: 1475mm |
| Engine Parameters | |
| Engine Model | Quanchai Q23-95E60 |
| Displacement | 2.3L |
| Max Output Power | 70kW |
| Max Horsepower | 95 hp |
| Emission Standard | EURO 2, EURO 3, EURO 4, EURO 5 |
| Fuel Type | Diesel |
| Rated Speed | 3000rpm |
| Upper Equipment Parameters | |
| Vehicle Announcement | HDW5040ZYSCA6 |
| Upper Brand | CSCTRUCK |
| ransmission Model | 5-Speed Transmission |
| Number of Gears | 5 |
| Chassis Parameters | |
| Chassis Brand | FAW Jiefang |
| Chassis Series | Hu VR |
| Chassis Model | CA1041P40K50L1BE6A84 |
| Number of Spring Leaves | 3/4 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 6.50R16, 195/70R15 |
