BRIEF

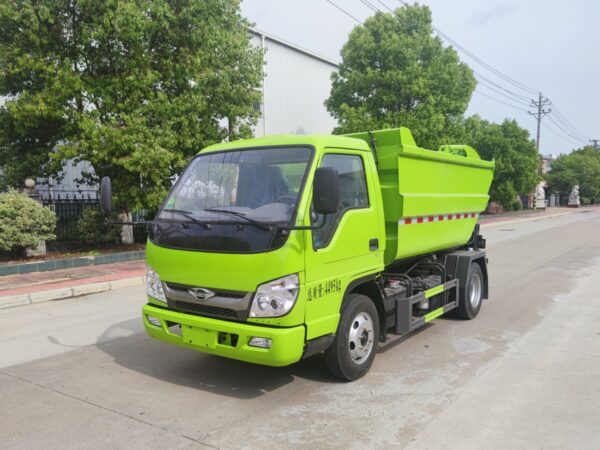

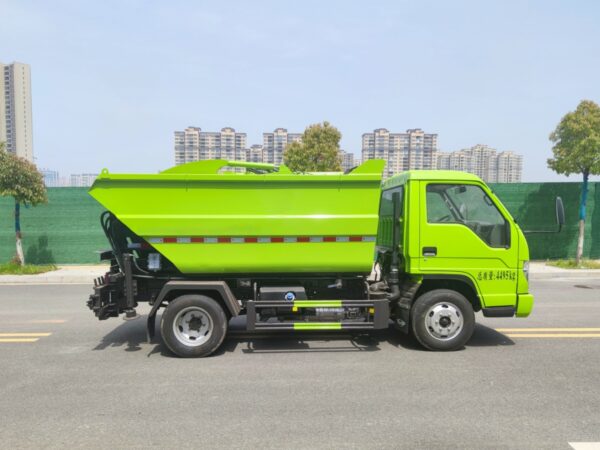

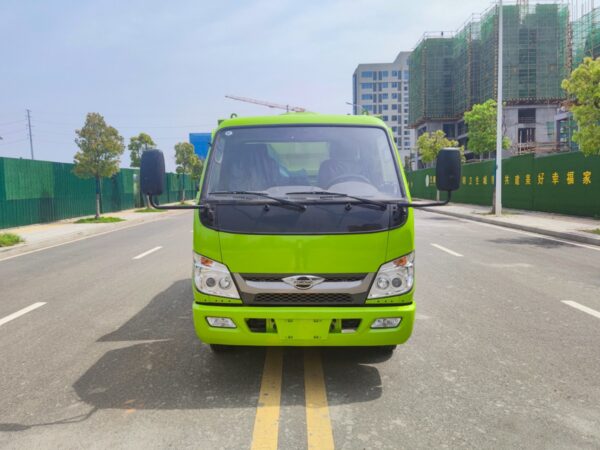

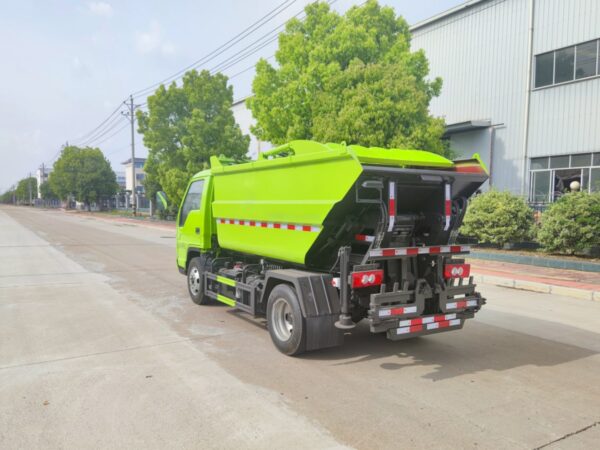

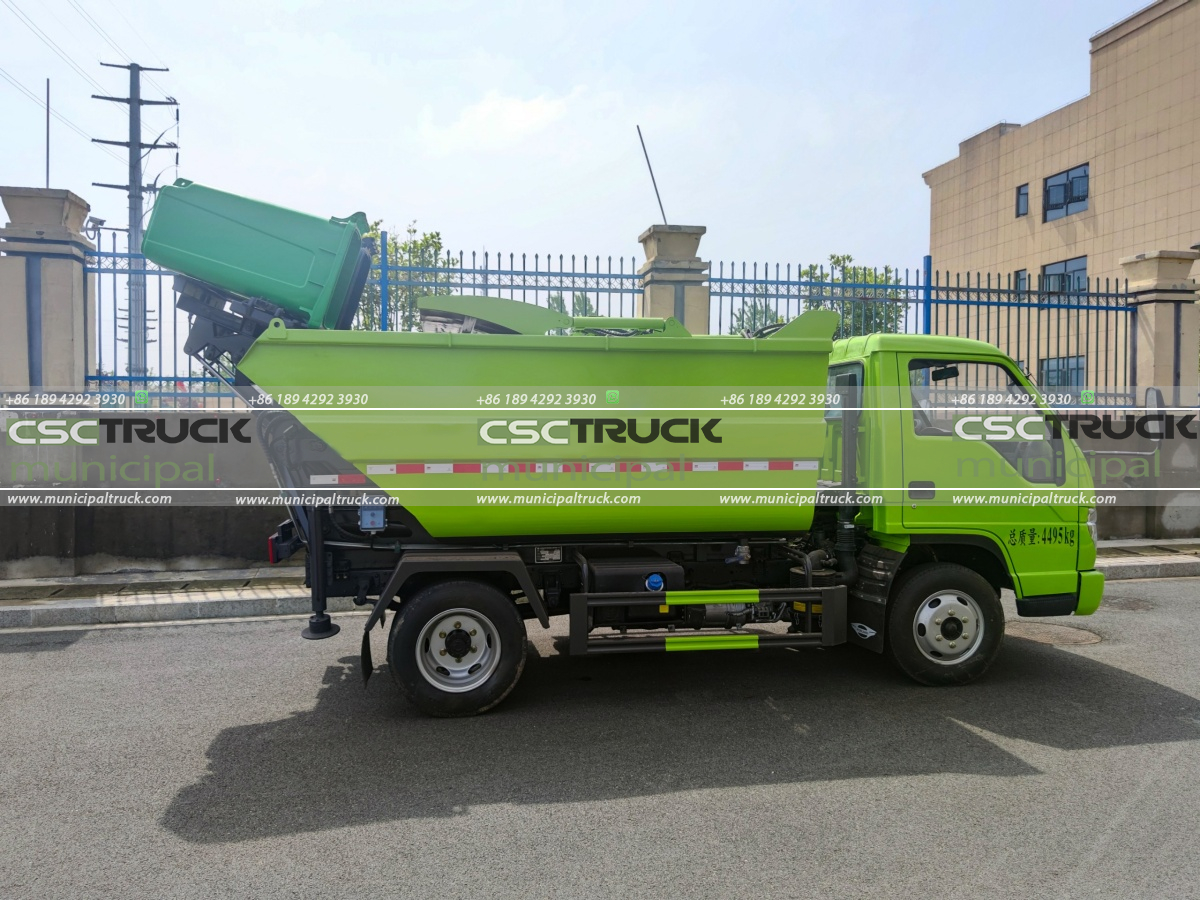

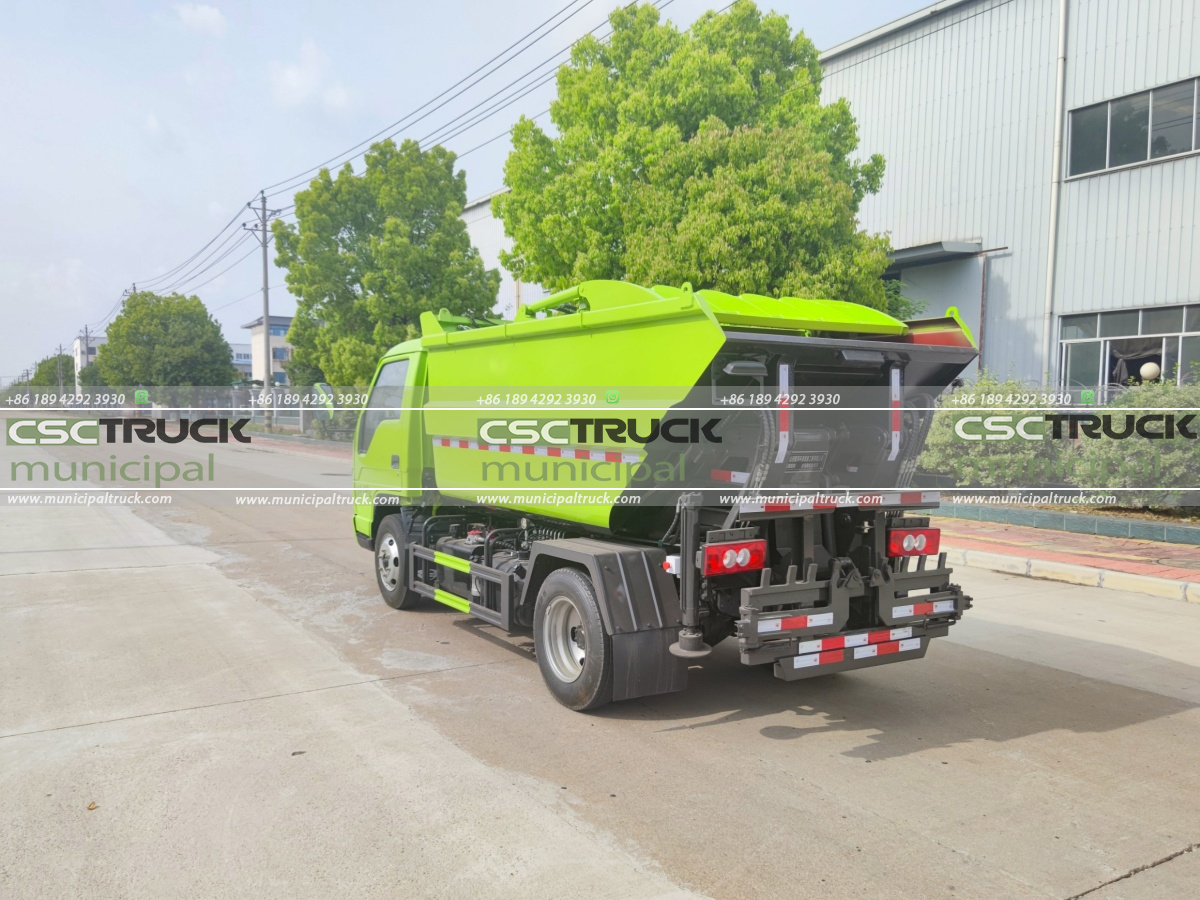

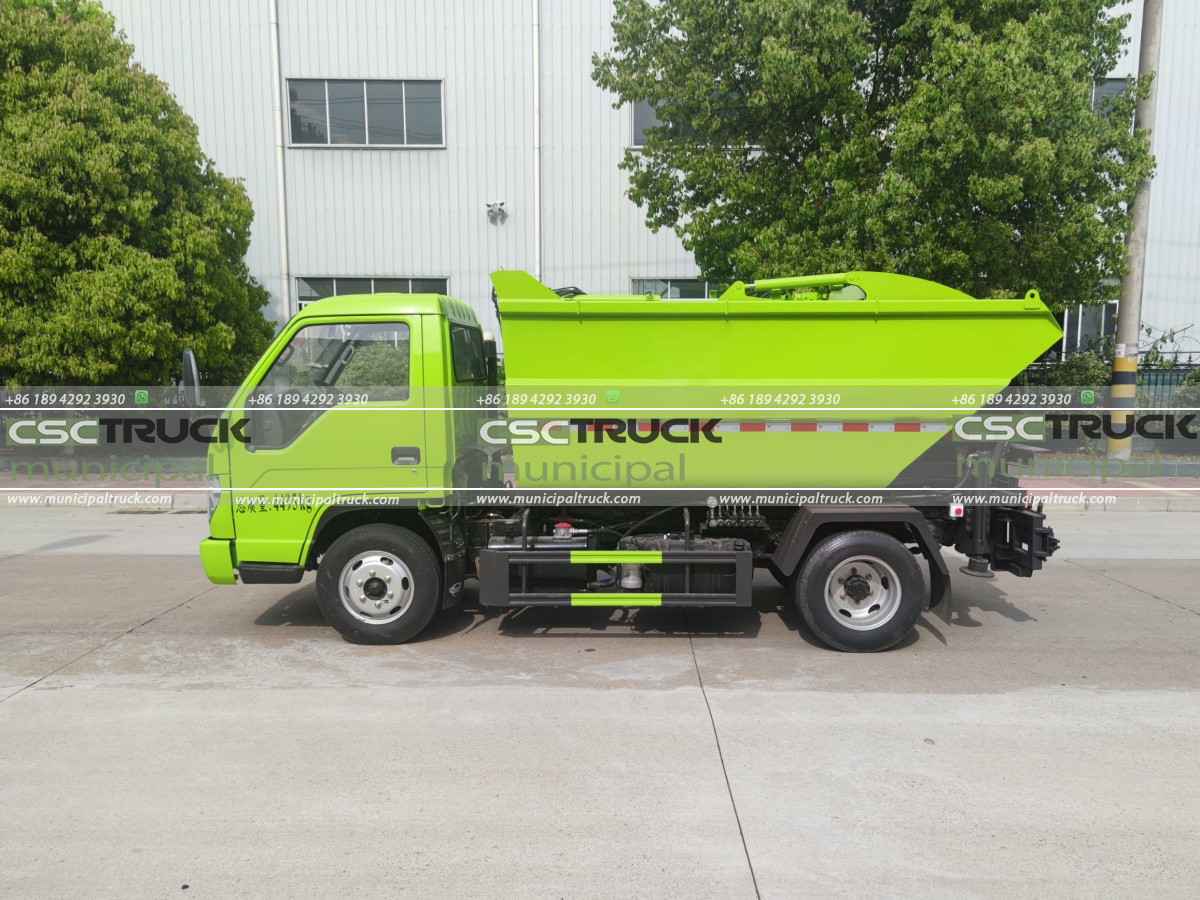

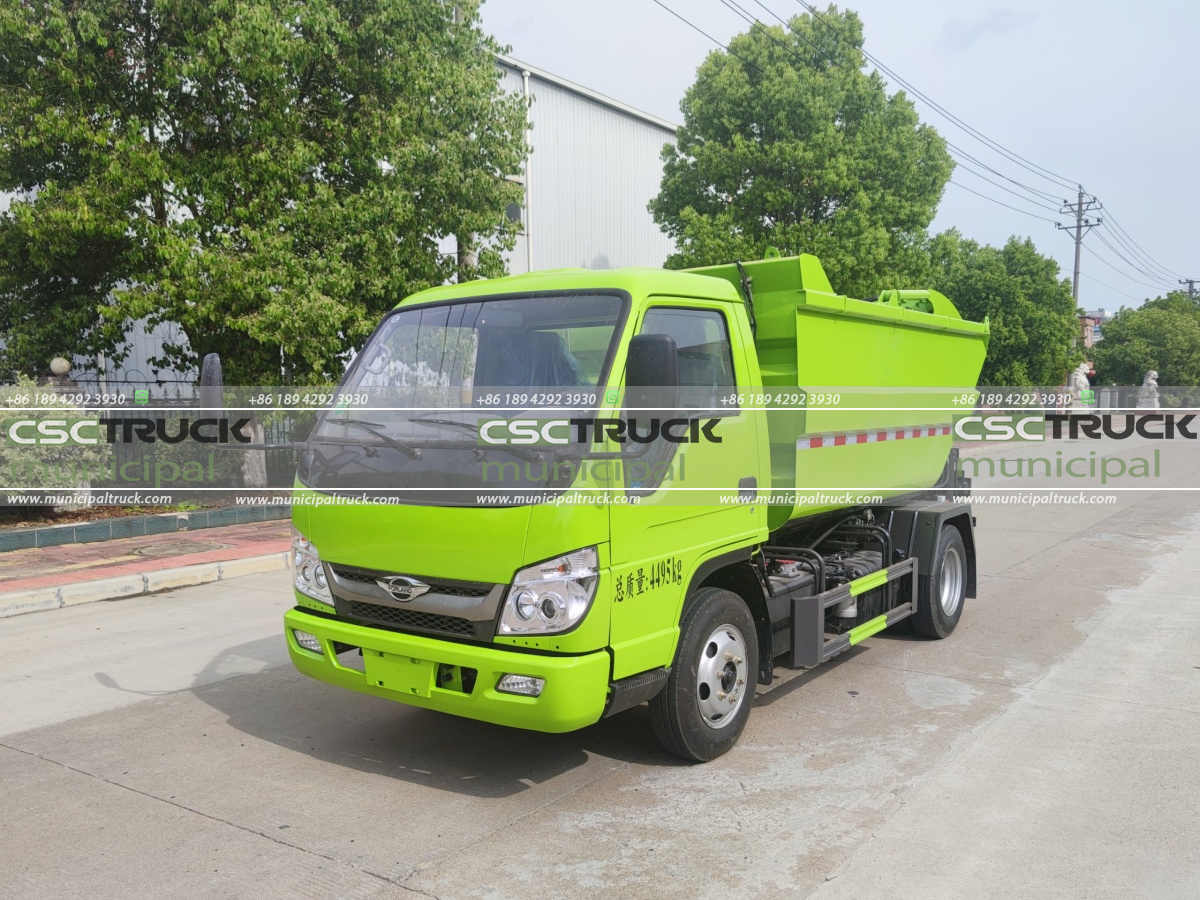

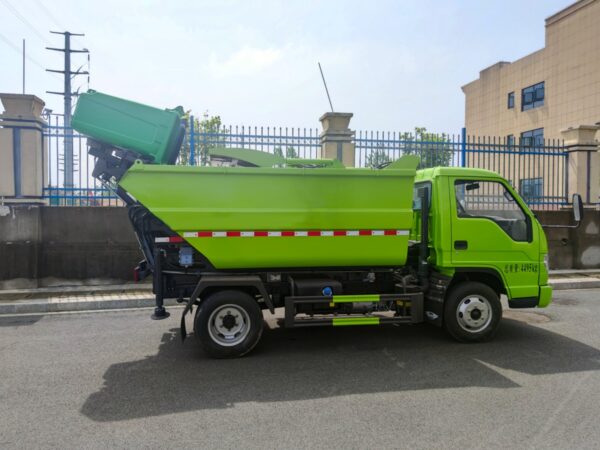

The FOTON 4CBM Self-Loading Garbage Truck is a compact and efficient waste collection vehicle designed for urban communities, narrow streets, and areas where larger garbage trucks cannot operate. Built on the reliable FOTON BJ1045V9JB5-54 chassis and powered by a Quanchai diesel engine, it combines strong durability, low operating costs, and flexible maneuverability.
Equipped with a hydraulic self-loading system, the truck allows one operator to complete loading operations directly from the cab, reducing labor requirements and improving collection efficiency. The 4m³ arc-shaped hopper provides smooth waste loading and storage, while the compact 5.19m vehicle length enables easy operation in residential areas, alleys, and crowded urban environments.
Designed for reliable daily sanitation work, the self-loading garbage truck features a durable steel hopper, ABS braking system, efficient suspension, and low fuel consumption. It is an ideal solution for municipalities, sanitation companies, and contractors seeking a cost-effective garbage collection vehicle.
FEATURE
1. Single-Operator Self-Loading System

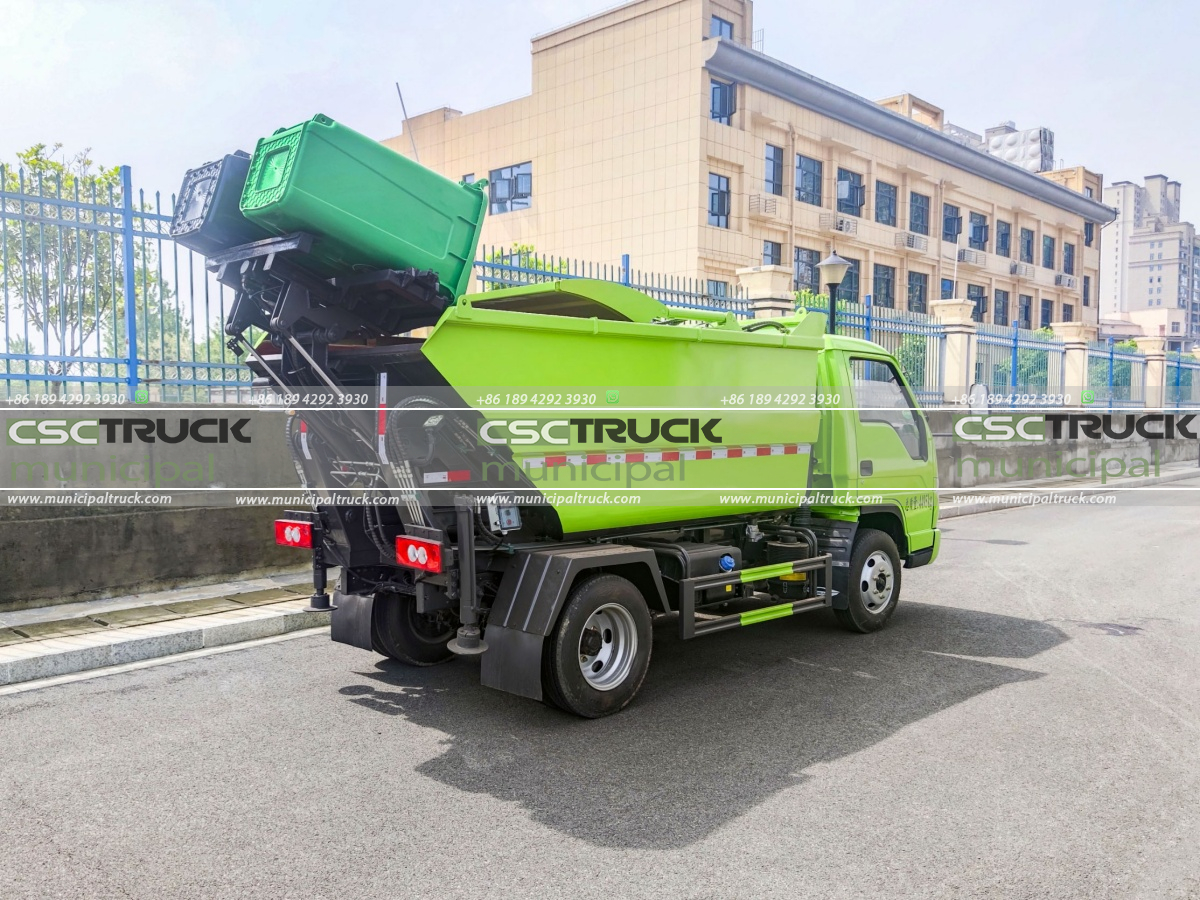

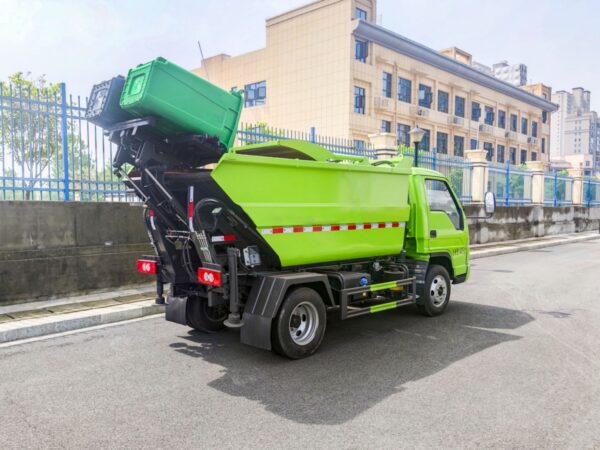

The hydraulic scraping plate system automatically collects and loads waste, completing each cycle in less than 35 seconds. This reduces manual labor, improves safety, and increases daily collection efficiency.
2. Durable 4m³ Steel Hopper Design
The high-strength arc-shaped hopper improves waste flow, prevents material buildup, and provides excellent durability for long-term operation in demanding environments.
3. Compact Design for Urban Applications
With a short wheelbase and compact dimensions, the truck easily navigates narrow streets, residential areas, and restricted-access locations where larger garbage trucks cannot work.
4. Reliable FOTON Chassis & Quanchai Diesel Engine
The proven FOTON chassis ensures stable performance and easy maintenance, while the Quanchai diesel engine provides efficient power with lower fuel consumption and compliance with strict emission standards.
5. Safe and Comfortable Operation
The ABS braking system, durable suspension, and comfortable two-person cabin provide safer and more convenient operation during long working shifts.
6. Low Operating Cost & Long Service Life
With a robust structure, reliable components, and strong service support, the FOTON self-loading garbage truck delivers dependable performance for modern urban waste collection.
SPECIFICATION
| Chassis | |
| Vehicle Dimension | 5,190×1,880×2,250 mm |
| GVW | 4,495 kg |
| Curb Weight | 3,390 kg |
| Wheelbase | 2,850 mm |
| Front/Rear Axle Load Capacity | 1,617 kg / 2,878 kg |
| Tire | 6.50R16LT 10PR, 6+1 tires |
| Engine | |
| Make/Model | Quanchai/Q23-115E60 |
| Type | 4-cylinder in line, water-cooled, 4-stroke, turbocharged and intercooled, high-pressure common rail, diesel engine |
| Horsepower | 85kW / 115 HP |
| Displacement | 2.3 L |
| Emission standard | Euro 6 |
| Max. Output Torque/Speed | 320 N.m / 2000 rpm |
| Transmission | |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | 4×2 Day Cab, Left-hand Drive |
| Passenger No. | 2 |
| Superstructure | |
| Hopper Type | Arc-shaped |
| Hopper Dimension | 3,200×1,680×1,050 mm |
| Capacity | 4 CBM |
| Material | Q235B Carbon Steel |
| Thickness | Sidewall 3 mm, Bottom Plate 4 mm |
| Loading Method | Rear self-loading |
| Dumping Direction | Rear |
| Hydraulic Cylinder | China brand |
| Bucket Loading Cycle Time | ≤35s |
