BRIEF

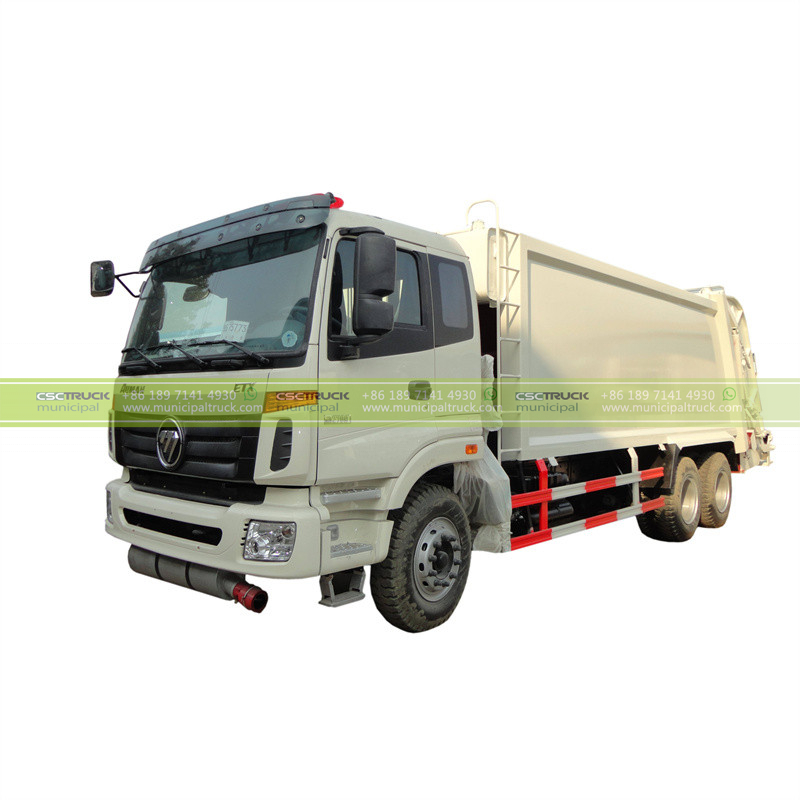

The FOTON 8cbm Garbage Compactor Lorry is designed to load municipal solid wastes and compact the waste within the vehicle superstructure thus avoiding long-range travel for little wastes and transporting them to waste treatment facilities.

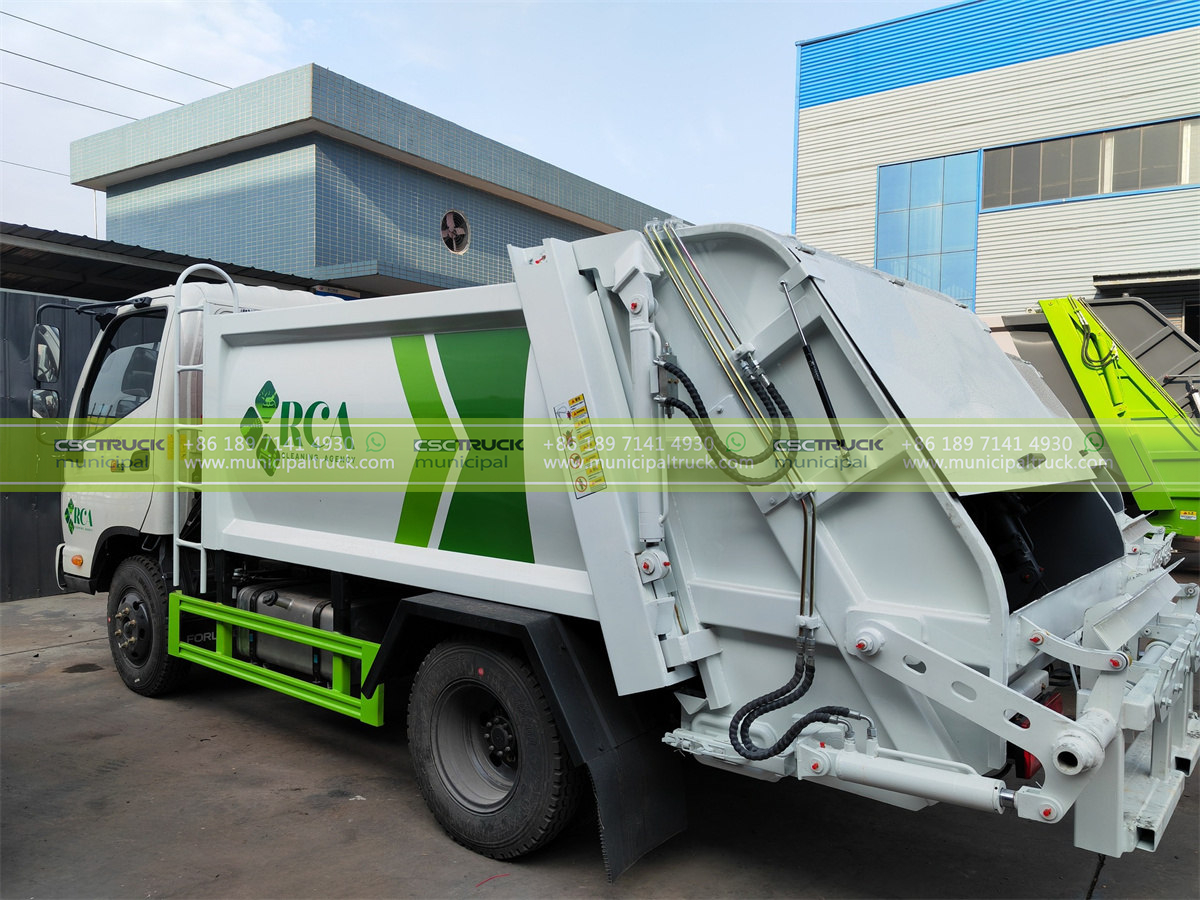

The garbage compactor truck is composed of a sealed body, ejector plate, compaction plate, hopper, lifting device, hydraulic system, and control system. The advanced hydraulic system, the pilot-type back pressure design, and the peristaltic compression technology are used, which greatly improves the compression capacity.
FEATURES
Body
Body constructed from single steel sheet rolled wear-resistant and high-grade steel. The ejector plate guide on a 120mm rail profile, is capable to press the refuse from 3:1 to 5:1 depending on the refuse nature.
Container Lifting Devices
800 kg lifting capacity to lift and 2 bins 120L/240L

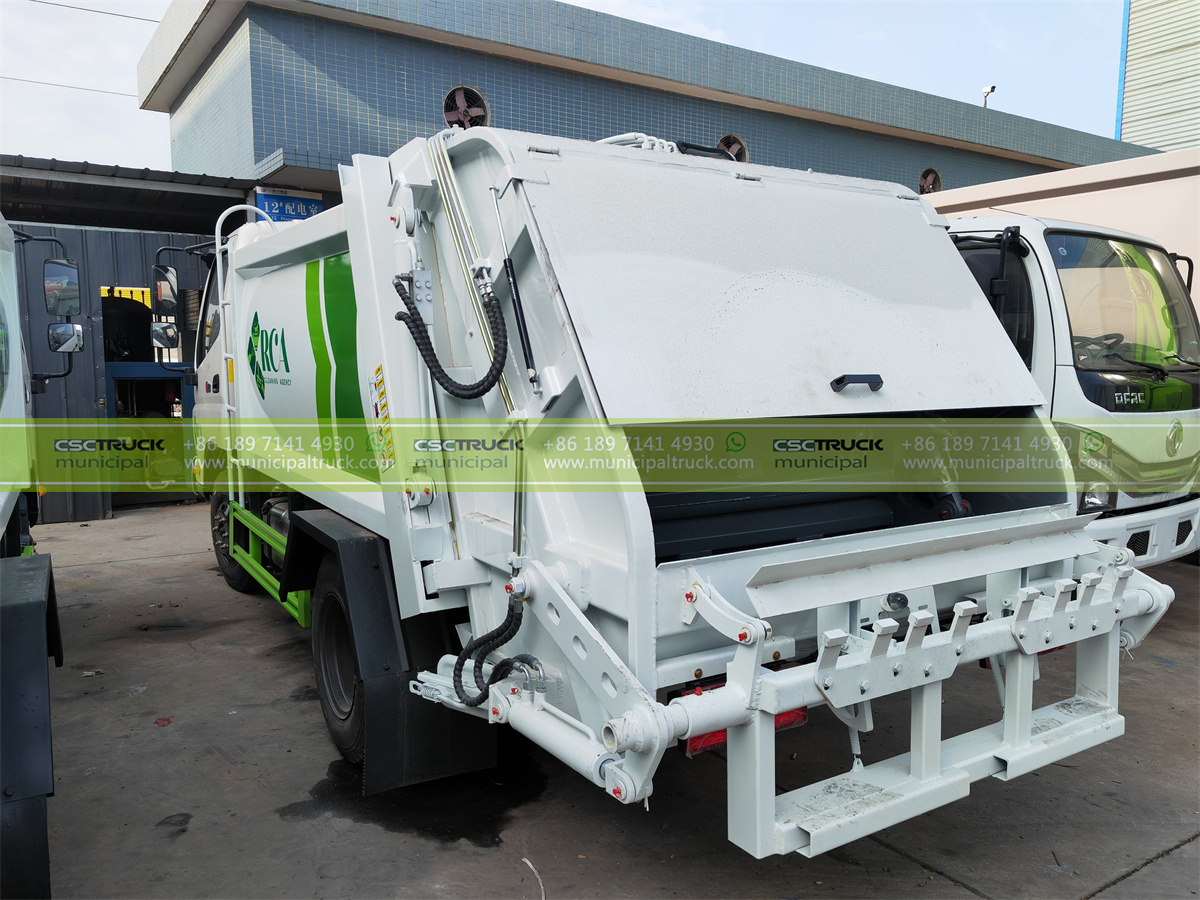

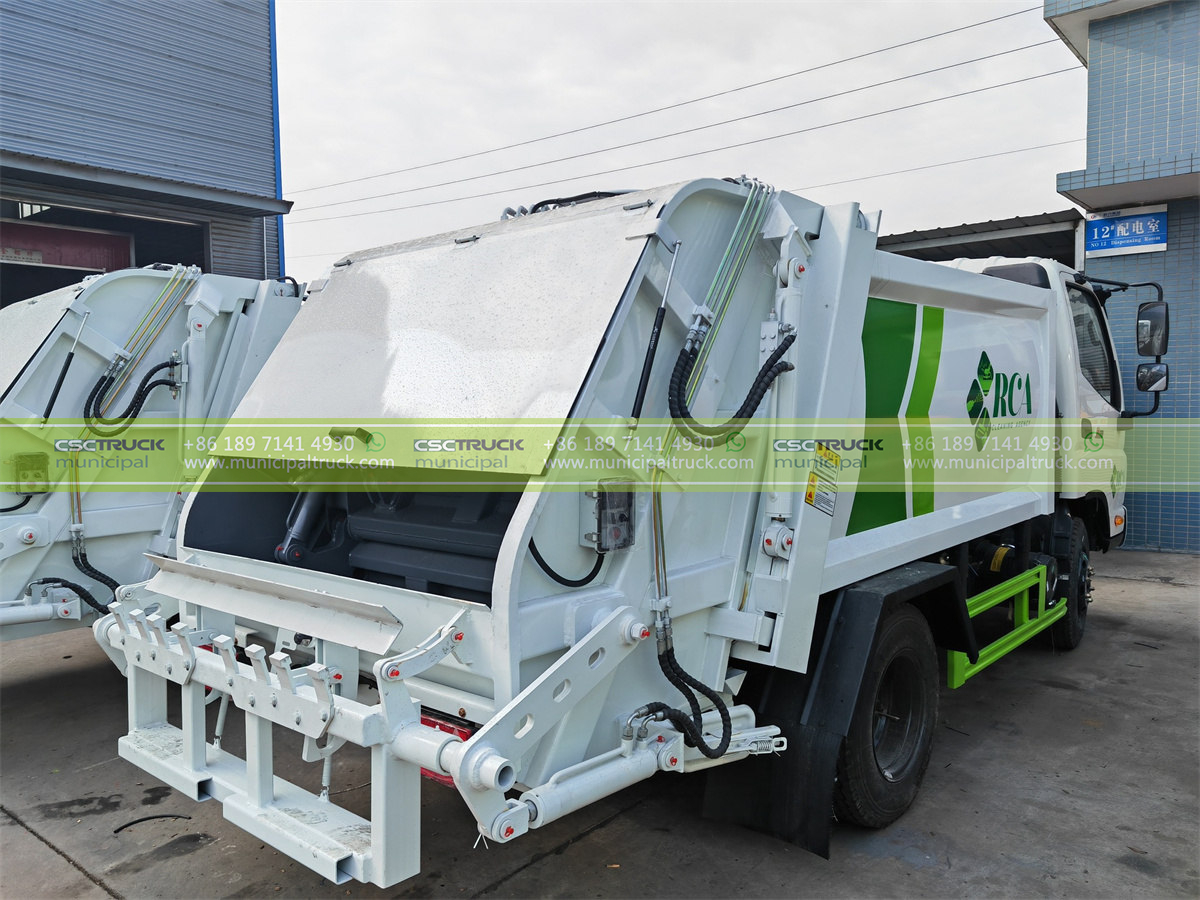

Hopper
- High Abrasive Resistant 6mm steel material, of hardness 450 HB for
enduring sweeper and shovel considered necessary for other parts of the hopper. - Hopper (tailgate) Floor, HB 450 / 6 mm;
Hopper Sides under the rail, HB 450 / 4 mm;
Hopper Sides above the rail, HB 450 / 4 mm.
SAFETY FEATURES
- The balance valve is fitted to the system to prevent the tailgate from descending in the event of a hydraulic failure. An emergency stop switch is provided to stop all operations instantaneously in case of an emergency. The switch is provided on either side of the vehicle.

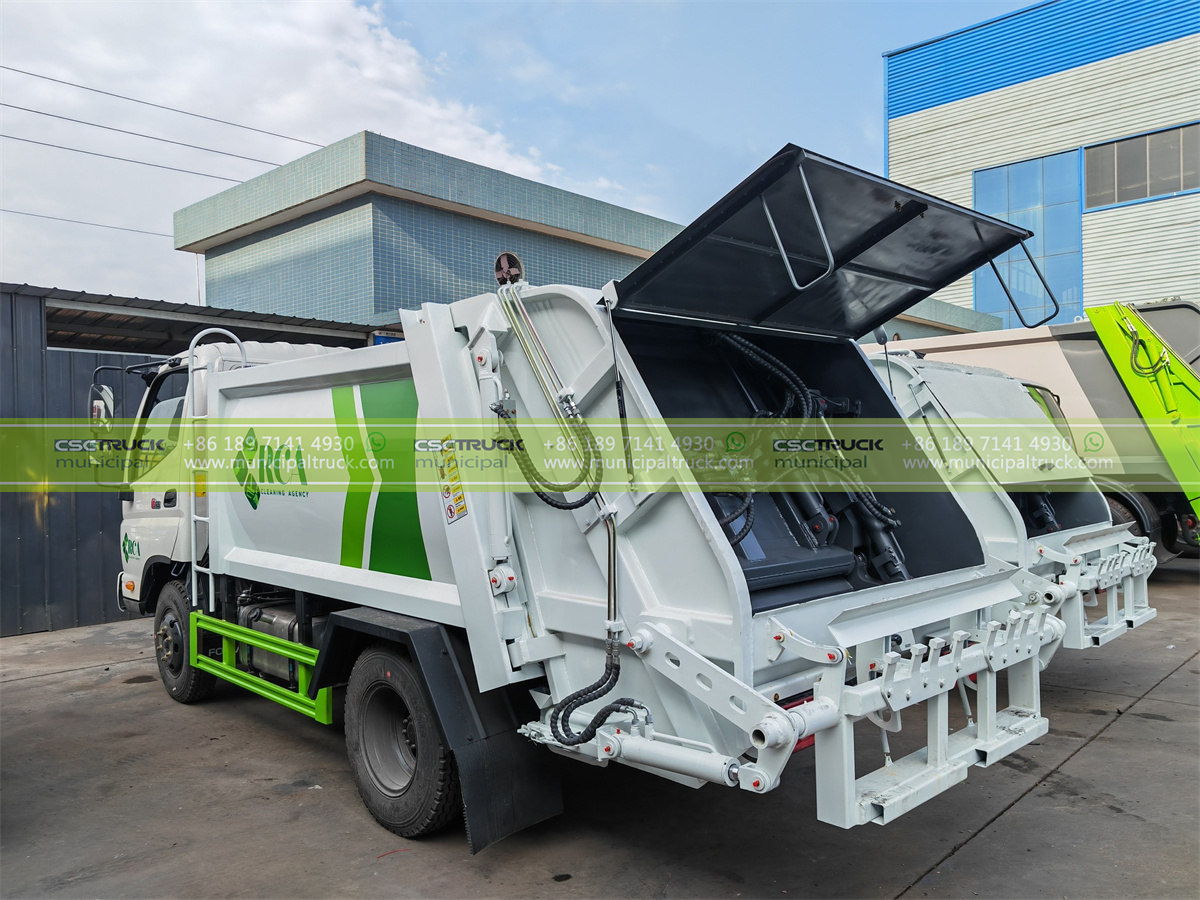

- There is a ‘body prop’ provided on the tailgate to hold the tailgate in the open position.
SPECIFICATION
| Chassis | |
| Size | 7580×2370×2850mm |
| GVW/Curb Weight | 11,995/7,780kg |
| Wheelbase | 3800mm |
| Front/Rear Axle | 4.2T/7.795T |
| Tire | 7.50R16, 6+1 tires |
| Engine | |
| Type | Desiel Engine |
| Transmission | |
| Gears | 6F+1R |
| Operation | Manual |

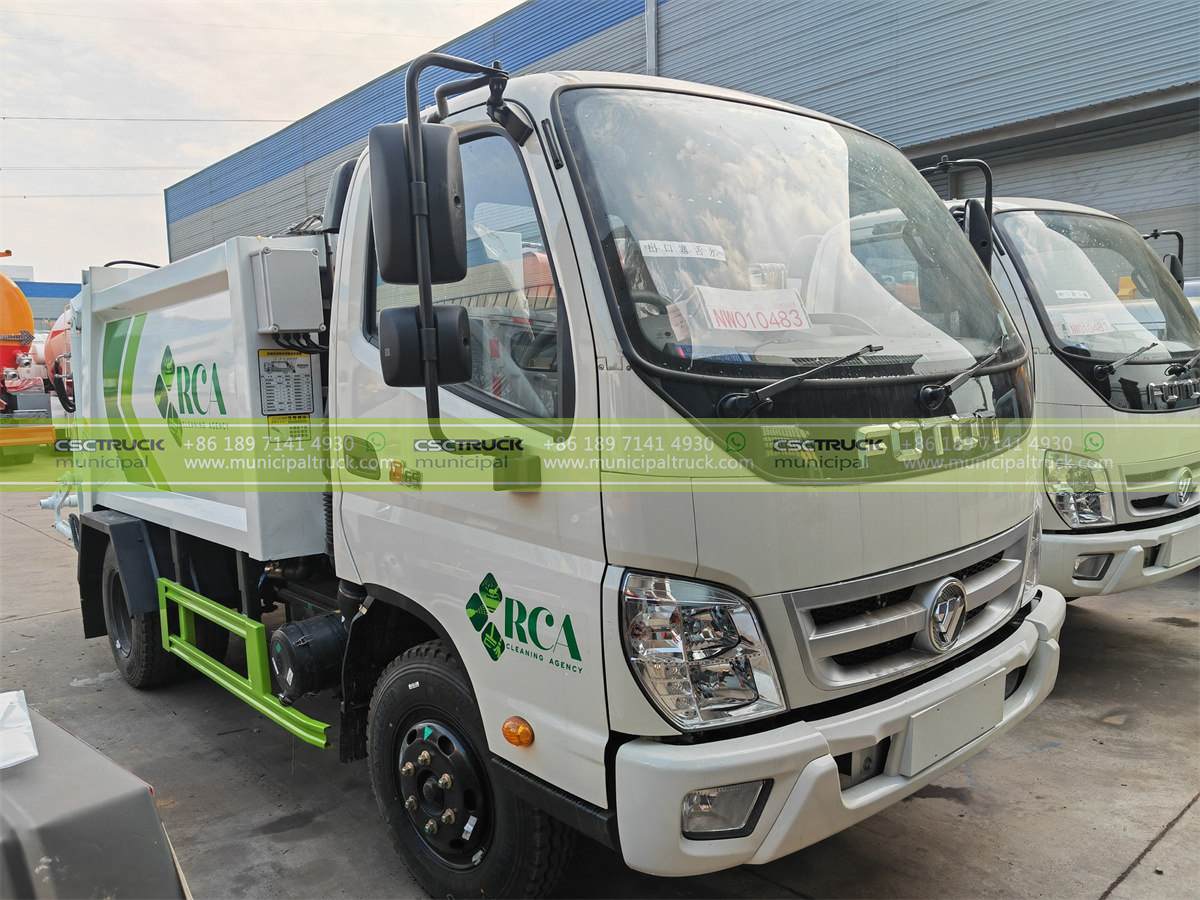

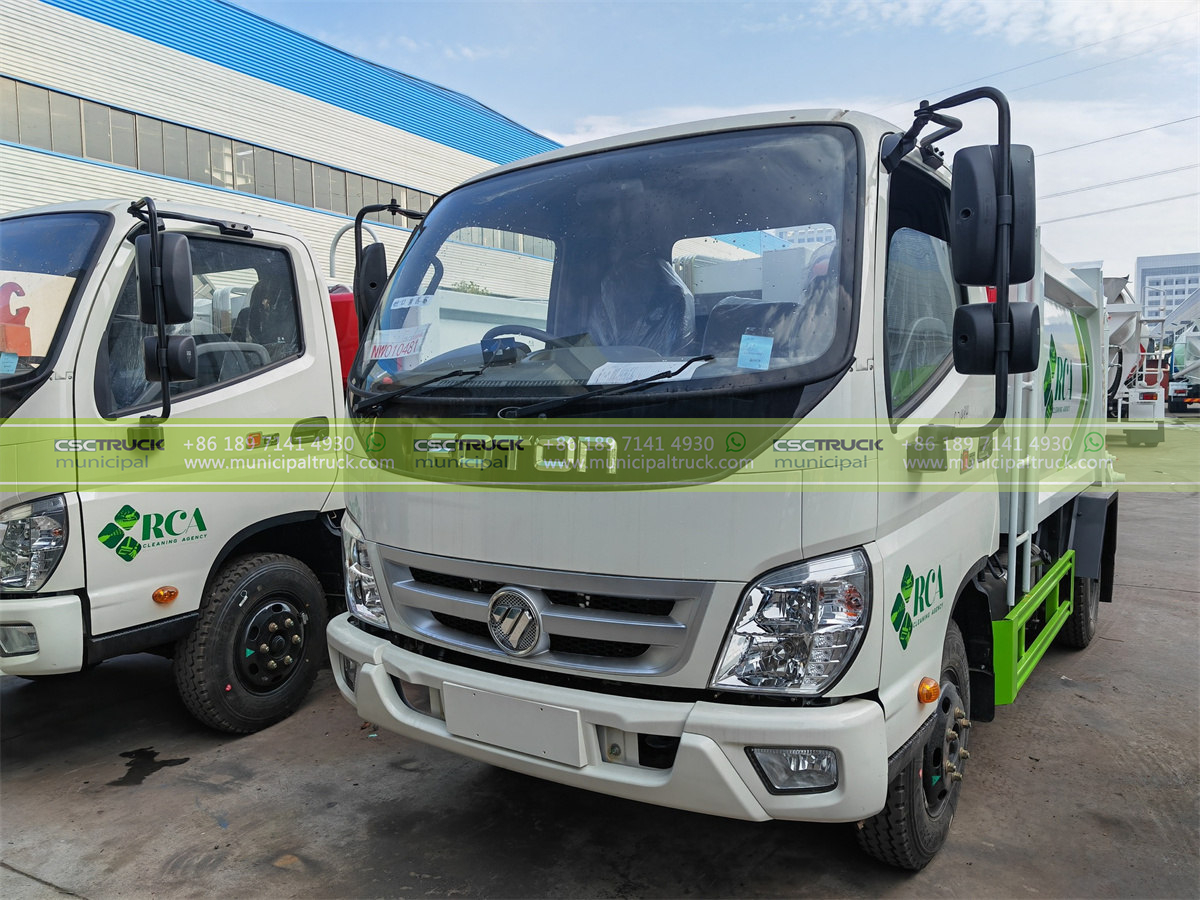

| Cabin | |
| Driving | FOTON AUMARK, Left Hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Garbage Container | |
| Capacity | 8CBM |
| Material | Weather-resistant steel |
| Design | Sealed leakage proof |
| Compaction Ratio | 1:3- 1:4 |
| Hopper Volume | 500L |
| Effective volume of the bucket | ≥0.8cbm |
| Loading Time | 8~10s |
| Loading Cycle Time | ≤40s |
| Unloading Time | ≤45s |
| Discharge Type | Rear discharging |
| Control System | Front control in the cab, rear button control, and manual control |
