Brief
FOTON Rear Loader Refuse Garbage Truck is designed to increase the amount of garbage that can be collected at once, reduce the garbage collection time, and provide practicality to the operators. The garbage compactor truck is produced with lifting systems of various capacities and size standards according to the requirement.
features
Low Loading Height
It is important as the container is not lifted very high above ground level, the chances of an accident due to failure are minimized. Manual loading of Garbage, plastic bags, and sacks can be done very easily.

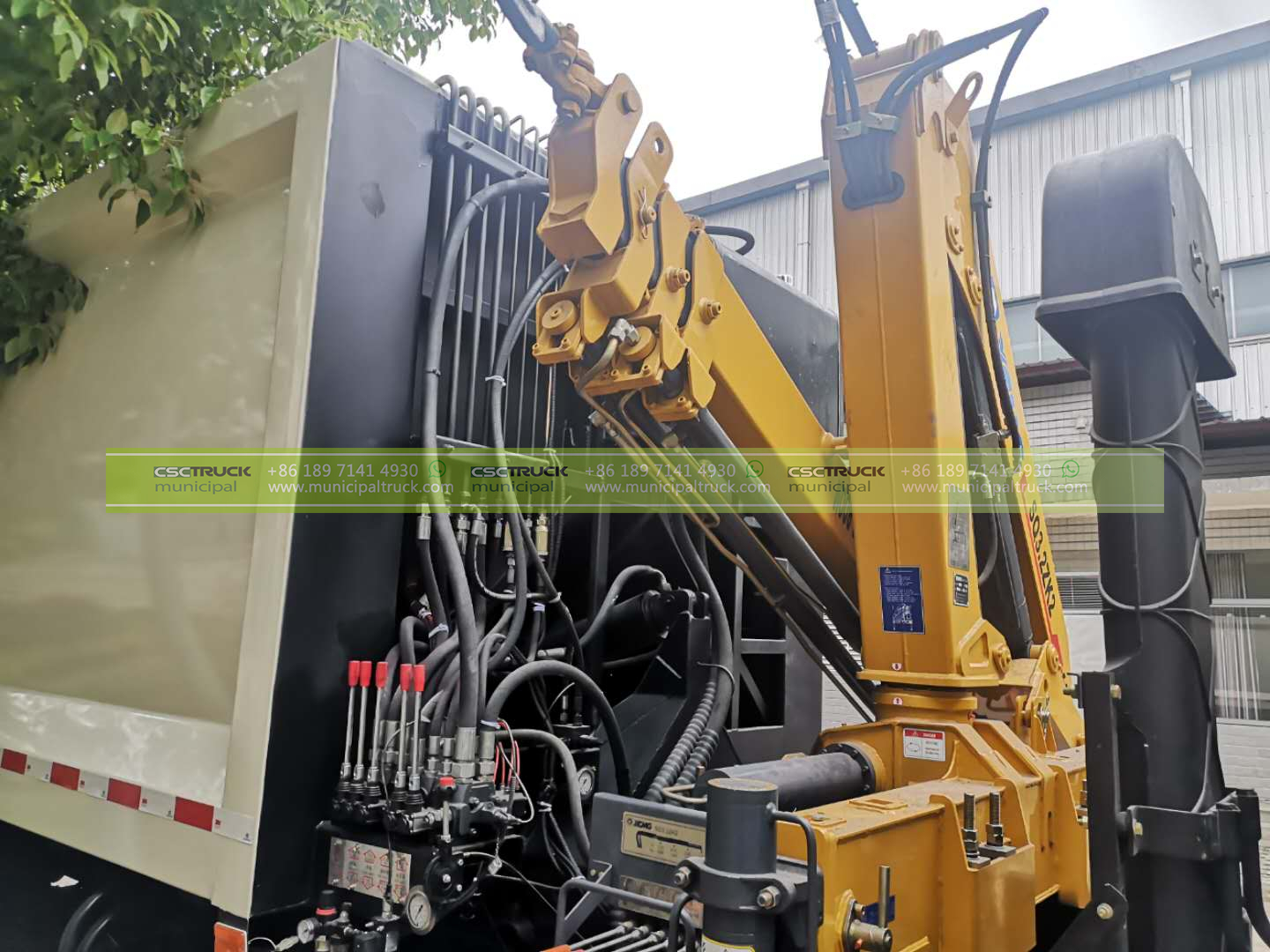

Hydraulic System
Hydraulic Cylinder
The tailgate cylinder is an external cylinder, and the maintenance is convenient. Adopting top brands, stable quality, durable, high pressure, and fast cycle speed.
Hydraulic Pipe
Galvanized steel hydraulic pipe, reliable and long service life.
Hydraulic Control Valve
Top brand hydraulic valve, high precision, and stable performance.
Higher Compaction Ratio
A higher compaction ratio ensures that garbage with low density (fallen leaves, tree cuttings, packing material, etc.) can also be compacted to the optimum carrying density, thus increasing the carrying efficiency and capacity of the vehicle.
SAFETY FEATURES
A Hose burst valve shall be fitted to the system to prevent the tailgate from descending in the event of hydraulic failure.
An emergency stop switch shall be provided to stop all the operations instantaneously in case of emergency. The switch shall be provided on either side of the vehicle.
There shall be a body prop provided on the tailgate to hold the tailgate in the open position for the safety of workshop personnel when entering the body for maintenance or repair.
Lifter Arrangement
Designed to handle compatible closed bins with lifter arrangement, which is specially designed to automatically open the lid (cover) at the required angle which ensures that there is no spillage of garbage outside the compactor.
CONTROL SYSTEM
The system is controlled by the double control system, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on the tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push-buttons, and manually in case. There is an emergency stop button on each of side the truck on the control box.
specification
| Size | 5875×2030×2230mm |
| Gross/ Kerb Mass (kg) | 9,100/2,600 |
| Wheelbase (mm)/ Axis No. | 3360 |
| Driving type | 4*2 LHD |
| Chassis model | FOTON / AUMARK |
| Tire size | 7.00R16/6+1spare tire |
| Engine | CUMMINS/F3.8s3141/141hp/Euro 3 |
| Container Capacity | 6CBM |
| Compaction Ratio | 0.6~0.8T/m3 |
| Lifting weight capacity | 750 kg |
| Tailgate Lifting Cycle (s) | 10-15s |
| Compaction Plate Working Cycle (s) | 15-20s |
| Hopper Opening (°) | 67 |
| Container Opening (°) | 48 |
| Hydraulic cylinder control way | Manual mechanical control and Electrical auto control |
| Unloading cylinder | 1 set Control push shovel’s push off and retraction |
| Lifting cylinder | 2 sets Control compression’s lifting and down |
| Up & down the cylinder | 2 sets of Control sliders are moved up and down |
| Scraper Cylinder | 2 sets Control the scraper’s retraction and strengthen |
| Hopper Cylinder | 2 sets of control hoppers open and close |
| Control | Manual and smart control |
