BRIEFS

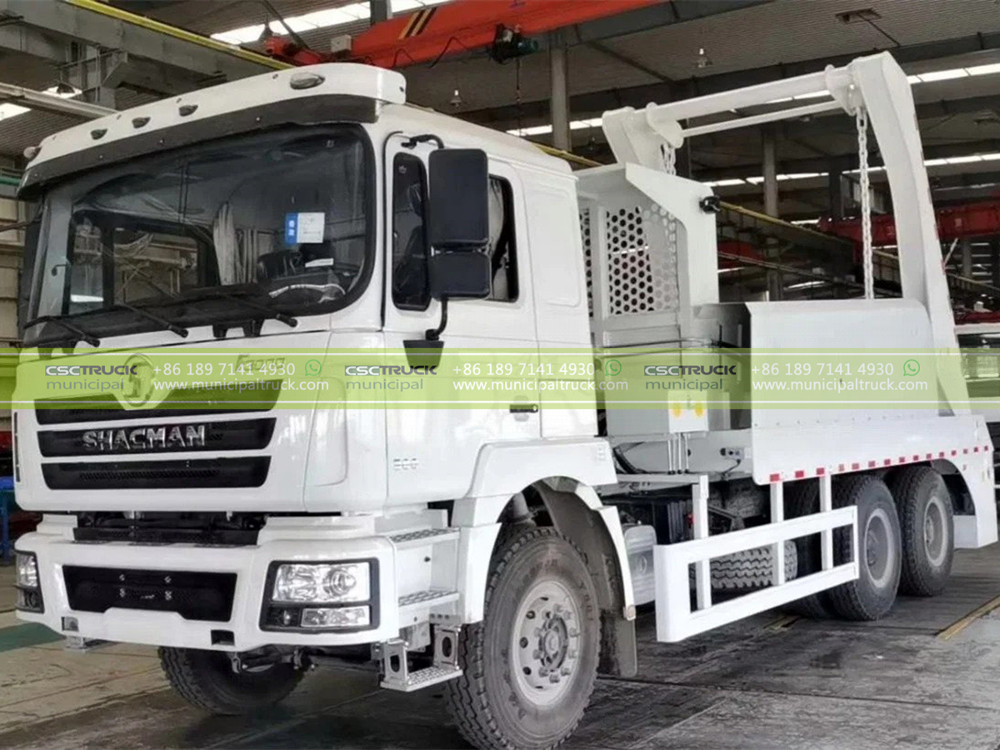

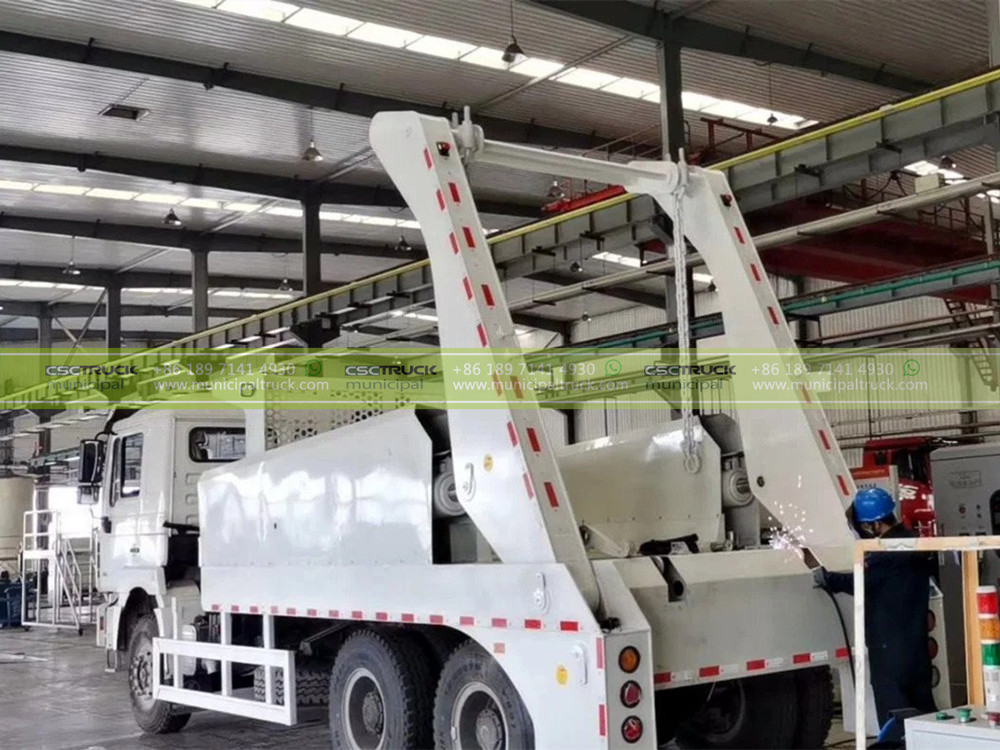

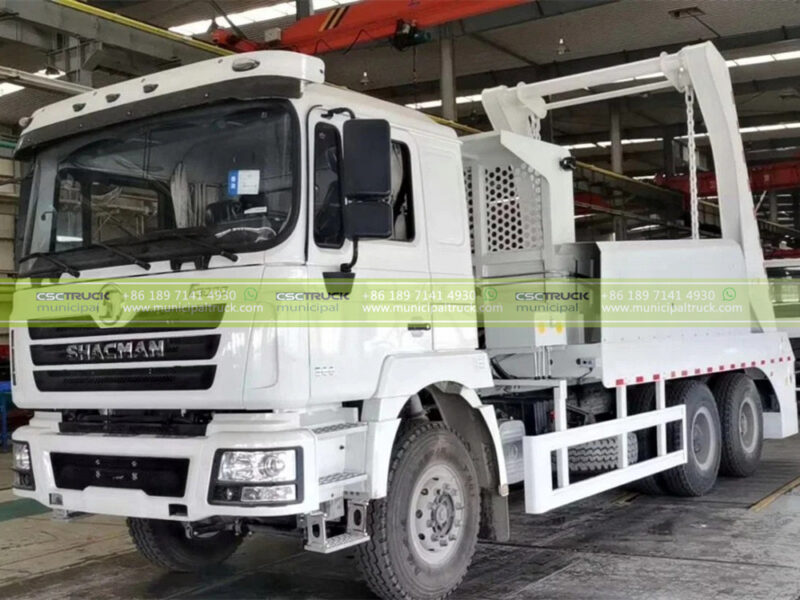

The SHACMAN skip loader rubbish truck is designed for collecting, transporting, and unloading bagged and bulk waste in urban areas. It efficiently accommodates multiple containers in one vehicle, significantly reducing equipment costs and space requirements. Its specialized functions are powered by the truck’s engine and can be operated manually or electronically using a hydraulic mechanism. This skip loader truck cyclic transportation system significantly enhances its capacity, making it ideal for short and long-distance waste transportation needs. It is well-suited for tasks such as urban waste management handled by environmental sanitation departments, government agencies, state companies, and private enterprises.
FEATURES
- Compatible with international DIN standard garbage bins
- Structural components include the arm, arm cylinders, lifting chain, stabilizers, stabilizer cylinders, multi-valves, etc.
- The operational system comprises PTO, hydraulic pump, multi valves, hydraulic lock, balance valve, hydraulic pipes, and hydraulic oil tank
- The balance valve ensures arm synchronization and prevents accidental drops due to gravity
- The hydraulic oil tank includes a filter for maintaining the cleanliness of the entire hydraulic system
- High-quality painting applied to ensure superior appearance and corrosion resistance of the upper structure
SPECIFICATIONS:
| Chassis | |
| Size | 8,500*2,550*3,820mm |
| GVW/Curb Weight | 28,000/16,000kg |
| Wheelbase | 4,575+1400mm |
| Front/Rear Axle | 7.5T/16T |
| Tire | 12.00R20, 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI / WP10.340E22/ 340hp/ Euro 2 |
| Transmission | |
| Model | FAST/RTD-11509C |
| Gears | 9F+1R |
| Operation | Manual |
| Cabin | |
| Driving | 6×4 |
| Type | SHACMAN |
| Passenger No. | 3 |
| Skip Loader | |
| Skip Bin Cubage (CBM) / Capacity (Tons) | 15/12 |
| Skip Bin Shape | Square, boat or other types on requirement |
| Skip Loader Material | Mild steel |
| Control System | Manual hydraulic control & remote control |
| Lifting Arm | 2pcs, strong alloy steel material |
| Chain | Rings of thickened chains, with large and small holes, not easy to fall off and deform |
| Stabilizers | 2pcs, hydraulic type, stable & high-strengthen |
| Painting | Anti-corrosion treatment for all structural parts
Steel components are sprayed with high quality paint |
