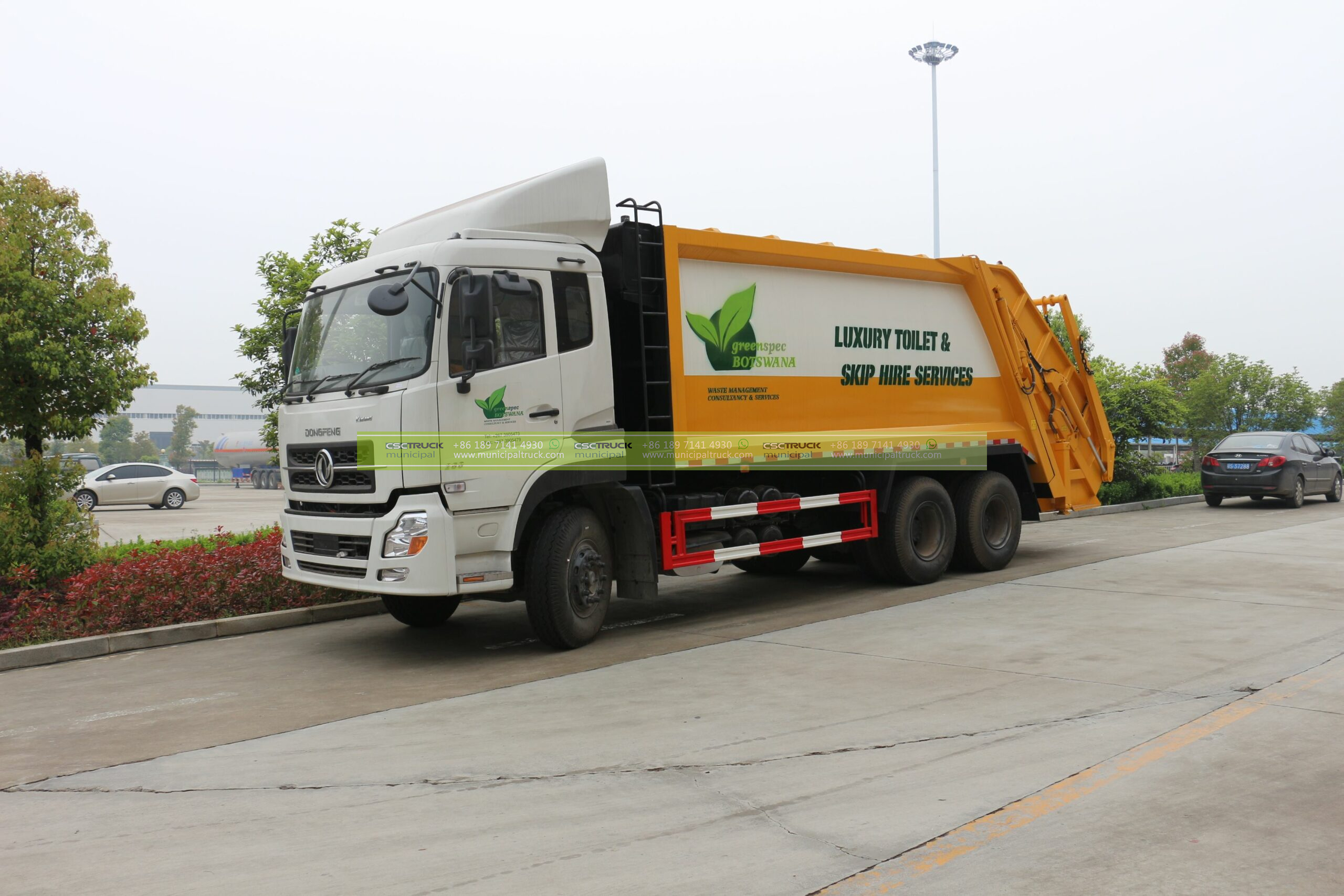

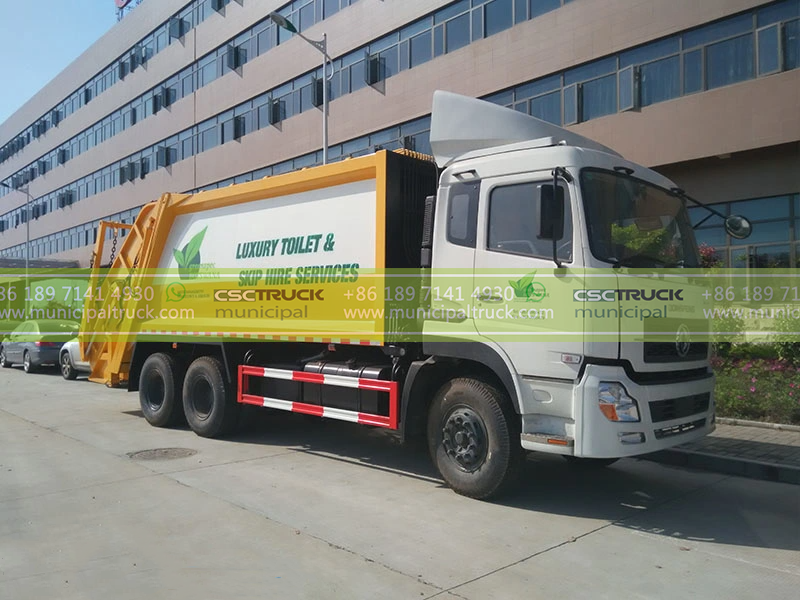

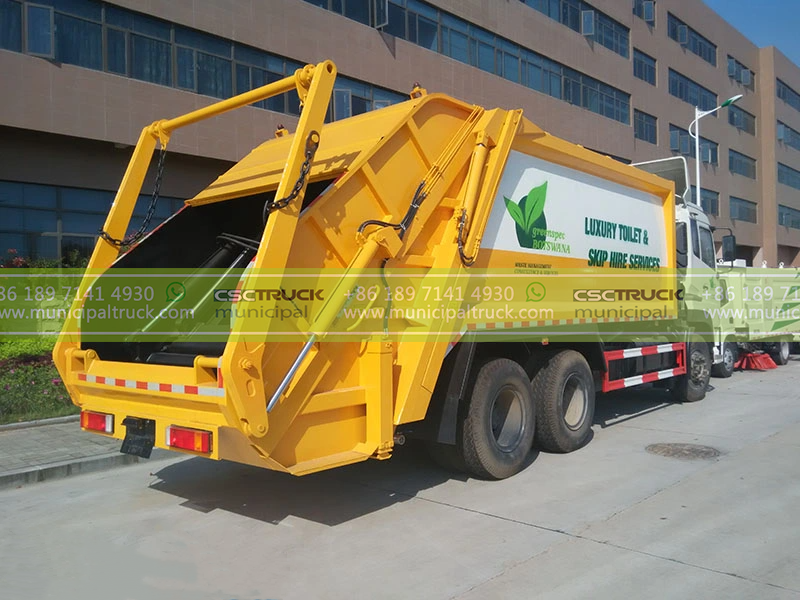

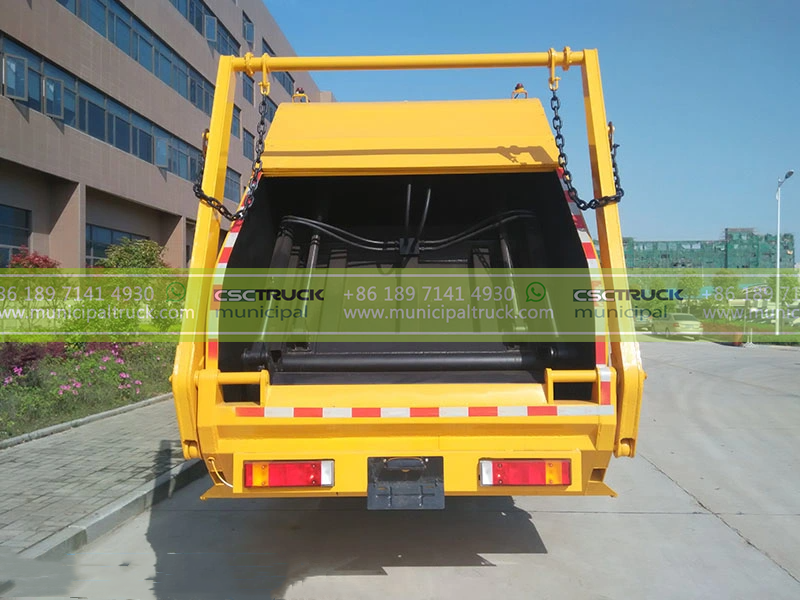

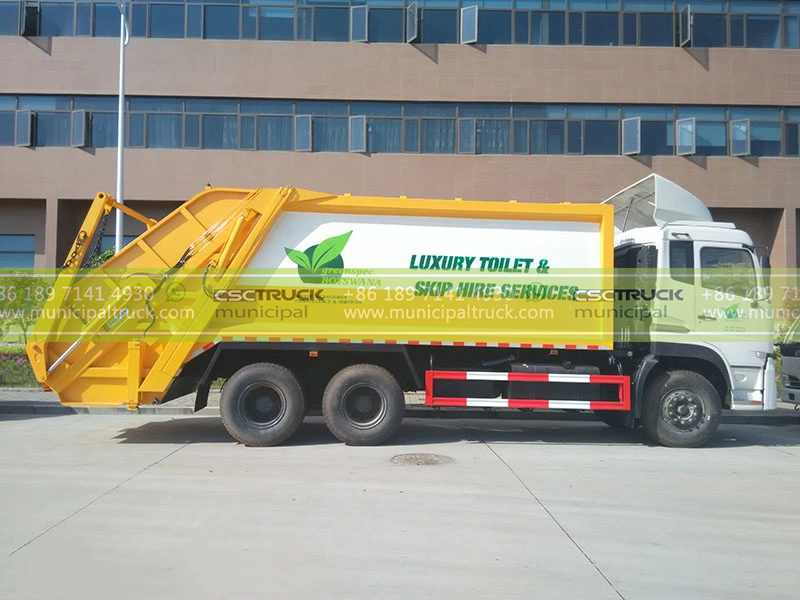

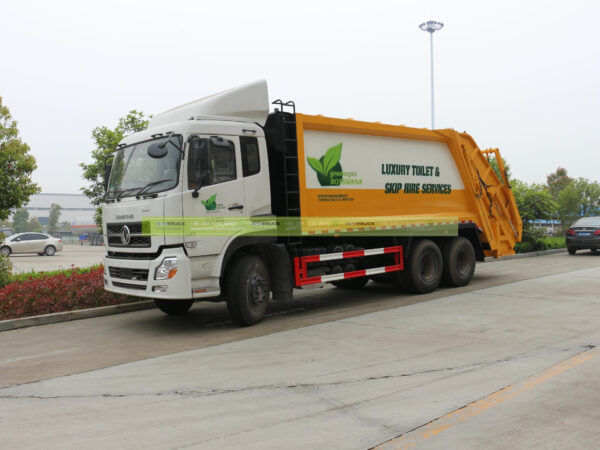

DONGFENG 16CBM Garbage Compressor Vehicle

Brief

The Dongfeng 16CBM Garbage Compressor Vehicle is a powerful and efficient waste collection vehicle that is ideal for use in urban and suburban areas. It features a large capacity of 16 cubic meters, which allows it to collect large amounts of waste quickly and easily. The vehicle is also equipped with a powerful hydraulic system that compresses the waste, making it easier to transport and dispose of. The Dongfeng 16CBM Garbage Compressor Vehicle is a reliable and cost-effective solution for waste collection.

Features

• Large capacity of 16 cubic meters
• Powerful hydraulic system
• Automatic compaction system
• Side loading system
• Retractable outriggers
• Low noise and vibration
• Easy to operate and maintain

This garbage compactor truck is a versatile and reliable waste collection vehicle that is ideal for use in a variety of applications. It is perfect for municipalities, businesses, and other organizations that need to collect and dispose of large amounts of waste on a regular basis. The vehicle is also equipped with a variety of features that make it easy to operate and maintain, making it a cost-effective solution for waste collection.

Here are some additional details about the features of the Dongfeng 16CBM garbage vehicle:

• Large capacity: The vehicle has a large capacity of 16 cubic meters, which allows it to collect large amounts of waste quickly and easily. This is ideal for municipalities and businesses that need to collect waste from a large number of sources.
• Powerful hydraulic system: The vehicle is equipped with a powerful hydraulic system that compresses the waste, making it easier to transport and dispose of. This system is also capable of compacting a variety of materials, including garbage, recyclables, and hazardous waste.
• Automatic compaction system: The vehicle is equipped with an automatic compaction system that compresses the waste as it is being collected. This system helps to reduce the amount of time it takes to collect and dispose of waste, and it also helps to improve efficiency.
• Side loading system: The vehicle is equipped with a side loading system that makes it easy to load and unload waste. This system is ideal for loading and unloading waste from tight spaces, such as alleyways and parking lots.
• Retractable outriggers: The vehicle is equipped with retractable outriggers that provide stability when loading and unloading waste. This helps to prevent the vehicle from tipping over, and it also helps to protect the vehicle from damage.
• Low noise and vibration: The vehicle is designed to operate with low noise and vibration. This helps to reduce noise pollution and it also helps to protect the vehicle from damage.
• Easy to operate and maintain: The vehicle is designed to be easy to operate and maintain. This helps to reduce operating costs and it also helps to ensure that the vehicle is always in good working condition.

The Dongfeng 16CBM Garbage Compressor Vehicle is a reliable and cost-effective solution for waste collection. It is perfect for municipalities, businesses, and other organizations that need to collect and dispose of large amounts of waste on a regular basis. The vehicle is also equipped with a variety of features that make it easy to operate and maintain, making it a cost-effective solution for waste collection.



Specifications:

Chassis
Size	9880×2550×3450(mm)
GVW/Curb Weight	25,000/14,200kg
Wheelbase	4350+1350mm
Front/Rear Axle	7T/18Tx2
Tire	11.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	CUMMINS/ISDe245 30/245hp/Euro 3
Transmission
Gears	10F+2R
Operation	Manual
Cabin
Driving	DONGFENG Kinland,6×4 Right-Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	16 CBM
Tank Body Material	High Tensile Carbon Steel
Thickness	Side 4mm, Bottom 5mm
Design	Sealed leakage proof
Working Rotation Speed	1400r/m
Compaction Ratio	1:3- 1:4
Hopper Volume	0.8CBM
Effective volume of the bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear discharging
System Pressure	Max.240 bar and working pressure 180~200 bar
Control System	Front control in the cab, rear button control, and manual control
