Chassis | |
Size | 5680×2090×2320(mm) |
GVW/Curb Weight | 7,360/3,600kg |
Wheelbase | 3360mm |
Front/Rear Axle | 2.64T/4.72T |
Tire | 7.00R16, 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | QUANCHAI/4B2-115C50/115HP/Euro 5 |

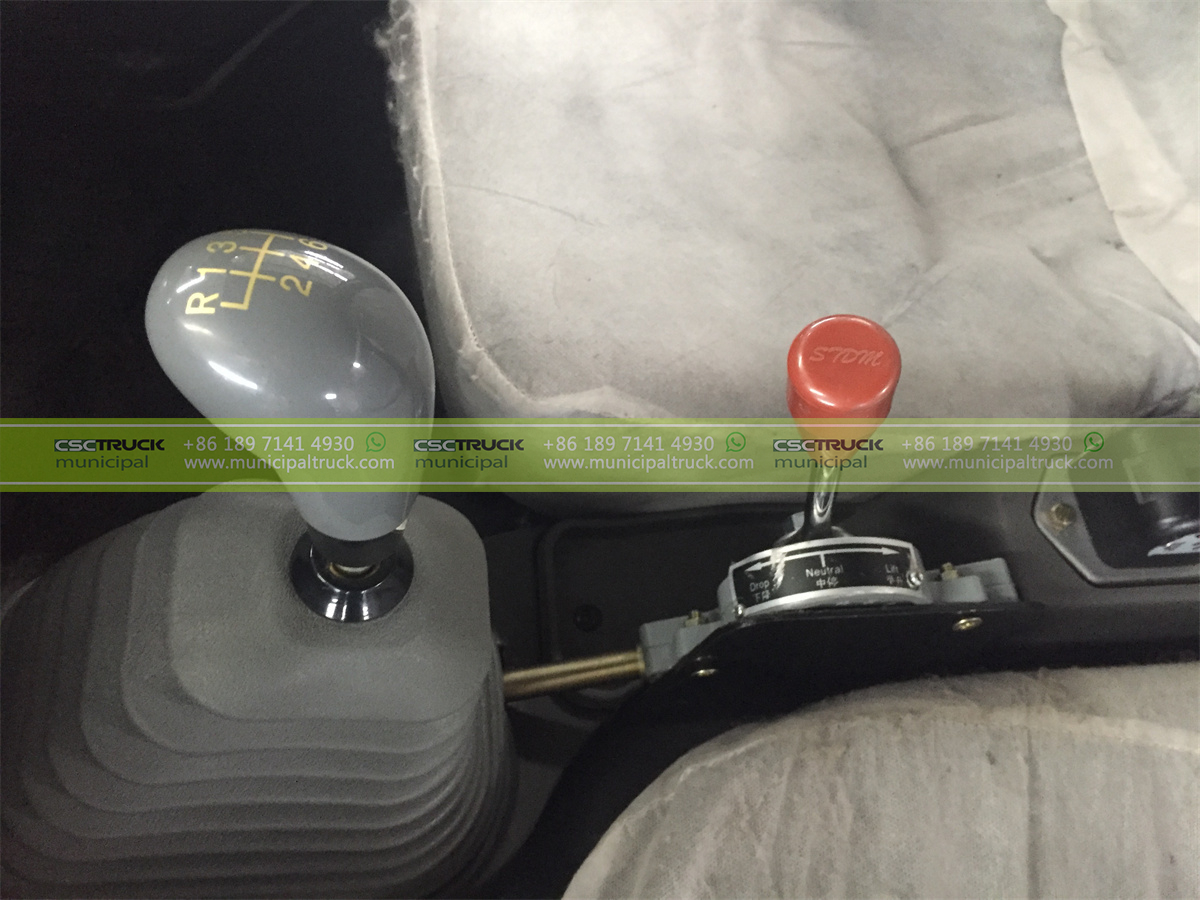

Transmission | |
Make/Model | WLY530 |
Gears | 5F+1R |
Operation | Manual |

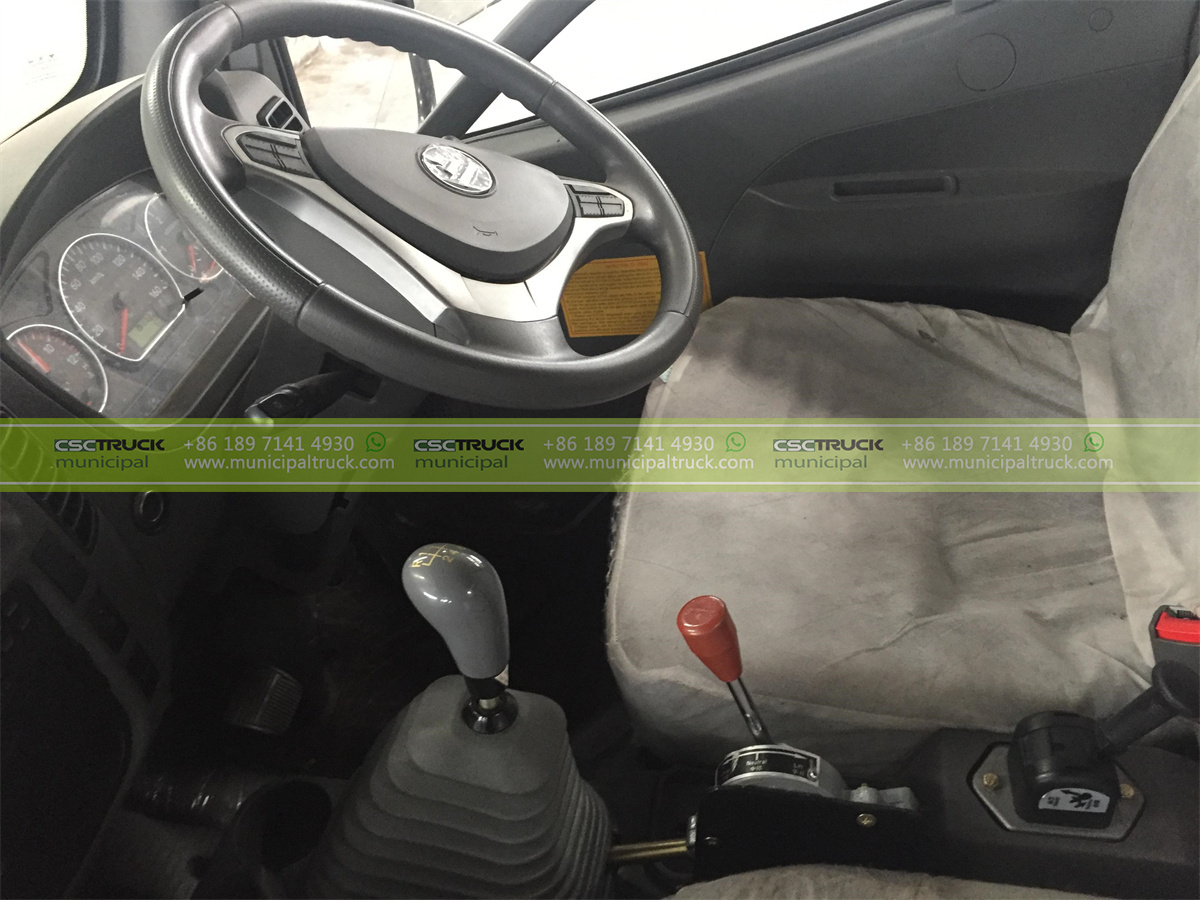

Cabin | |
Driving | FOTON 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |

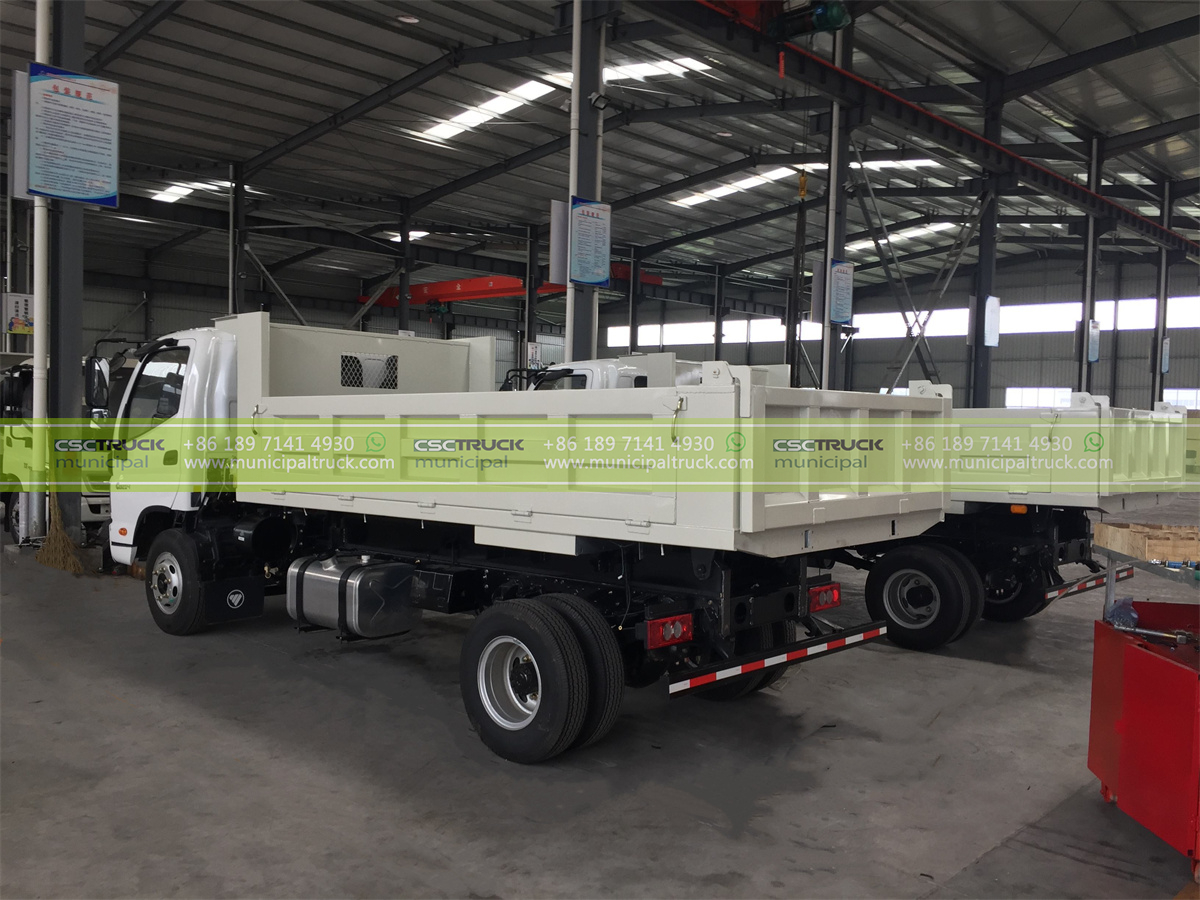

Body System | |

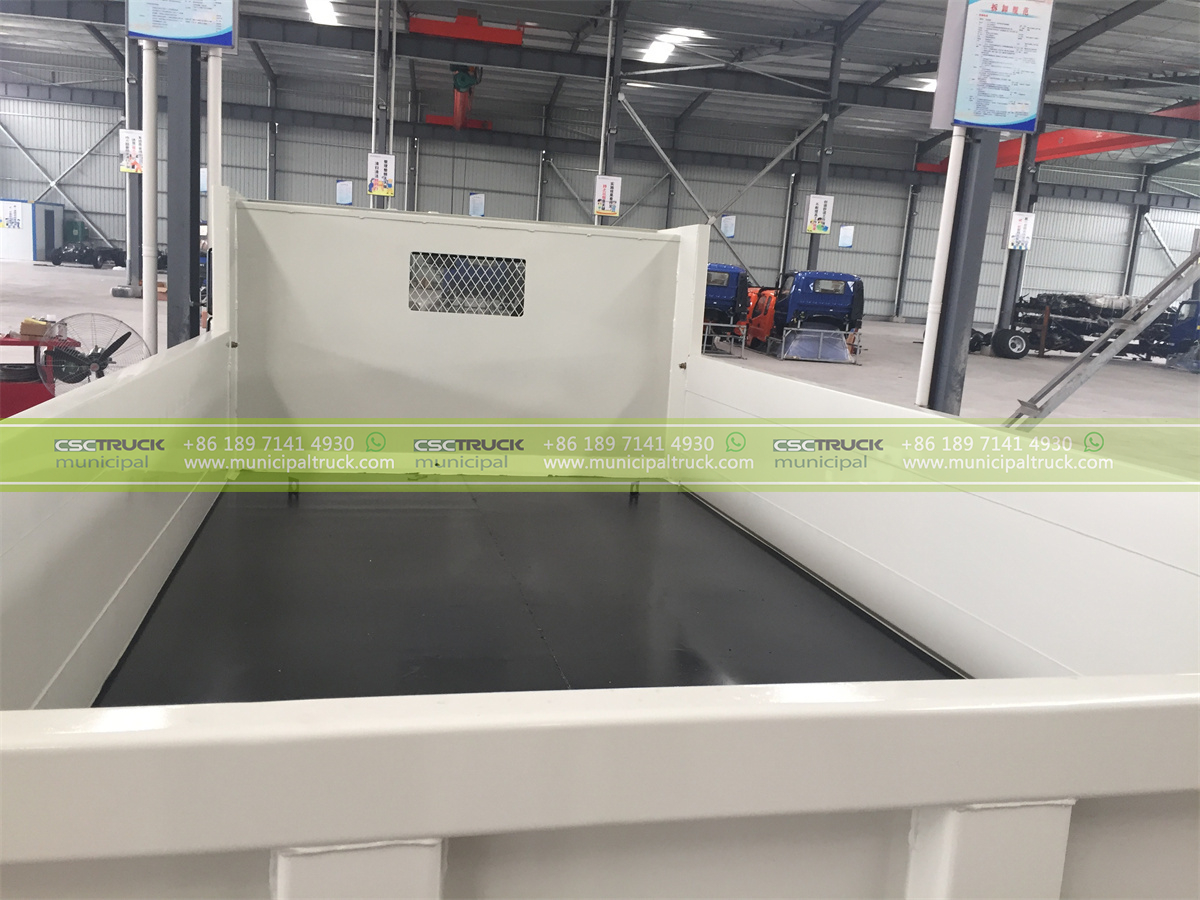

Van Body Dimension | 3,500×1,800×800mm |
Material | Q235B Carbon Steel |
Thickness | Sidewall 4mm, Bottom Plate 6mm |

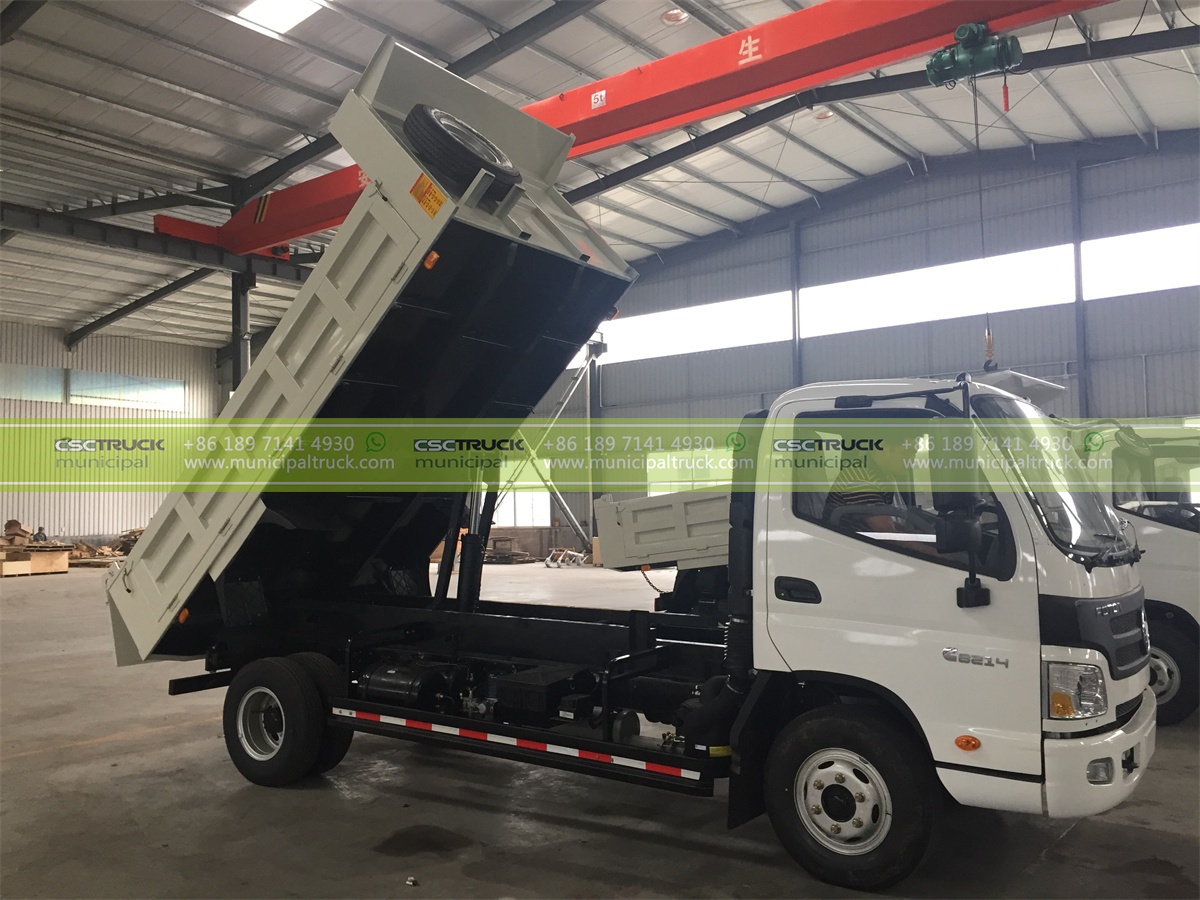

Lifting Position | Front/Middle |

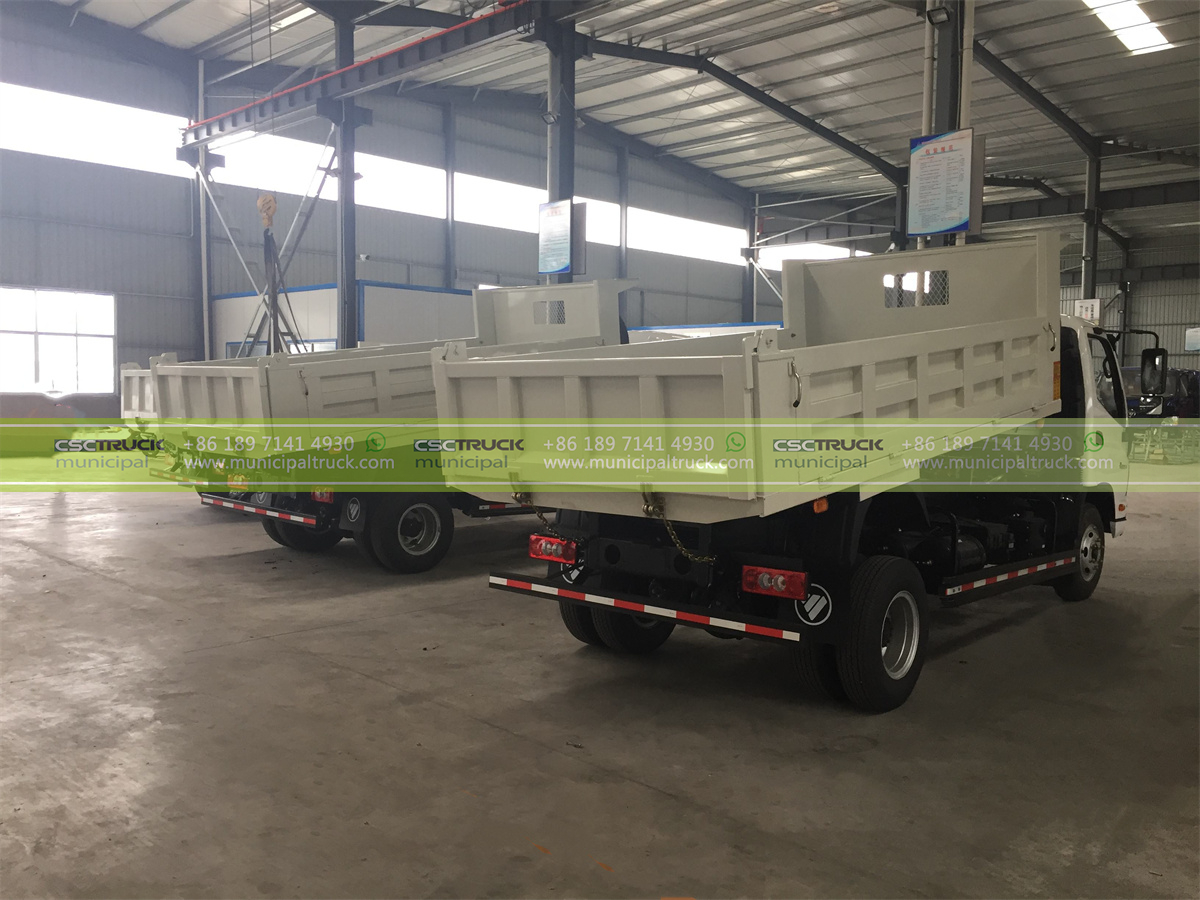

Dumping Direction | Rear |
Hydraulic Cylinder | Chinese top brand |

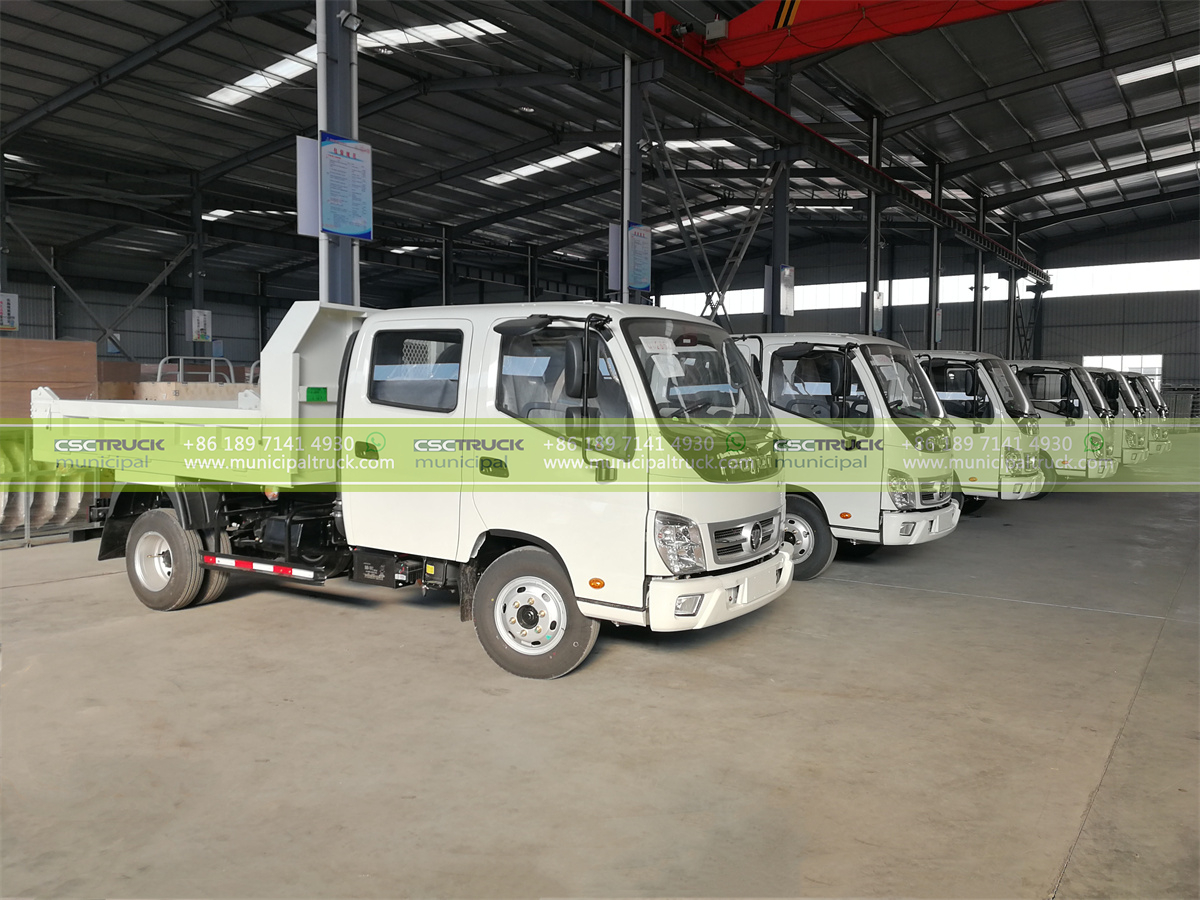

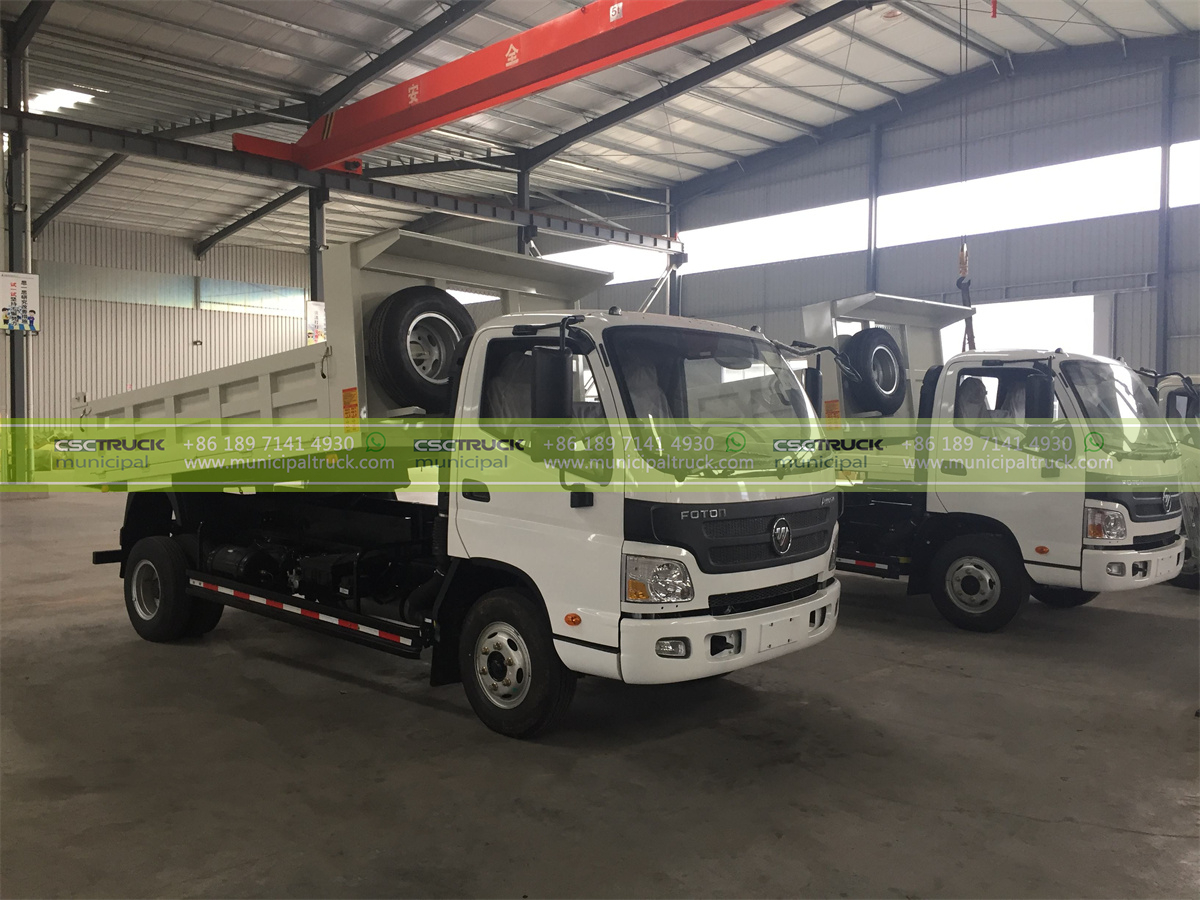

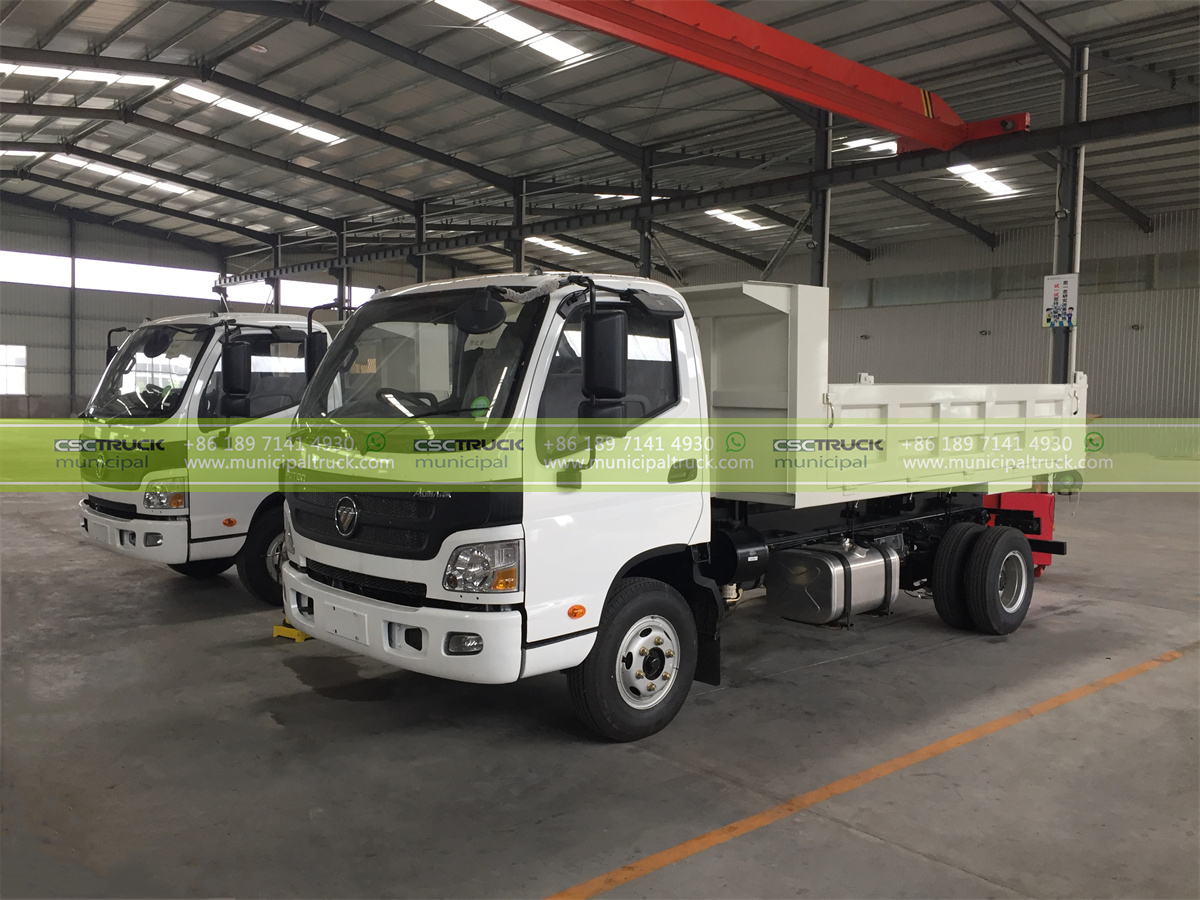

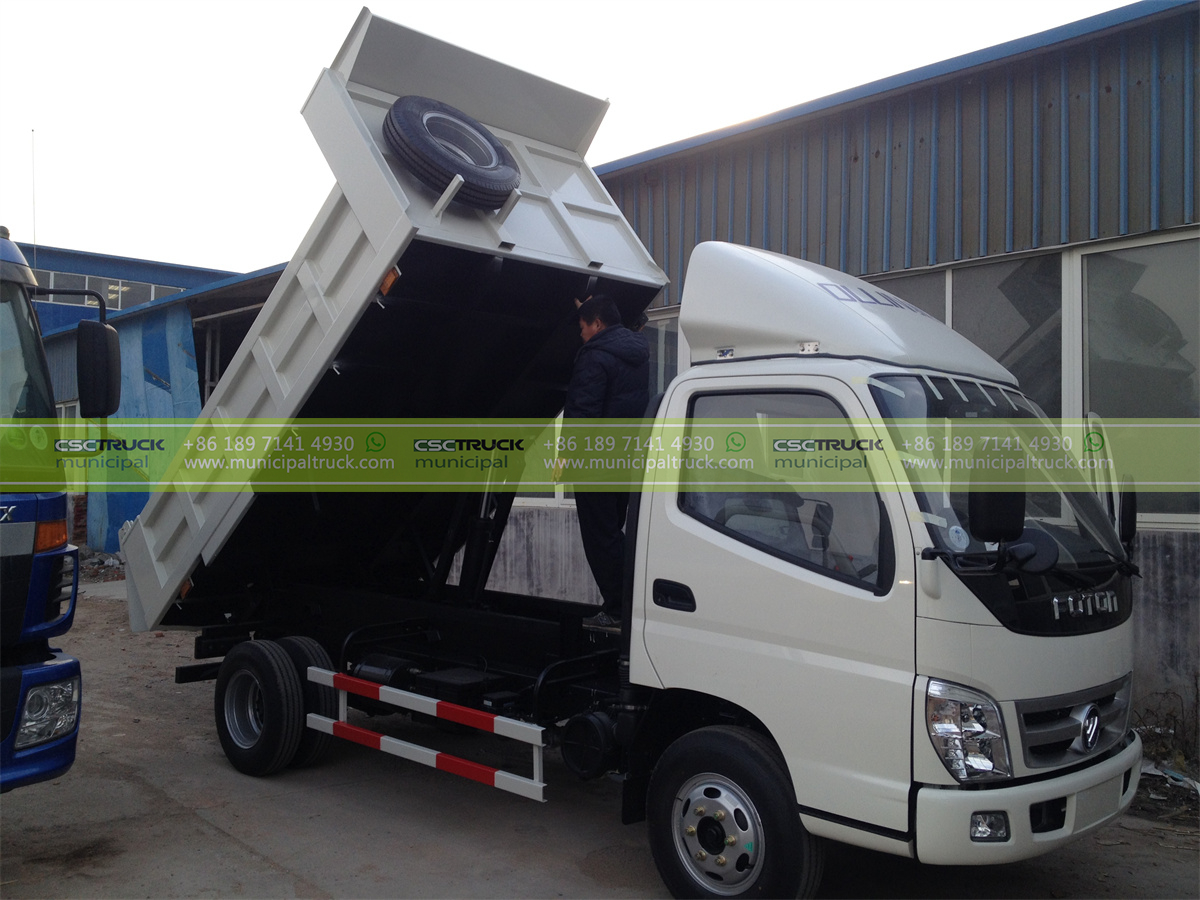

FOTON 5CBM Garbage Tipper Truck
Make/Model | CSCTRUCK/DT05BJ115L5 |
GVW | 7,300kg, Medium Duty Vehicle |
Cab Truck | FOTON 4×2 Day Cab |
Engine | QUANCHAI/4B2-115C50/115HP/Euro 5 |
Transmission | WLY530/Manual 5+1 Speed |
Garbage Container Capacity | 5 Cubic Meter |
