BRIEF:

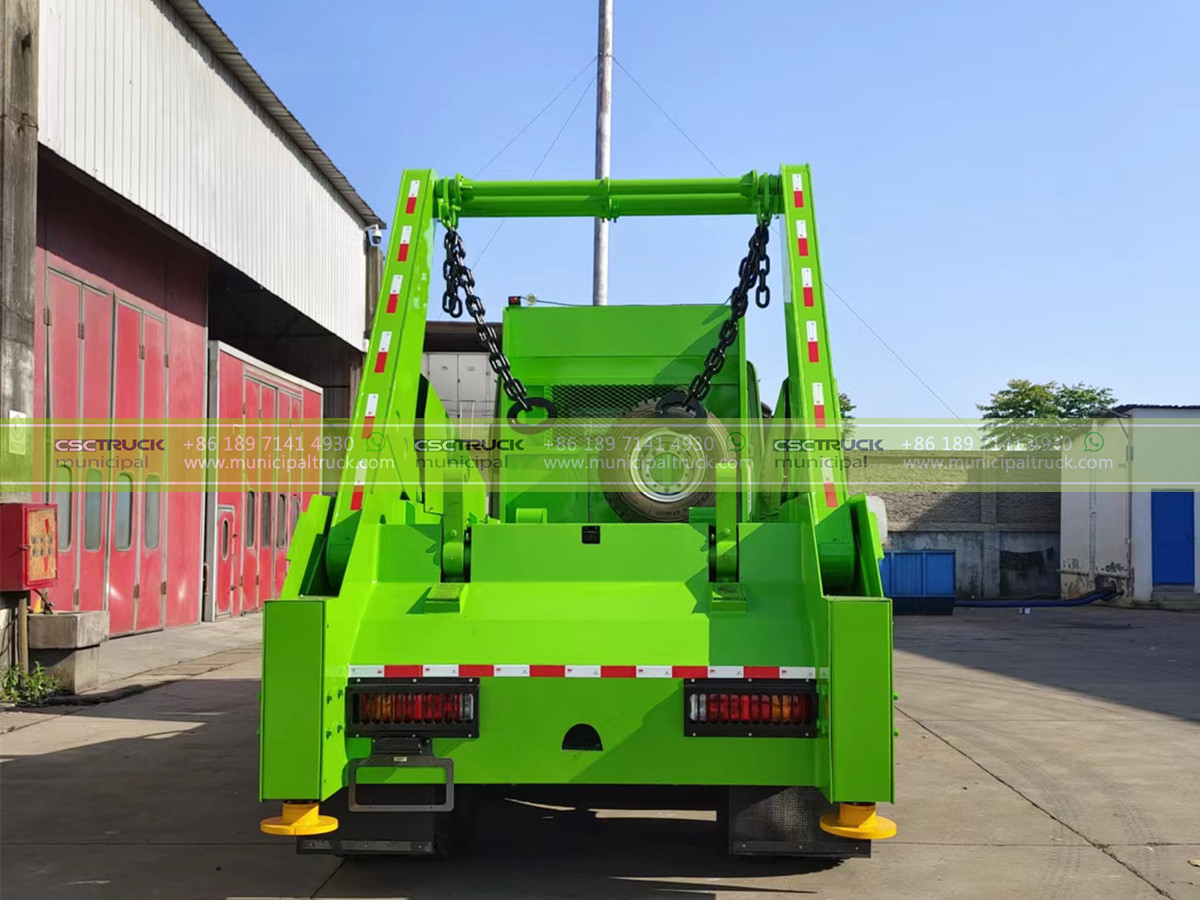

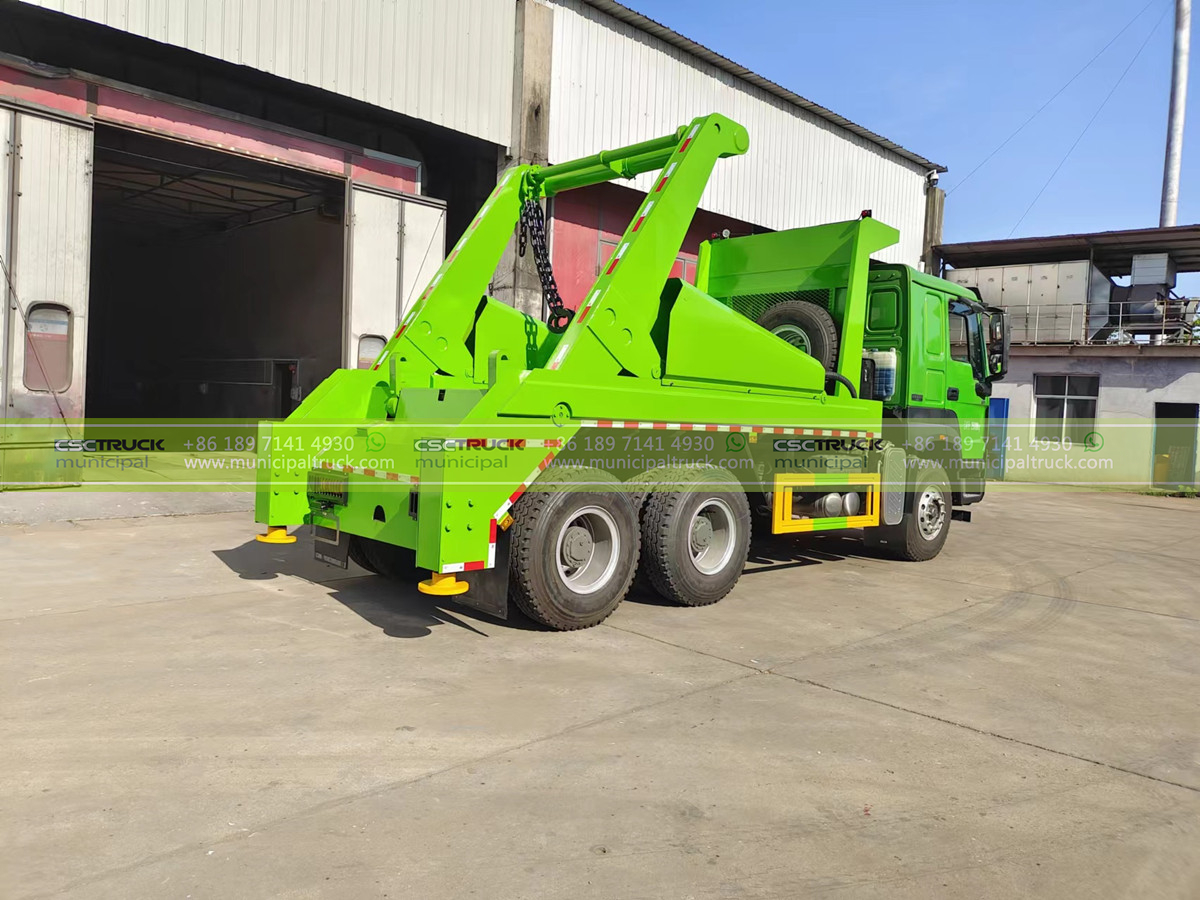

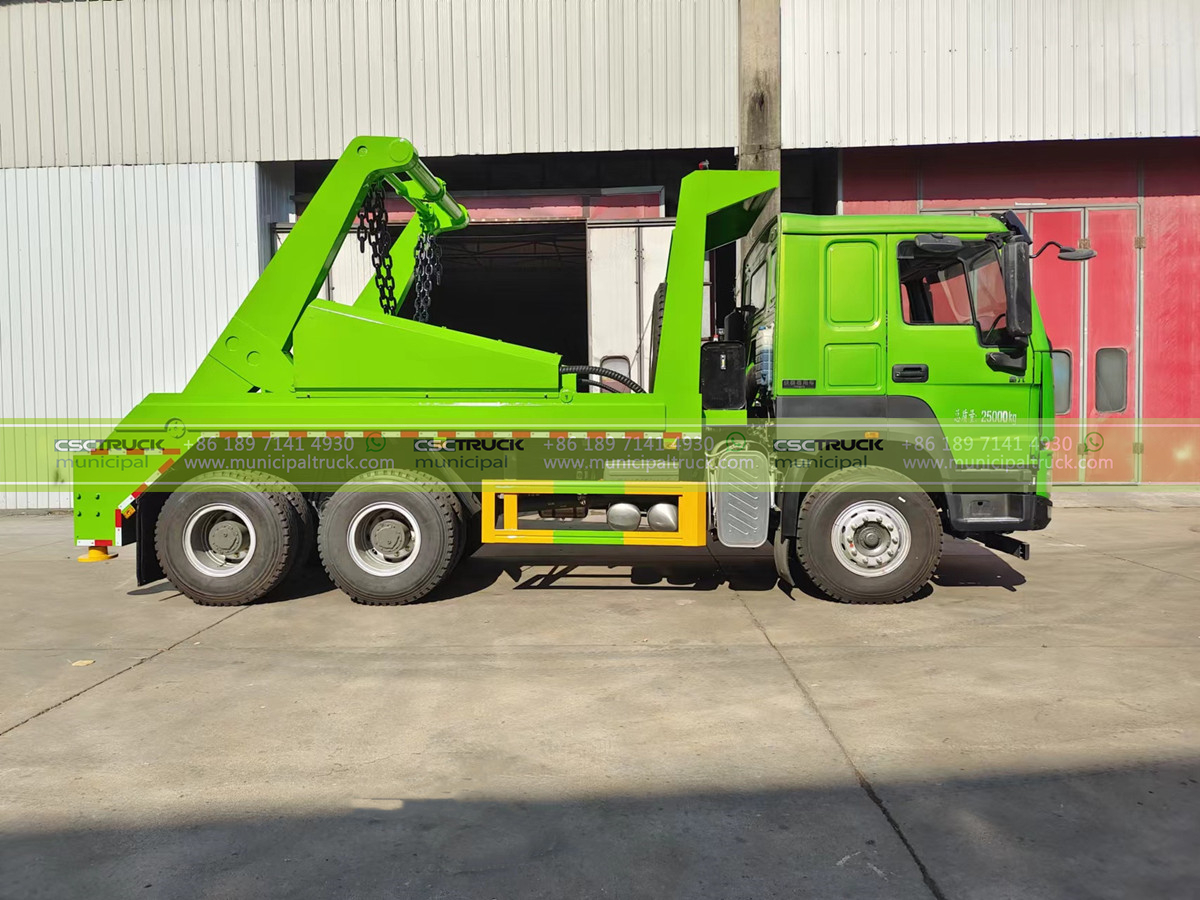

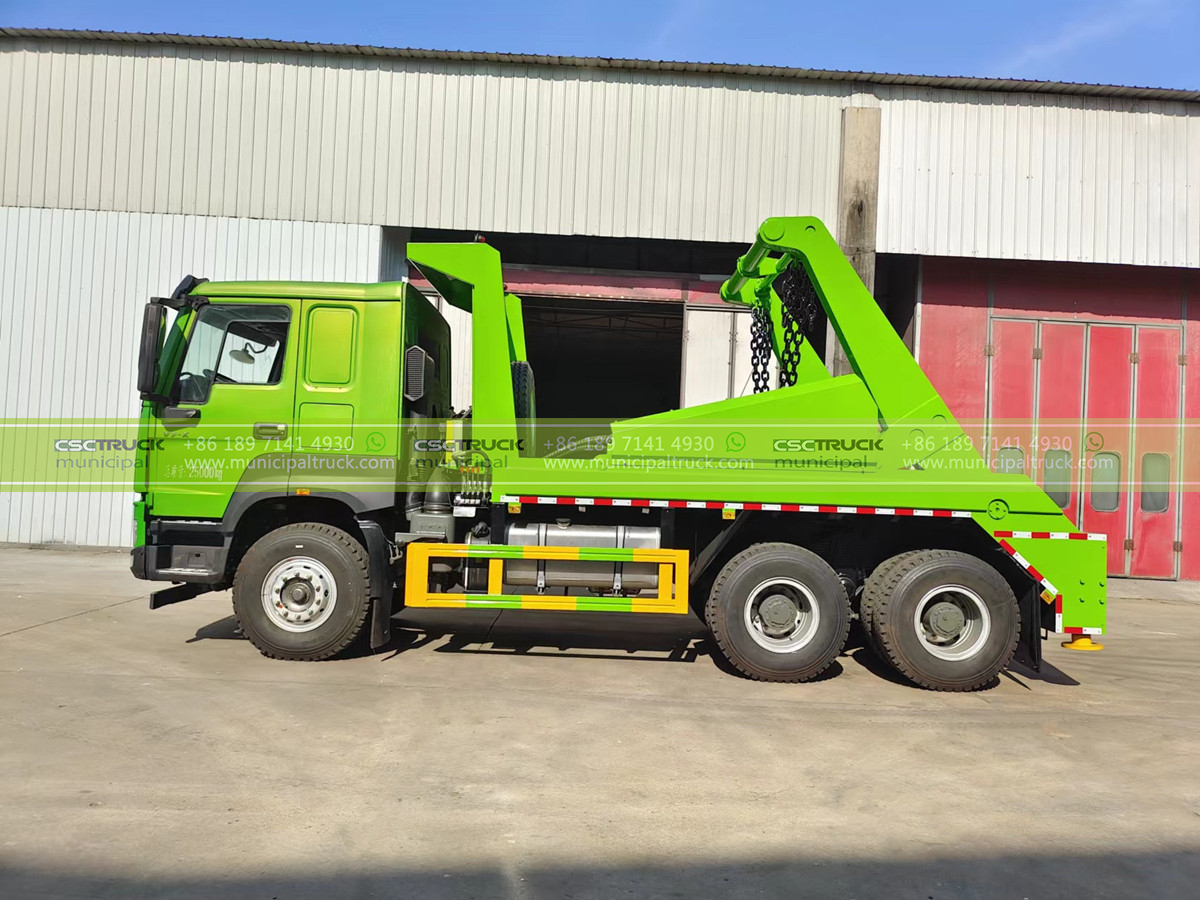

The HOWO 12 Ton Skip Lift Garbage Truck is a robust and high-capacity solution designed for the collection, transportation, and unloading of bagged and bulk waste in urban and suburban areas. This powerful vehicle simplifies waste management, significantly reducing costs and optimizing storage space. It is well-suited for a wide range of applications, including urban waste collection and transportation by environmental sanitation departments, government agencies, state companies, and private enterprises.
Features:
1. Comprehensive Waste Management: This garbage truck offers a complete solution for waste management, from collecting bagged and bulk waste to its transportation and unloading.
2. Container Flexibility: The truck is designed to handle multiple containers in one load, greatly reducing equipment costs and maximizing storage space.
3. Hydraulic-Powered Functionality: The specialized waste handling device is powered by the truck’s engine, offering both manual and electronic control through a hydraulic mechanism.
4. Enhanced Transportation Capacity: The cyclic transportation system significantly increases the truck’s capacity, making it suitable for both short and long-distance waste transport.
5. Compatibility with International DIN Standard Bins: The truck is engineered to accommodate international DIN standard garbage bins, ensuring compatibility with commonly used waste containers.
6. Robust Structural Design: The truck’s structure comprises essential components, including arms, arm cylinders, lifting chains, stabilizers, stabilizer cylinders, and multi valves, designed for durability and reliability.
7. Reliable Operation System: Equipped with crucial components such as a Power Take-Off (PTO), hydraulic pump, multi valves, hydraulic lock, balance valve, hydraulic pipes, and a hydraulic oil tank, ensuring smooth and reliable waste handling.
8. Synchronization and Safety: The inclusion of a balance valve ensures the synchronization of lifting arms, preventing accidental drops due to gravity and prioritizing safety.
9. Clean Hydraulic System: Featuring a hydraulic oil tank with a filter to maintain the efficiency and cleanliness of the hydraulic system.
10. High-Quality Painting: The upper structure of the truck is meticulously painted to enhance its appearance and protect against corrosion, ensuring long-lasting functionality and an attractive aesthetic.
SPECIFICATIONS:
| Chassis | |
| Size | 8,500*2,550*3,820mm |
| GVW/Curb Weight | 28,000/15,500kg |
| Wheelbase | 4,600+1450mm |
| Front/Rear Axle | 9T/16T |
| Tire | 12.00R20, 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI / WP10.380E22/ 380hp/ Euro 2 |
| Transmission | |
| Model | SINOTRUK/HW19710 |
| Gears | 9F+1R |
| Operation | Manual |
| Cabin | |
| Driving | 6×4 |
| Type | HOWO |
| Passenger No. | 3 |

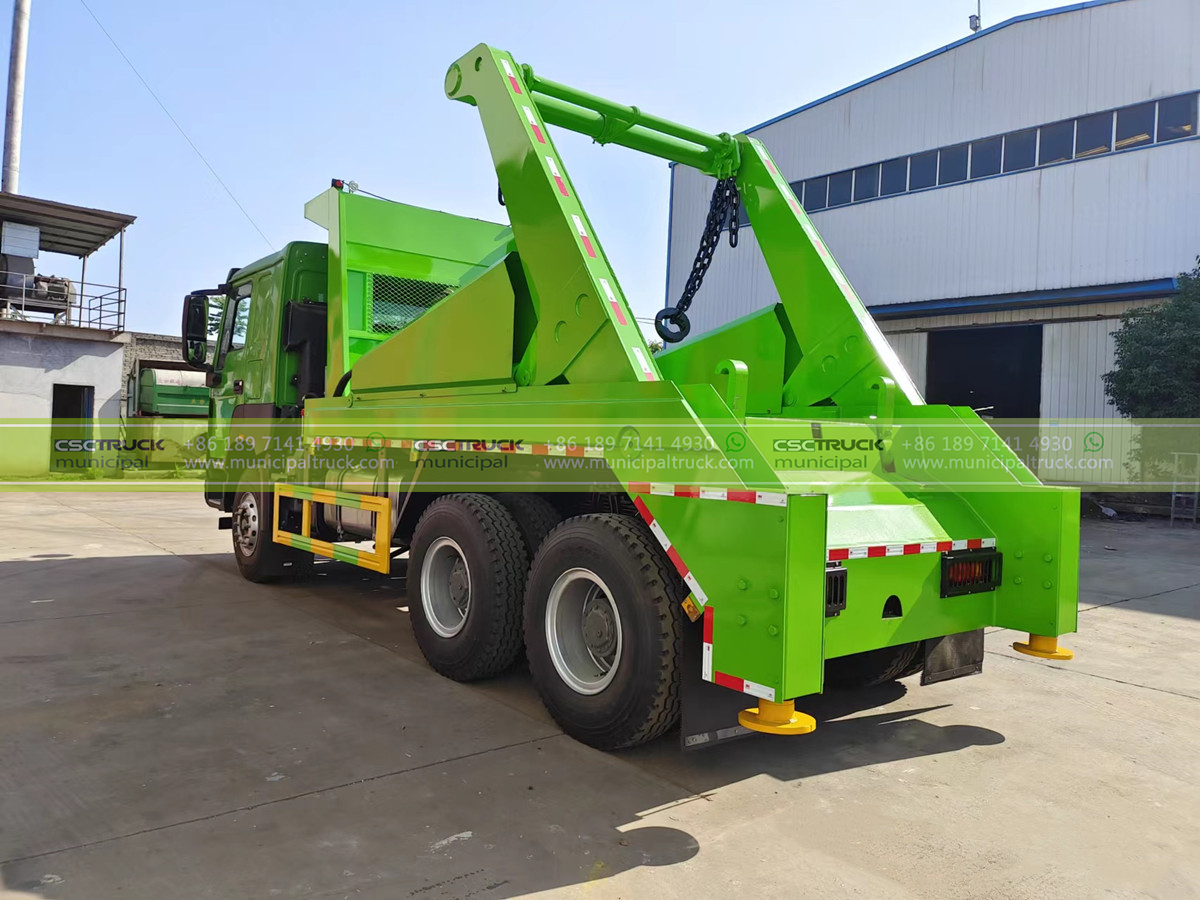

| Skip Loader | |
| Skip Bin Cubage (CBM) / Capacity (Tons) | 15/12 |
| Skip Bin Shape | Square, boat or other types on requirement |
| Skip Loader Material | Mild steel |
| Control System | Manual hydraulic control & remote control |
| Lifting Arm | 2pcs, strong alloy steel material |
| Chain | Rings of thickened chains, with large and small holes, not easy to fall off and deform |
| Stabilizers | 2pcs, hydraulic type, stable & high-strengthen |
| Painting | Anti-corrosion treatment for all structural parts
Steel components are sprayed with high quality paint |
