Summary:

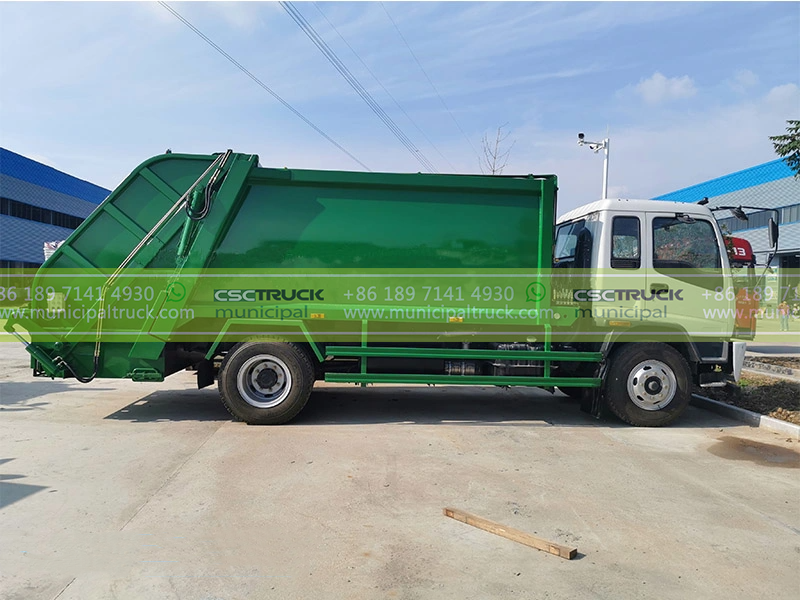

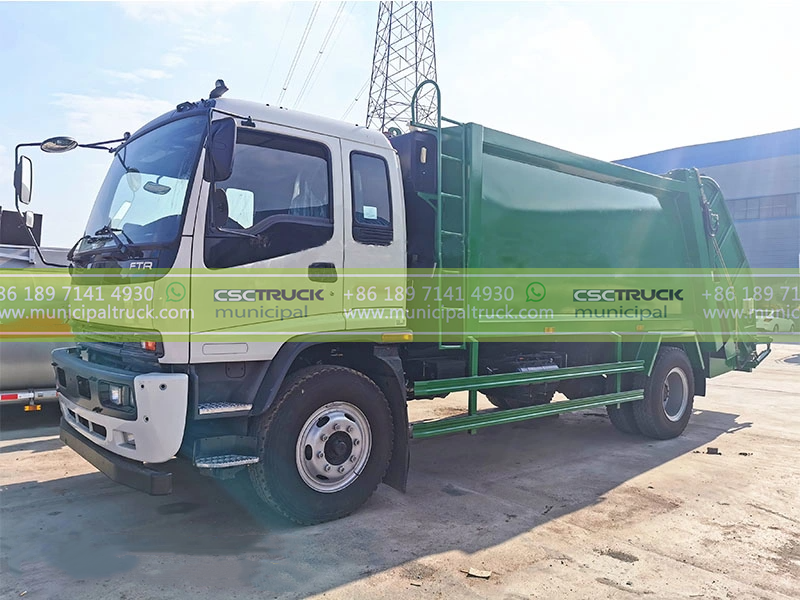

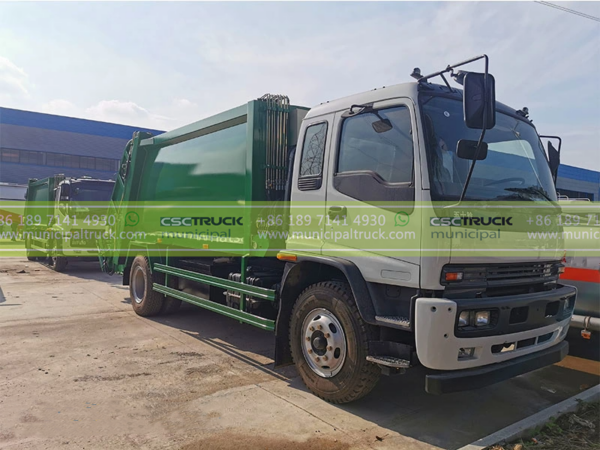

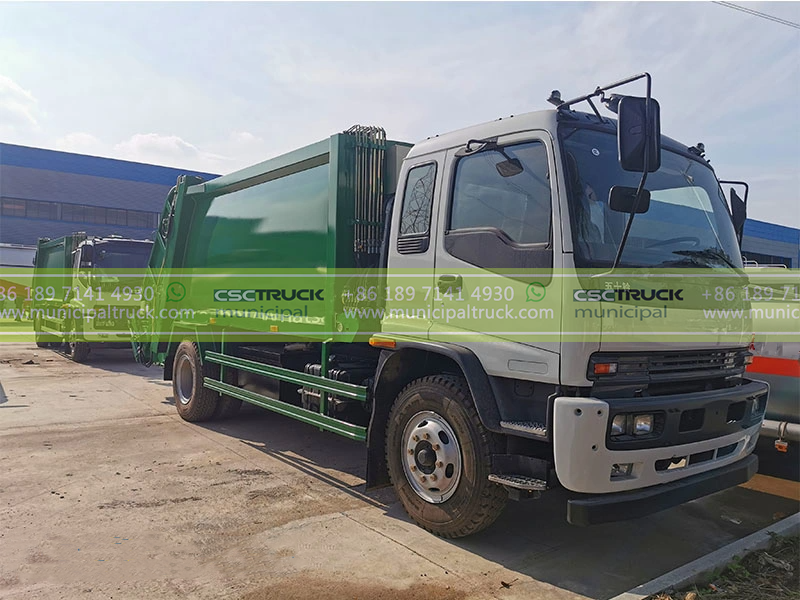

The ISUZU 10CBM garbage compressor vehicle is a durable and reliable solution for waste management. With a sturdy chassis, powerful engine, and spacious cabin, this vehicle is ideal for heavy-duty applications. It features a sealed, leakage-proof garbage container made of weather-resistant steel that can compress garbage at a ratio of 1:3 to 1:4, maximizing its capacity. The hydraulic system with an oil reservoir and gear pump allows for efficient compression, and the front and rear control systems make operation easy and convenient.

Features:

• Chassis:

The ISUZU 10CBM garbage compressor vehicle has a robust chassis with a size of 8500×2500×3000(mm), a GVW/Curb Weight of 16,000/9,300kg, and a wheelbase of 4500mm. It is equipped with 6.3T/13T front and rear axles and 10.00R20, 6+1 tires for excellent load-bearing capacity and stability.

• Engine:

The garbage truck is powered by a 205hp, Euro 5-compliant diesel engine with a make/model of ISUZU/4HK1-TC50. The engine is known for its reliability, durability, and fuel efficiency, making it an excellent choice for heavy-duty applications.

• Transmission:

The ISUZU 10CBM garbage compressor vehicle features a 6-speed manual transmission with a make/model of ISUZU/MLD. It provides smooth and precise shifting, making driving easier and more comfortable.

• Cabin:

The vehicle has a spacious and comfortable cabin with steel construction, single row, and flat design that can accommodate up to three passengers. The cabin is equipped with front control in the cab, rear button control, and manual control, making operation convenient and user-friendly.

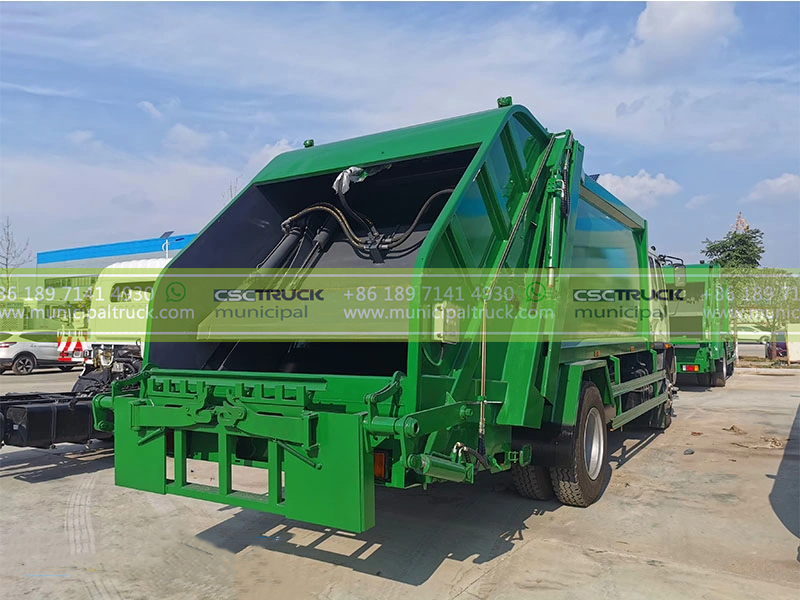

• Garbage Container:

The garbage container of the ISUZU 10CBM garbage compressor vehicle has a capacity of 10 CBM and is made of weather-resistant steel. It is sealed and leakage-proof, ensuring the safe and hygienic disposal of waste. The container can compress garbage at a ratio of 1:3 to 1:4, maximizing its capacity, and has a hopper volume of 500L and an effective volume of the bucket of ≥0.8cbm. The loading time is 8~10s, the loading cycle time is ≤40s, and the unloading time is ≤45s.

• Hydraulic System:

The vehicle is equipped with a hydraulic system that features an oil reservoir and gear pump, providing efficient compression and ensuring reliable performance.

In summary, the ISUZU 10CBM garbage compressor vehicle is a reliable and efficient solution for waste management, offering excellent performance, durability, and convenience. Its features make it a great choice for heavy-duty applications, where efficiency and reliability are essential.



SPECIFICATION



Chassis
Size	8500×2500×3000(mm)
GVW/Curb Weight	16,000/9,300kg
Wheelbase	4500mm
Front/Rear Axle	6.3T/13T
Tire	10.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	ISUZU/4HK1-TC50/205hp/Euro 5
Transmission
Make/Model	ISUZU/MLD
Gears	6F+1R
Operation	Manual
Cabin
Driving	ISUZU FTR 4X2, Left-Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	10 CBM
Material	Weather-resistant steel
Design	Sealed leakage proof
Compaction Ratio	1:3- 1:4
Hopper Volume	500L
Effective volume of the bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear discharging
Control System	Front control in the cab, rear button control, and manual control
