features
-It adopts the combination of suction and sweeps to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface.
-The auxiliary engine is used to drive the fan and hydraulic system to ensure that it can continue to work during driving and to ensure the continuity of the cleaning process.

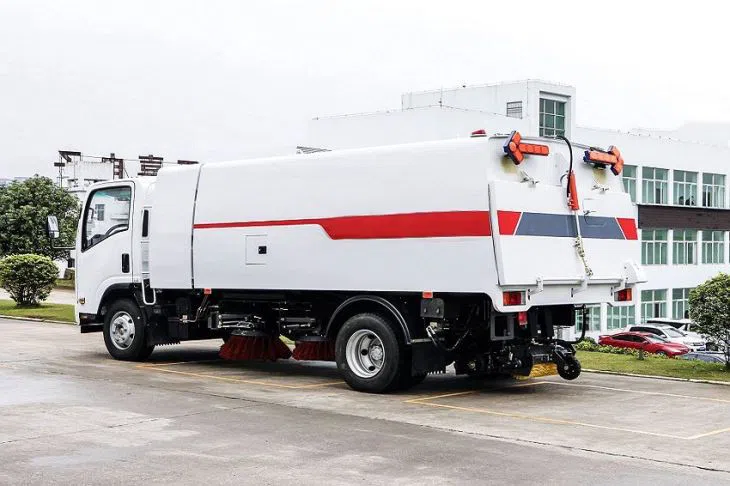

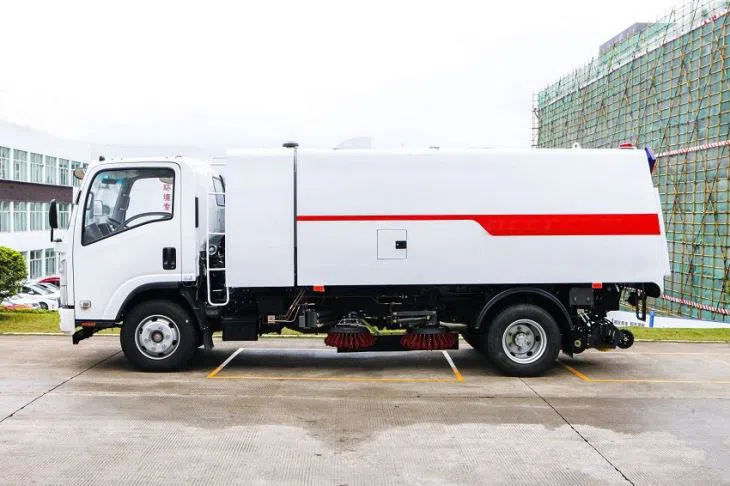

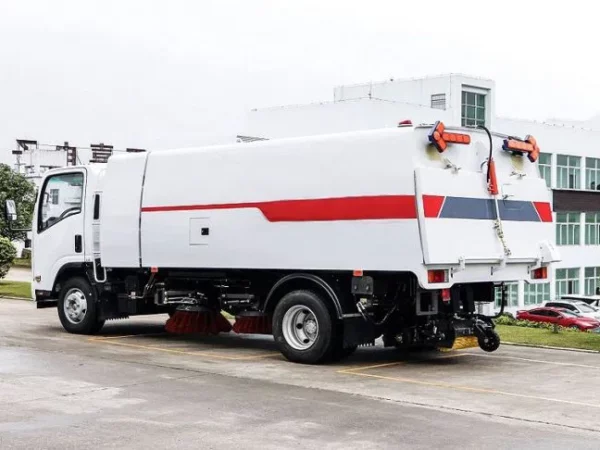

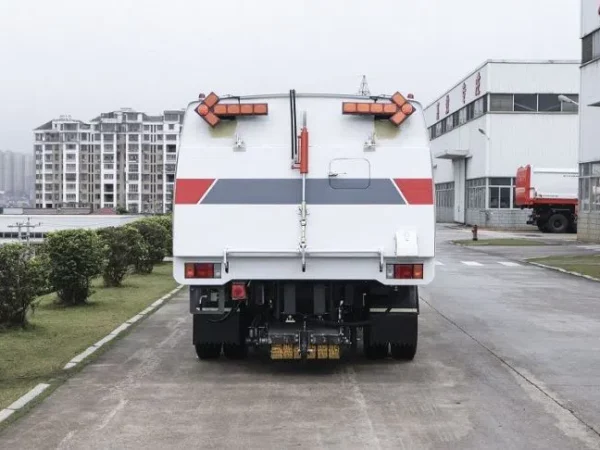

-The structure of “center four-brooms + rear suction nozzle” is adopted, which is convenient for the adjustment and maintenance of the cleaning device and suction nozzle, and the vehicle has good passability during the transition.
-According to different cleaning conditions, without increasing the auxiliary throttle, the three-speed speed regulation of the high, medium, and low speed of the sweeping disc can be realized, which can ensure a good cleaning effect under various pollution conditions, and at the same time save fuel consumption and brush bristle loss.
-Stainless steel water tanks and debris hopper, anti-corrosion and increase the service life of the body.
specification
Truck Make | CSCTRUCK |
Chassis Make | ISUZU |
Chassis Model | ISUZU 700P |
Engine Make | ISUZU |
Engine Model | 4KH1CN |
Engine Horsepower | 96kw/ 130hp |
Torque | 280N.m |
Displacement | 2999ml |
Transmission | MSB 5 speed forward 1-speed reverse |
Gross Vehicle Weight | 10000kg |
Loading Capacity | 3295kg |
Truck Weight | 6510kg |
Overall Size | 7110*2250*2640mm |
Water Tanker Capacity | 1000 Liters |
Hopper Capacity | 7000 liters |
Front Axle Loading | 3350kg |
Rear Axle Loading | 6650kg |
Wheelbase | 3815mm |
Tire | 700-16 / 6+1 nos |
Driving Speed | 110 (km/h) |
