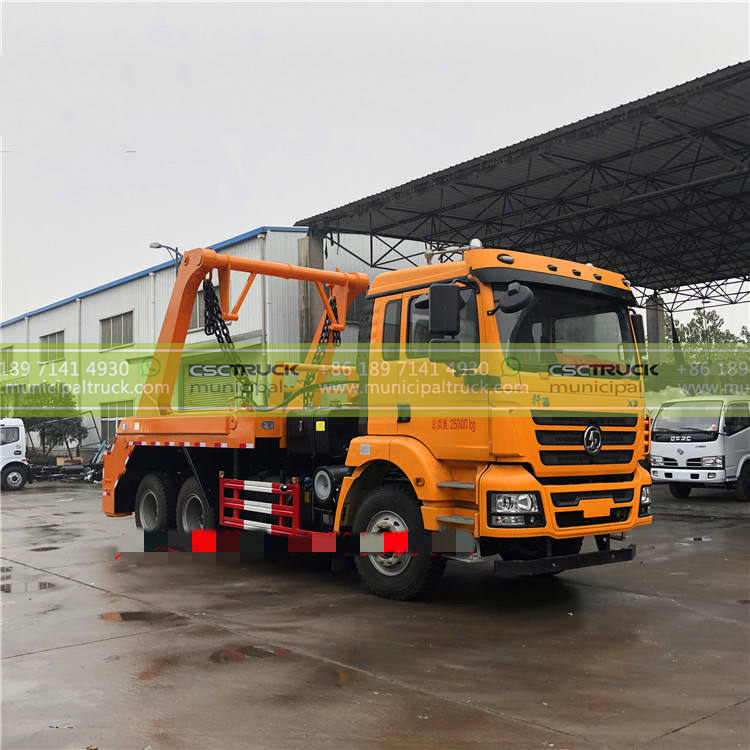

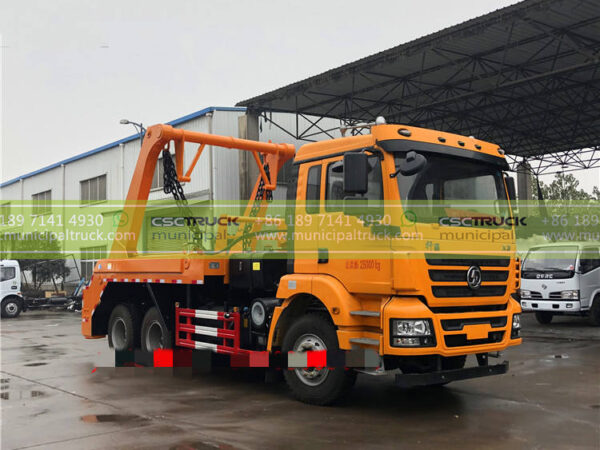

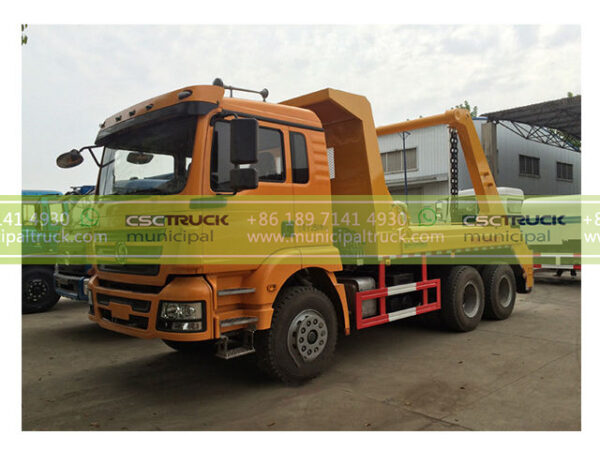

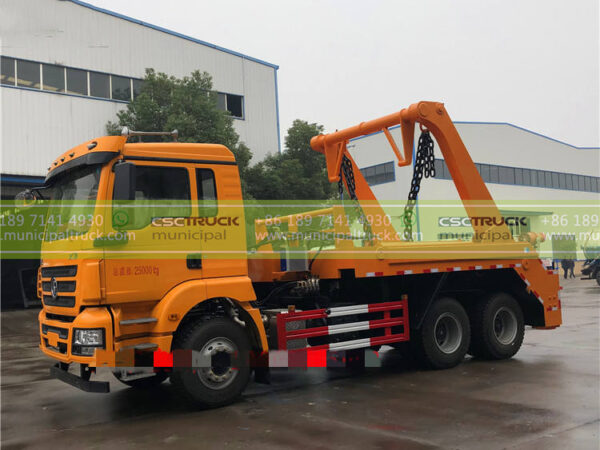

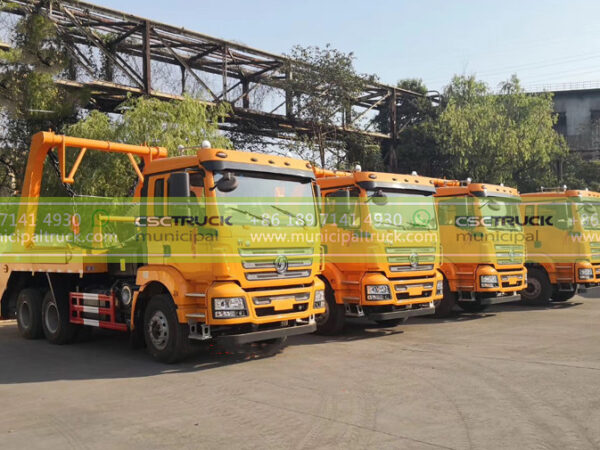

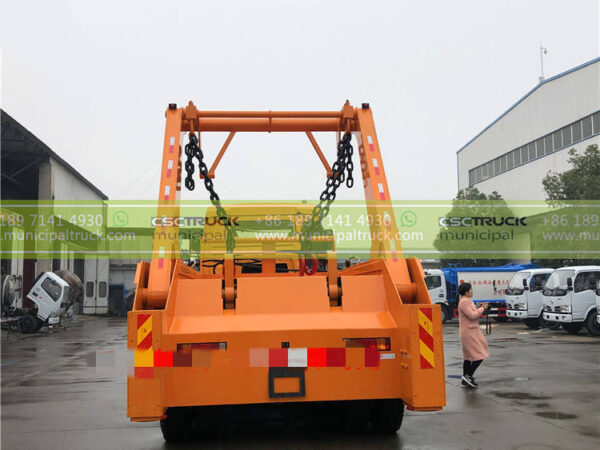

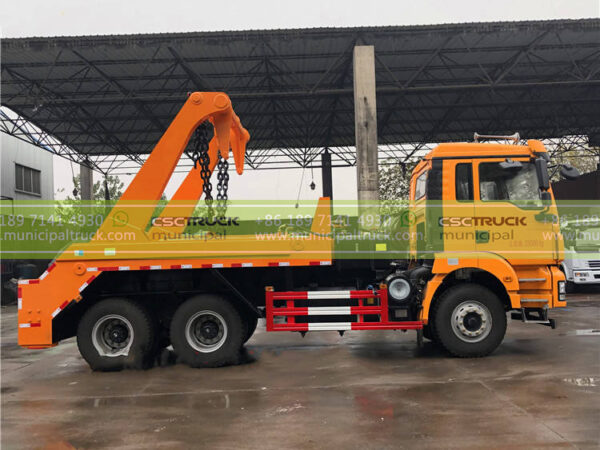

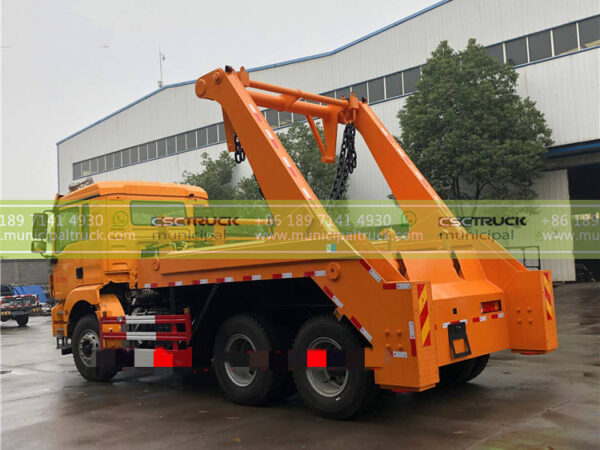

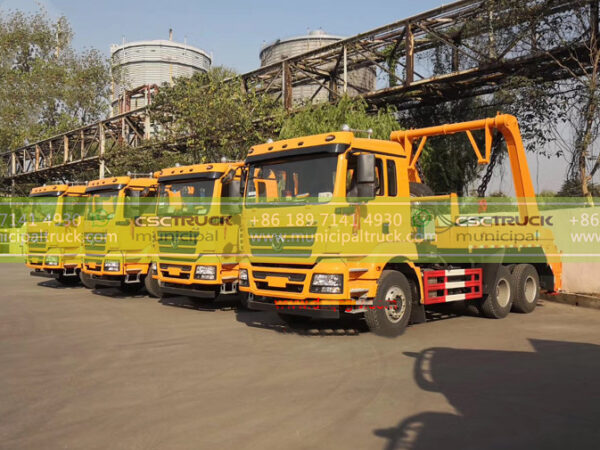

SHACMAN 14CBM Swing Arm Garbage Truck

Chassis
Size	8150×2550×3800(mm)
GVW/Curb Weight	25,000/18,500kg
Wheelbase	4375+1400mm
Front/Rear Axle	7T/18T
Tire	12.00R20 10+1 tires
Engine
Type	Diesel
Make/Model	WEICHAI/WP7.300E51/300HP/Euro 5
Transmission
Make/Model	FAST/10JS90A
Gears	10F+2R
Operation	Manual
Cabin
Driving	SHACMAN X3 6×4 Night Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	14 CBM
Container Material	High tensile wear-resistant carbon steel
Thickness	Side and top 4mm, Bottom 4mm
Type	Underground and aboveground types are optional
Include	1 PTO drives the hydraulic system, two balance valves, two hydraulic cylinders with a lifting arm and two hydraulic cylinders with landing leg, and one unloading container locking pins.
Options	Stainless steel container material; Sealed cover for the container; A truck with several containers
Loading Time	30s
Unloading Time	50s

Certification	ISO9001:2015
Chassis Truck	SHACMAN
Color	Customized Color
Condition	New
Delivery Time	50 Days
Drive Mode	6×4
Country of Origin	Made in China
Customized	Yes
Emission Standard	Euro V
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Heavy Duty
Warranty Period	12 Months
