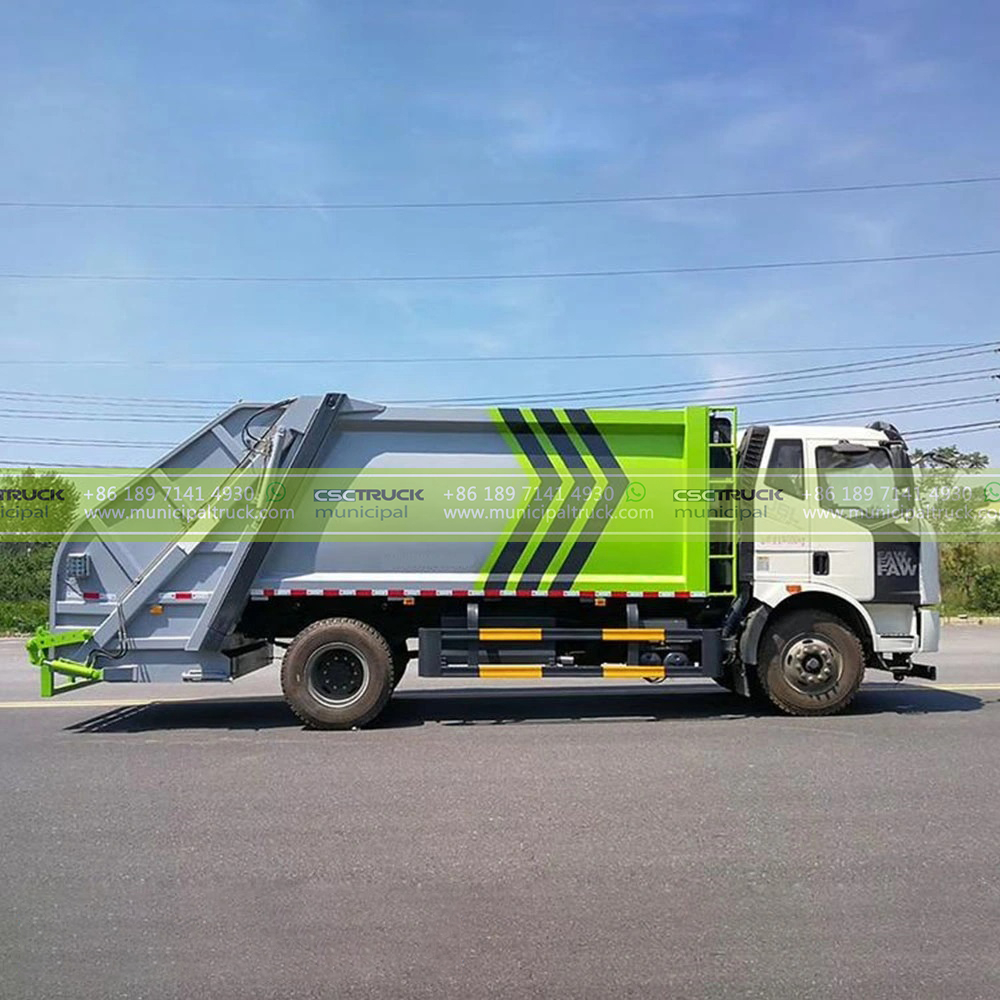

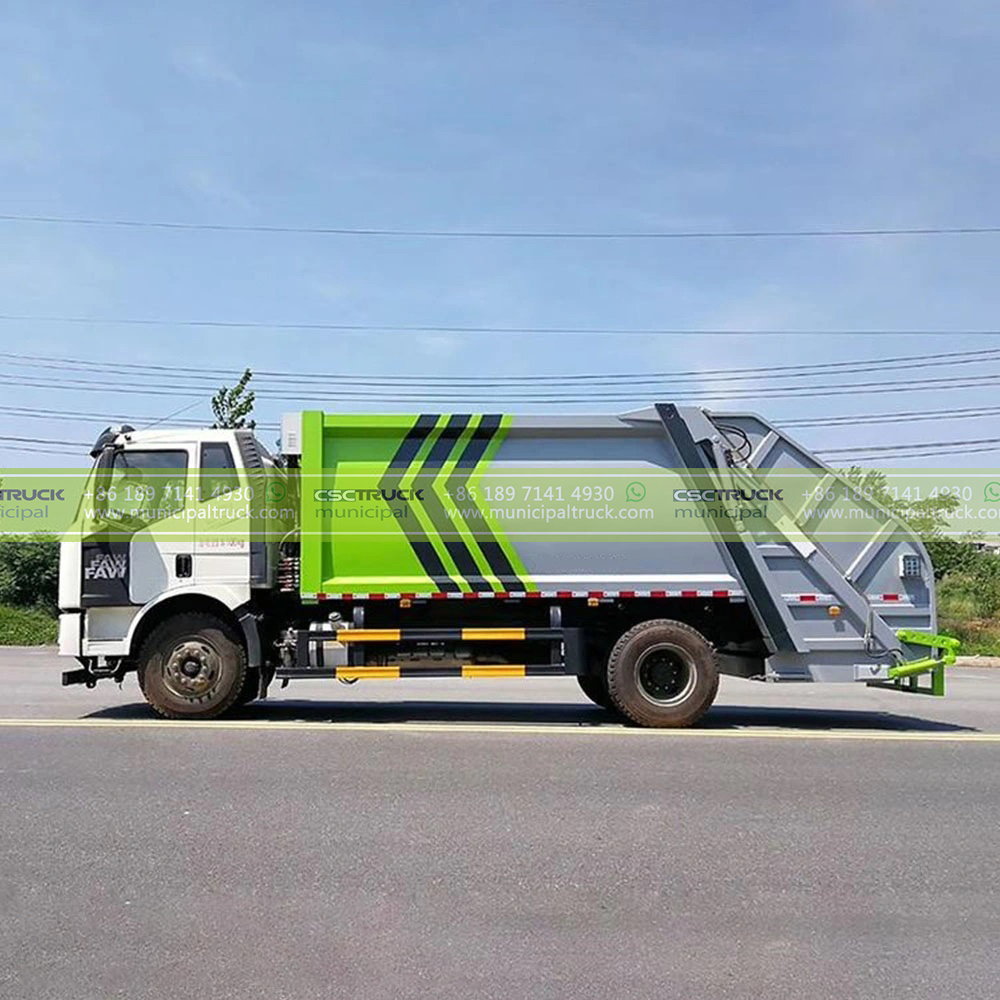

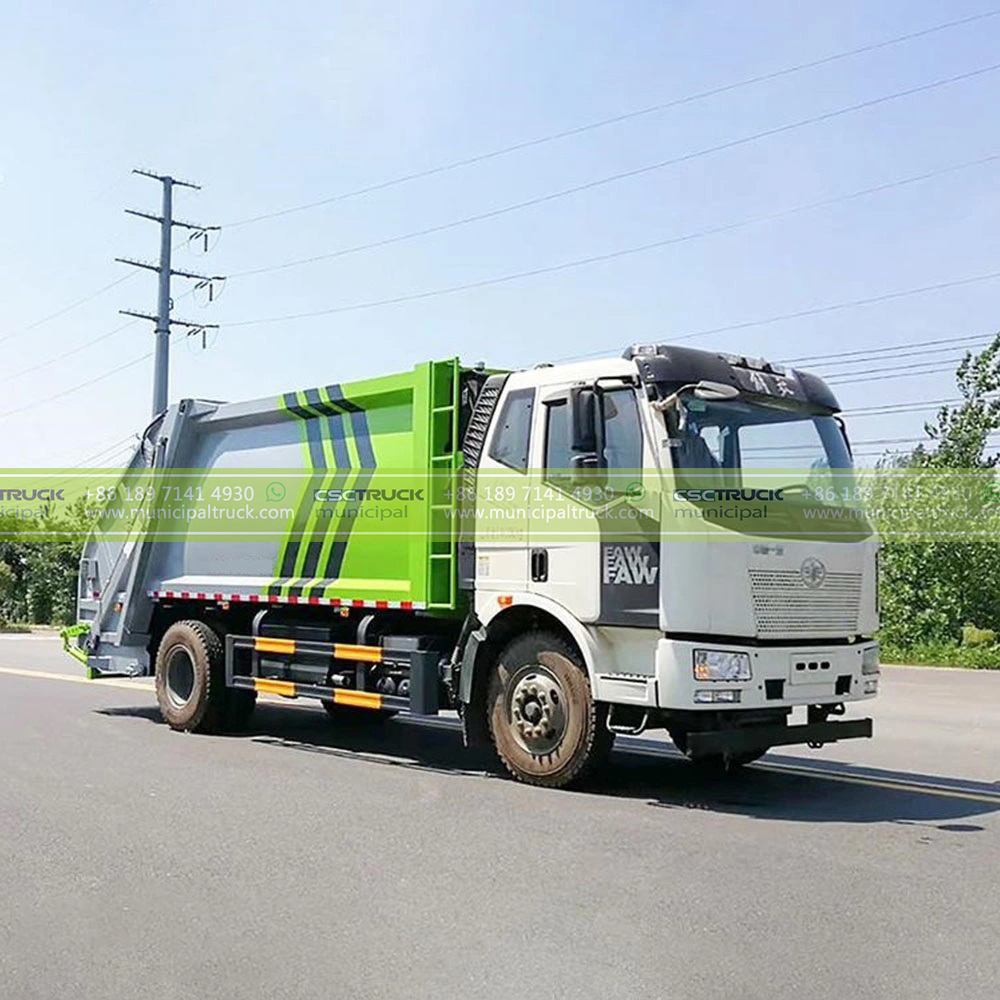

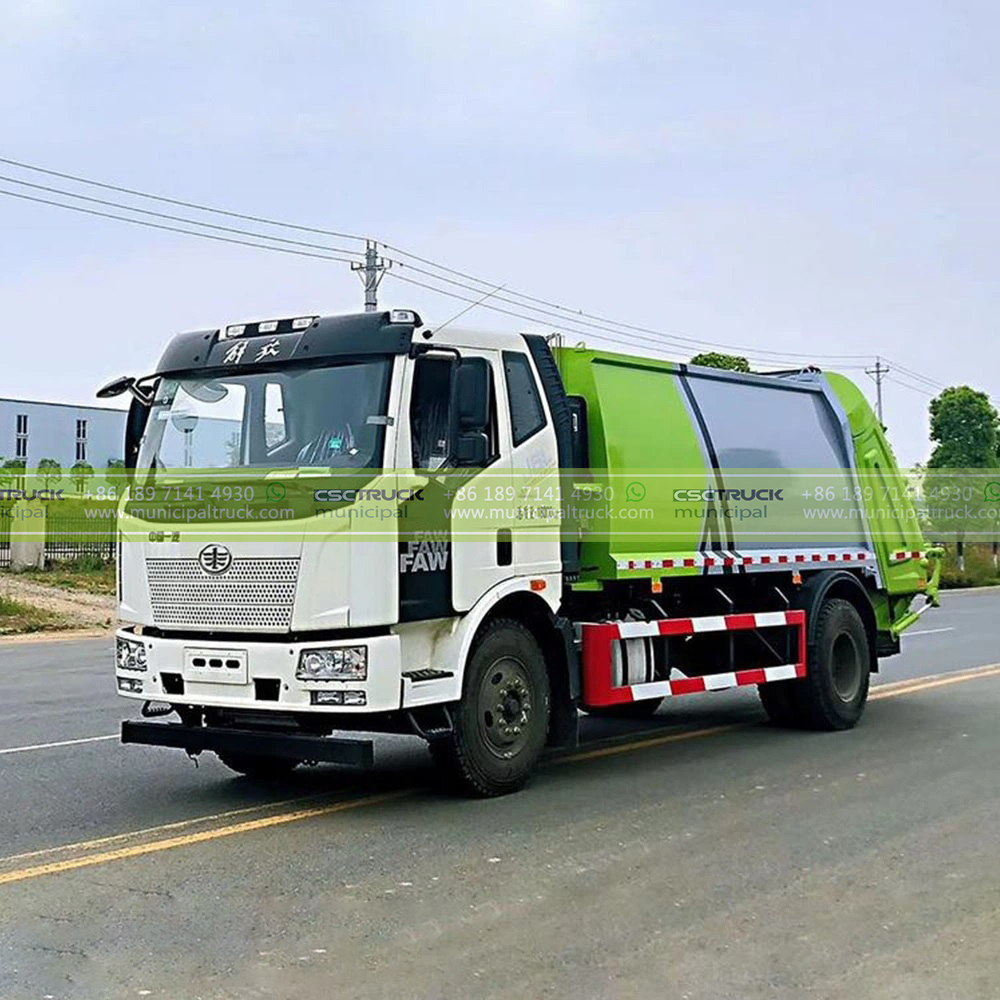

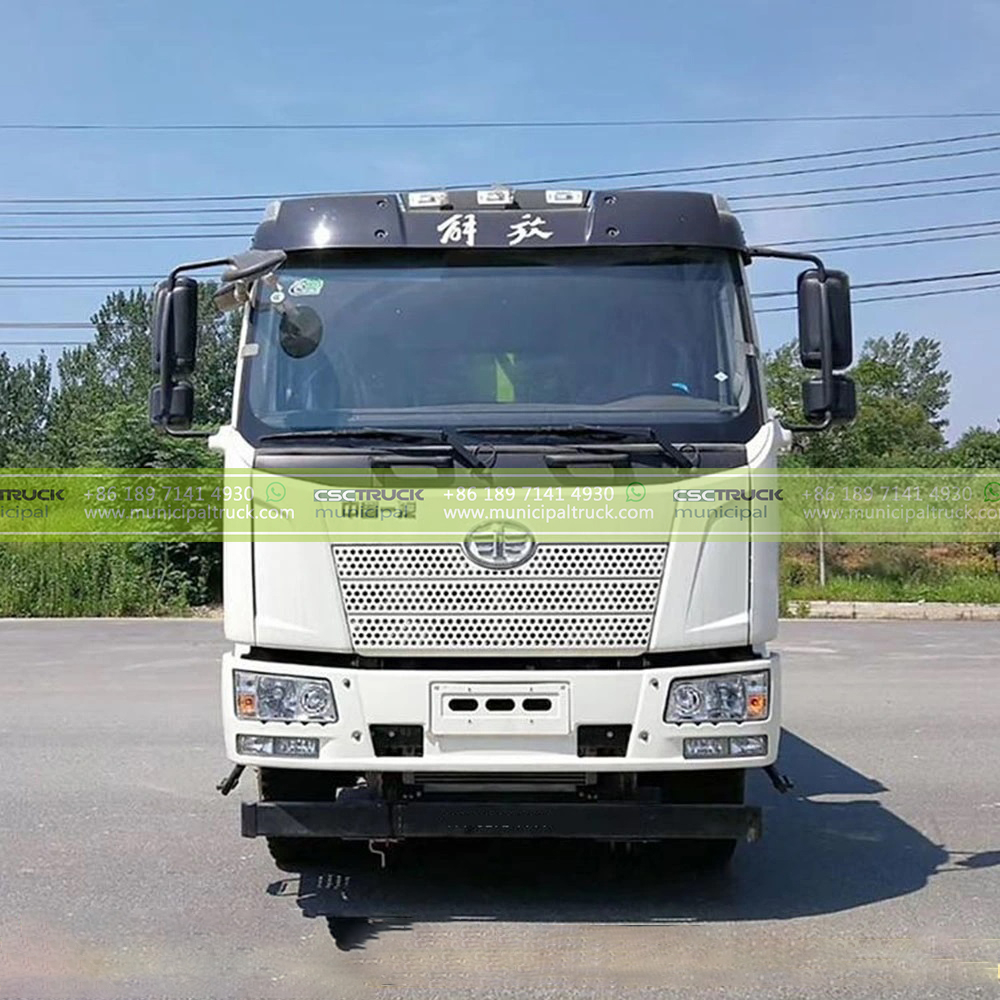

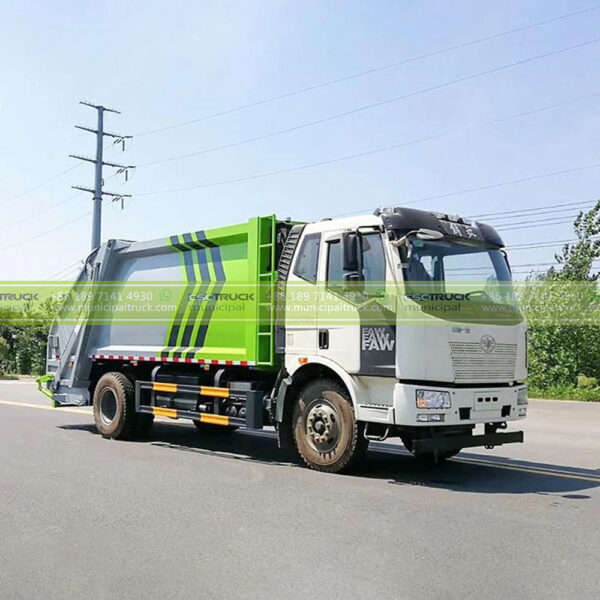

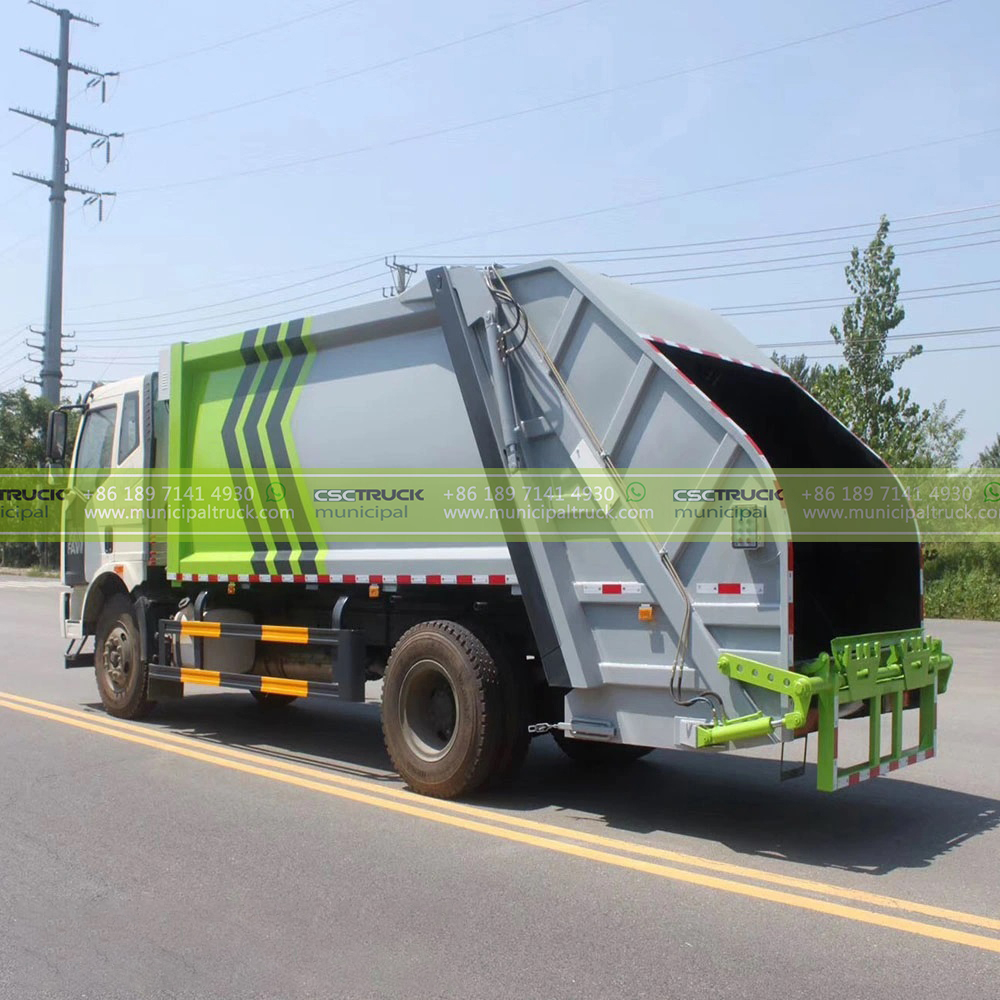

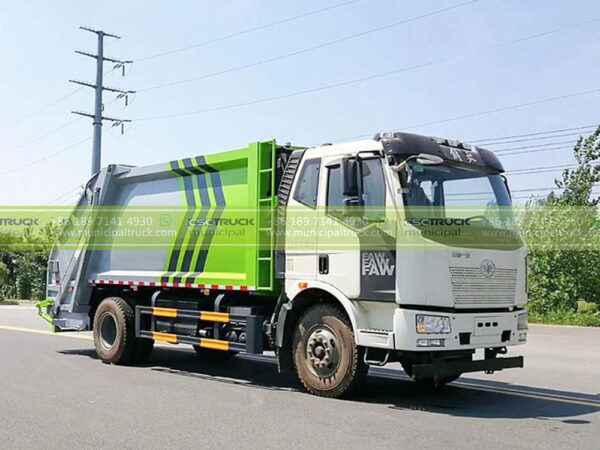

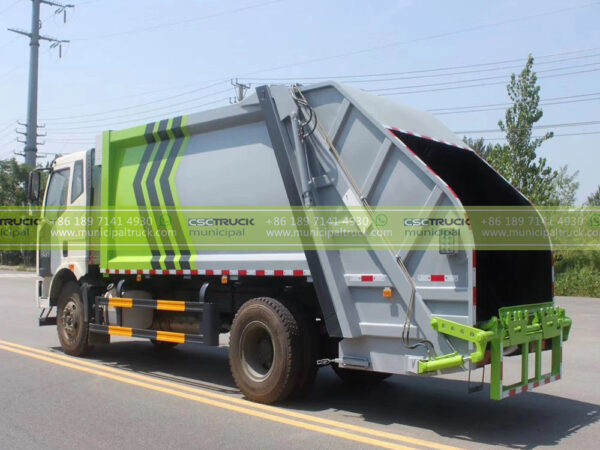

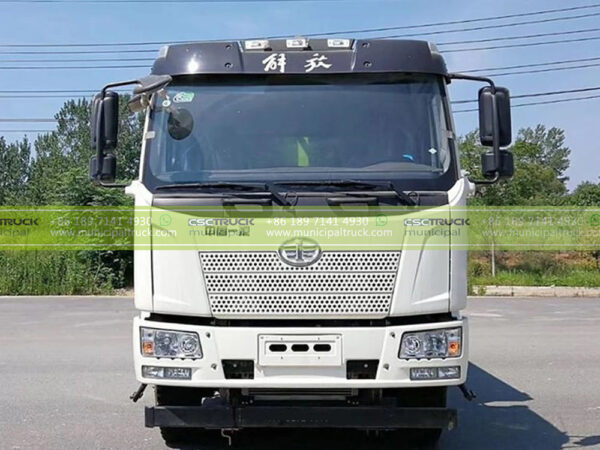

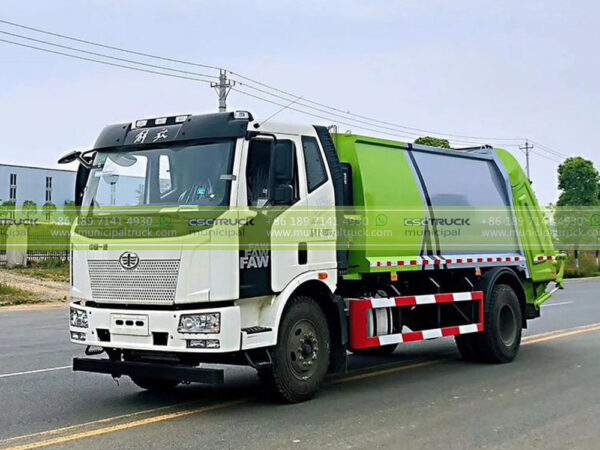

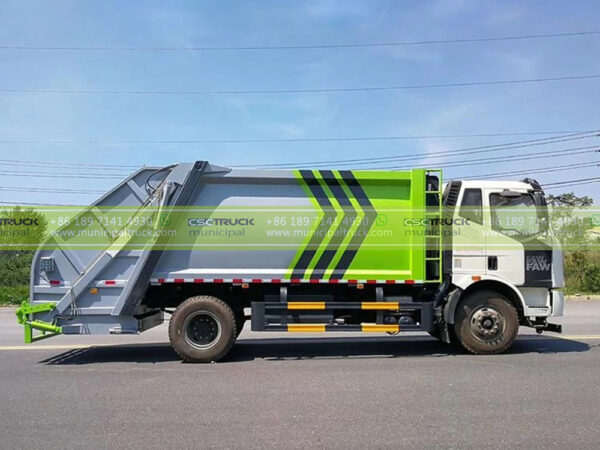

FAW 14CBM Garbage Compactor Vehicle

Summary:

The FAW 14CBM garbage compactor vehicle is a reliable and efficient waste management solution. With a GVW/Curb Weight of 18,000/9,910kg and a wheelbase of 4500mm, this vehicle is built to handle heavy loads and tough conditions. It is powered by a DACHAI/BF6M2012-22 diesel engine that delivers 220 horsepower and meets Euro 3 emissions standards. The cabin is designed with comfort and safety in mind, featuring a steel construction, single row, and flat design. It can accommodate up to three passengers and provides front control in the cab, rear button control, and manual control for ease of use. The garbage container has a capacity of 14CBM and is made of high-tensile carbon steel. It is designed to be sealed and leakage-proof, and has a compaction ratio of 1:3 to 1:4. The loading time is 8 to 10 seconds, the loading cycle time is less than 40 seconds, and the unloading time is less than 45 seconds.



Features:

The FAW 14CBM garbage compactor vehicle is packed with features that make it a top choice for waste management professionals. Here are some of its key features:

1. Powerful Engine: The vehicle is equipped with a DACHAI/BF6M2012-22 diesel engine that delivers 220 horsepower and meets Euro 3 emissions standards. This engine is designed to provide reliable and efficient performance, even under heavy loads.
2. Sturdy Chassis: The vehicle’s chassis is built to handle heavy loads and tough conditions. It has a GVW/Curb Weight of 18,000/9,910kg and a wheelbase of 4500mm. The front/rear axle is 6.5T/11.5T, and it is equipped with 11.00R20, 6+1 tires.
3. Comfortable Cabin: The cabin is designed with comfort and safety in mind. It features a steel construction, single row, and flat design. It can accommodate up to three passengers and provides front control in the cab, rear button control, and manual control for ease of use.
4. High-Quality Garbage Container: The garbage container has a capacity of 14CBM and is made of high-tensile carbon steel. It is designed to be sealed and leakage-proof, and has a compaction ratio of 1:3 to 1:4. The hopper volume is 0.8CBM, and the effective volume of the bucket is greater than or equal to 0.8cbm.
5. Efficient Operation: The loading time is 8 to 10 seconds, the loading cycle time is less than 40 seconds, and the unloading time is less than 45 seconds. The control system provides front control in the cab, rear button control, and manual control, making it easy to operate. The system pressure is a maximum of 240 bar, and the working pressure is 180 to 200 bar.

Overall, this garbage truck is a high-quality and efficient waste management solution that is built to handle heavy loads and tough conditions. It is packed with features that make it easy to use and reliable, making it a top choice for waste management professionals.

Specifications

Chassis
Size	9900*2485*3020(mm)
GVW/Curb Weight	18,000/9,910kg
Wheelbase	4500mm
Front/Rear Axle	6.5T/11.5T
Tire	11.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	DACHAI/BF6M2012-22/220hp/Euro 3
Transmission
Gears	8F+2R
Operation	Manual
Cabin
Driving	FAW 4X2, Left-Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	14 CBM
Tank Body Material	High Tensile Carbon Steel
Thickness	Side 4mm, Bottom 5mm
Design	Sealed leakage proof
Working Rotation Speed	1400r/m
Compaction Ratio	1:3- 1:4
Hopper Volume	0.8CBM
Effective volume of the bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear discharging
System Pressure	Max.240 bar and working pressure 180~200 bar
Control System	Front control in the cab, rear button control, and manual control
