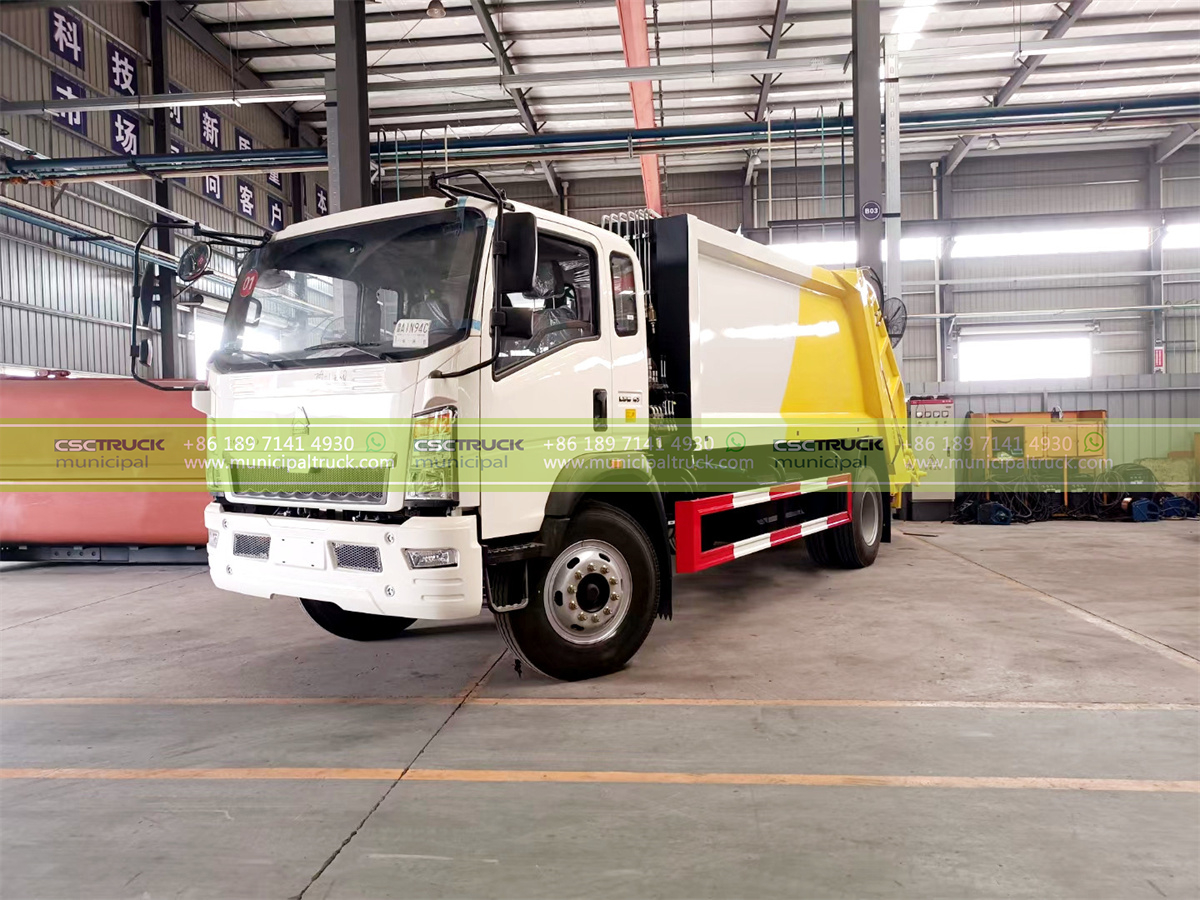

SINOTRUK 12CBM Garbage Compactor Lorry

Summary:

The SINOTRUK 12CBM garbage compactor lorry is a reliable and efficient vehicle designed to handle waste disposal with ease. It has a spacious cabin that comfortably accommodates the driver and two passengers. The chassis is made of high-quality steel construction that can withstand the weight and pressure of the garbage truck. Equipped with a powerful diesel engine, the vehicle can move swiftly even with a full load of garbage. The garbage container has a 12CBM capacity and is made of high-tensile carbon steel. The tank body is thick and leak-proof, ensuring the safe transport of garbage without any spillage. The truck’s hydraulic system is designed to deliver maximum pressure and efficiency to compress the waste inside the container.



Features:

The SINOTRUK 12CBM garbage compactor lorry comes with a sturdy chassis that measures 8735×2530×3240mm. It has a gross vehicle weight of 16,000kg and a curb weight of 8,100kg. The wheelbase is 4200mm, with a 6T/10T front/rear axle and 11.00R20, 6+1 tires that provide excellent traction and stability on any terrain.

The vehicle is powered by a robust YUCHAI/YC6J220-33B diesel engine with 220 horsepower and Euro 2 emission standards. It is coupled with a SINOTRUK/HW95508STC manual transmission that has eight forward gears and two reverse gears for smooth shifting and precise control. The cabin has a single-row, flat steel construction that provides ample space for the driver and two passengers.

The garbage container has a 12CBM capacity and is made of high-tensile carbon steel that is durable and long-lasting. It has a sealed and leak-proof design that prevents any spillage of waste during transport. The tank body has a thickness of 4mm on the sides and 5mm on the bottom. The garbage compactor’s working rotation speed is 1400r/m, and it has a compaction ratio of 1:3-1:4.

The hopper volume is 0.8CBM, and the effective volume of the bucket is ≥0.8cbm. The loading time is 8-10 seconds, the loading cycle time is ≤40 seconds and the unloading time is ≤45 seconds. The discharge type is rear discharging, and the system pressure is max.240 bar, with a working pressure of 180-200 bar.

This garbage truck has a front control system in the cab, rear button control, and manual control that make operation easy and efficient. The vehicle’s hydraulic system is designed with an oil reservoir, two gear pumps, and a maximum pressure of 240 bar. The painting is a high-quality topcoat, and the color and marks are based on the customer’s requirements.

SPECIFICATION



Chassis
Size	8735×2530×3240(mm)
GVW/Curb Weight	16,000/8,100kg
Wheelbase	4200mm
Front/Rear Axle	6T/10T
Tire	11.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	YUCHAI/YC6J220-33B/220hp/Euro 2
Transmission
Make/Model	SINOTRUK/HW95508STC
Gears	8F+2R
Operation	Manual
Cabin
Driving	SINOTRUK HOWO 4X2, Left Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	12 CBM
Tank Body Material	High Tensile Carbon Steel
Thickness	Side 4mm, Bottom 5mm
Design	Sealed leakage proof
Working Rotation Speed	1400r/m
Compaction Ratio	1:3- 1:4
Hopper Volume	0.8CBM
Effective volume of bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear discharging
System Pressure	Max.240 bar and working pressure 180~200 bar
Control System	Front control in the cab, rear button control, and manual control
