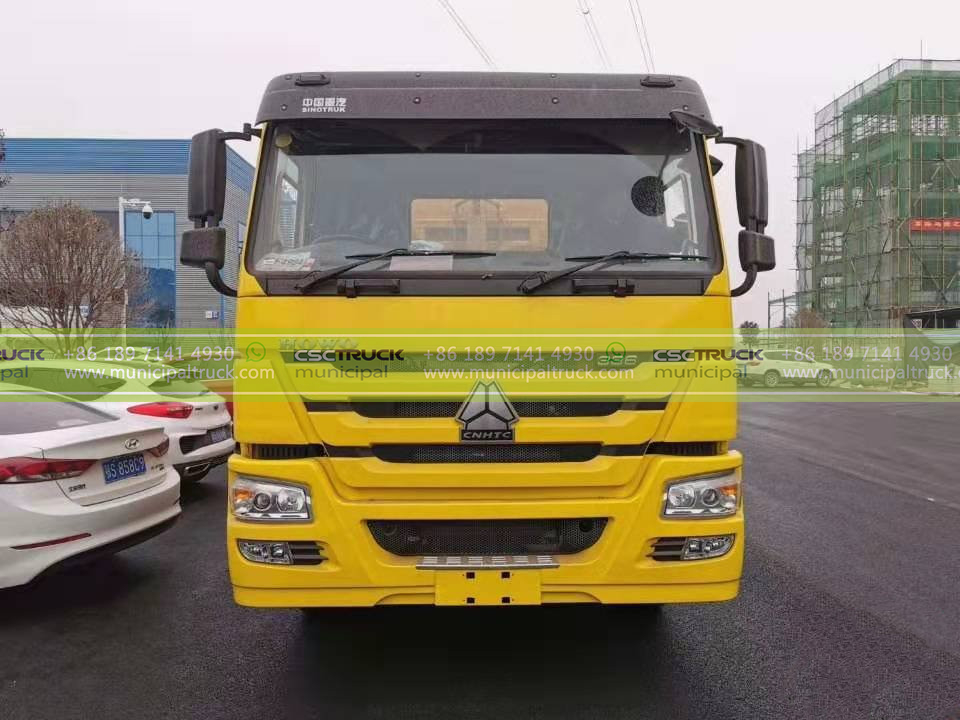

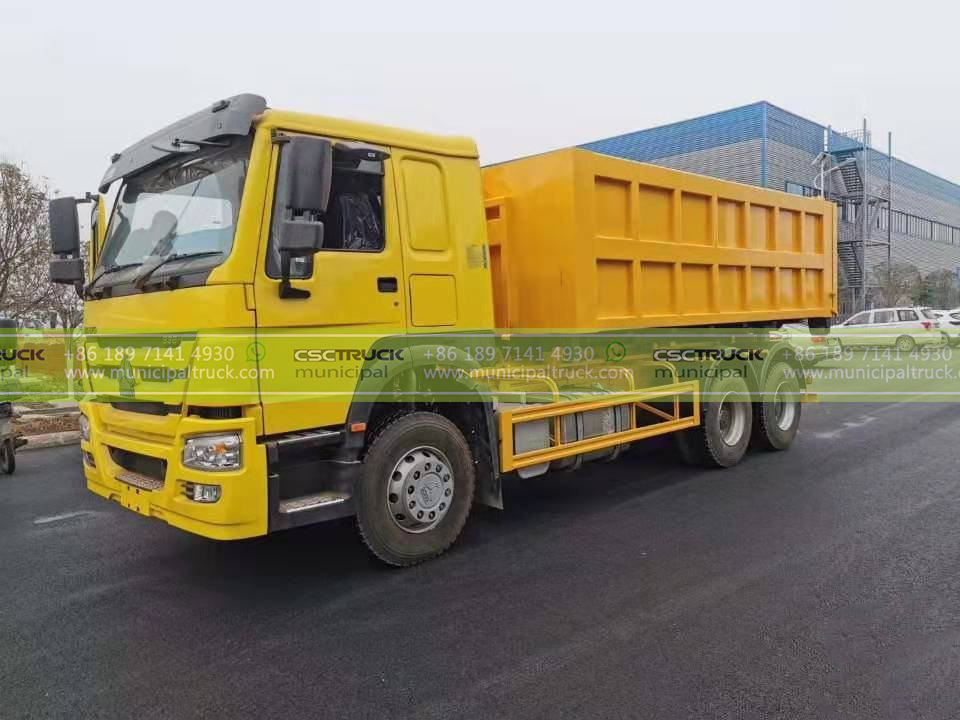

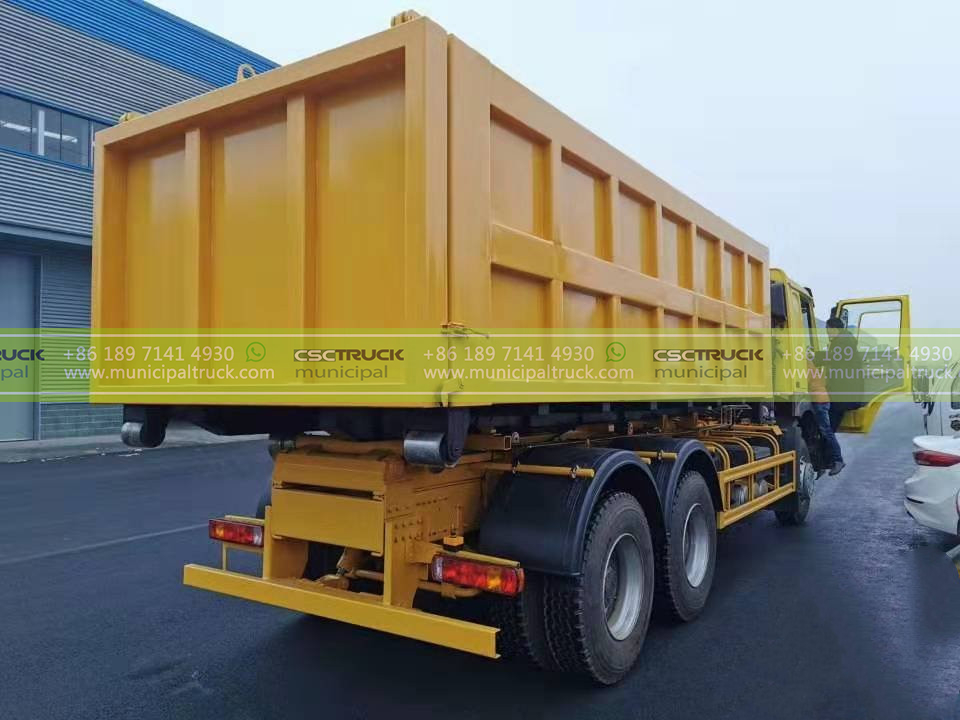

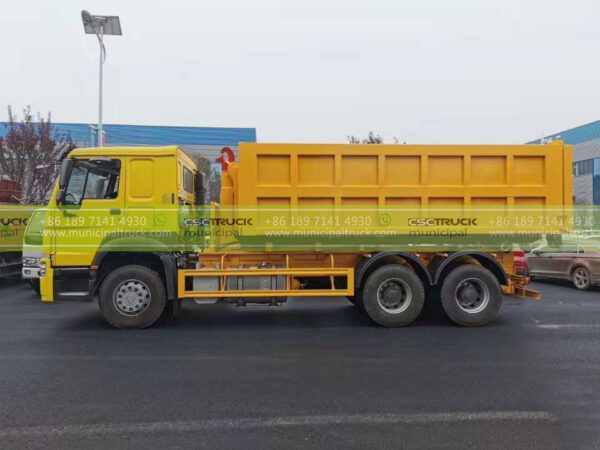

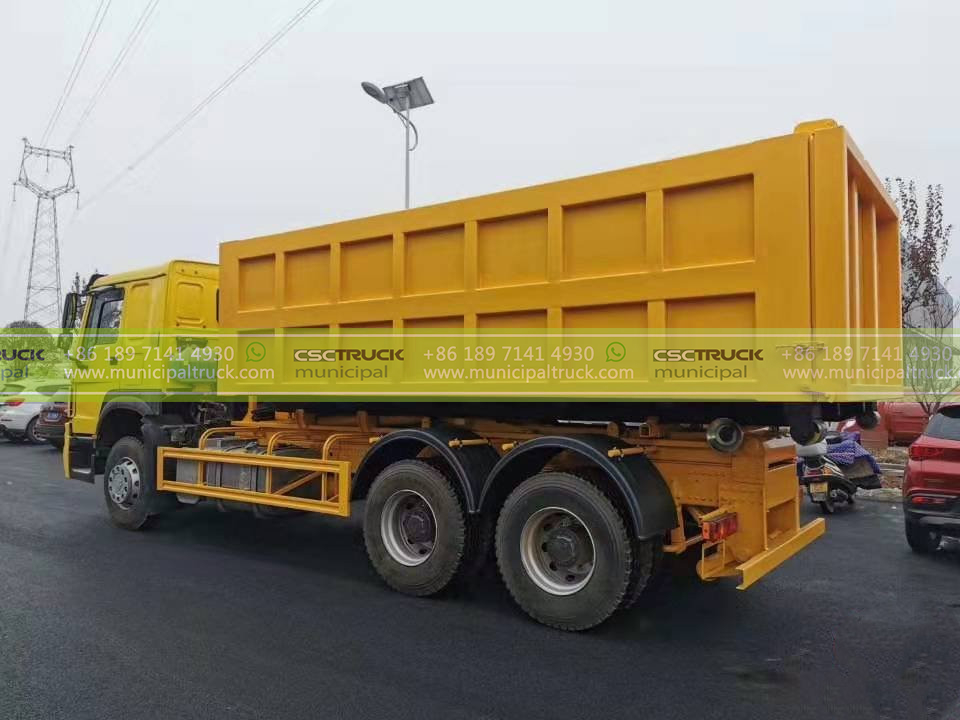

SINOTRUK 20T Hook Loader Garbage Truck

Chassis
Size	860026003450mm
GVW/Curb Weight	25,000/11,100kg
Wheelbase	4325+1350mm
Front/Rear Axle	9T/16Tx2
Tire	12.00R20 10+1 tires
Engine
Type	Diesel
Make/Model	SINOTRUK/WD615.69/336hp/euro2
Transmission
Make/Model	SINOTRUK/HW19710
Gears	10F+2R
Operation	Manual
Cabin
Driving	SINOTRUK HOWO 6×4 Night Cab, Right-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Hook Lift System
Lifting Capacity	20 Ton
Material	Q235B Carbon Steel, 4mm Side, 5mm Bottom
Lifting Time	50s
Discharging Time	50s
Tipping Angle	50°
Locking	2 side locking system
Control System	Manual control, and smart control as options
Hydraulic System	Branded multi-way valve, cylinders
Include	Underframe, linkage frame, fixed arm, hook arm, locking system, hydraulic system.

Certification	ISO9001:2015
Chassis Truck	SINOTRUK
Color	Customized Color
Condition	New
Delivery Time	50 Days
Drive Mode	6×4
Country of Origin	Made in China
Customized	Yes
Emission Standard	Euro II
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	RHD
Terms of Payment	T/T
Truck Class	Heavy Duty
Warranty Period	12 Months
