Brief

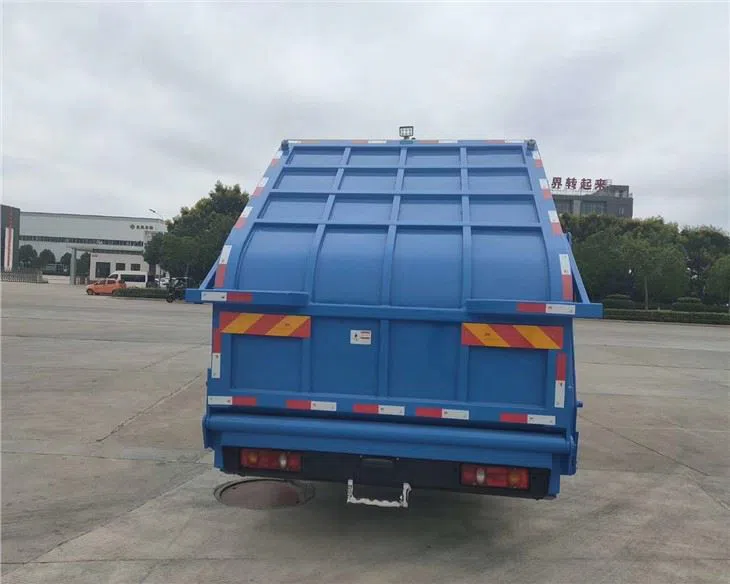

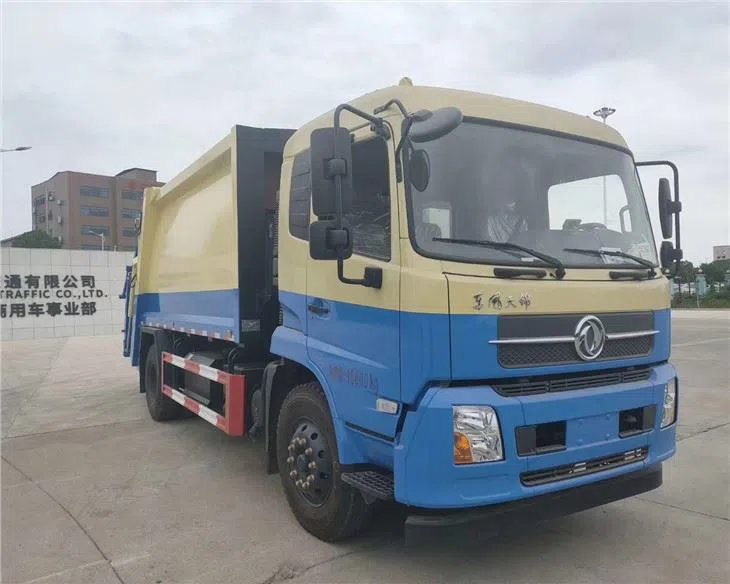

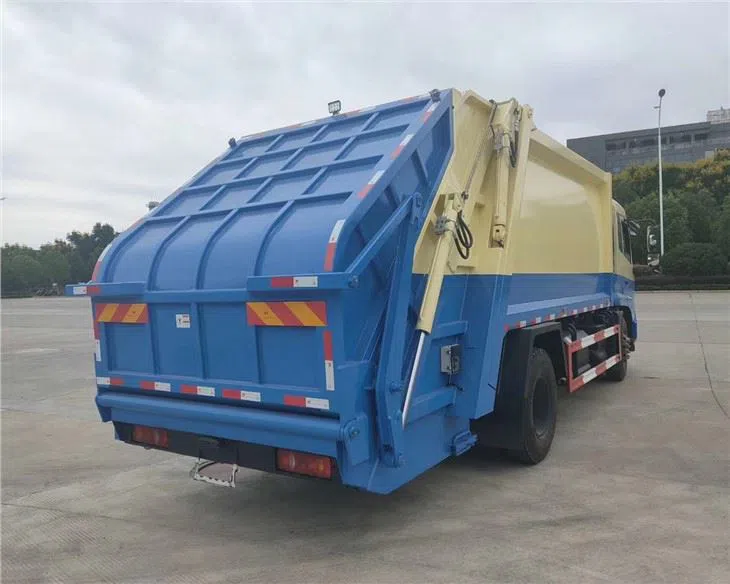

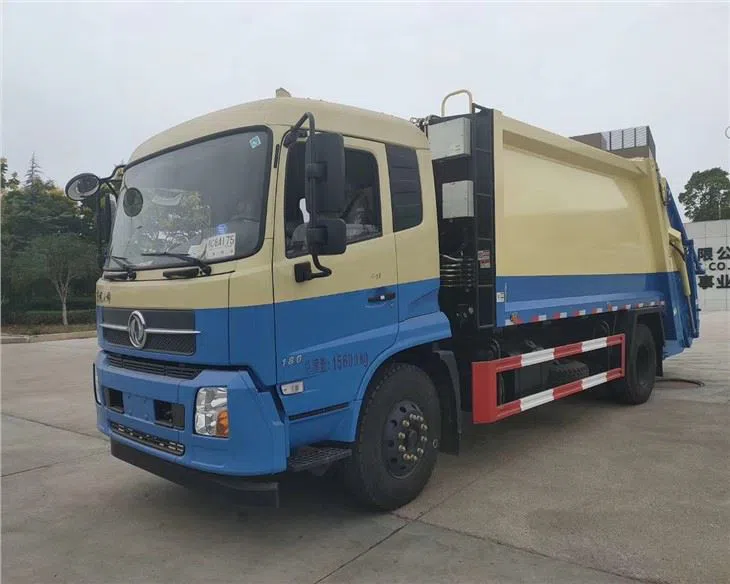

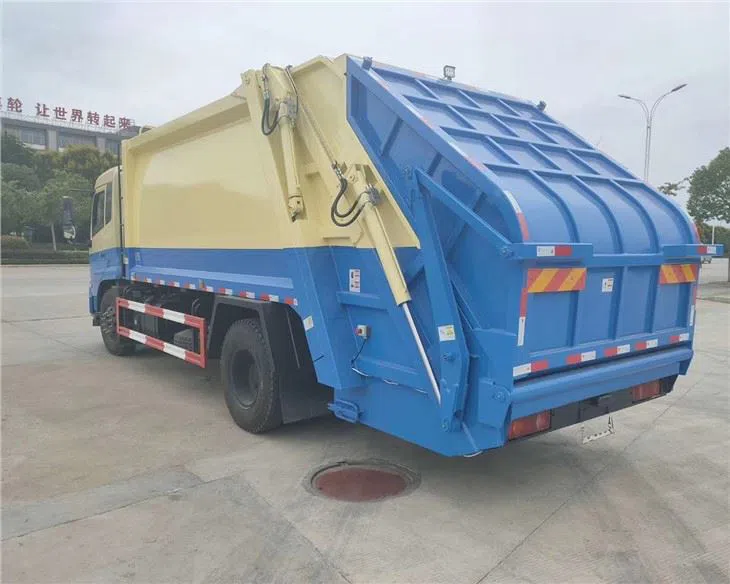

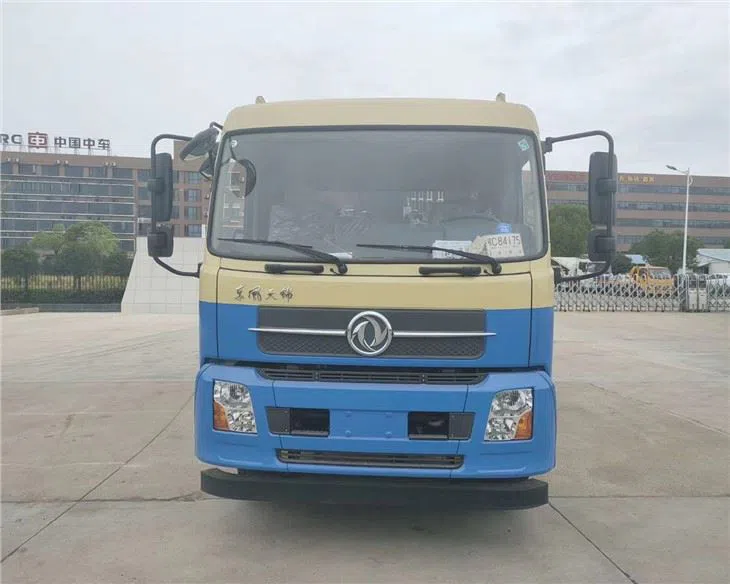

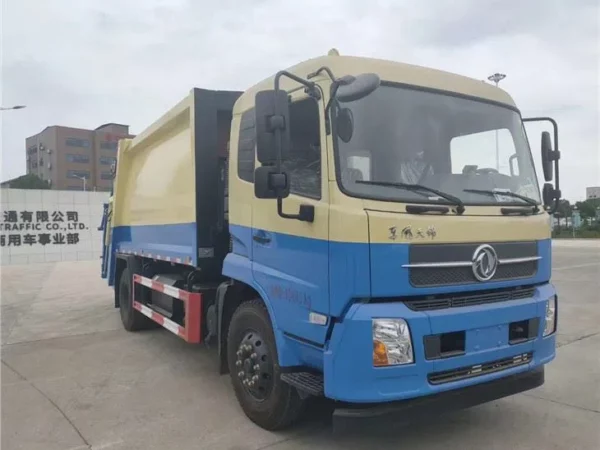

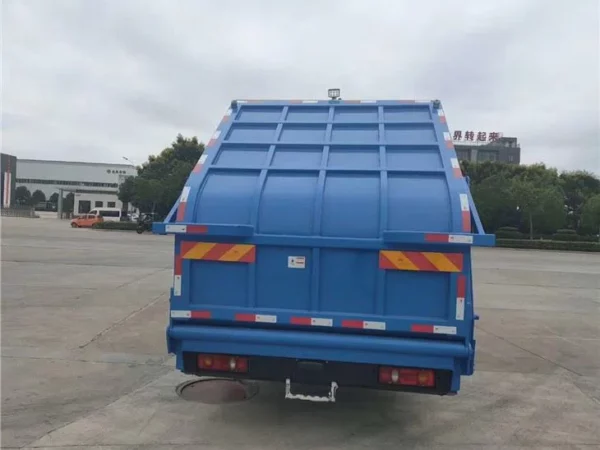

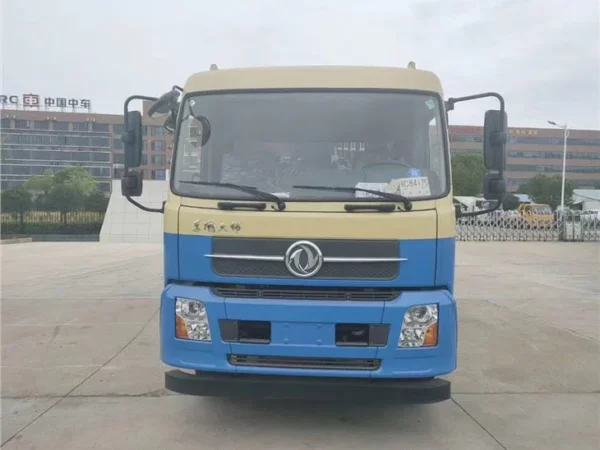

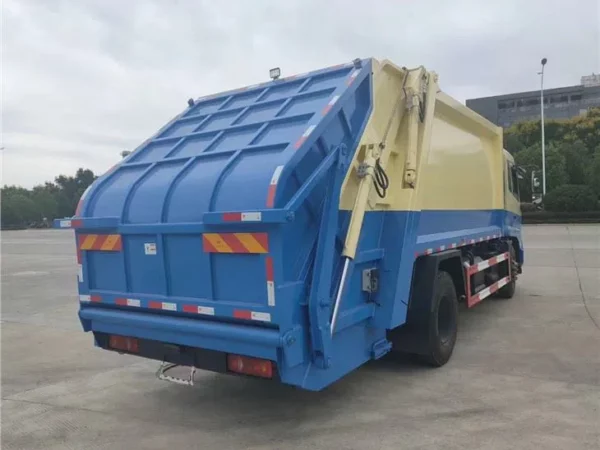

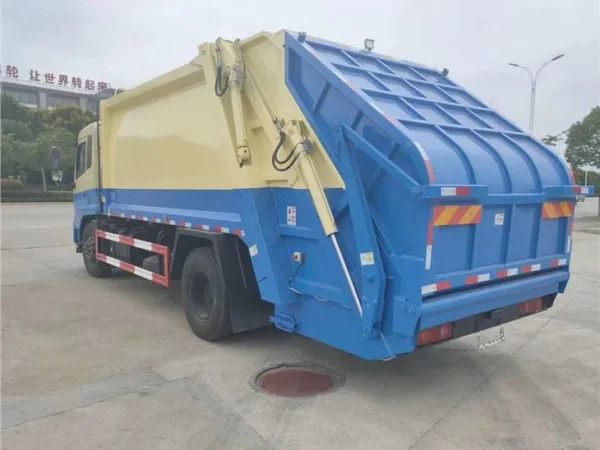

Garbage Compactor Truck is composed of sealed garbage compartments, hydraulic systems, and operating systems. The container capacity is 15CBM, two-way compression, and the compression ratio is 0.6-0.8t/m³.
Garbage thrown into the hopper is first crushed by the press plate and then compressed and compacted by the ejection plate inside the body. Collected garbage can be easily discharged from the body by operation of the ejection plate. Double control syestems of front manual control and rear push button control, makes it easy to operate.
features
Body Unit Only without ChassisHydraulically Powered Door
Tailgate door opened hydraulically by pressing the operating button located in the cab, so that the operator can easily and quickly dispose of waste in the compactor.
Automatic Ejector Retraction System
Our compactor introduce Ejector Automatic Retraction System, where the compactor can detect if the ejector plate were out at maximum condition. So that when the back door will close, the ejector plate will automatically be entered into compactor tub. With this system, collisions caused by Tailgate at the time of closing can be avoided.
Dual Safety Lock
For the safety of the operator who was working in the back (tail), our compactor is designed with two safety lock system to ensure that the currently opened tailgate door can’t fall accidentally or closed. Manual safety lock, which works with the mechanical systems and electric safety lock which works electronically.
One Piece Body
To achieve maximum results, we give special attention to the construction of the tank compactor. Pressures experienced continuously by the compactor tank will result in the tank very susceptible for leaks and rupture.
Completely Ejected System
To maximize the process of unloading waste, our compactors offer the Completely Ejected Ejector Plate technology, so that all the waste in the compactor tub can be unloaded entirely.
Excess Water Tank
One of the factors that cause the waste odor very pungent is leachate water. Traditional garbage trucks do not have a leachate water storages, so often times the leachate water dripped on the road along the tracks. Our Compactor have 3 leachate water storages that has a capacity of up to 500 liters.
specification
| Size | 8680x2500x3300mm |
| Gross/ Kerb Mass (kg) | 18,000/11,200 |
| Wheelbase (mm)/ Axis No. | 5000 |
| Driving type | 4*2 LHD |
| Chassis model | Dongfeng KingRun |
| Tire size | 10.00R20/6+1spare tire |
| Engine | YUCHAI,260HP,Euro3 |
| Container Capacity | 15CBM |
| Garbage container material | 16Mn Manganese steel |
| Hopper Material | Q345 stainless steel |
| Hydraulic System Pressure | 18MPa |
| Hydraulic Cylinder Control | Manual mechanical control and Electrical auto control |
| Compaction Ratio | 0.6~0.8T/m3 |
| Lifting weight capacity | 750 kg |
| Tailgate Lifting Cycle (s) | 10-15s |
| Compaction Plate Working Cycle (s) | 15-20s |
| Hopper Opening (°) | 67 |
| Container Opening (°) | 48 |
| Safety Valve | Equipped on tailgate to prevent sudden fall during maintenance |
