Chassis | |
Size | 8,130×2,500×3,320mm |
GVW/Curb Weight | 23,000kg/8,570kg |
Wheelbase | 4,600mm |
Front/Rear Axle | 7T/16T |
Tire | 295/80R22.5 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | SINOTRUK / WD615.87 / 290hp / Euro2 |
Transmission | |
Make/Model | SINOTRUK / HW13710 |
Gears | 10F+2R |
Operation | Manual |
Cabin | |
Driving | SINOTRUK HOWO 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Capacity | 10,000L |
Shape | Cylindrical |
Material | Q235B Carbon Steel |
Thickness | Shell Cover 8mm, Tank Body 6mm |
Vacuum Pump | Italy/JUROP/PN45 |
Pumping Rate | 5300LPM |
Ultimate Pressure | -92000Pa |
Speed | 1000r/min |
Inlet and Outlet Pipe Diameter | φ50 mm |
Max. Pump Temperature | ≤ 90°C |
Sewage Pipe | 10 meters long plastic pipe with steel wire inside |
Suction Depth | 9m |
Suction Time | ≤5min |
Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect windows, cleaning system, hoist base, oil-water separators, overflow valve, etc. |
Basic Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices |

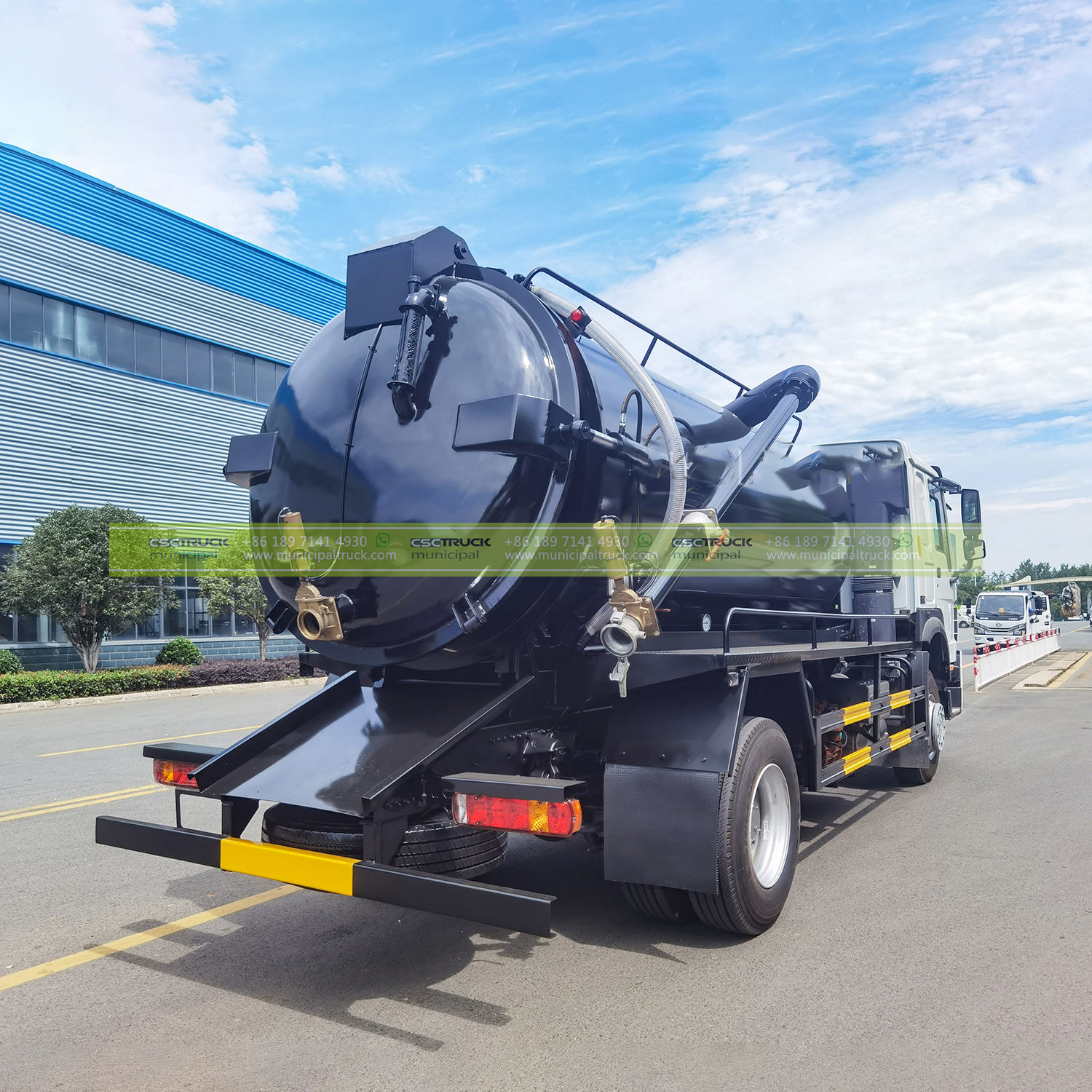

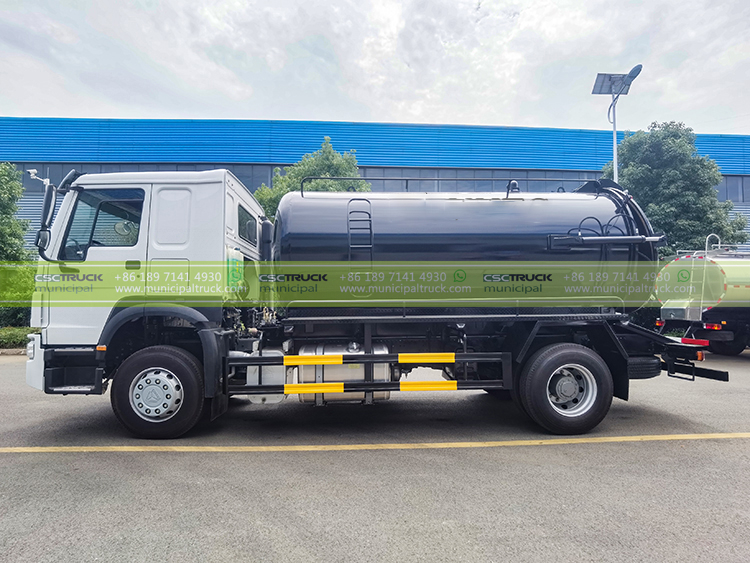

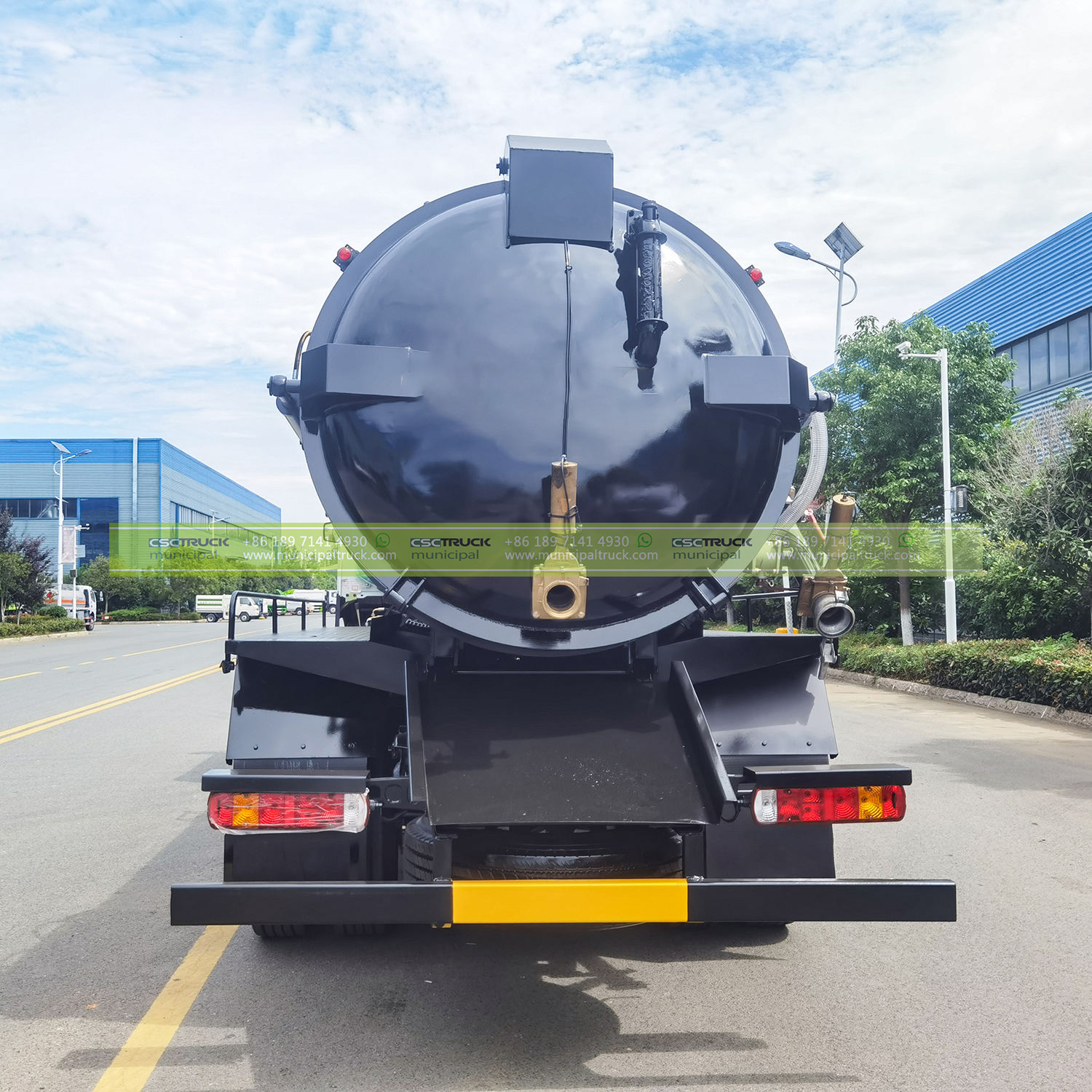

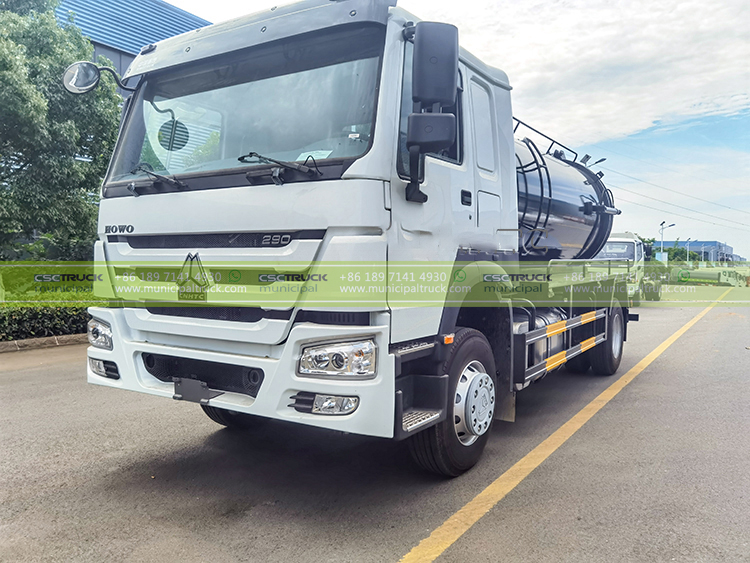

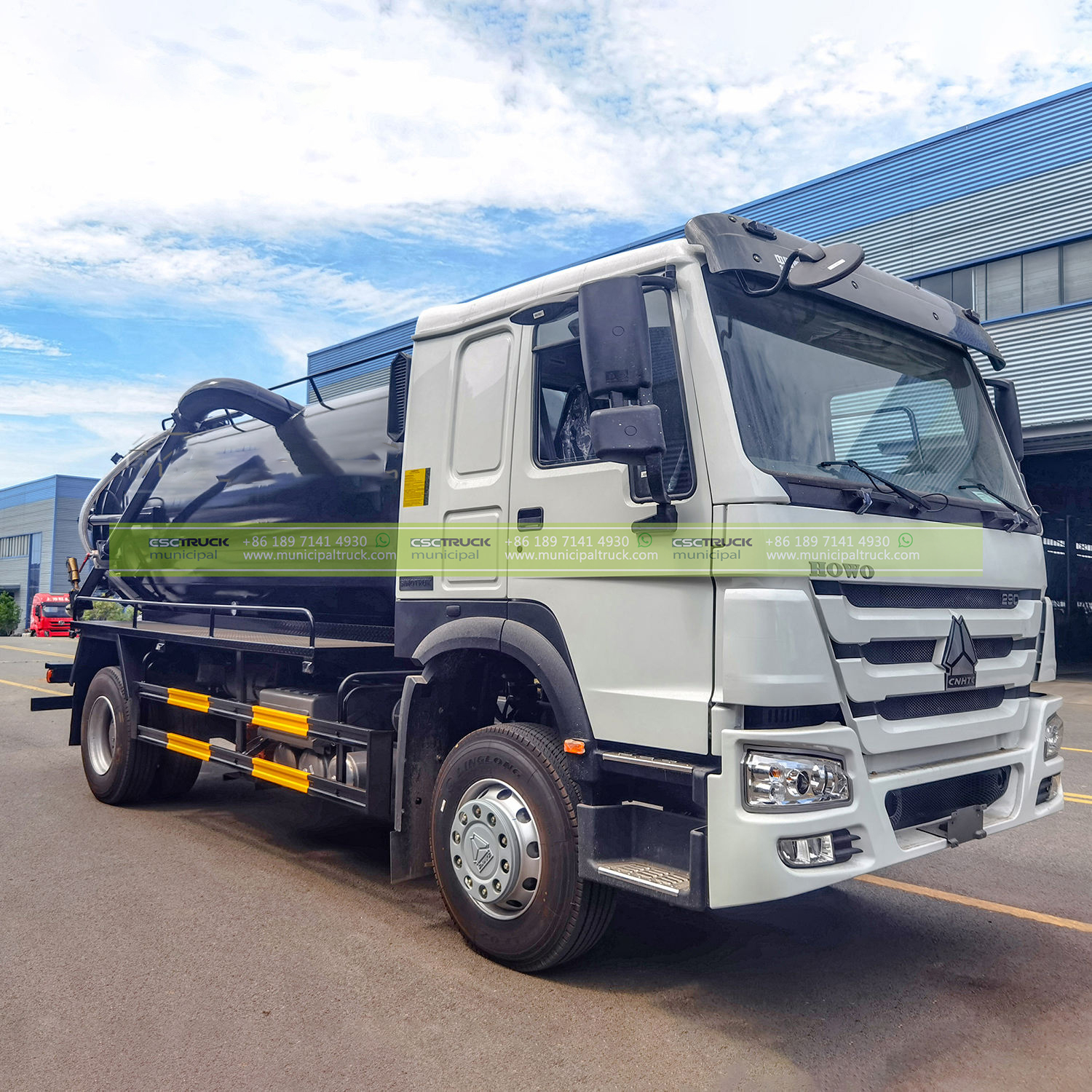

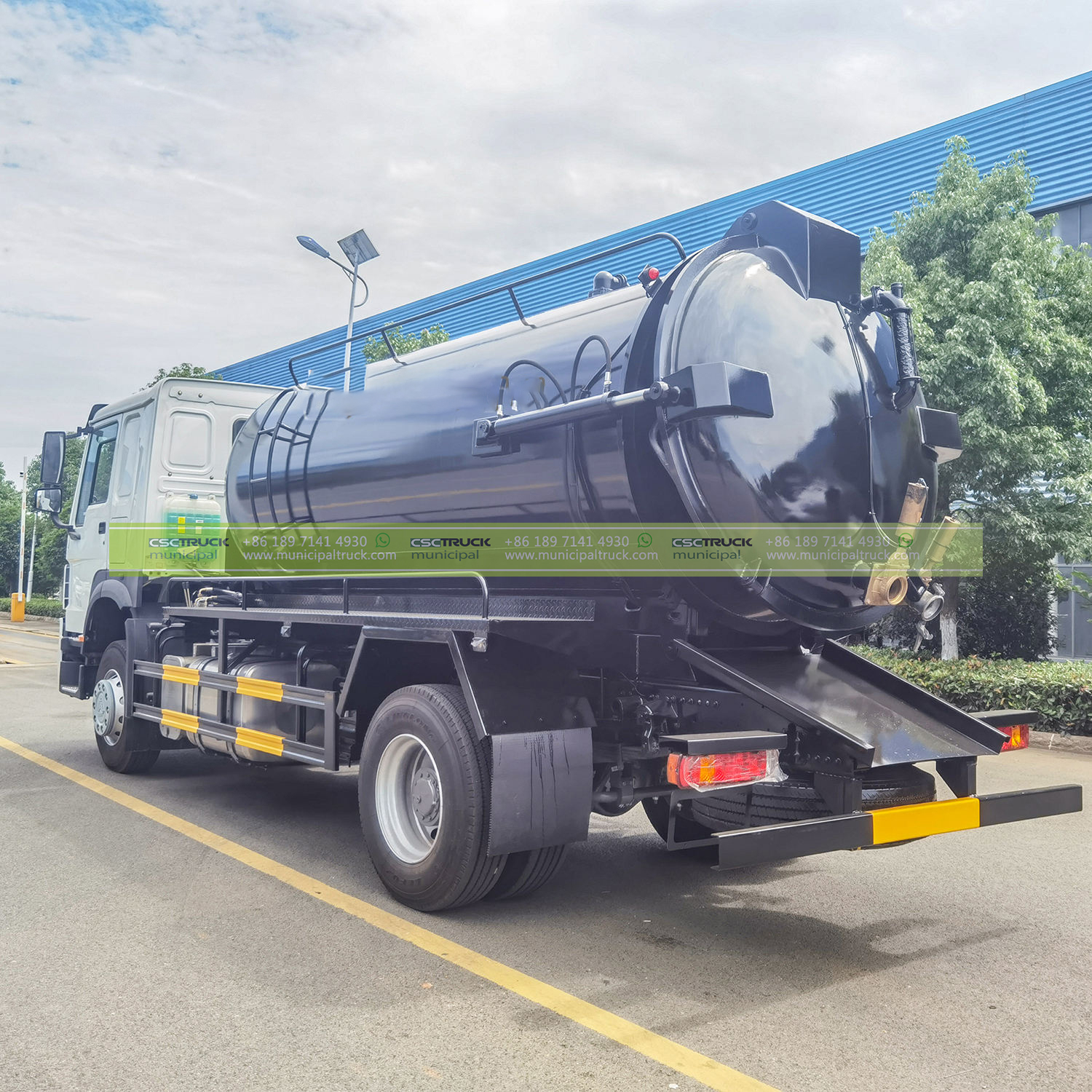

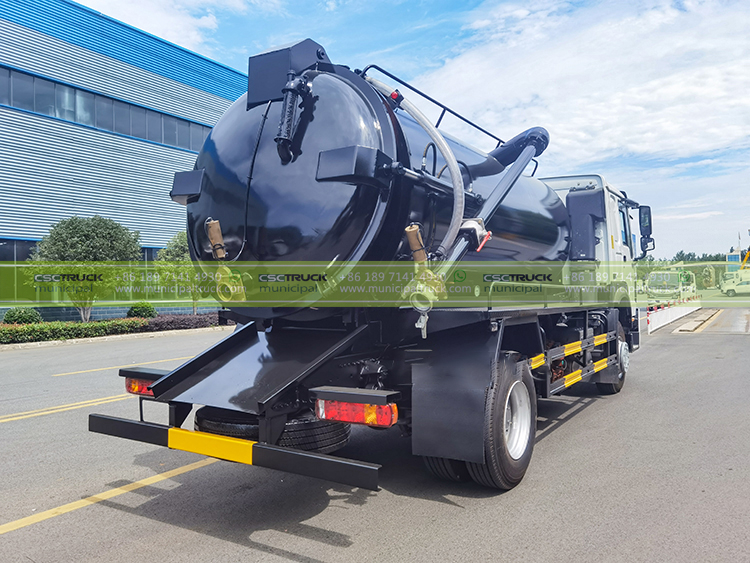

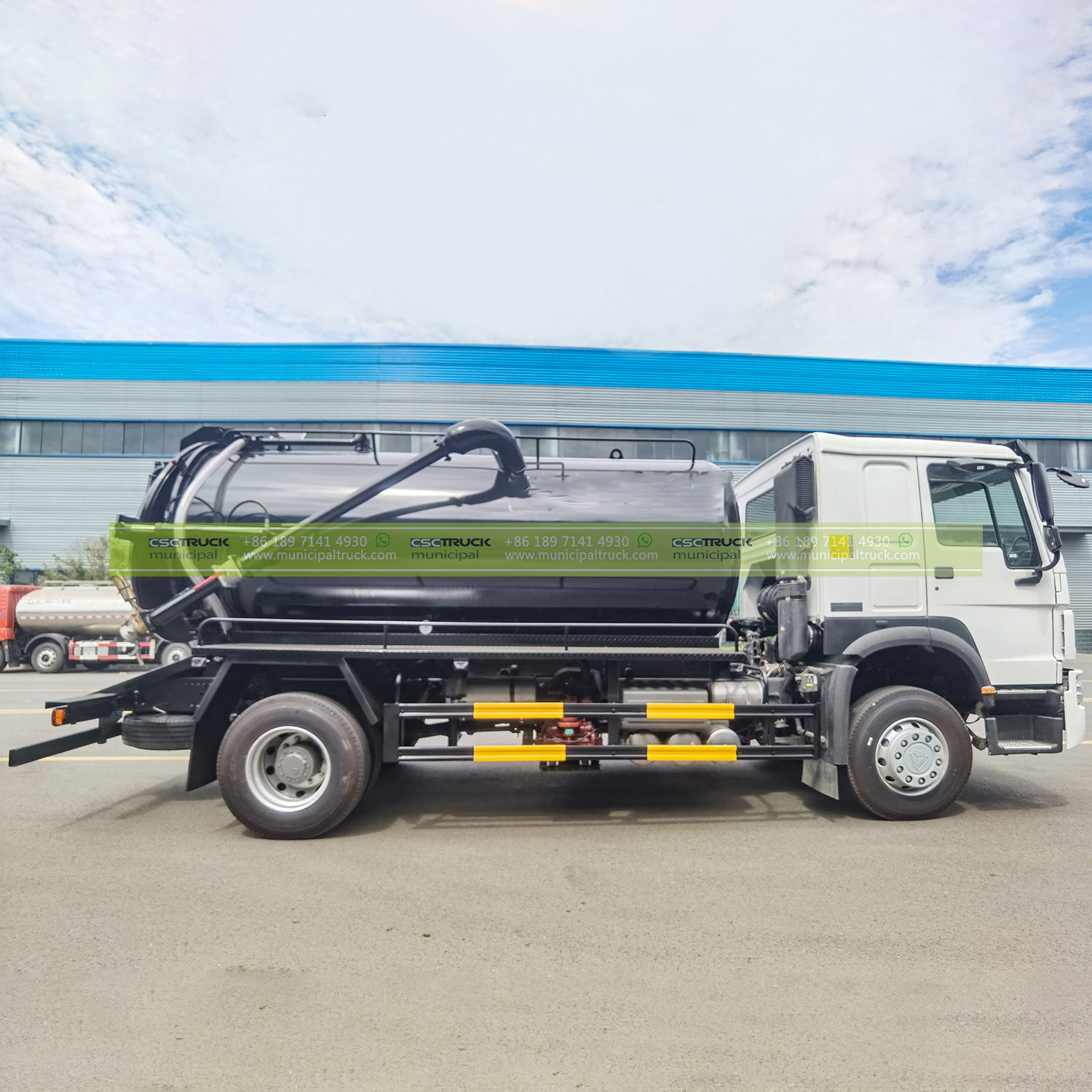

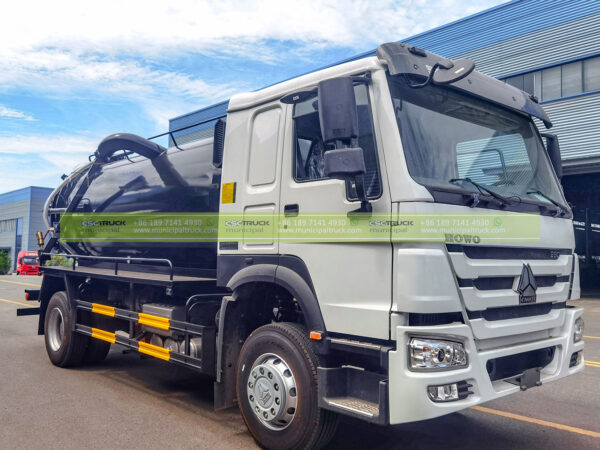

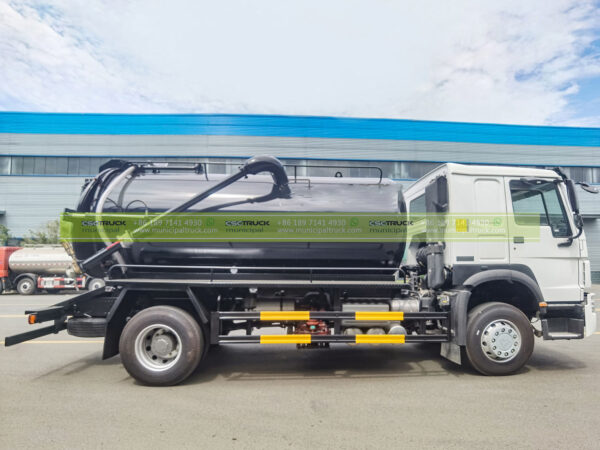

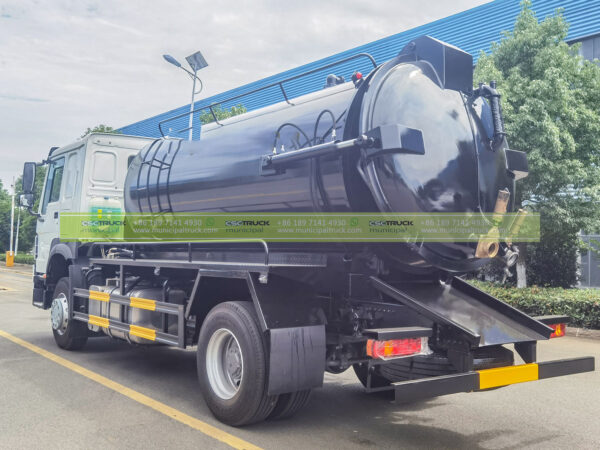

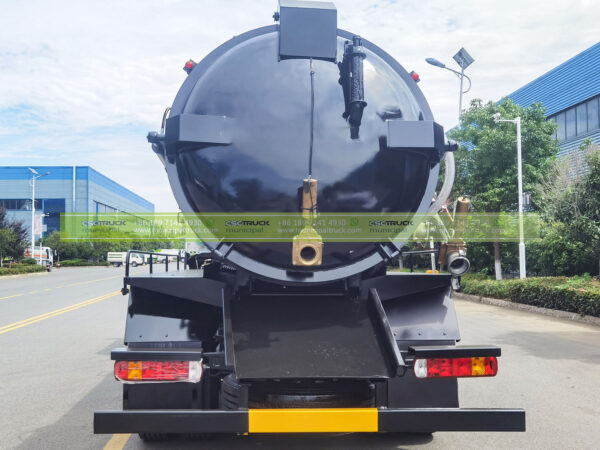

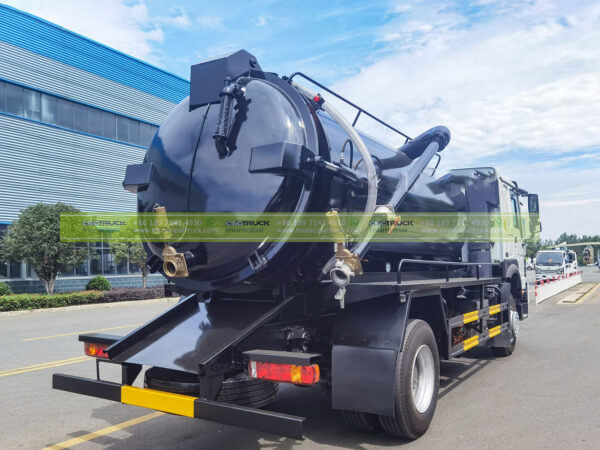

SINOTRUK 10,000L Vacuum Sewage Tanker Truck
Make/Model | CSCTRUCK/VS10ZZ290L2 |
GVW | 23,000kg, Heavy Duty Vehicle |
Cab Truck | SINOTRUK HOWO 4×2 Day Cab |
Engine | WEICHAI/WP16.210/210hp/Euro3 |
Transmission | SINOTRUK / HW13710 manual 10+2 Speed |
Sludge Tank Capacity | 10,000 Liters, 10 Cubic Meters, 2641 Gallon |
Vacuum Pump | JUROP, PN45, Sliding Vanes, Volume Flow 5,300LPM |
