| Chassis | |
| Size | 9,000×2,500×3,500mm |
| GVW/Curb Weight | 25,000/12,500kg |
| Wheelbase | 4300+1350mm |
| Front/Rear Axle | 7T/8T |
| Tire | 12.00R20, 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | SINOTRUK/WD615.62/266HP/Euro 2 |
| Transmission | |
| Make/Model | SINOTRUK/HW13710 |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |

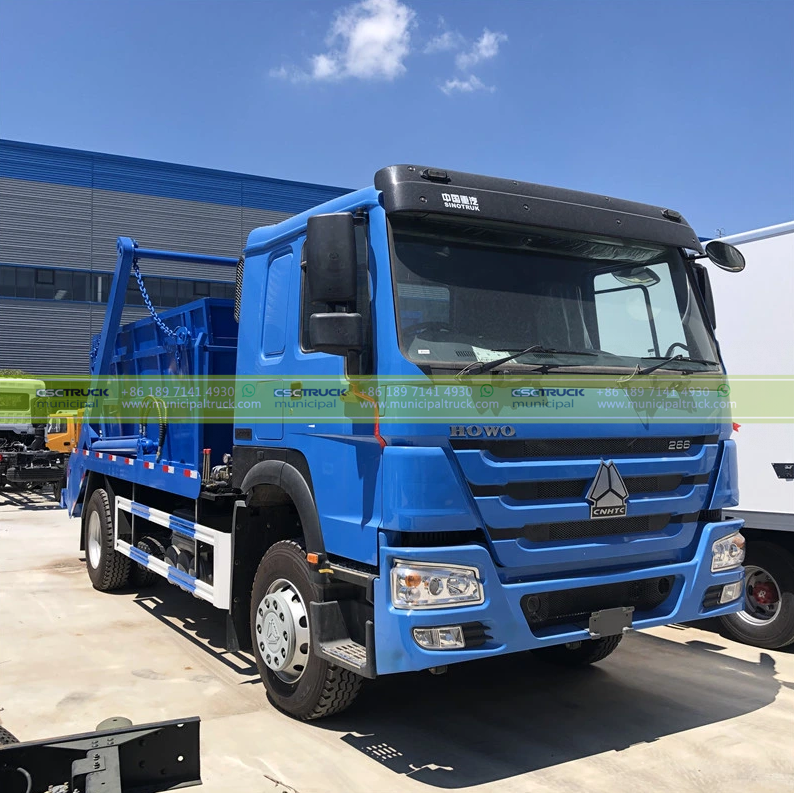

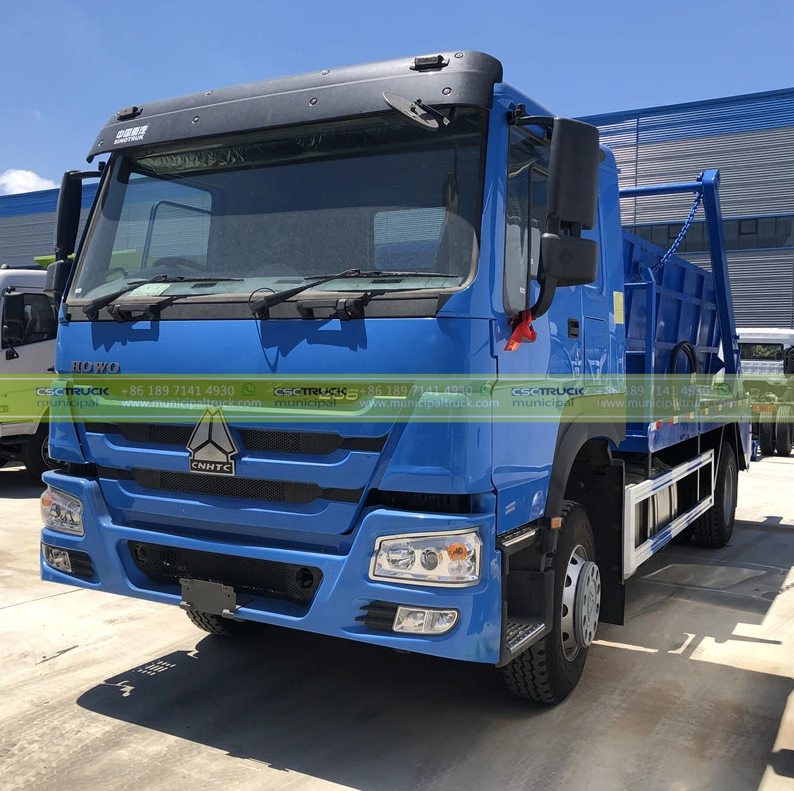

| Driving | SINOTRUK HOWO 6×4 Night Cab, Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Garbage Container | |
| Capacity | 12 CBM |
| Container Material | High tensile wear-resistant carbon steel |
| Thickness | Side and top 4mm, Bottom 4mm |
| Type | Underground and aboveground types are optional |

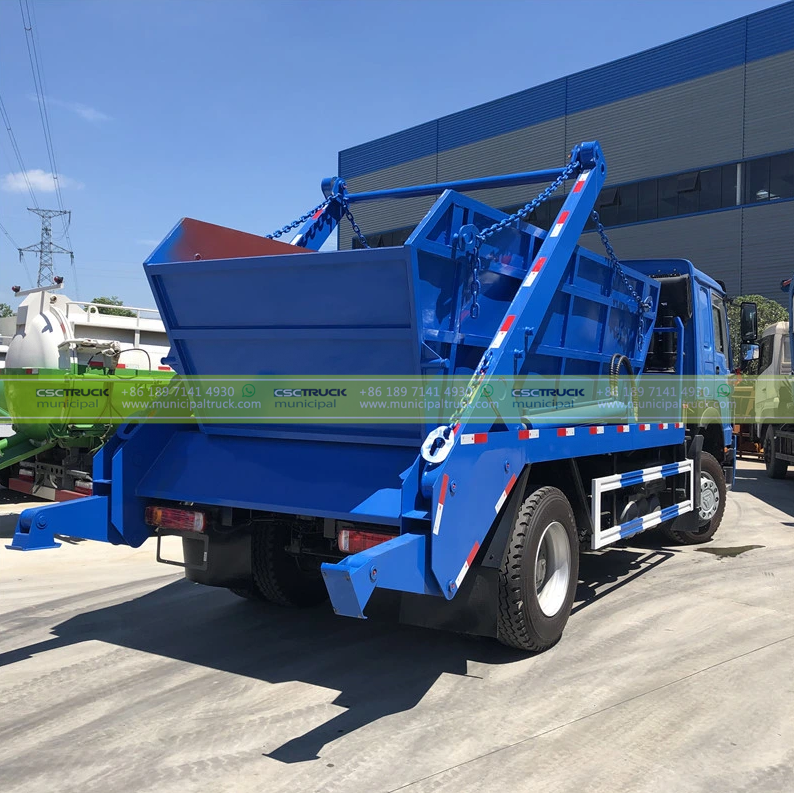

| Include | 1 PTO drives the hydraulic system, two balance valves, two hydraulic cylinders with a lifting arm and two hydraulic cylinders with landing leg, and one unloading container locking pins. |
| Options | Stainless steel container material;
Sealed cover for the container; A truck with several containers |
| Loading Time | 30s |
| Unloading Time | 50s |

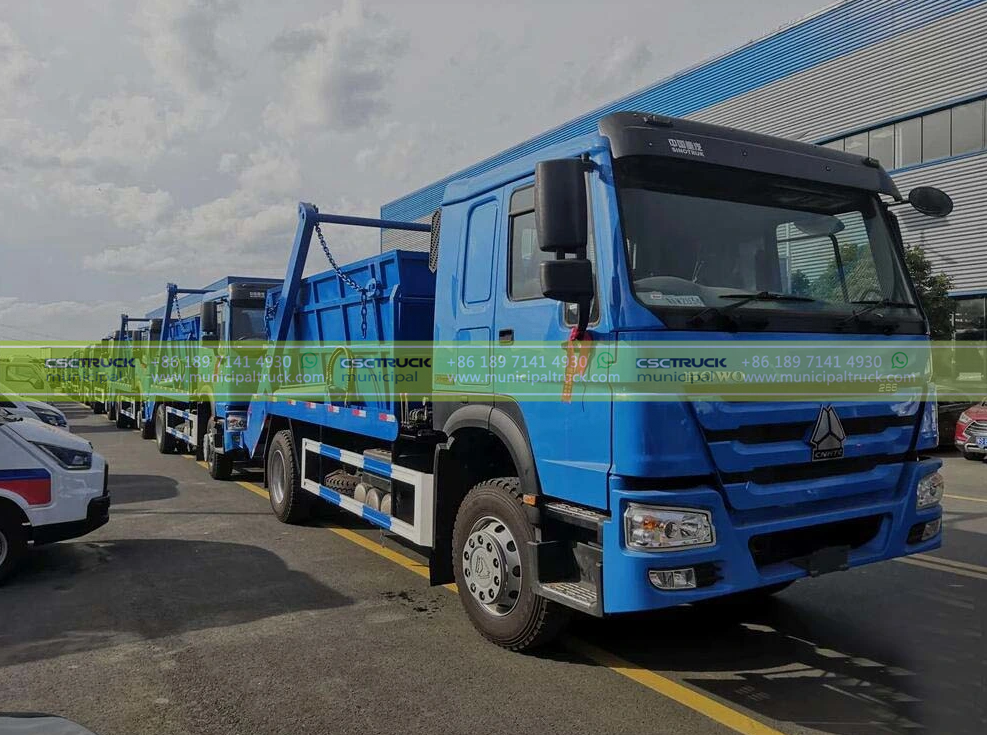

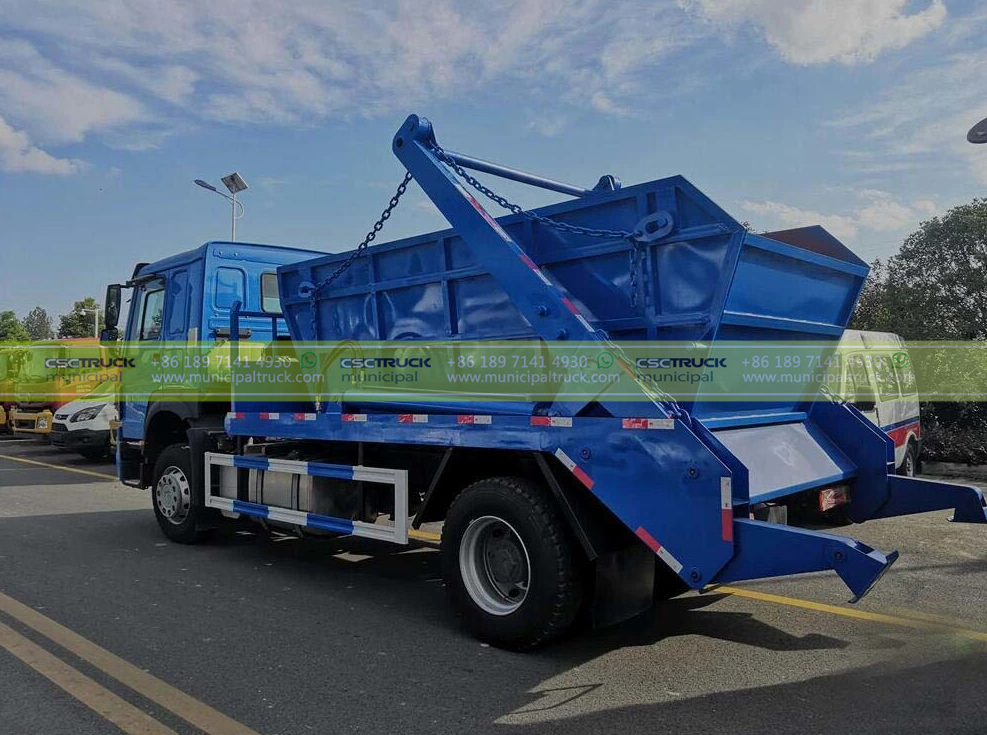

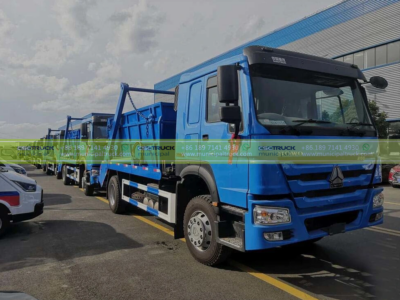

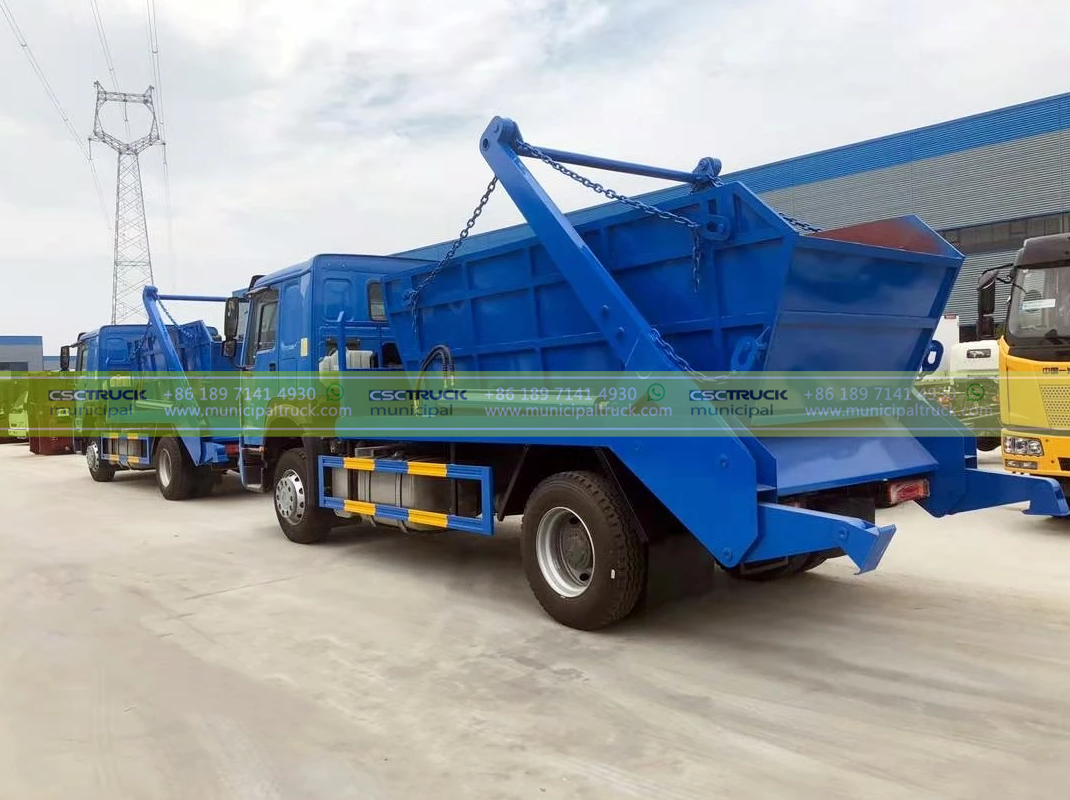

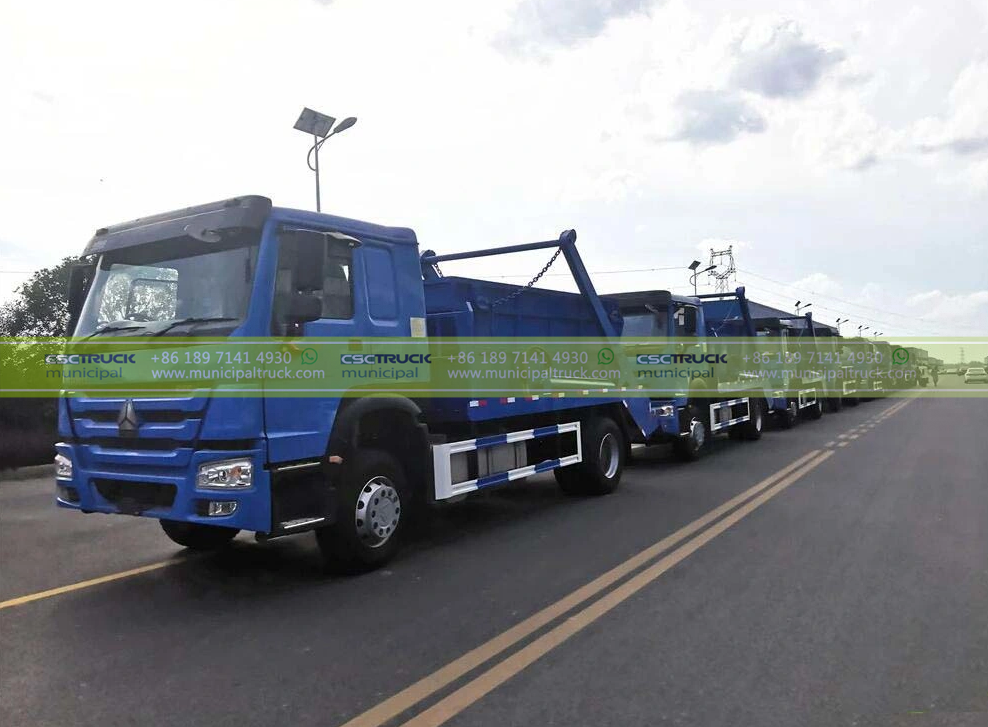

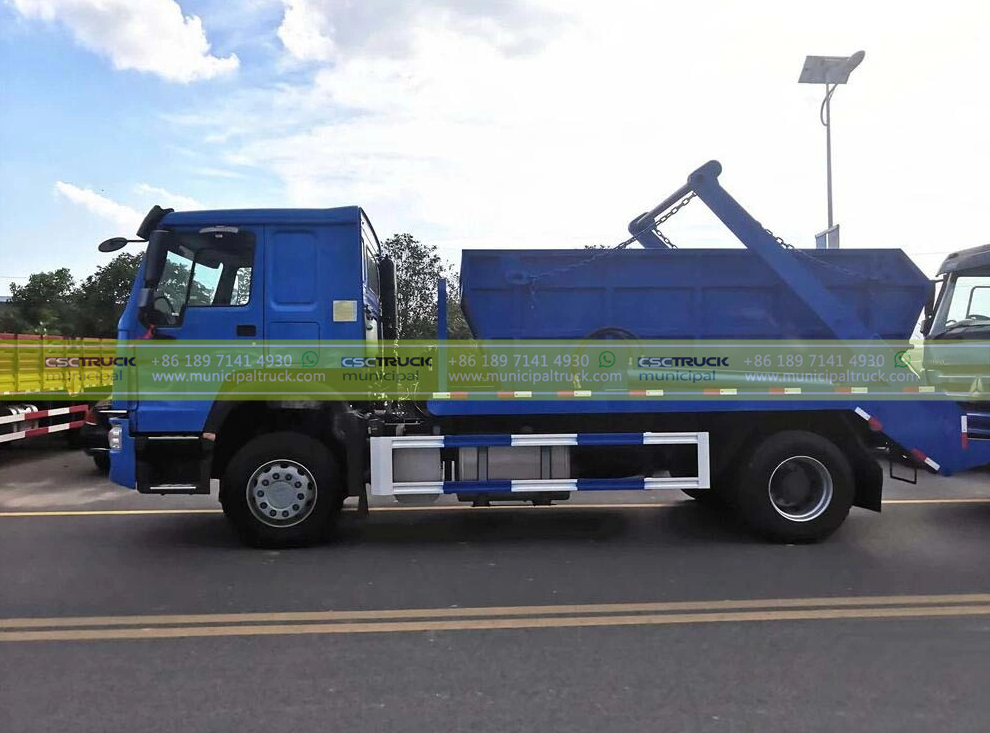

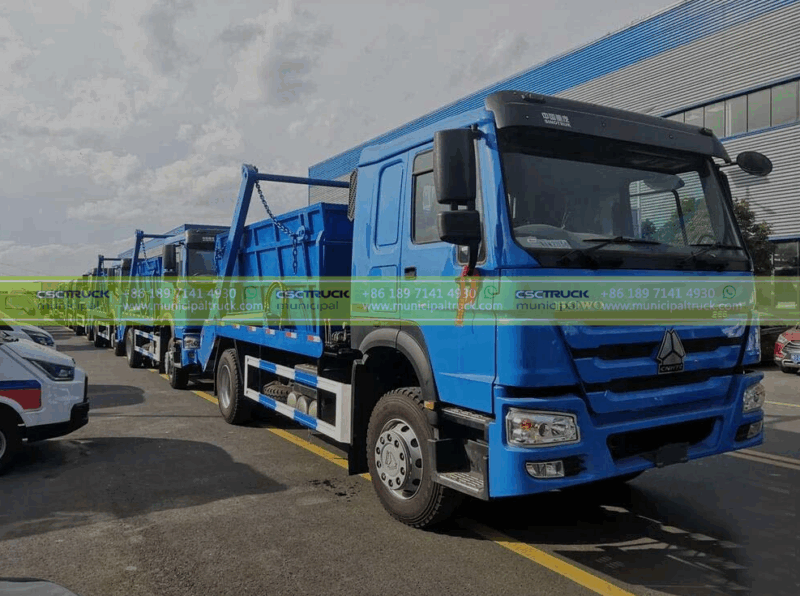

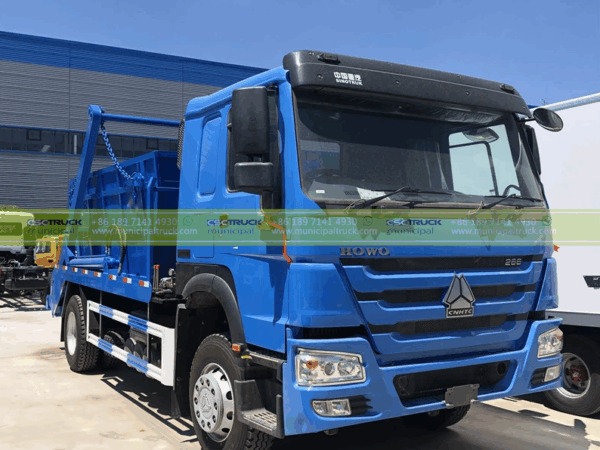

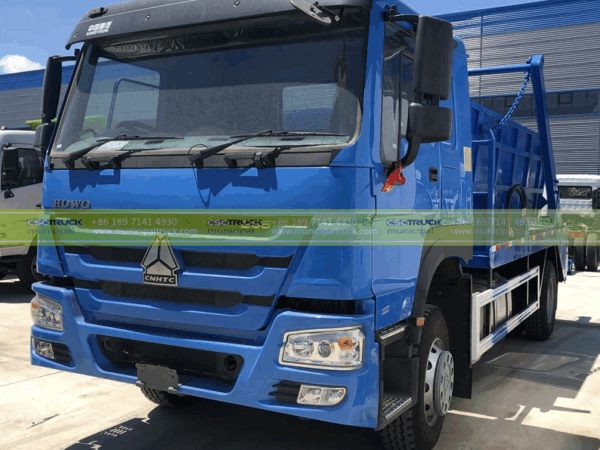

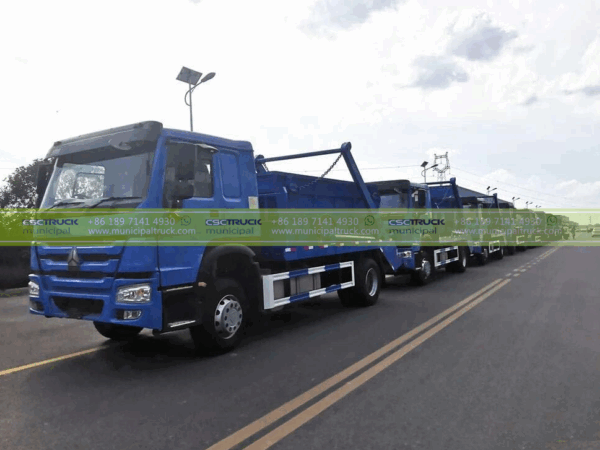

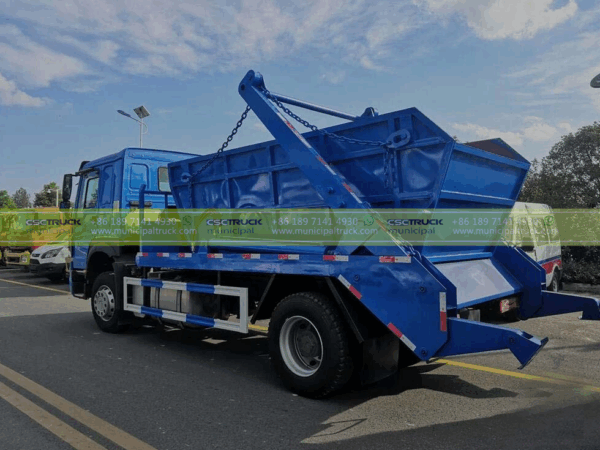

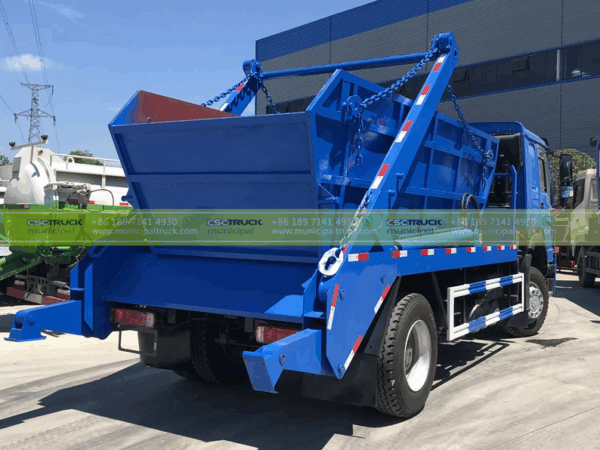

SINOTRUK 12CBM Skip Loader Garbage Truck
| Make/Model | CSCTRUCK/SL12ZZ266R2 |
| GVW | 25,000kg, Heavy Duty Vehicle |
| Cab Truck | SINOTRUK HOWO 6×4 Night Cab |
| Engine | SINOTRUK/WD615.62/266HP/Euro 2 |
| Transmission | SINOTRUK/HW13710/Manual 10+2 Speed |
| Garbage Container Capacity | 12 Cubic Meter |
