NO | Part | Item | Model |
1 | Water tank | Material | Stainless steel 304 |
Tank volume | 5500L | ||
Thickness | 6mm | ||
2 | Debris tank | Material | Stainless steel 304 |
Tank volume | 5000L | ||
Thickness | 6mm | ||
Design pressure | 100% vacuum | ||
Working pressure | -0.97bar | ||
Discharge valve | 6-inch ball valve | ||
3 | High-pressure pump | Type | Plunger pump |
Manufacturer | URACA (Germany) | ||
Model | KD716 | ||
Flow rate | 315 L/min | ||
Pressure | 17 Mpa | ||
Power | 100 kW | ||
Rotation speed | 1800 rpm | ||
Driven by | PTO | ||
Pump protection | Low-level protection | ||
Meshing control | Pneumatic | ||
4 | Vacuum pump | Manufacturer | JUROP (Italy) |
Model | PVT1000 | ||
Flow rate | 4600 CBM/H (RPM 1800) | ||
Vacuum degree | 93% | ||
Driven by | PTO | ||
Meshing control | Pneumatic | ||
5 | Rear door | Operation | 2 Hydraulic cylinders |
Tightening | Automatic | ||
Sealing | Rubber ring | ||
6 | Suction boom | Material | Stainless steel and rubber hose |
Movement | Forward back, up down, left right rotation | ||
Stretch length | 1500 mm | ||
Horizontal rotating angle | 300° | ||
Diameter | DN 150mm | ||
Length | 20 M | ||
7 | Jetting hose | Material | Thermoplastic |
Diameter | DN 25mm | ||
Design capacity | 150M | ||
Length | 100 M | ||
8 | Hose reel | Rotation | 100° horizontal |
Control | Electrical hydraulic control | ||
Hose control | Hydraulic | ||
9 | Nozzle(ceramic insert) | Mushroom nozzle | DN25 |
Diamond shape nozzle | DN25 | ||
Grenade nozzle | DN25 | ||
10 | Control system | Electrical control | Manual & automatic integration |

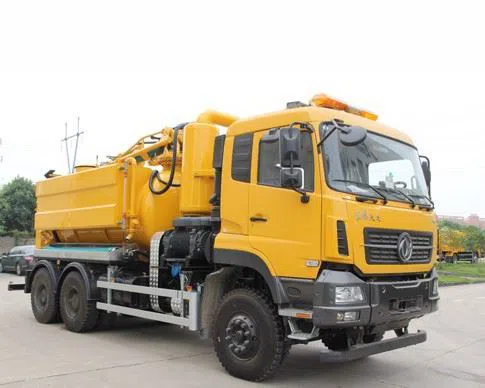

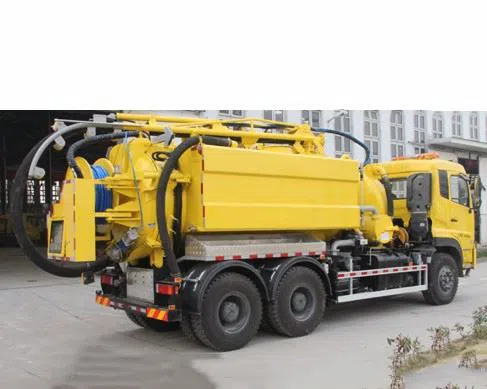

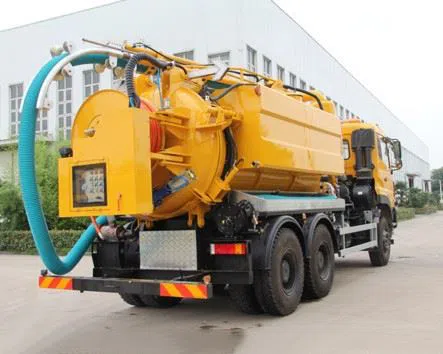

DONGFENG Drain Cleaning Truck
•KINGLONG 6×4 Chassis
•Cummins 375hp Engine
•Water Tank Volume 5500L
•Debris Tank Volume 5000L
•JUROP PVT1000 Roots Pump
•URACA KD718 Water Pump
Categories: Sewer Cleaner Truck, Sewer Truck
