SPECIFICATIONS – SEWER CLEANER
| COMPONENT | SPECIFICATION |
| Engine | Engine model WD615.69, SINOTRUK make, Diesel, turbocharged, water-cooled |
| Built for export tier III | |
| HP340 at 2200RPM | |
| Exhaust brakes | |
| Transmission | AMT |
| Model HW20716A, Make SINOTRUK | |
| Cab | Two (2) men inclusive of the driver |
| Complete instrumentation & driving controls to manage all truck function | |
| AM / FM Radio/CD player | |
| Air condition factory installed | |
| Fitted with 2kg fire extinguisher | |
| Fitted with LED Lighting | |
| Driver’s seat pneumatic suspension | |
| Steering | Hydraulically powered |
| Primary box located on right-hand side of chassis | |
| Axle configuration | 6 x4 |
| Front axle (non-driving) rated at 20943 lbs | |
| Rear tandem axles rated at 70547 lbs | |
| Braking System | Full air with dual action actuators with spring brake acting on rear wheels |
| Electrical Systems | 24 Volts |
| Chassis | Integral front frame extension to accommodate the following:
· Hose reel · Operator’s station |
| Frame Strength minimum 120,000 PSI | |
| Frame -Outer C – channel re-enforcement the entire length | |

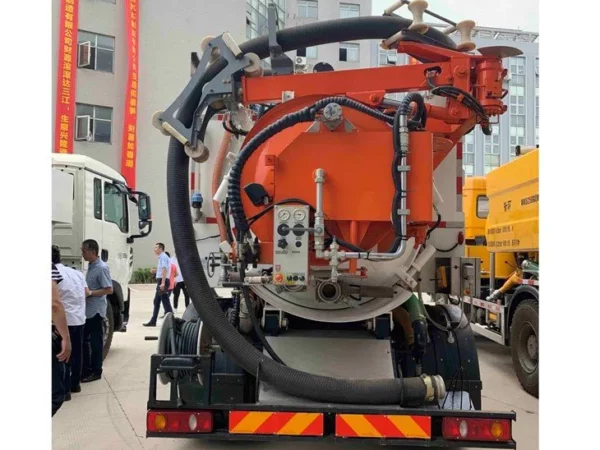

| Operator’s station | Rear mounted control box lockable & fitted with a viewing window |
| Complete instrumentation and operating controls to manage all sewer cleaning and vacuum functions. This includes the following:
-Vacuum pump hour meter -Water pump hour meter -Hydraulic pressure gauge -Vacuum gauge -Water pressure gauge -Electric chassis engine throttle -Hose reel directional control -Water level display in the control box -Low water level alarm shall be both audible and visible on top of the control box -Remote control |
|
| Front Mounted Hose Reel | Hose Reel Capacity of 600’ minimum |
| 1” thermoplastic, flexible, and kink resistant | |
| Rear Mounted Hose Reel
Designed in such a way as to allow operator and maintenance personnel to open the engine hood without the use of the truck engine |
|
| Rear Mounted Hose Reel
Traverse an arc of 180° across the work station and be equipped with an air brake to hold it in position |
|
| Constructed from ¼” steel | |
| A footage counter be installed on the reel shaft with a digital readout mounted at the operator’s station | |
| Driven via a hydraulically powered gearbox | |
| A deflector scoop was installed below the hose reel to direct cooling air to the truck’s radiator | |
| Water Storage Tank | The capacity of 1,500 gallons |
| Cylindrical wrapped in shape and constructed of 3/16” thick Stainless steel 304 | |
| pressure tested and guaranteed to contain no leaks | |
| Equipped with a fill system using standard fire hose fittings | |
| have a 20” top mounted port for inspection | |
| mounted above the chassis frame rails to provide a flooded inlet for the water pump | |
| Debris Body | Cylindrical in shape and constructed of 3/16” thick Stainless steel 304 |
| have a dished forward tank head and dished rear door | |
| Capacity shall be 7yd3 minimum | |
| Material enters the debris body through a top-mounted air-backed debris chute to reduce wear | |
| The rear door be equipped with four (4) independent, fully adjustable hydraulic locks, each of which be operated with an independent hydraulic cylinder | |
| Debris body | Rear door open/close with two (2) hydraulic cylinders |
| Debris body be equipped with 12” stainless steel float ball | |
| Shut off valve mounted at the front of the debris body | |
| Dump controls are located forward of the tank assembly | |

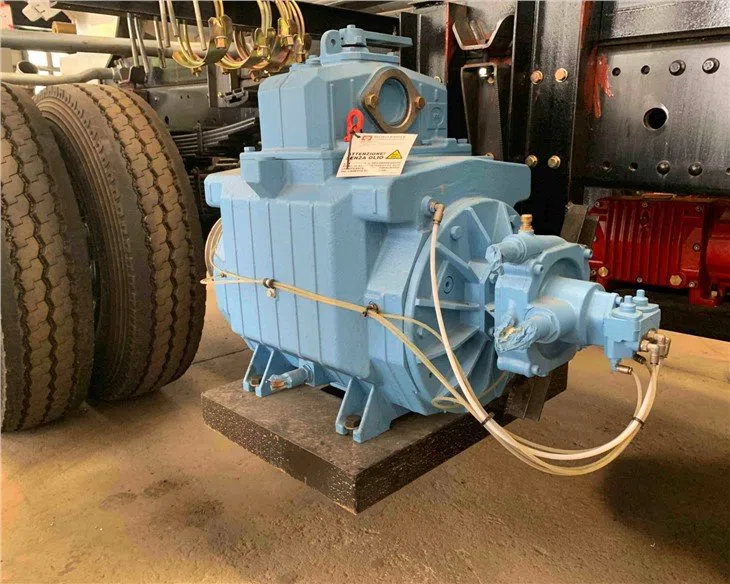

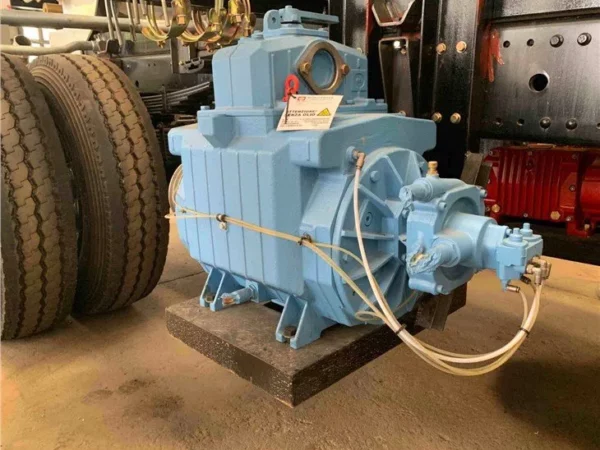

| Vacuum Pump | JUROP (Italy) PVT1000 Roots type, rotary positive displacement pump with a rated capacity of 3,770CFM at 25.5”Hg |
| engine drove via a transfer case | |
| fitted with cyclone separator with 20” chamber | |
| Silencer fitted with rain cap and bottom drain | |
| The vacuum relief valve is air operated | |
| Water Pump | Make by URACA (Germany) Model of KD718, shaft driven via transmission mounted PTO |
| triple X design with a discharge pressure of 2,465PSI at 87GPM | |
| triple X design with a discharge pressure of 2,465PSI at 87GPM | |
| Adjustable low-pressure water spray gun with 50’x½” hose and quick disconnect fittings shall be installed at the rear of the Tank |
