| Chassis | |
| Size | 7,370×2,280×2,710mm |
| GVW/Curb Weight | 11,990kg/8,735kg |
| Wheelbase | 4,200mm |
| Front/Rear Axle | 3.99/8T |
| Tire | 8.25R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUCHAI/YC4E160-33/160hp/Euro 3 |
| Transmission | |
| Make/Model | WLY635 |
| Gears | 6F+1R |
| Operation | Manual |
| Cabin | |

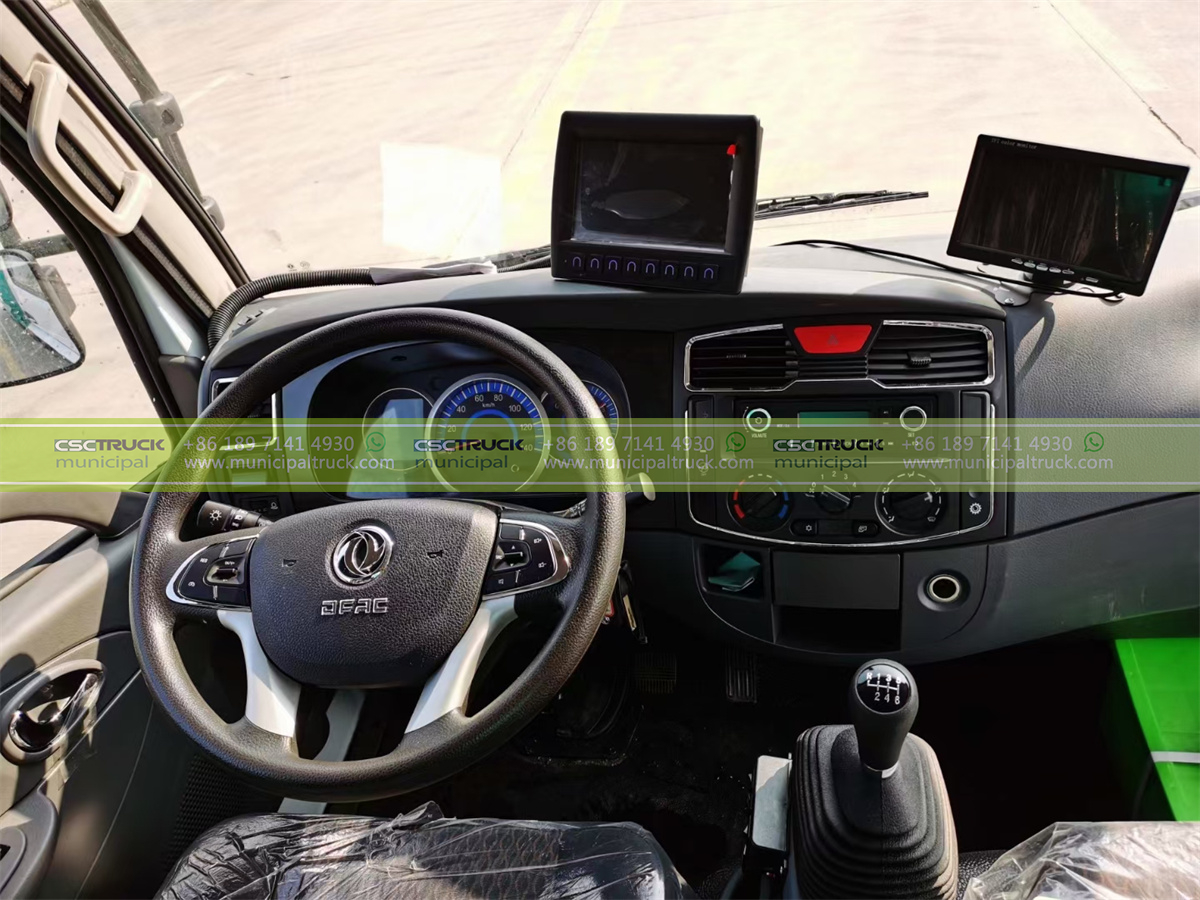

| Driving | Dongfeng DFAC 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 8CBM(6m³ garbage tank+2,000L water tank) |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Auxiliary Engine | |
| Brand | JMC |
| Power | 87HP |
| Air Blower | |
| Type | High-pressure, centrifugal, sweeping truck specific
used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt
powered |

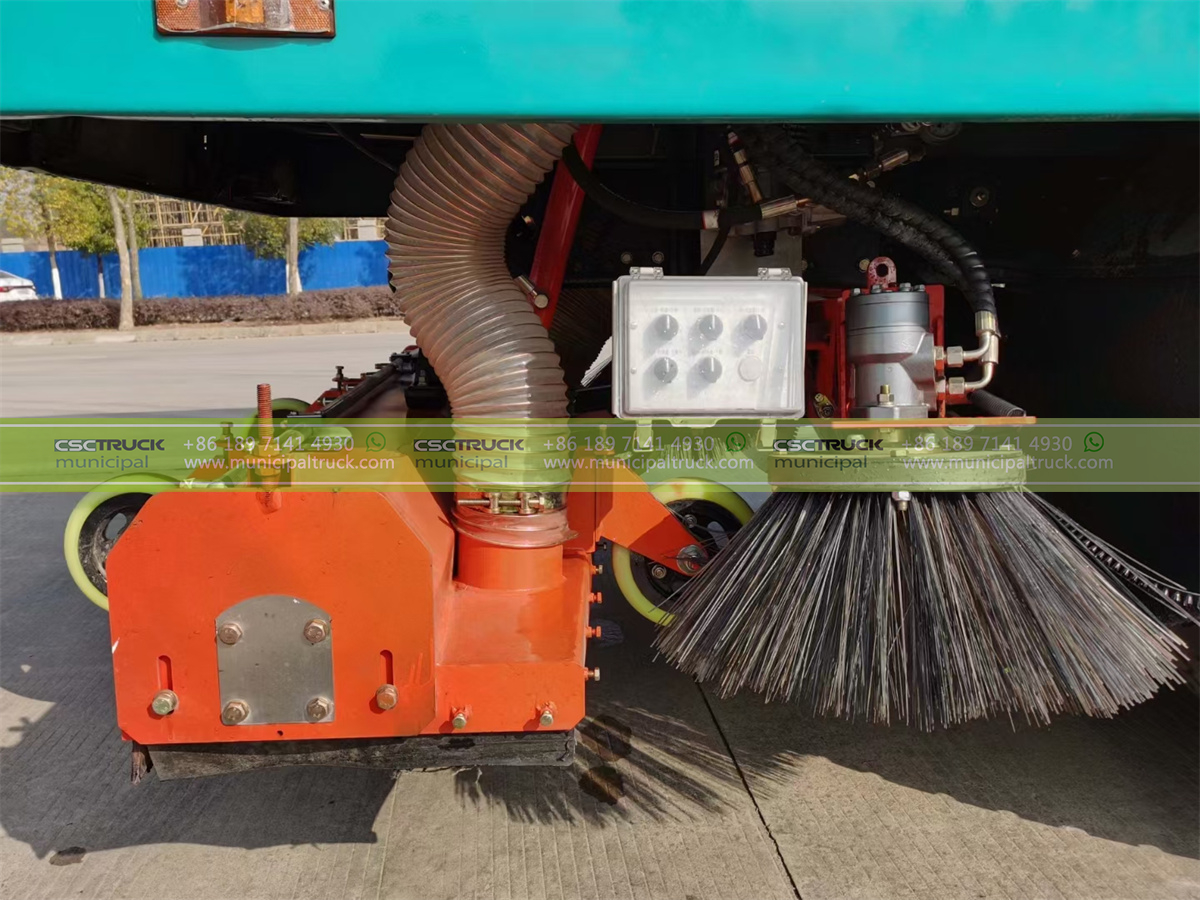

| Sweeping Equipment | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Suction Equipment | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter
suction port |
| Maximum Inhalation Particle Size | ≥100mm |

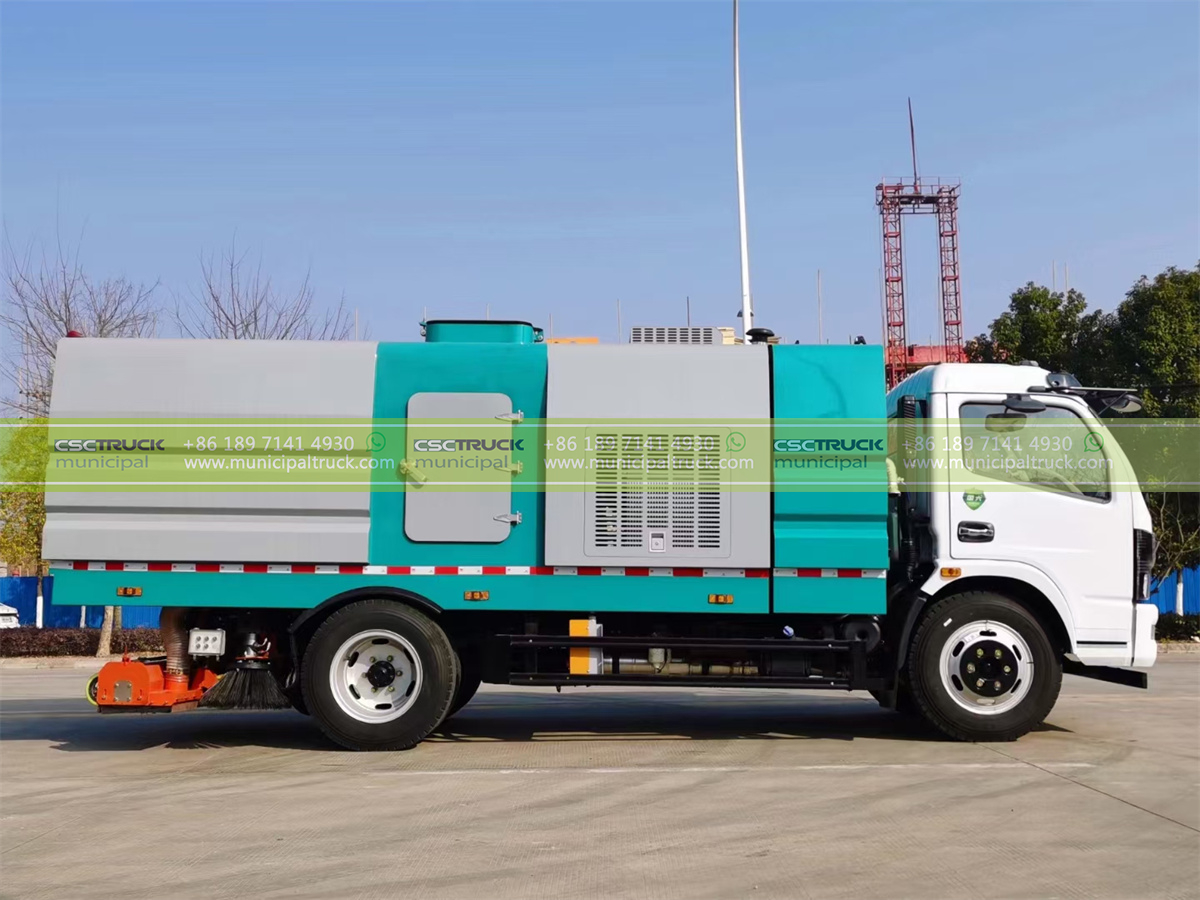

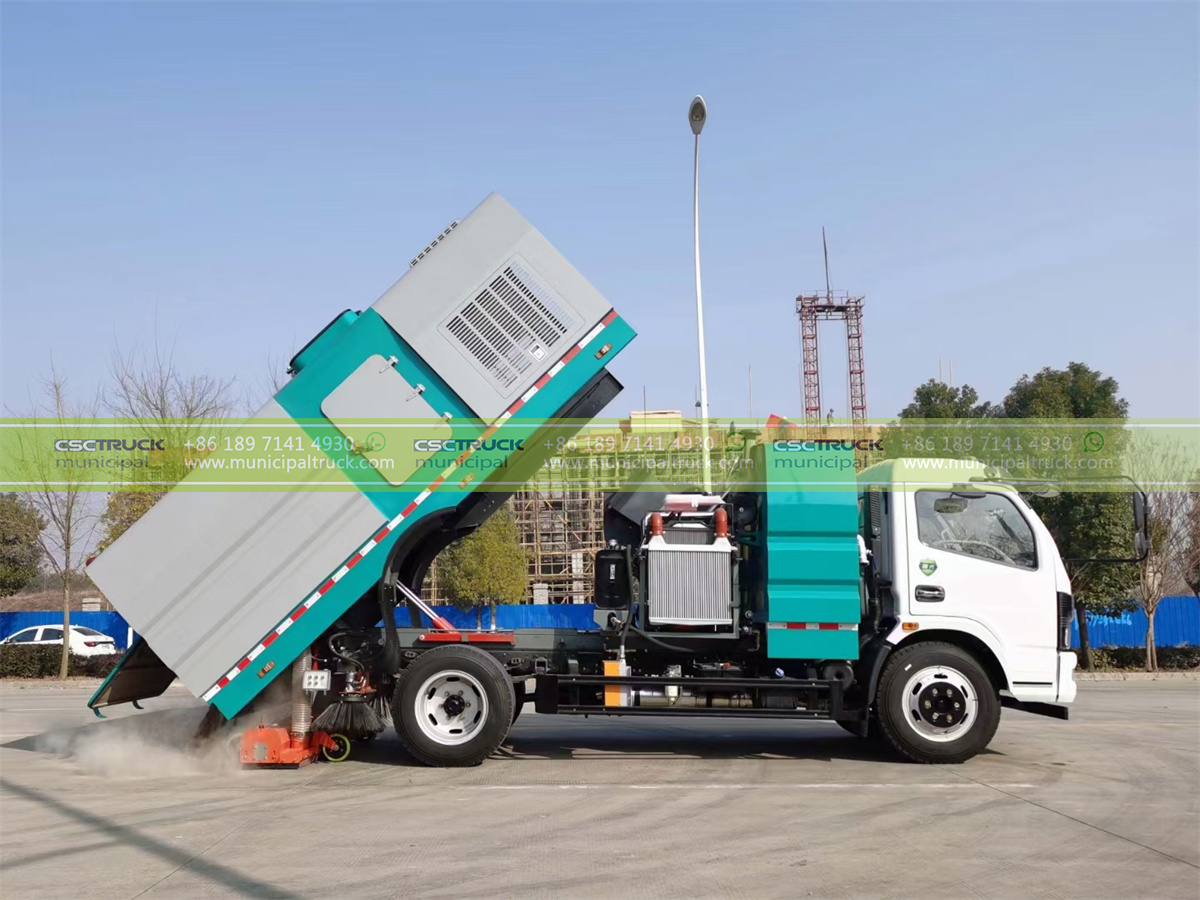

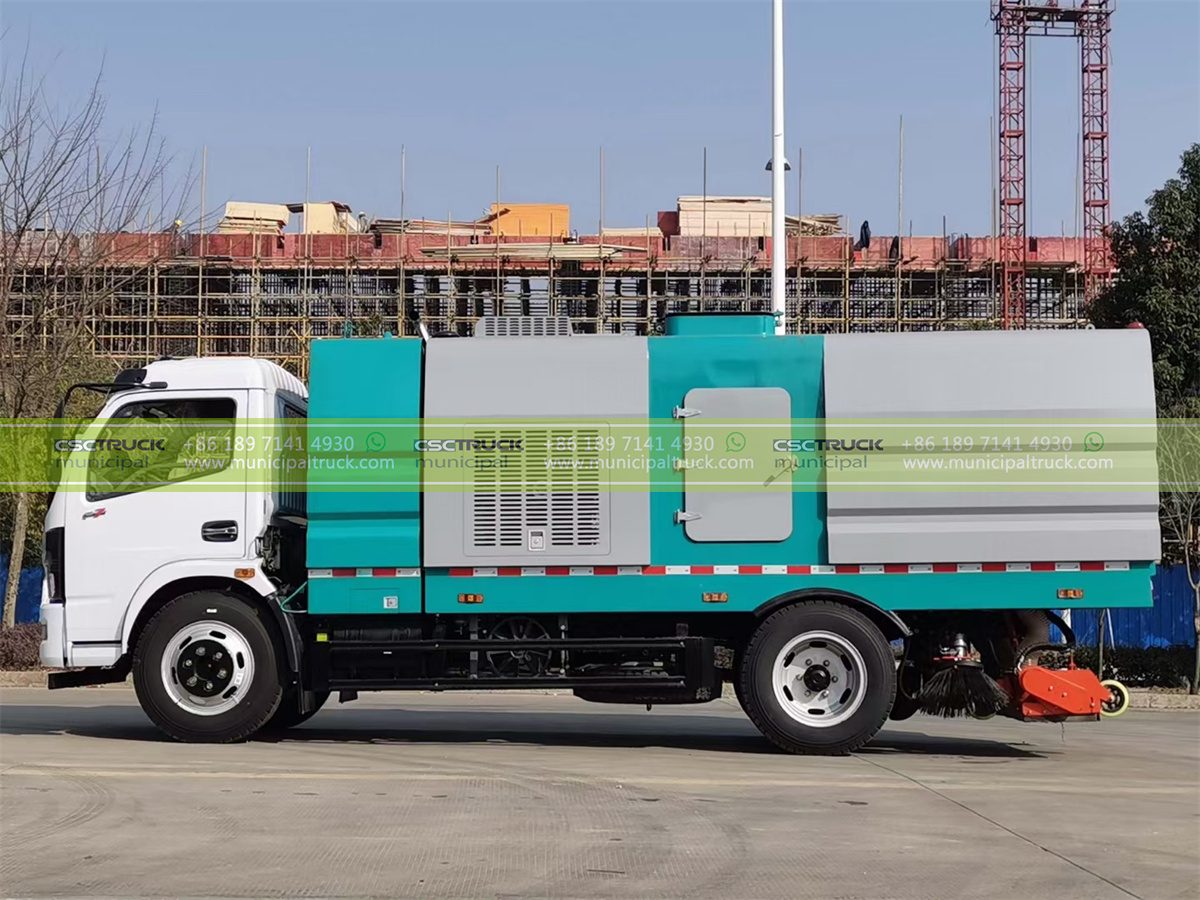

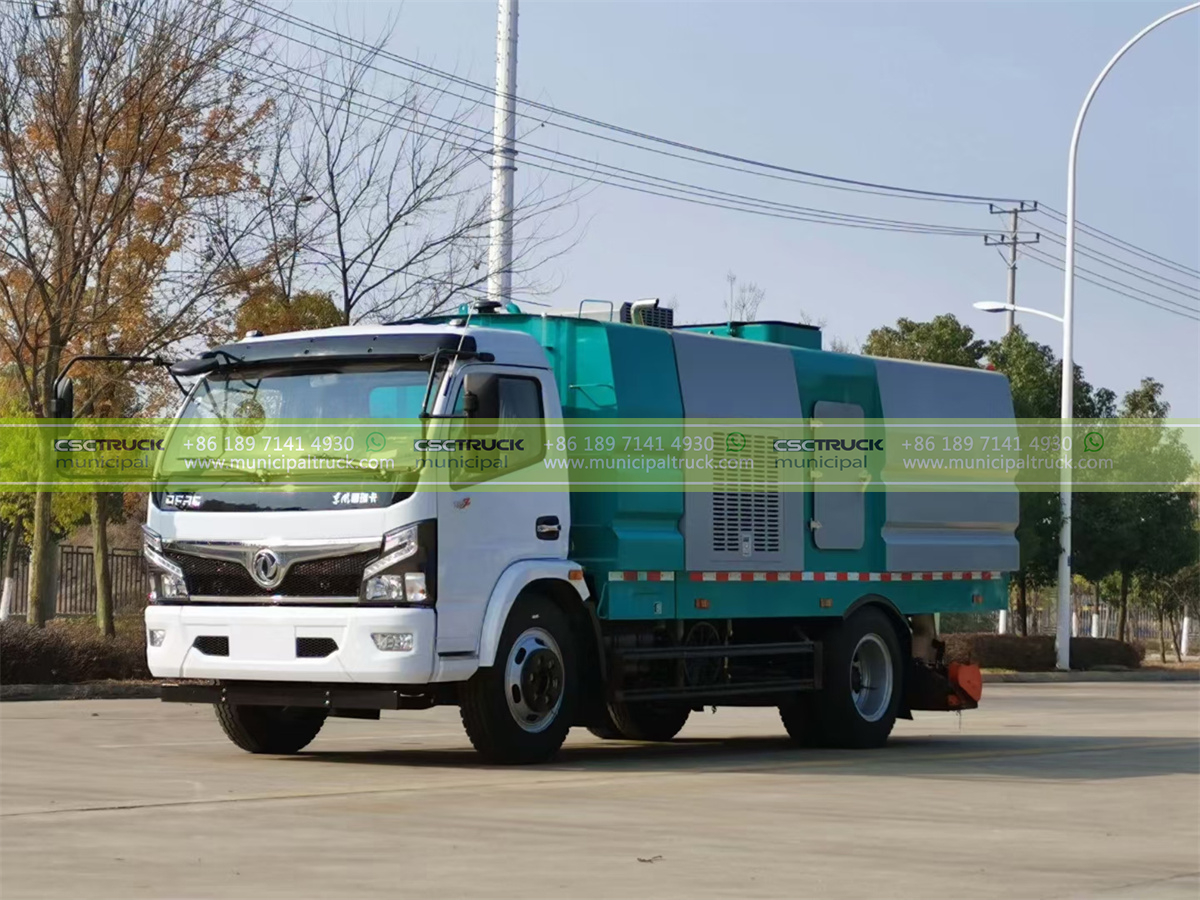

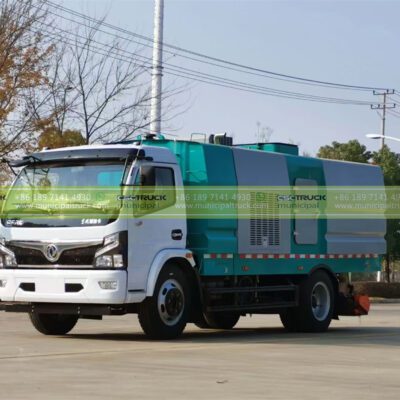

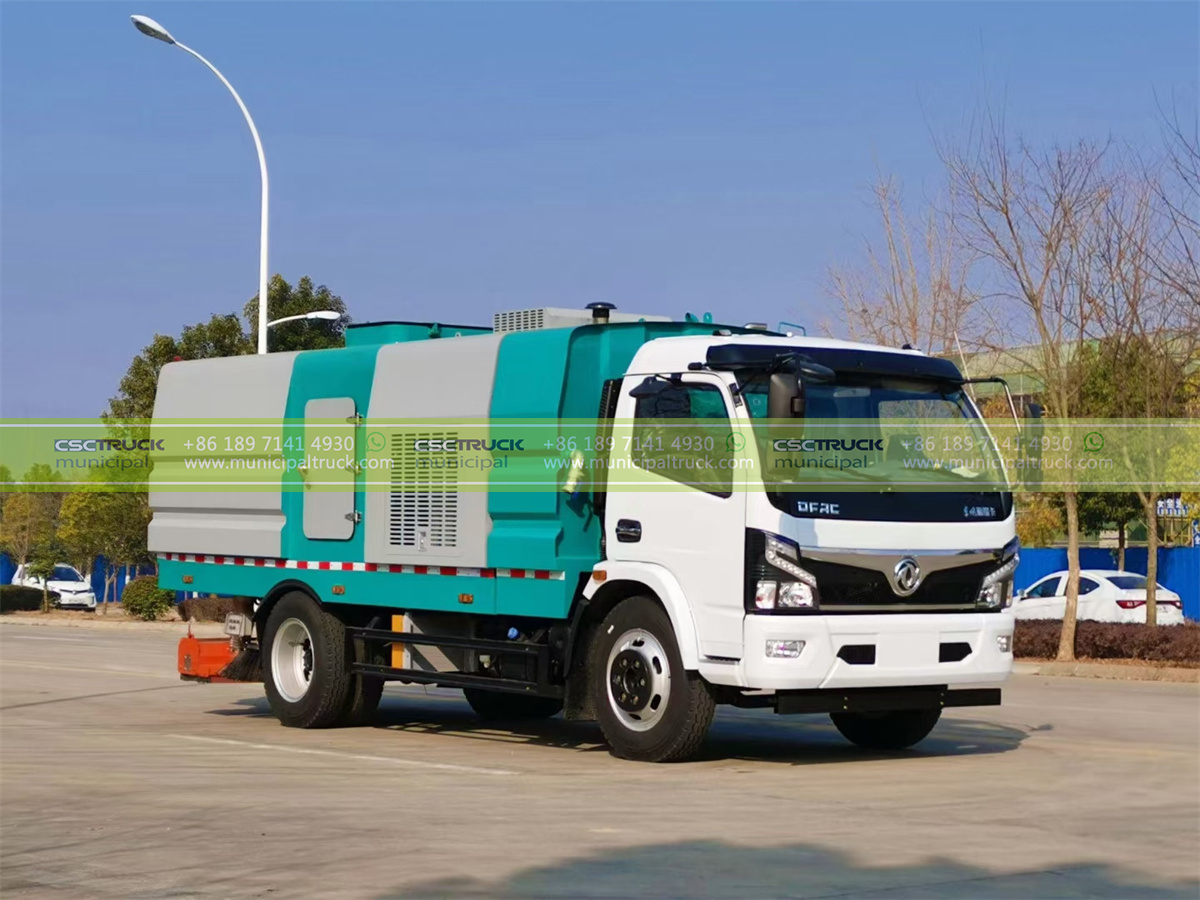

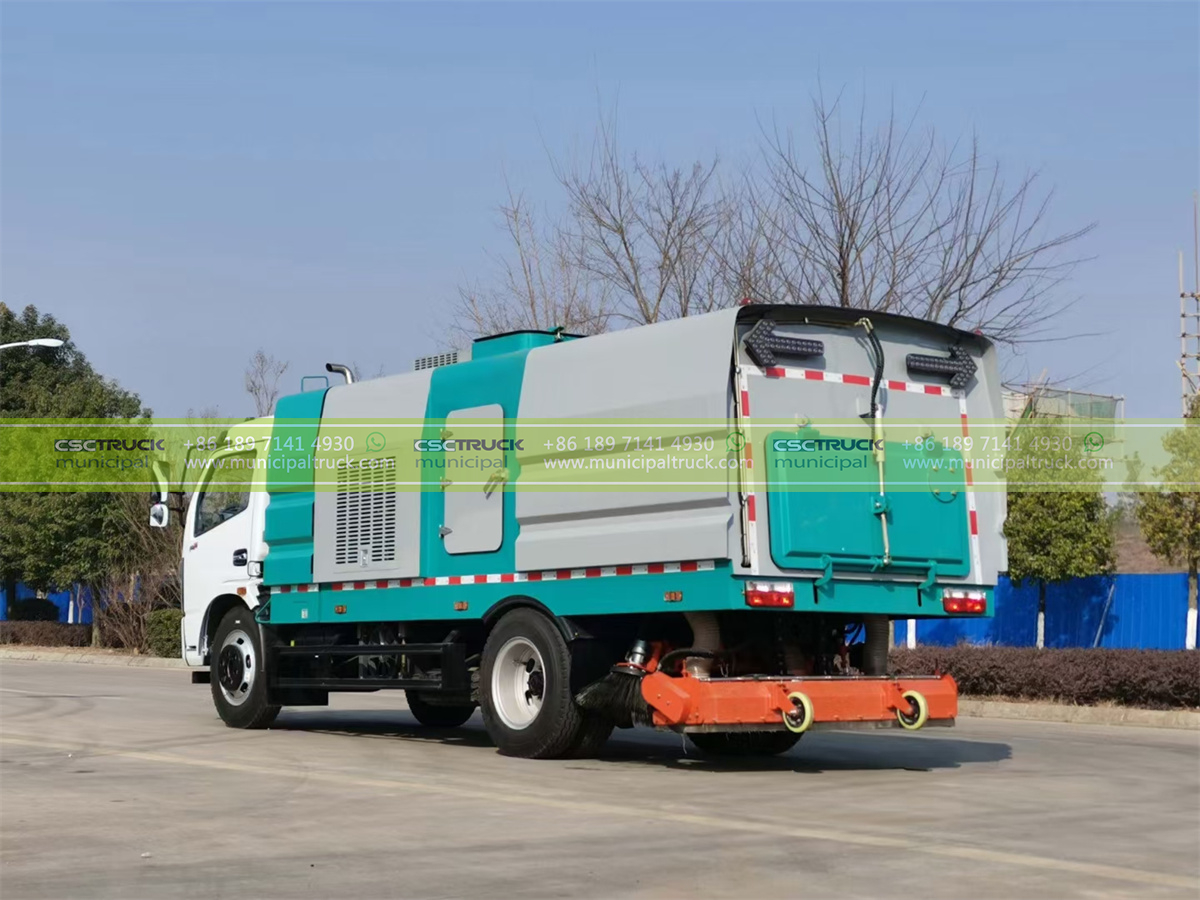

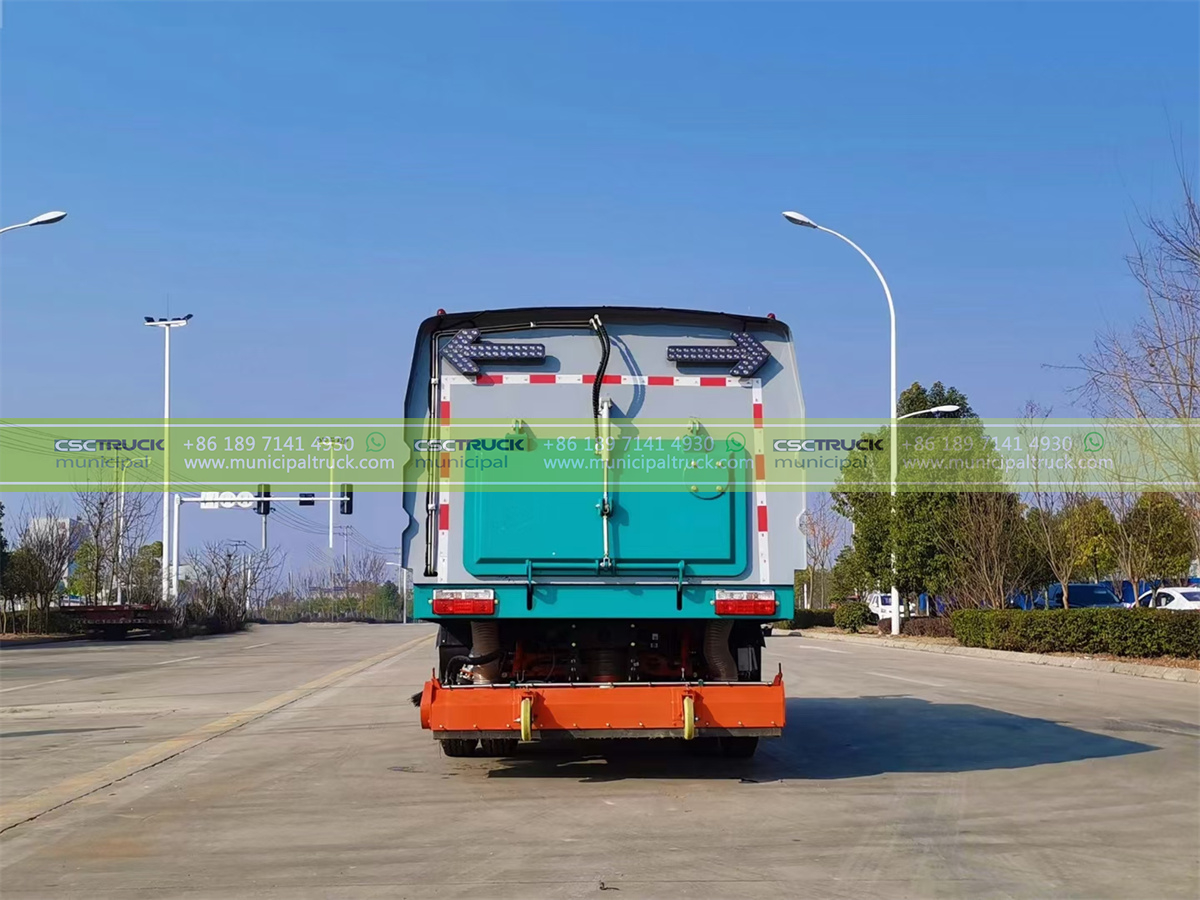

DONGFENG Vacuum Clean Sweeper Truck
| Make/Model | CSCTRUCK/WS08EQ160L3 |
| GVW | 11,990kg, Medium Duty Vehicle |
| Cab Truck | Dongfeng DFAC 4×2 Day Cab, Left-hand Drive |
| Engine | YUCHAI/YC4E160-33/160hp/Euro 3 |
| Transmission | WLY635/Manual 6+1 Speed |
| Tanker Capacity | 8CBM(6m³ garbage tank+2,000L water tank) |
| Certification | ISO9001:2015 |
|---|---|
| Chassis Truck | DONGFENG |
| Color | Customized Color |
| Condition | New |
| Country of Origin | |
| Customized | Yes |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Emission Standard | Euro III |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | LHD, RHD |
| Terms of Payment | T/T |
| Truck Class | Medium Duty |
| Warranty Period | 12 Months |
