BRIEF

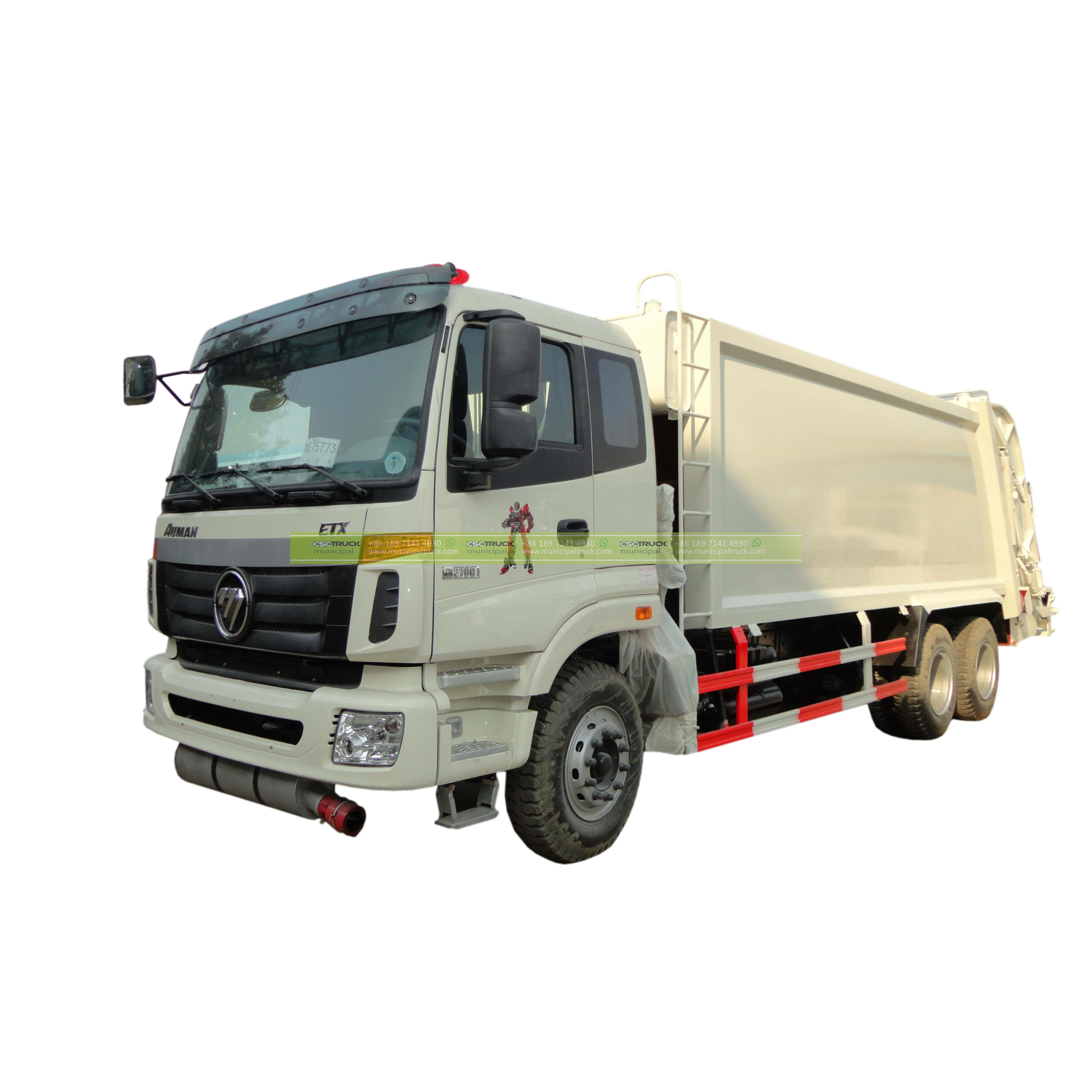

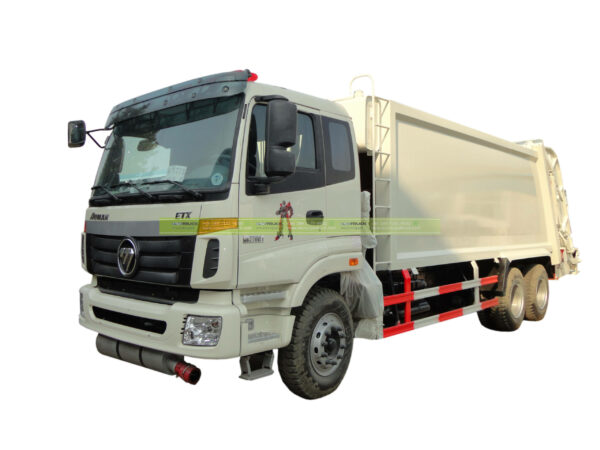

The FOTON 18CBM Trash Compactor Truck is mounted on FOTON heavy duty chassis, specially designed for safety operaions of loading, compacting, and transportation with meet your waste management needs.
Combined the technology of European and USA countries, CSCTRUCK Waste Compactor Trucks are leading in the industry.
FEATURES
Reliable Upper Structure
Beautiful streamline appearance, upper vehicle adopts high strength anti-rust steel plate which could prolong the service life of vehicle.
Optional Monitor System
Rearview monitor and 7” screen system of optional is offered, it is very convenient to perform visible load and unload operation in the cab.
Specially Designed for Ejector Plate
Ejector plate is equipped with back pressure valve which can made ejector plate move forward to the front of the container during double compressing garbage, thus providing a big space for loading garbage.
Safety Device
The machine was installed with emergency stop which can stop working whatever state and position stuffing mechanism reached, ensure that the staff and equipment are safety.
Advanced Control System
Advanced electric controlled system adopts PLC (Programmable Logic Controller) integrated controls, Mechatronics-hydraulics-integrated controls, reaching high automatization.
Key Hydraulic System
The key units of Hydraulic system are with advanced structure, more reliable, easier to operate and maintaince, such as control valve, cylinder, connection parts.
SPECIFICATIONS
| Chassis | |
| Size | 10,450X2,550X3,600(mm) |
| GVW/Curb Weight | 25,000/15,100kg |
| Wheelbase | 4400+1350mm |
| Front/Rear Axle | 7T/18Tx2 |
| Tire | 11.00R20, 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP10.290/290hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/10JS90A |
| Gears | 10+2 Gear Numbers |
| Operation | Manual |
| Cabin | |
| Driving | FOTON AUMAN 6X4 Night Cab, Left-Hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Garbage Container | |
| Capacity | 18 CBM |
| Tank Body Material | High Tensile Carbon Steel |
| Thickness | Side 4mm, Bottom 5mm |
| Design | Sealed leakage proof |
| Working Rotation Speed | 1400r/m |
| Compaction Ratio | 1:3- 1:4 |
| Hopper Volume | 0.8CBM |
| Effective volume of the bucket | ≥0.8cbm |
| Loading Time | 8~10s |
| Loading Cycle Time | ≤40s |
| Unloading Time | ≤45s |
| Discharge Type | Rear discharging |
| System Pressure | 16MPA |
| Hydraulic System | Branded oil pump, oil cylinder, valve, gauge, oil tank, pipeline |
| Control System | Multi-Control |
