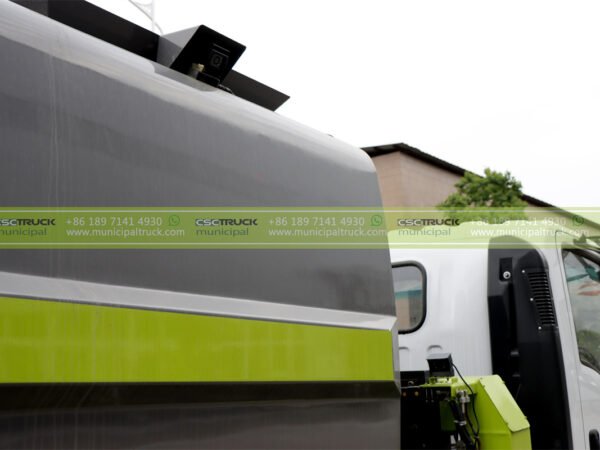

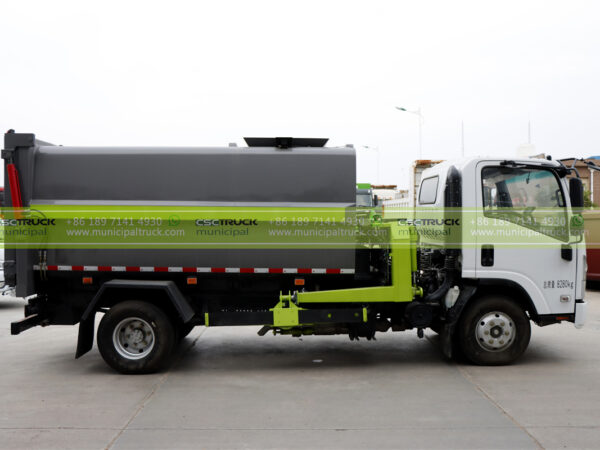

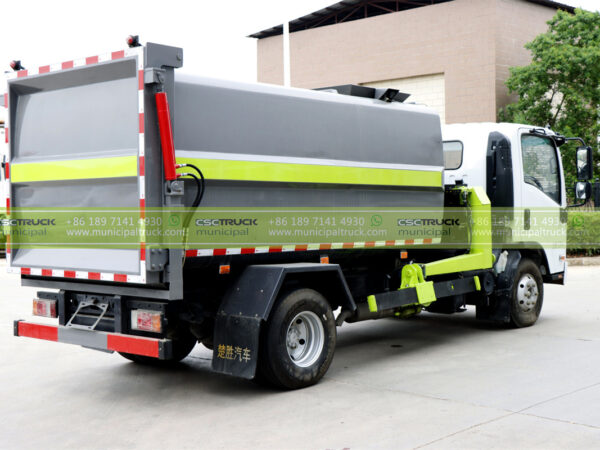

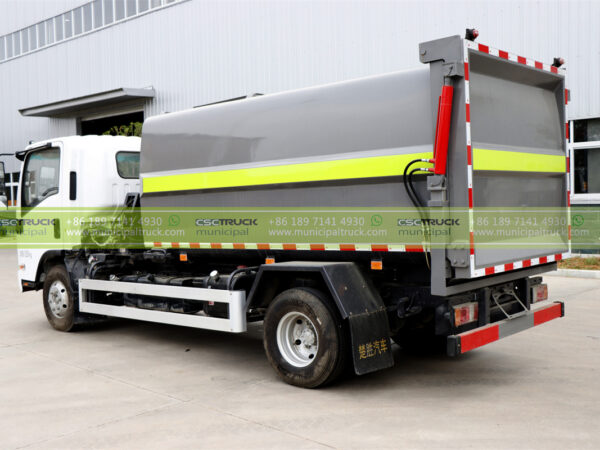

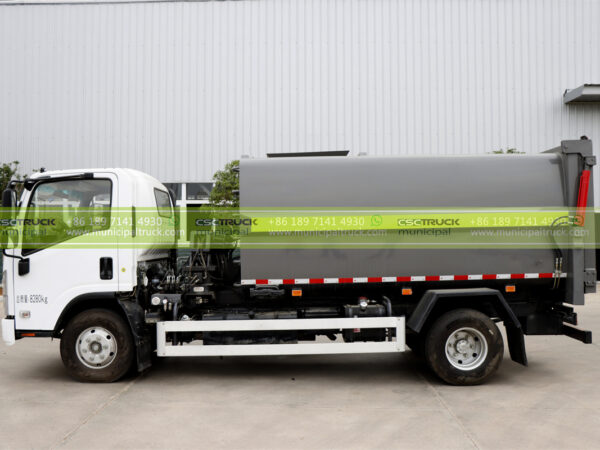

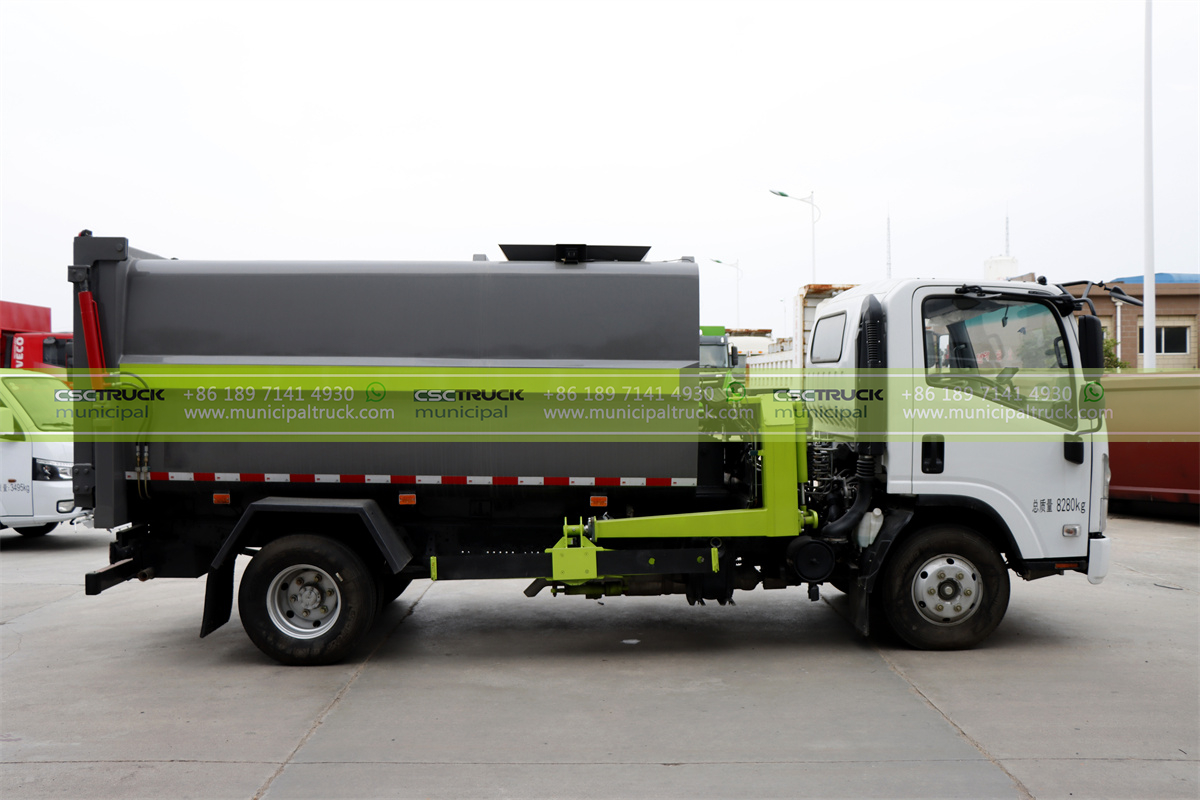

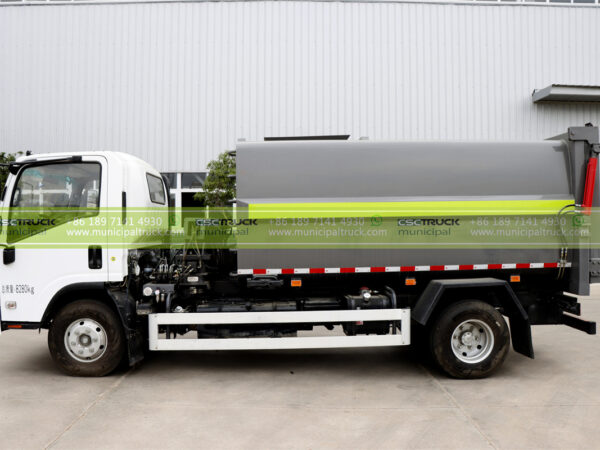

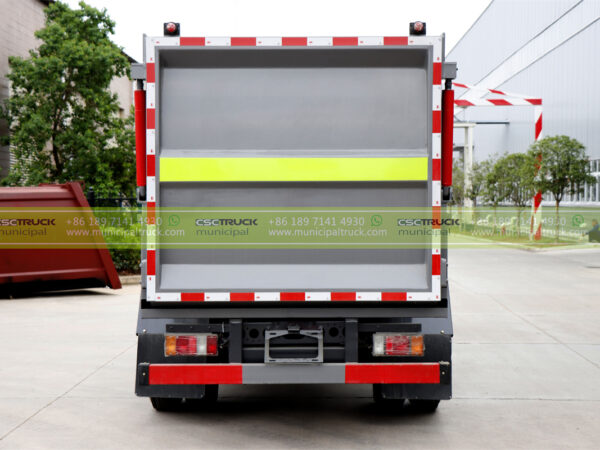

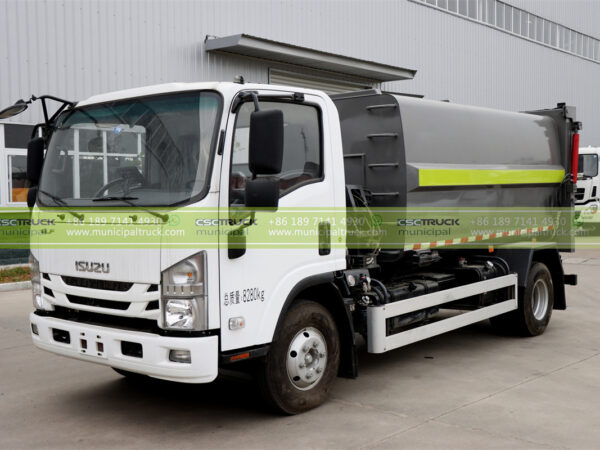

ISUZU 5CBM Side Loader Garbage Truck

Chassis
Size	5,950×2,160×2,650mm
GVW/Curb Weight	7,300/4,600kg
Wheelbase	3360mm
Front/Rear Axle	2.58T/4.72T
Tire	7.00R16 6+1 tires
Engine
Type	Diesel
Make/Model	ISUZU/4KH1CN5HS/130hp/euro5
Transmission
Gears	5F+1R
Operation	Manual

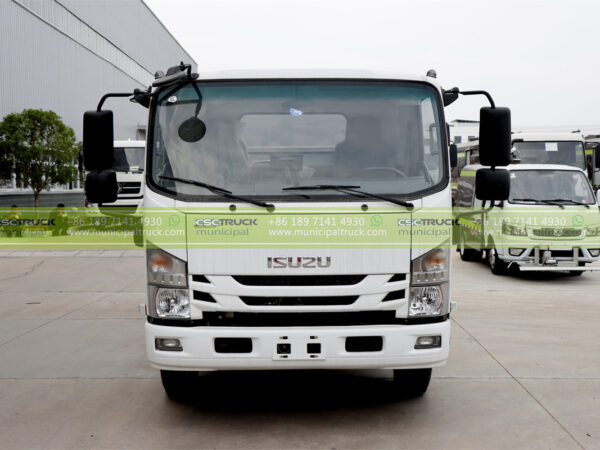

Cabin
Driving	ISUZU 600P 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3

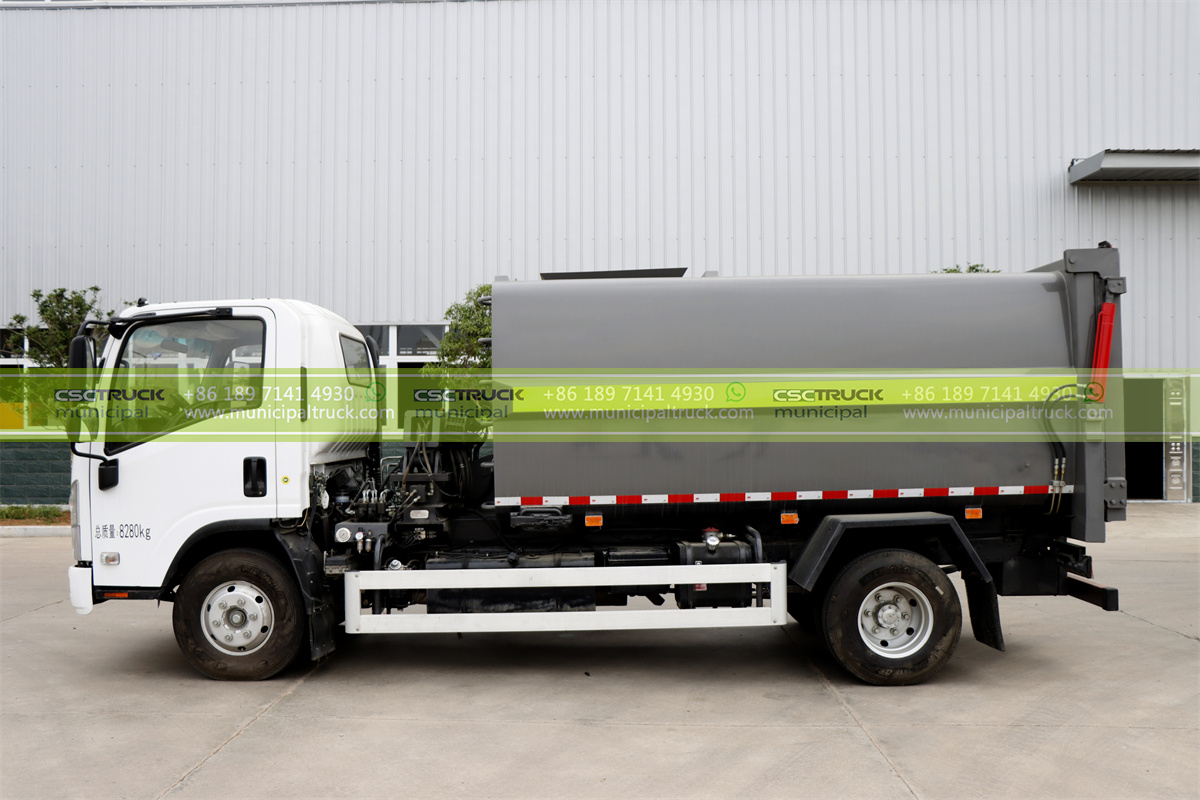

Body Superstructure
Capacity	5 CBM
Material	Q235B Carbon Steel, 4mm thickness of the box
Design	Leakage proof design

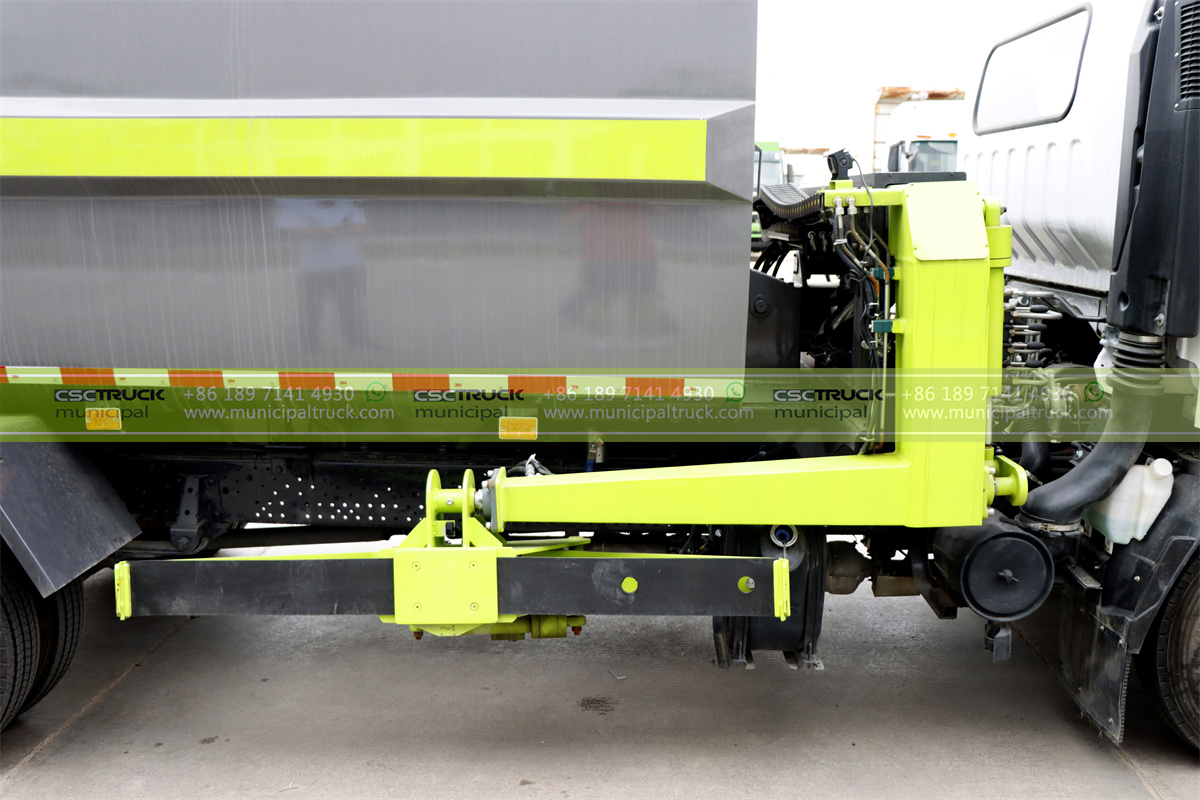

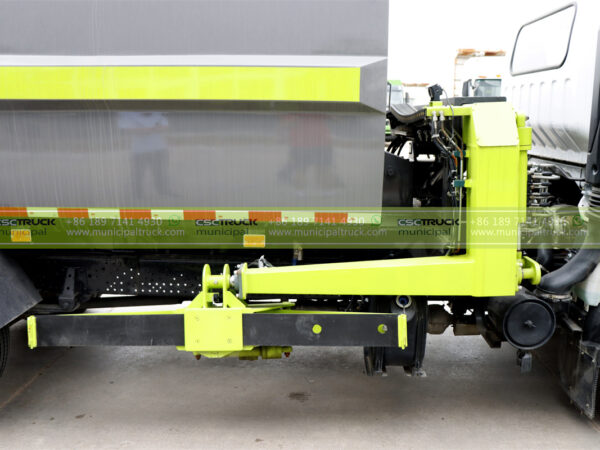

Ways of loading	Side loading with bucket lifting system
Container Roll on Time	50~60s
Container Roll-off Time	40~50s

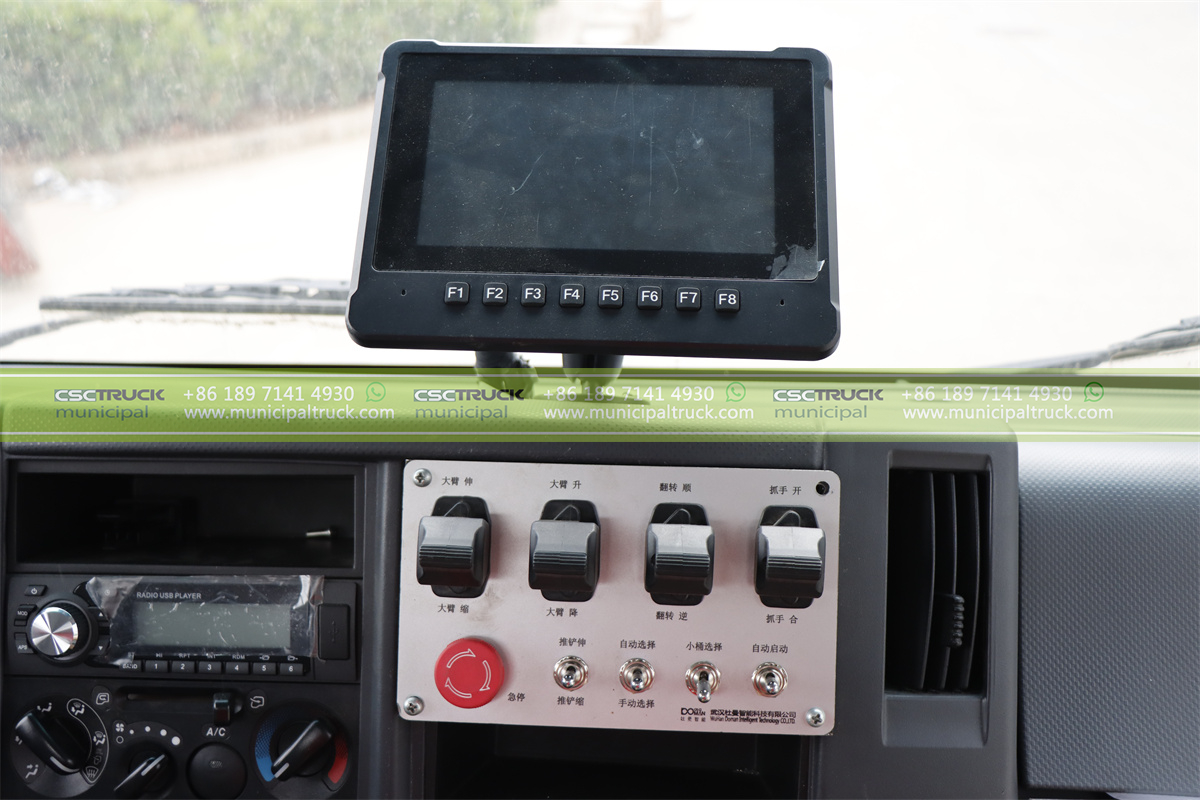

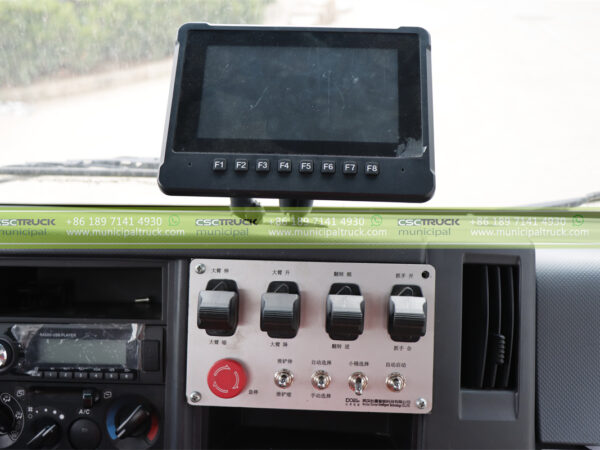

Control System	Manual control behind the cab
Main Structure	Body, hydraulic system, operation system, install push plate and strike-off board in the container.
Options	Left side loading or Right side loading; Automated side-loading equipment could be optional.

Certification	ISO9001:2015
Chassis Truck	ISUZU
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	4×2
Emission Standard	Euro V
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Medium Duty
Warranty Period	12 Months
