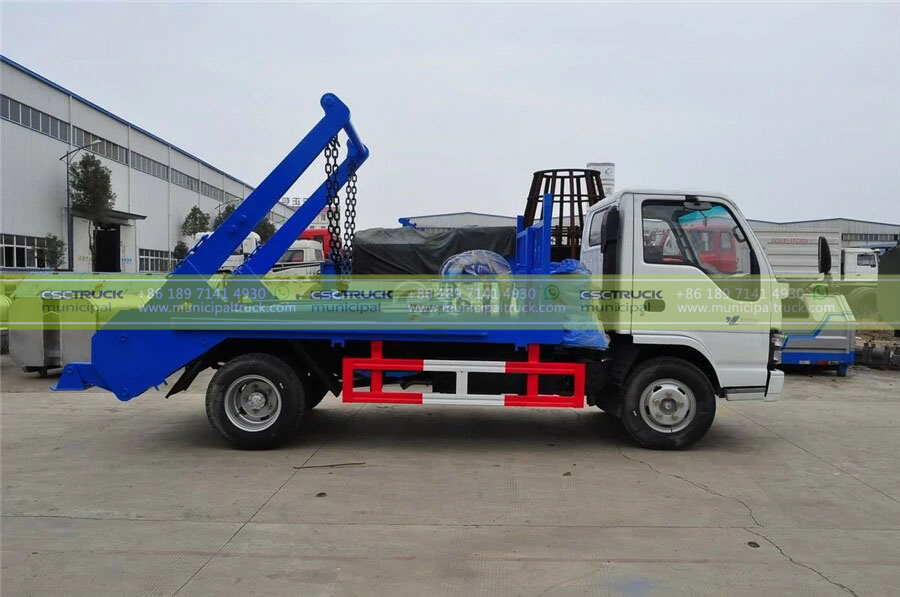

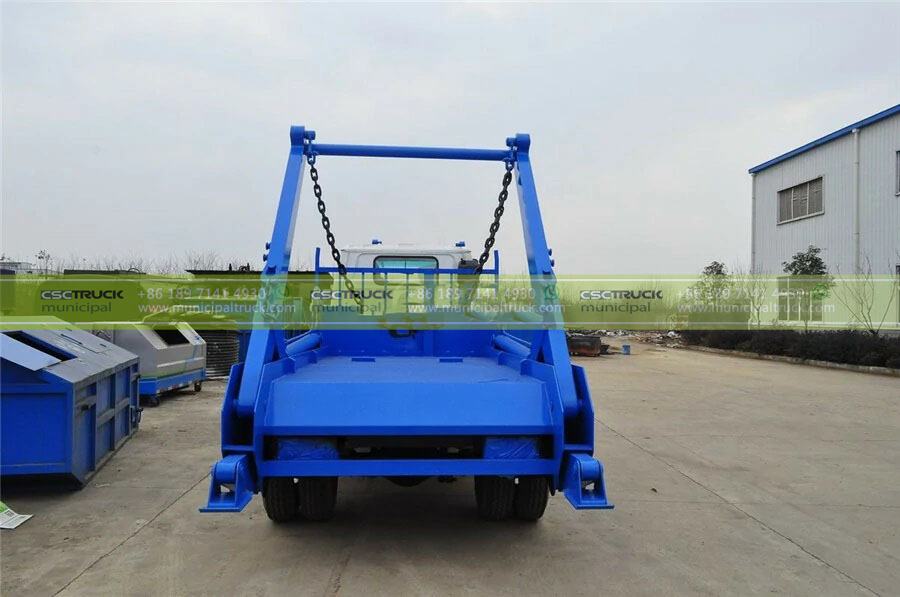

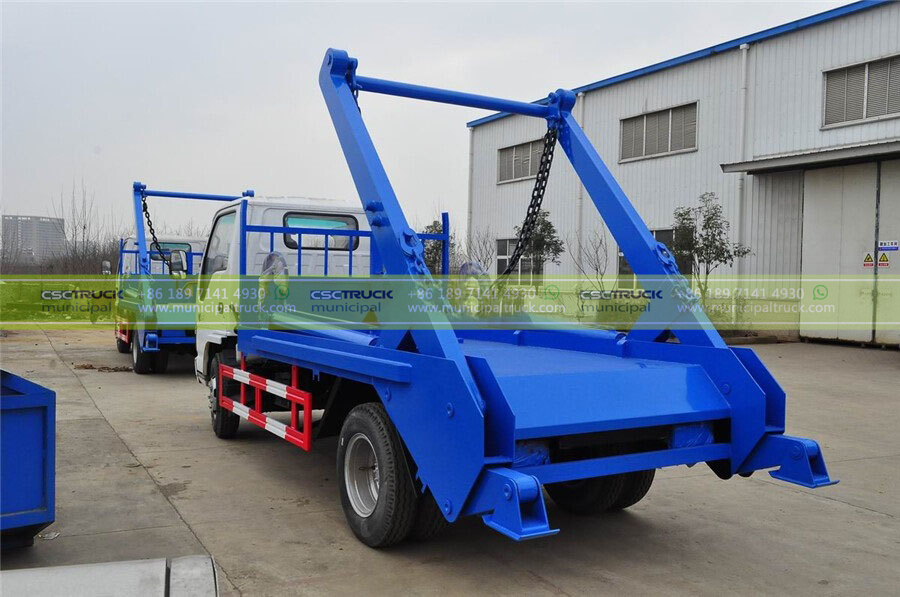

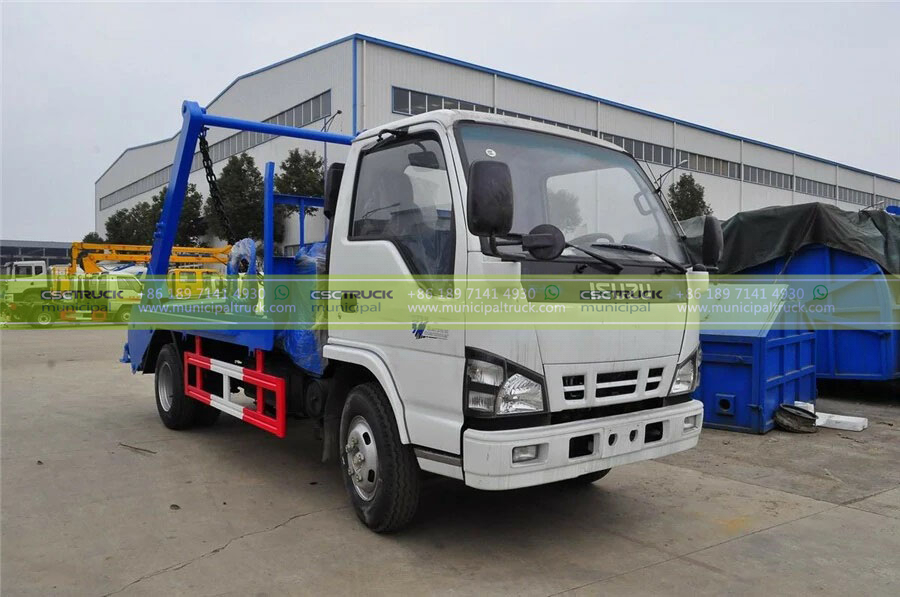

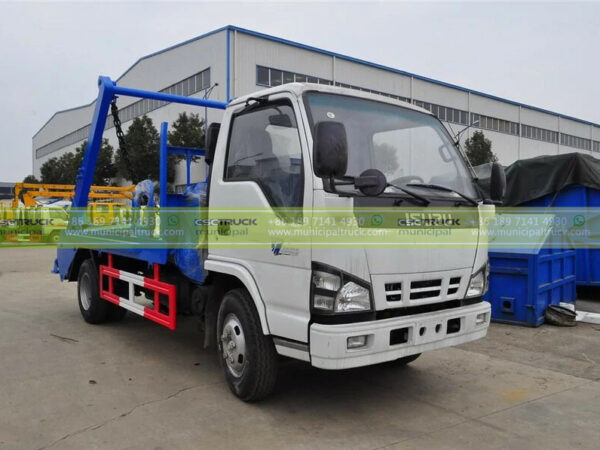

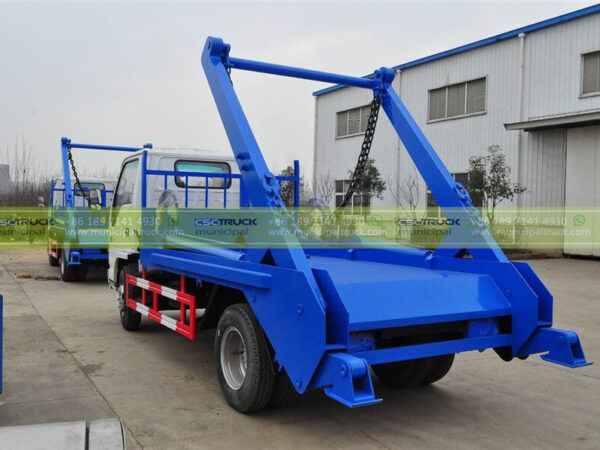

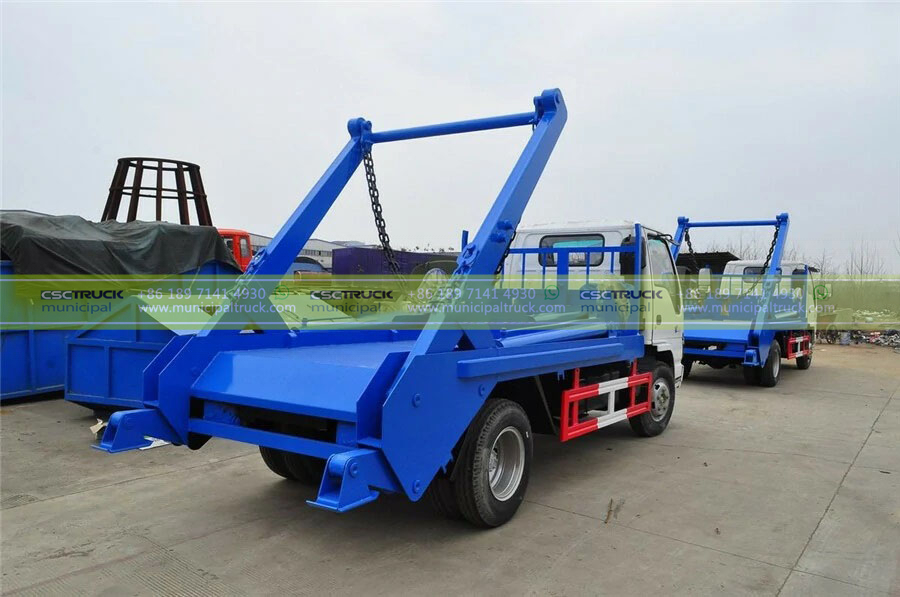

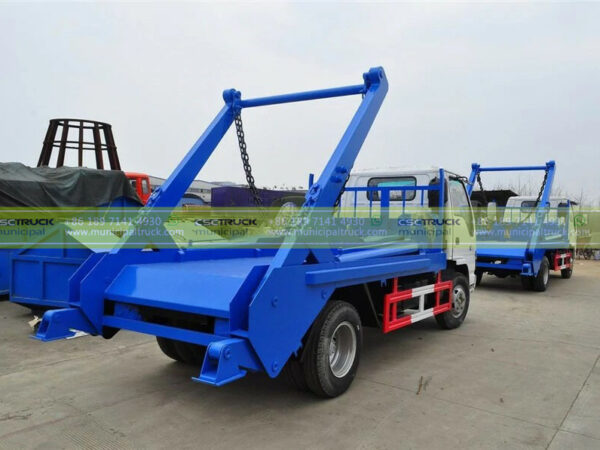

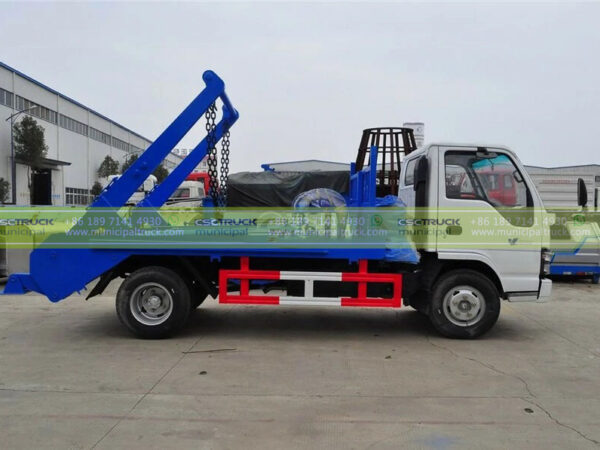

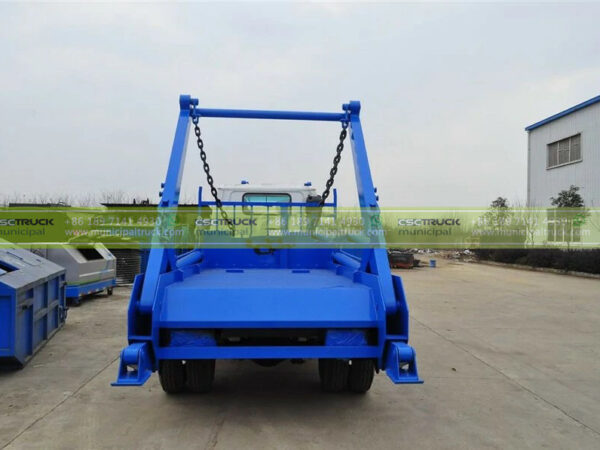

ISUZU 4CBM Swing Arm Garbage Truck

Chassis
Size	6,755×2,020×2,460mm
GVW/Curb Weight	7,300/4,200kg
Wheelbase	3360mm
Front/Rear Axle	2.5T/4.8T
Tire	7.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	ISUZU/4KH1CN5LS/130HP/Euro 5
Transmission
Make/Model	ISUZU/MSB
Gears	5F+1R
Operation	Manual
Cabin
Driving	ISUZU 600P 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	4 CBM
Container Material	High tensile wear-resistant carbon steel
Thickness	Side and top 4mm, Bottom 4mm
Type	Underground and aboveground types are optional
Include	1 PTO drives the hydraulic system, two balance valves, two hydraulic cylinders with a lifting arm and two hydraulic cylinders with landing leg, and one unloading container locking pins.
Options	Stainless steel container material; Sealed cover for the container; A truck with several containers
Loading Time	30s
Unloading Time	50s

Certification	ISO9001:2015
Chassis Truck	ISUZU
Color	Customized Color
Condition	New
Delivery Time	50 Days
Drive Mode	4×2
Country of Origin	Made in China
Customized	Yes
Emission Standard	Euro V
Fuel Type	Diesel
HS Code	8705109100
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Light Duty
Warranty Period	12 Months
