| Chassis | |
| Size | 5,990×2,130×2,660mm |
| GVW/Curb Weight | 10,000kg/5,900kg |
| Wheelbase | 3,815mm |
| Front/Rear Axle | 4T/6T |
| Tire | 235/75R17.5 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | ISUZU/4HK1-TC51/190hp/Euro 5 |
| Transmission | |
| Make/Model | ISUZU/MLD-6Q |
| Gears | 6F+1R |
| Operation | Manual |
| Cabin | |
| Driving | ISUZU 700P 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Capacity | 6,000L |
| Shape | Cylindrical |
| Material | Q235B Carbon Steel |
| Thickness | Shell Cover 8mm, Tank Body 6mm |
| Vacuum Pump | |
| Type | Water Cooling or Air Cooling |
| Brand | Weilong, JUROP, MORO, BP |
| Flow Rate | 6,000~35,000LPM |
| Ultimate Pressure | -97000Pa |
| Suction Hose Length | 8 meters + optional 4 meters |
| High-Pressure Jetting Pump | |
| Drive-By | PTO |
| Working Pressure | 16-24Mpa |
| Water Flow Rate | 75~275LPM |
| Reel Hose | 80 meters + optional 40 meters |
| Water Tank | Front or side installed |
| Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect windows, cleaning systems, hoist base, oil-water separators, overflow valves, etc. |
| Optional Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices |

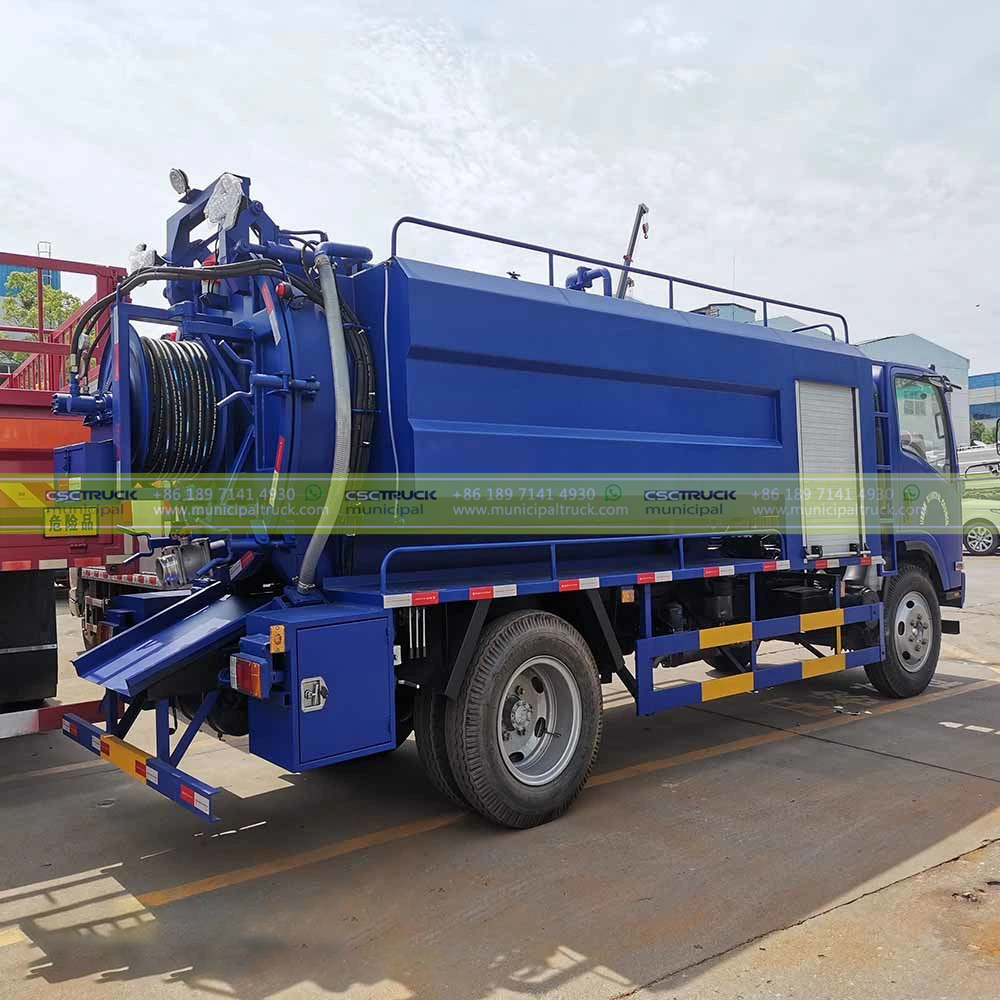

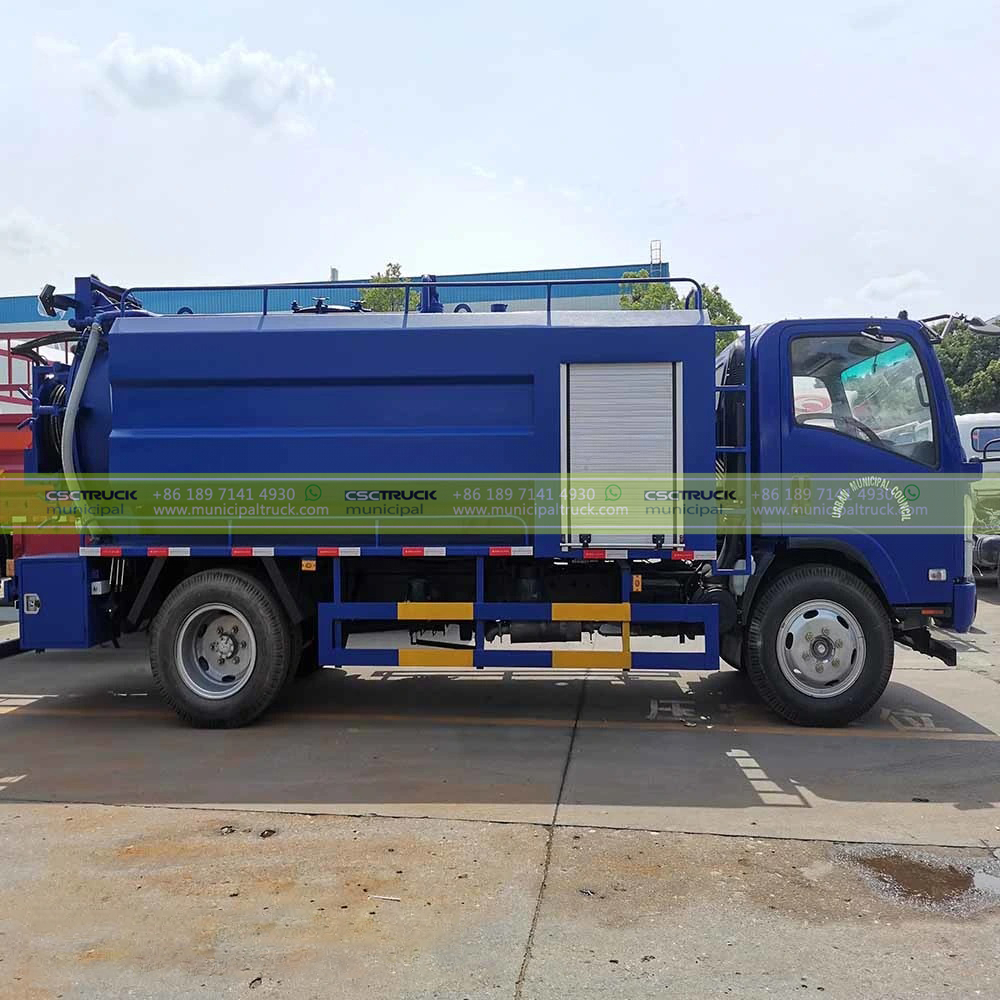

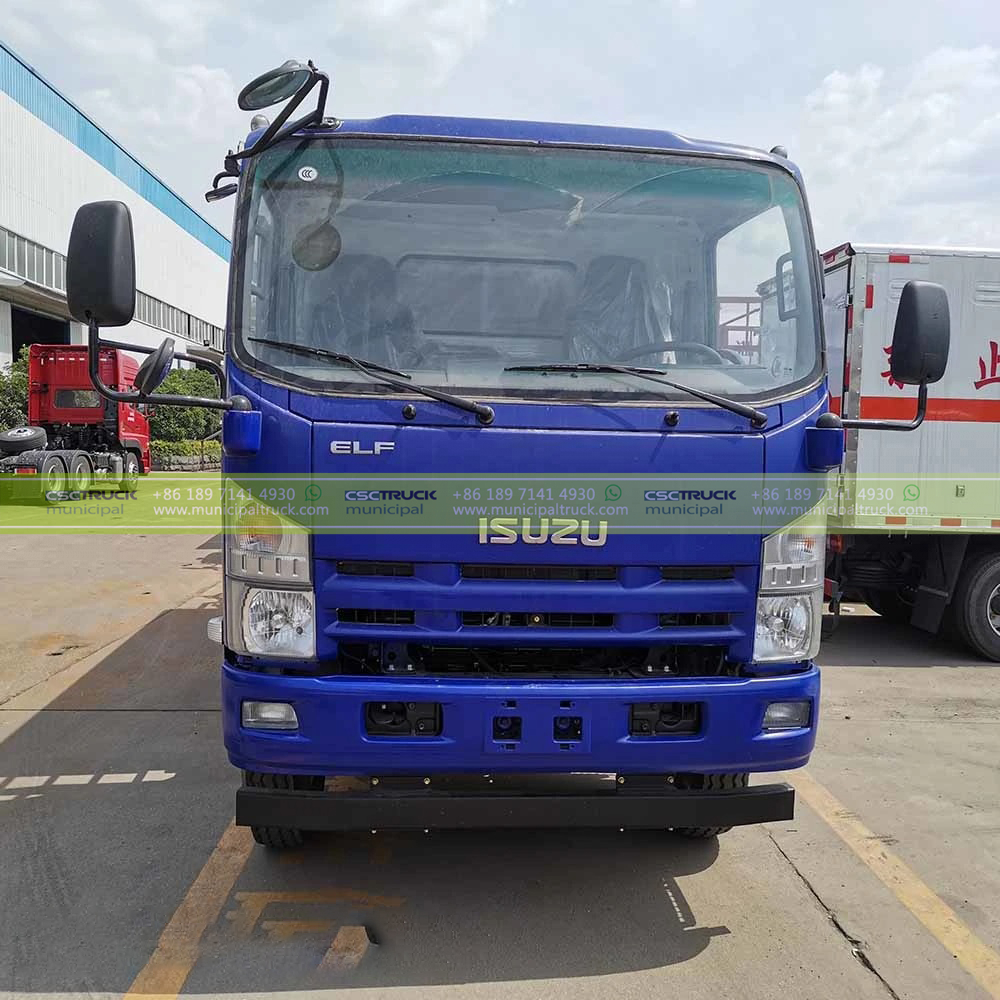

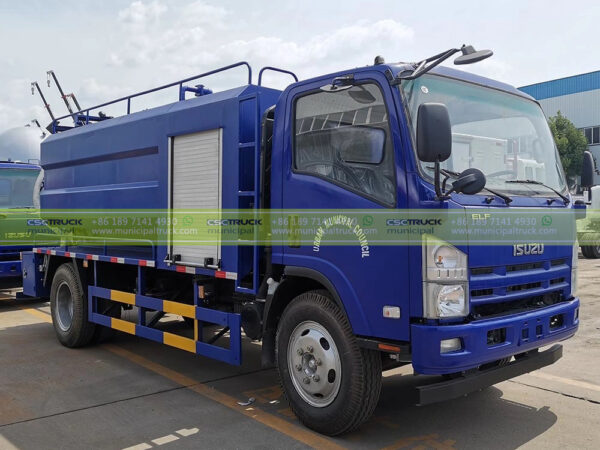

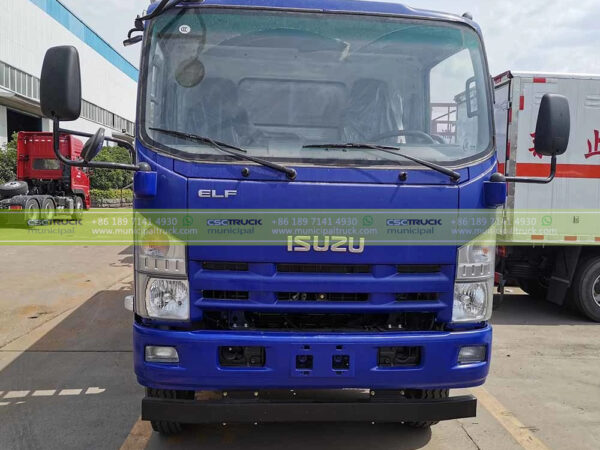

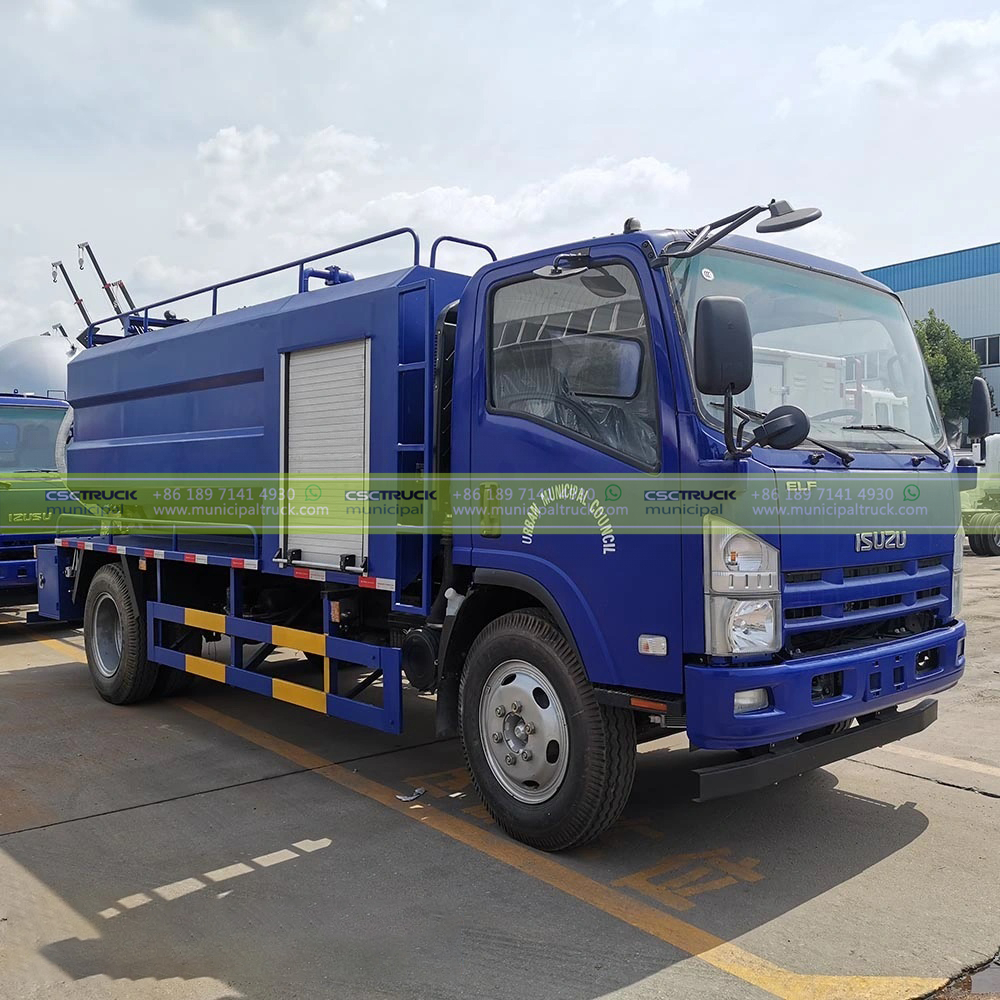

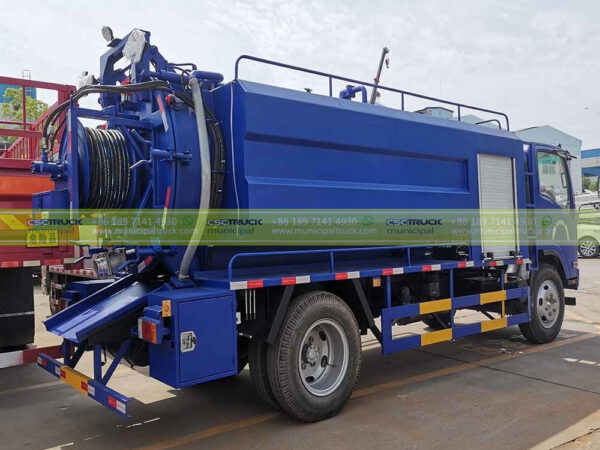

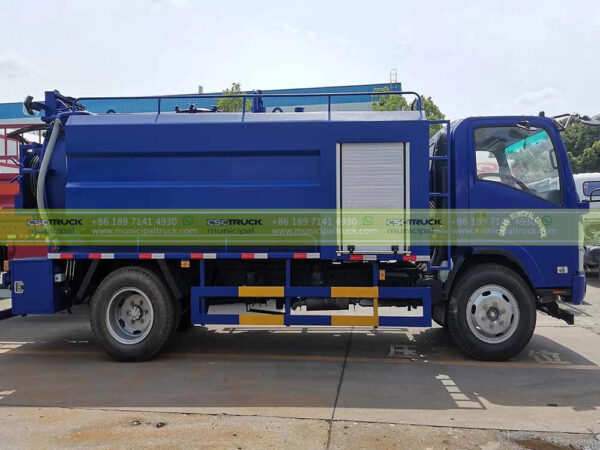

ISUZU 6,000L High Pressure Water Jetting Truck
| Make/Model | CSCTRUCK/SC06QL190L3 |
| GVW | 10,000kg, Medium Duty Vehicle |
| Cab Truck | ISUZU 700P 4×2 Day Cab |
| Engine | ISUZU/4HK1-TC51/190hp/Euro 5 |
| Transmission | ISUZU/MLD-6Q manual 6+1 Speed |
| Sludge Tank Capacity | 6,000 Liters, 6 Cubic Meters, 1585 Gallon |
| Vacuum Pump | Weilong/JUROP/MORO/BP, Volume Flow 6,000-35,000LPM |
| High-Pressure Jetting Pump | WEILONG/PINFL/Pratissoli, Volume Flow 75-275LPM |
| Certification | ISO9001:2015 |
|---|---|
| Chassis Truck | ISUZU |
| Color | Customized Color |
| Condition | New |
| Country of Origin | |
| Customized | Yes |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Emission Standard | Euro V |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | LHD |
| Terms of Payment | T/T |
| Truck Class | Medium Duty |
| Warranty Period | 12 Months |
