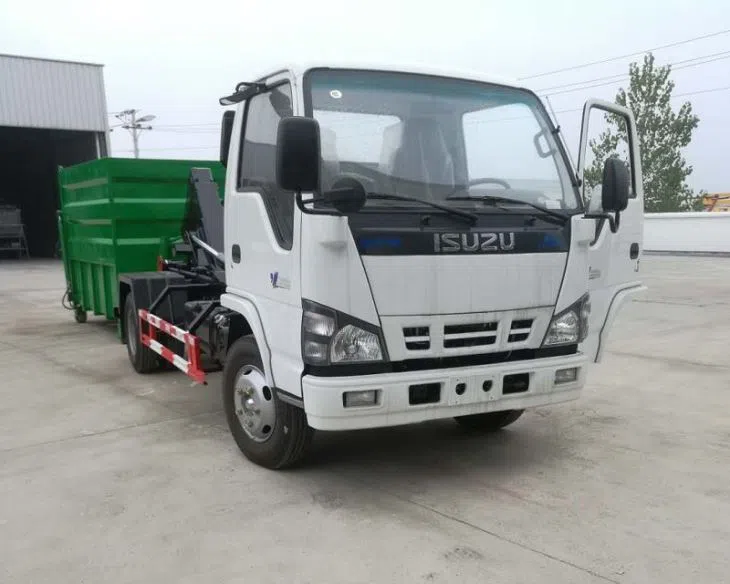

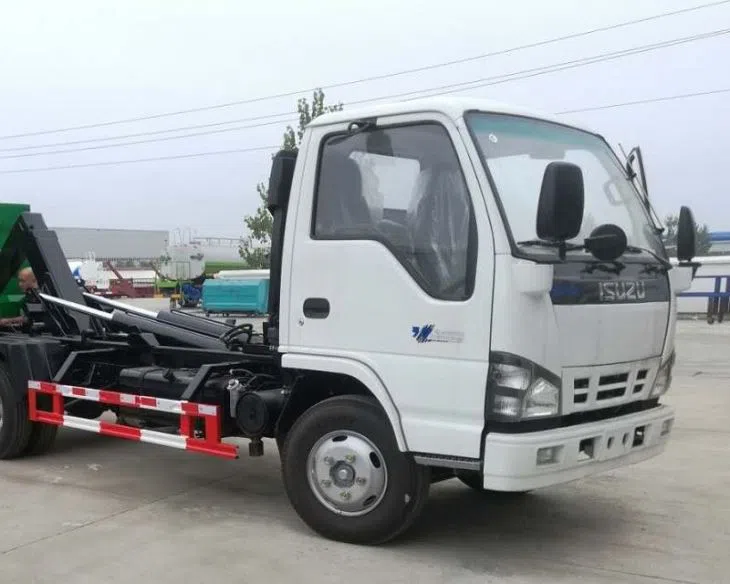

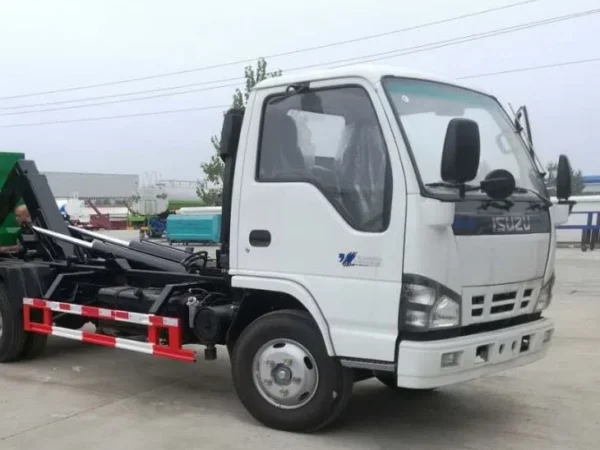

features

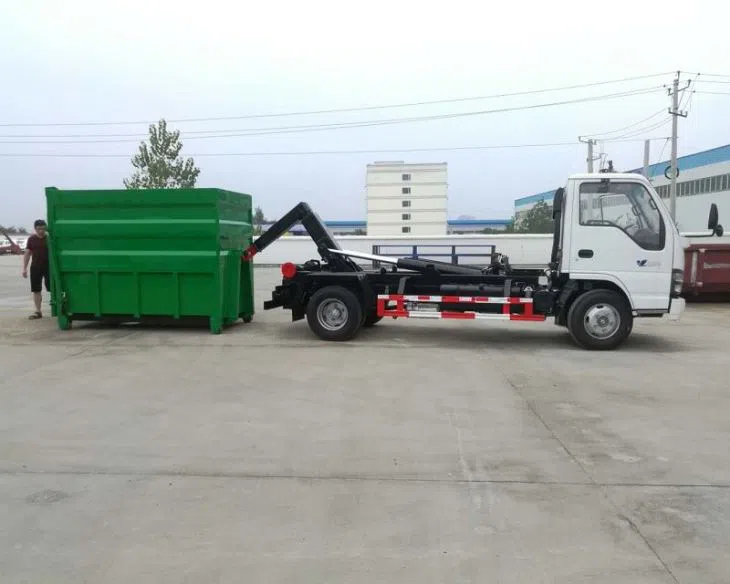

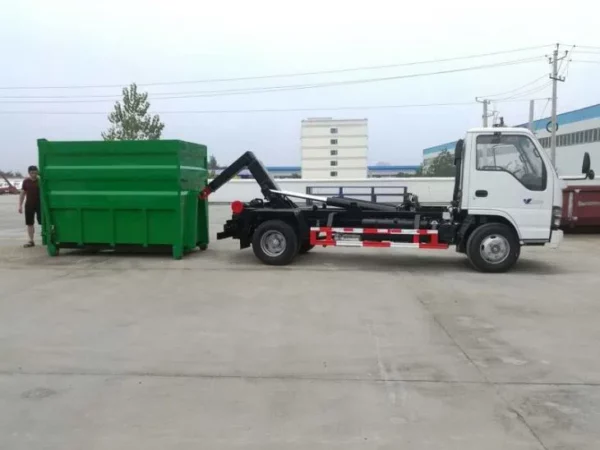

● Hook boom driven by cylinder to flip.
● Garbage container will be loaded, unloaded and lifting through hook boom.
● Multi valves on truck can be operated as well as the button in cab.
● Two-direction balancing valve is installed on boom which can control garbage container’s loading and unloading speed.
● All hydraulic components are adopted domestic popular brands products.
● Other design and manufacture followed by our factory’s standards.
specification
|
Container Capacity |
5m3 |
|
|
Chassis |
ISUZU 600P |
|
|
Engine |
4JB1CN/ ISUZU/ 98HP/ Euro 4 |
|
|
Transmission |
MSB/ ISUZU/ 5+1 Reverse Gear |
|
|
Cabin |
Single cabin, with A/C |
|
|
Overall Size |
4,690 x 1,890 x 2,160mm (L×W×H) |
|
|
Gross Vehicle Weight |
6,720kg |
|
|
Vehicle Weight |
2,520kg |
|
|
Wheelbase |
2765 (mm) |
|
|
Max Speed |
95km/h |
|
|
Battery |
12 V |
|
|
Brakes |
Oil brake |
|
|
Tires |
7.00-15/6+1 Spare Tire |
|
|
Steering |
Power assist steering |
|
|
Axles |
Front/rear Axle: 2300kg/ 4400kg |
|
|
Lifting Capacity |
From ground level 3,000 (Kg) |
|
|
Hook Height |
1570mm |
|
|
Width |
1067mm |
|
|
Pick-up Time |
44 (s) |
|
|
Unloading Time |
36 (s) |
|
|
Control |
Wireless Remote Control and Alternate Manual |
