features

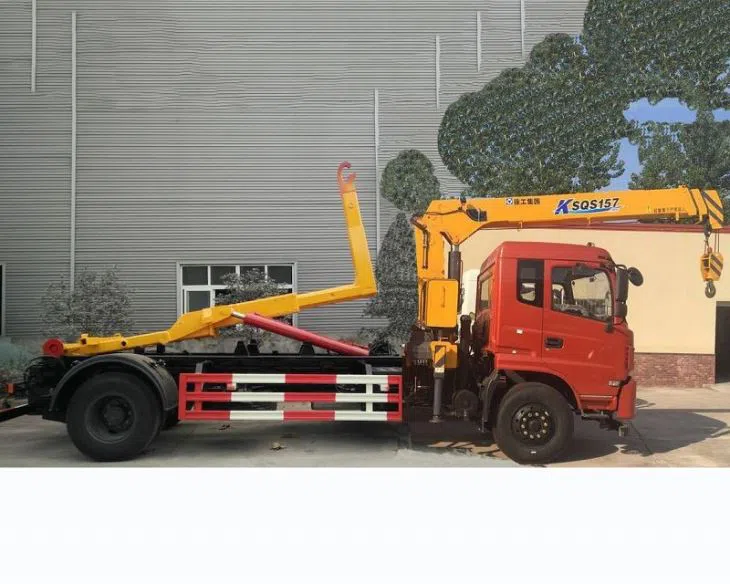

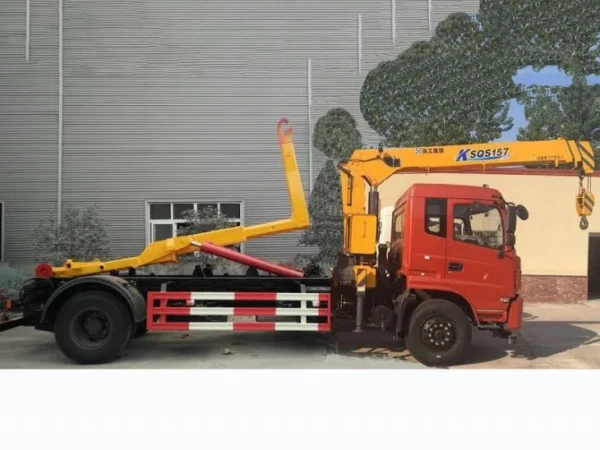

CRANE MECHANISM
-Single cable telescopic cylinder technology, efficiently.
– Advanced development, ensure the reliable designing.
-Pentagon & Hexagon boom assured perfect centering, much more good performance in bending resistance.
-Compact hinge point design less the space.
-Pulleying alarm device ensure the safety in working.
– Integral hoisting winch mechanism, improved working efficiency, increase the hydraulic service life.
-Unique floating triple bridges design less the extra stress bear by the truck chassis frame in the drive situation.
-Self developed rotation sys. Strong drive meet different request.
-Anti-rotation device protect the vehicle in safety driving.
specification

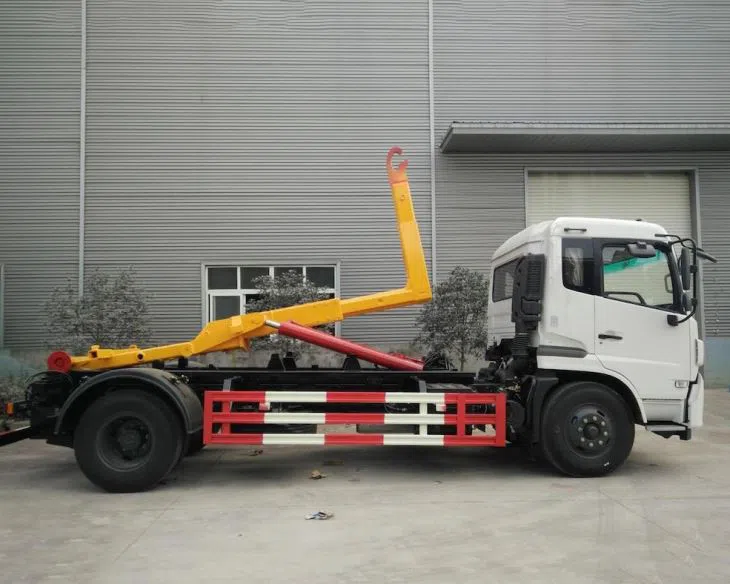

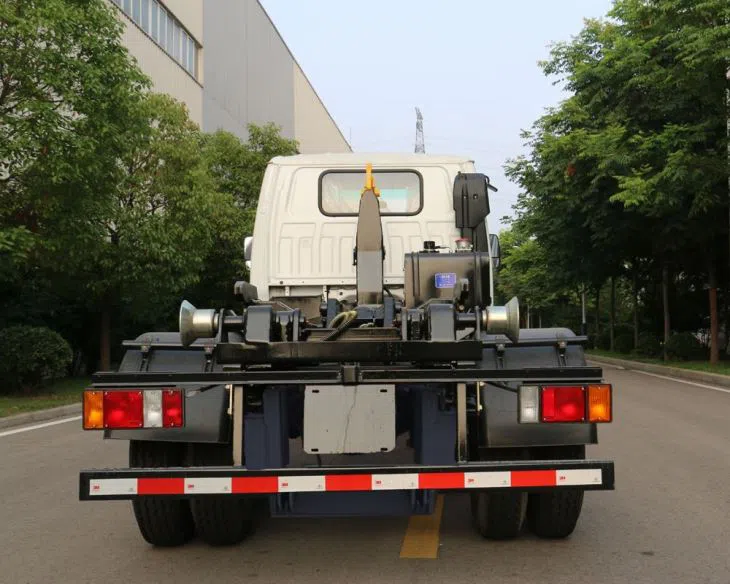

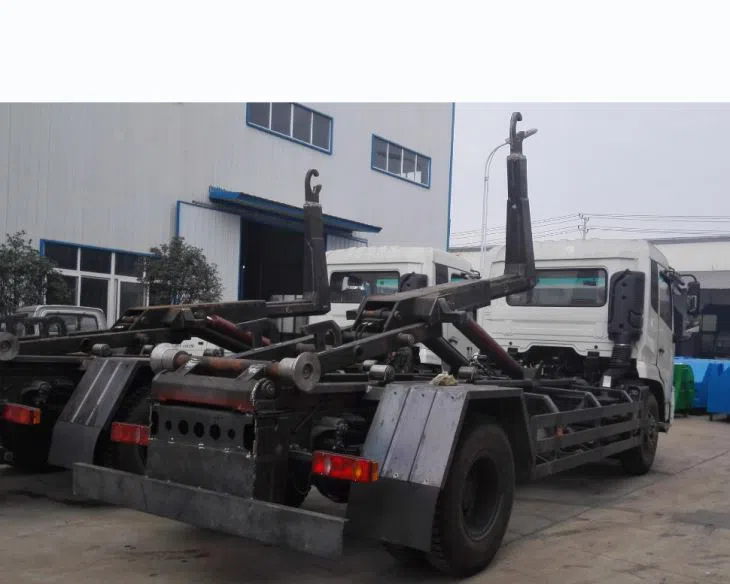

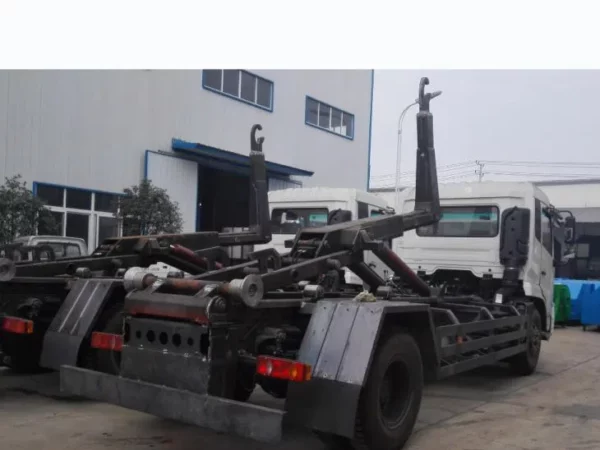

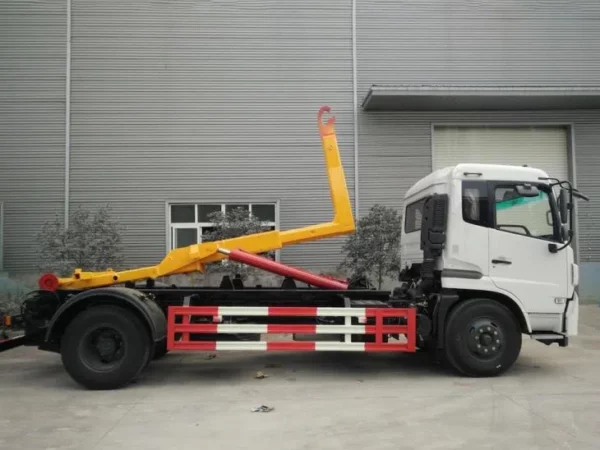

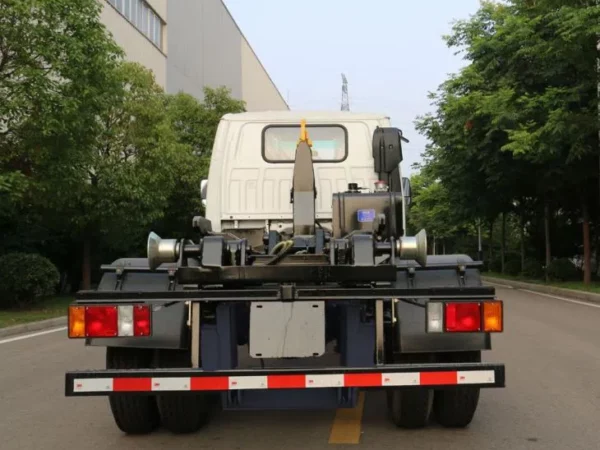

| ITEM | UNIT | SPECIFICATIONS |
| Garbage Container Size | mm | 3100*2300*1200 |
| Hook Height(H) | mm | 920 |
| Chassis Height(CH) | mm | 1010 |
| Vehicle Full Loaded Weight | kg | 14000 |
| Vehicle Unload Weight | kg | 7815 |
| Pay Loading Weight | kg | 6035 |
| Overall Size | mm | 6606*2388*3400 |
| CHASSIS TRUCK | HOWO | |
| Model | ZZ1107G4515C1R | |
| Steering | Right Hand Drive | |
| Suspension | Leaf spring with shackle link | |
| Axles | 2 pcs Die-casting | |
| Tires | 8.25R20 7pcs | |
| Brakes | Air brake with dual circuit | |
| Cabin | Sleeper/bunk tiltable | |
| Clutch | Single Dry diagram | |
| Battery | V | 12 |
| Approaching Angle | o | 20 |
| Departure Angle | o | 17 |
| Max. Turning Radius | m | ≤17 |
| Min. Ground Clearance | mm | 176 |
| Max. Climbing | % | 30 |
| Max. Speed | Km/hr | 95 |
| Oil Consumption | L/100km | 25 |
| Chassis Weight | kg | 4265 |
| ENGINE | DONGFENG | |
| Model | YC4E140-42 | |
| Type | Diesel | Turbocharged intercooler |
| Cylinder Numbers | 4 | |
| Max Output Power | kw | 103 |
| Flywheel Speed | rpm | 2600 |
| Horse Power | hp | 140 |
| Max Torque | N.m | 430 |
| Max Torque Speed | rpm | 1300-1600 |
| Weight | kg | 420 |
| Bore*Stroke | mm | 110*112 |
| TRANSMISSION MODEL | SINOTRUK | |
| Model | DC6J65TC | |
| Type | Manual | |
| Forward Speed | 6 | |
| Backward Speed | 1 | |
| Synchronizer | Yes | |
| Output Torque | N.m | 520 |
| HOOK LOADER | XR 5S-3650 | |
| Hook Type | L typed | |
| Loading Cycle | Sec. | ≤34 |
| Unload Cycle | Sec. | ≤42 |
| Hoist Cycle | Sec. | ≤37 |
| Rapid Discharge Time | ≤17 | |
| Tilt Angle | o | 48 |
| Hook Capacity | kg | 5500 |
| Hook Weight | kg | 750 |
| Container Size | M3 | 8.5 |
| Hydraulic Pressure | Mpa | 16 |
| Oil Pump | l/min | 80 |
| PTO Ratio | I=1.0 | |
| CRANE | SQ5SK3Q | |
| Crane Type | Telescopic | |
| Max Lifting Capacity | kg | 5000 |
| Max Lifting Moment | T.M | 12.5 |
| Power | kw | 18 |
| Hydraulic Oil Flow | l/min | 32 |
| Hydraulic Oil Pressure | Mpa | 20 |
| Oil Tank Capacity | L | 90 |
| Crane Weight | kg | 2260 |
| Install Space | mm | 900 |
| Rotation Angle | o | 360 all rotation |
