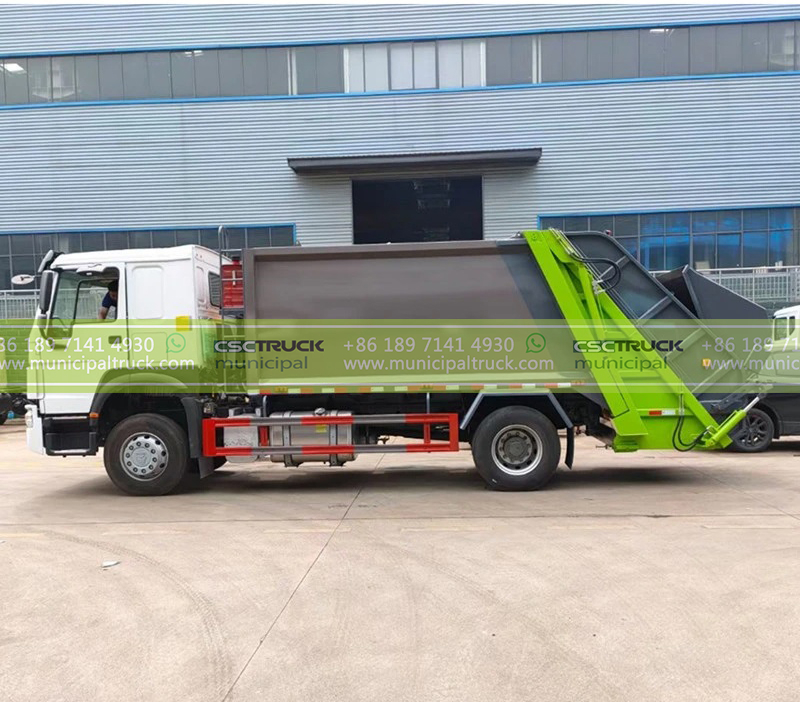

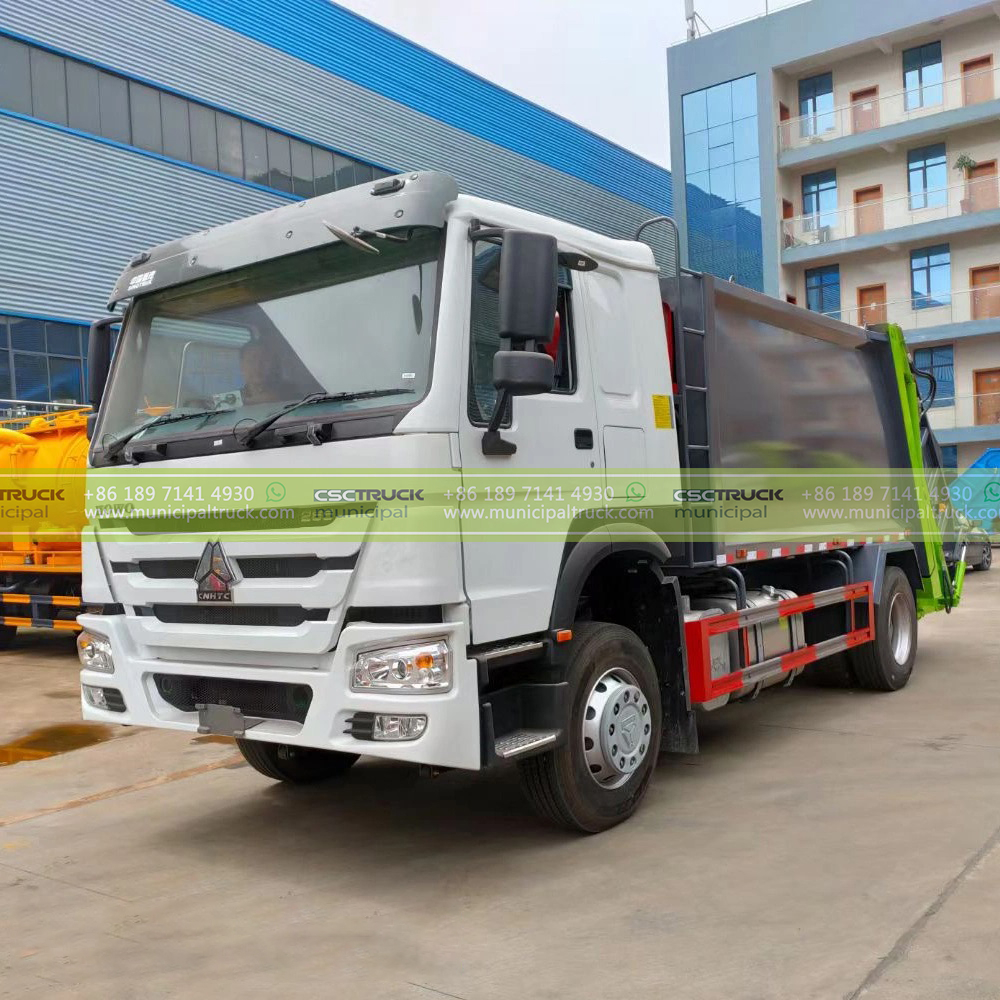

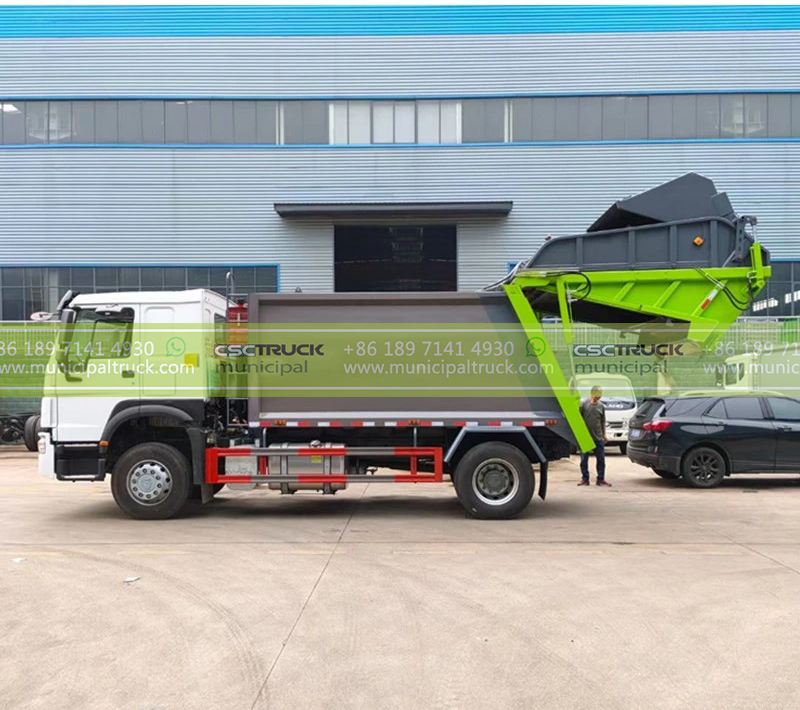

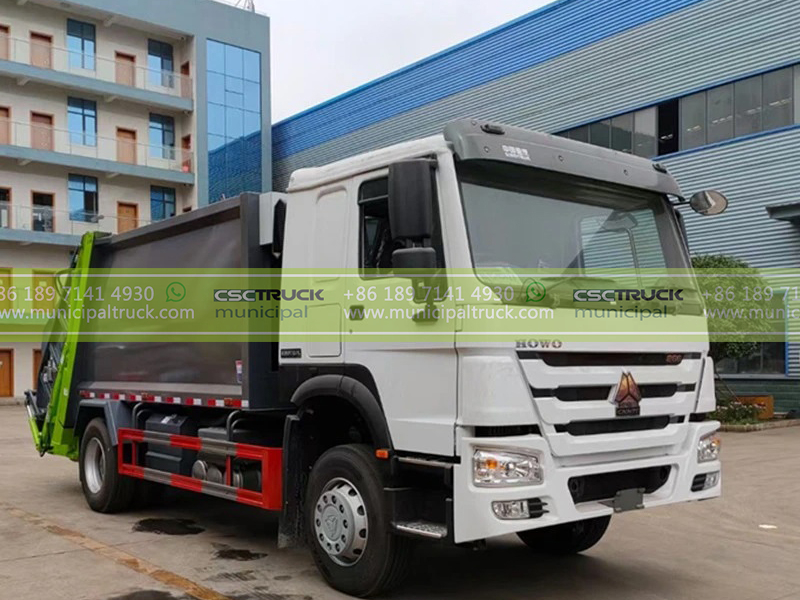

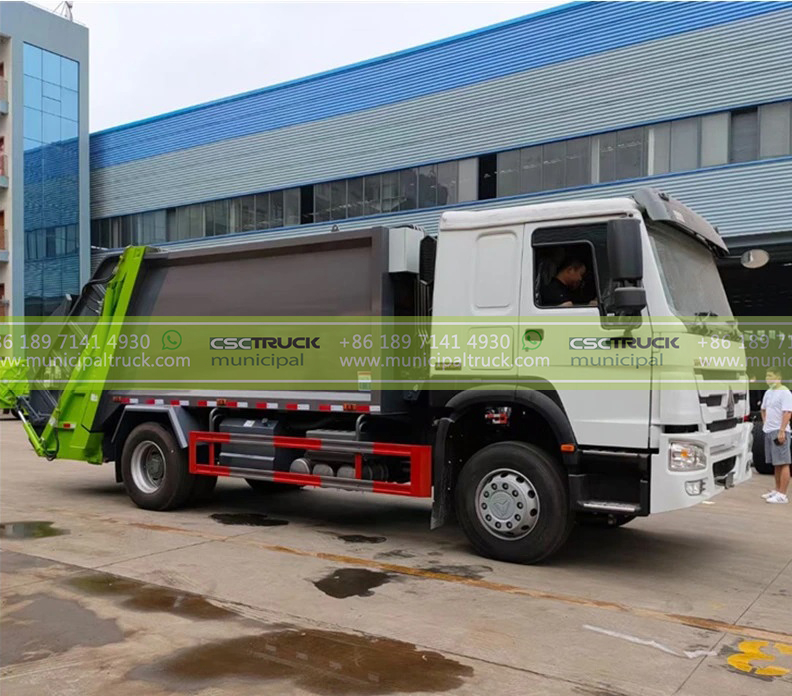

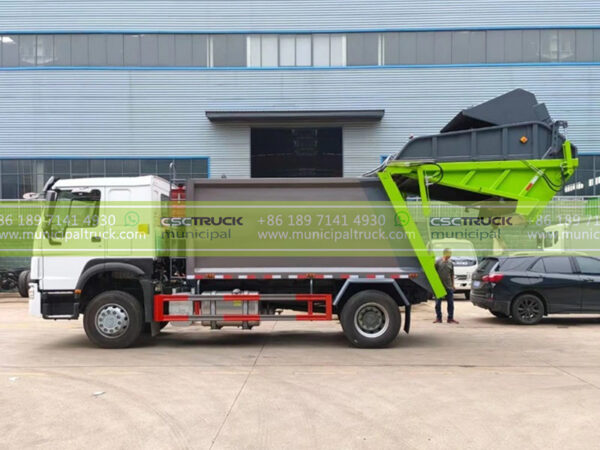

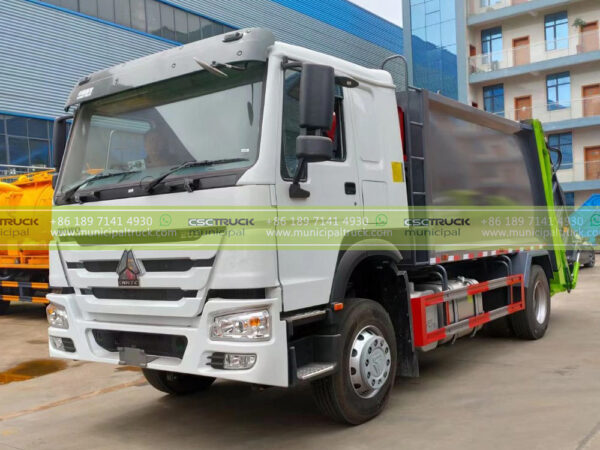

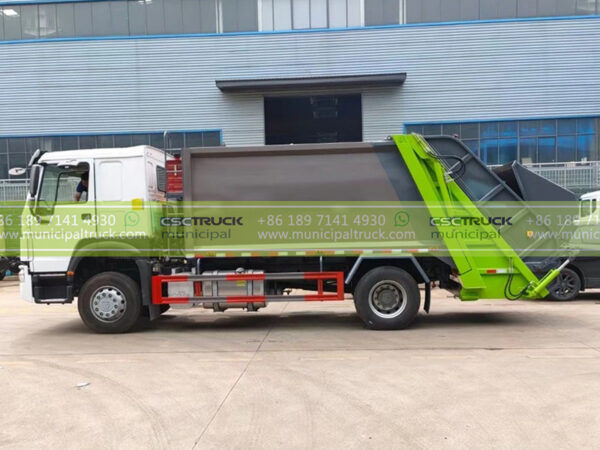

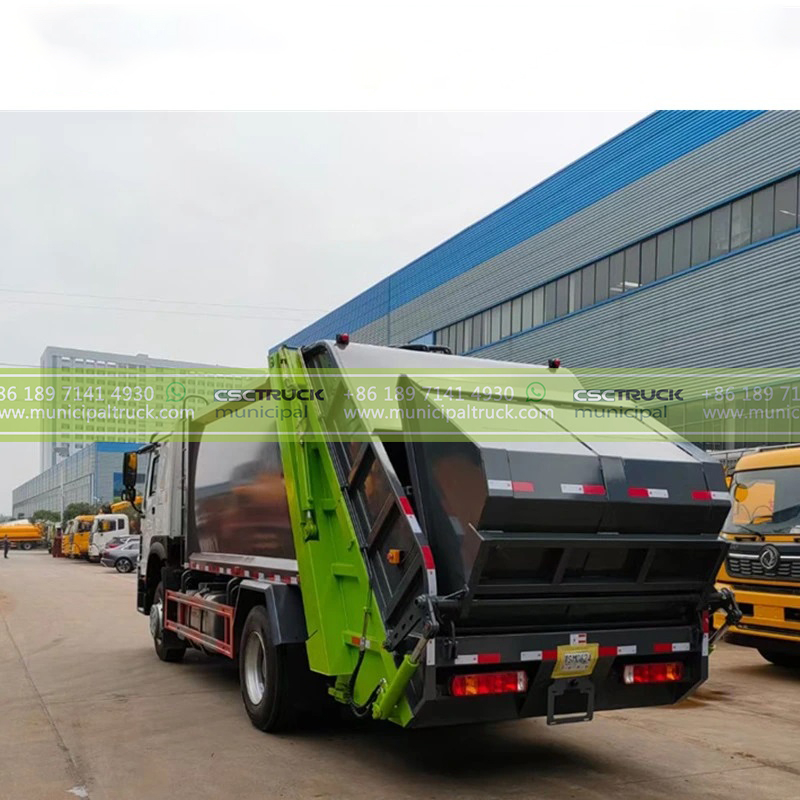

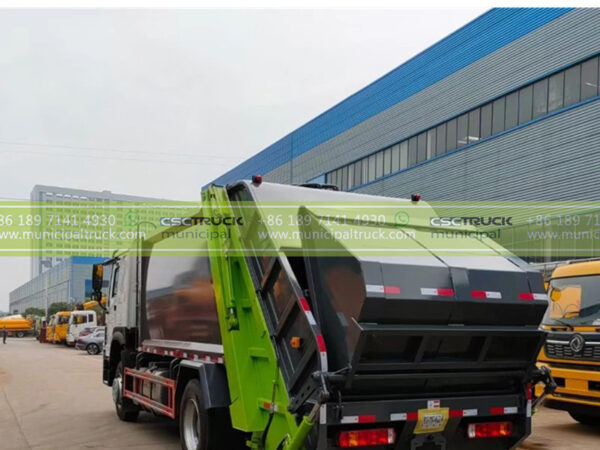

SINOTRUK 12CBM Rear Loader Garbage Truck

Chassis
Size	8785x2465x2810(mm)
GVW/Curb Weight	15,795/10,200kg
Wheelbase	4600mm
Front Axle	HF7
Rear Axle	ST13, Central single reduction, full-floating axle shaft, steel plate press-welding axle housing.
Front/Rear Axle	5.6T/10.195T
Steering	ZF8098, hydraulic steering with power assistance.
Brakes	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS
Tire	10.00R20, 10+1 tires
Engine
Type	Diesel
Make/Model	WEICHAI/WD615.62/266HP/Euro 2
Transmission
Make/Model	SINOTRUK/HW13710
Gears	10+2 Gear Numbers
Operation	Manual
Cabin
Driving	SINOTRUK HOWO 4×2 Night Cab, Right Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	12 CBM
Tank Body Material	High Tensile Carbon Steel
Thickness	Side 4mm, Bottom 5mm
Design	Sealed leakage proof
Working Rotation Speed	1400r/m
Compaction Ratio	1:3- 1:4
Hopper Volume	2CBM
Effective volume of bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear discharging
System Pressure	20MPA
Hydraulic System	Branded oil pump, oil cylinder, valve, gauge, oil tank, pipeline
Front/Rear Sewage Capacity (L)	250+150
Max Compression Force (kg)	>25000
Control System	Multi-Control

Certification	ISO9001:2015
Chassis Truck	SINOTRUK
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	4×2
Emission Standard	Euro II
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	RHD
Terms of Payment	T/T
Truck Class	Medium Duty
Warranty Period	12 Months
