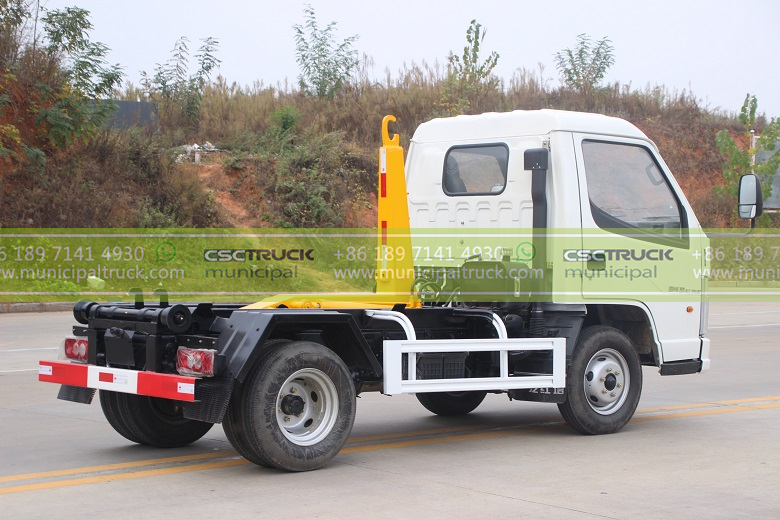

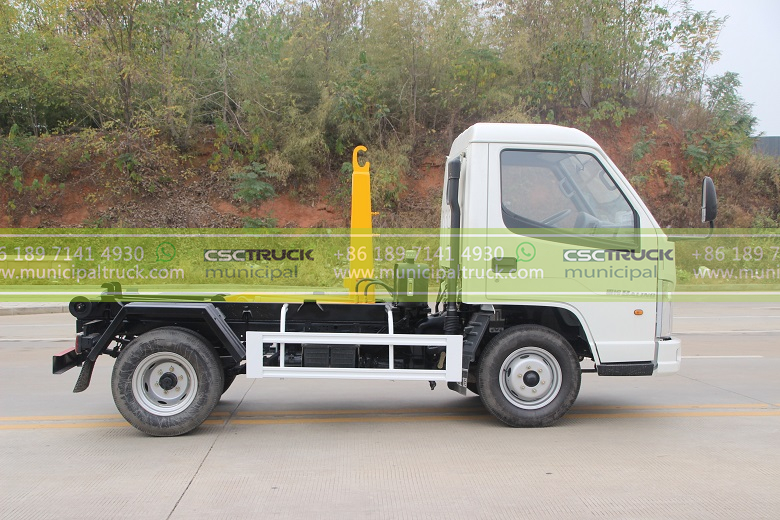

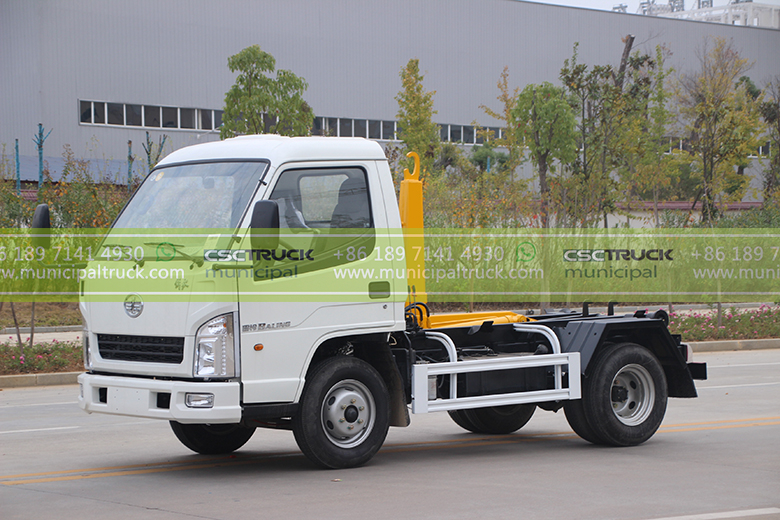

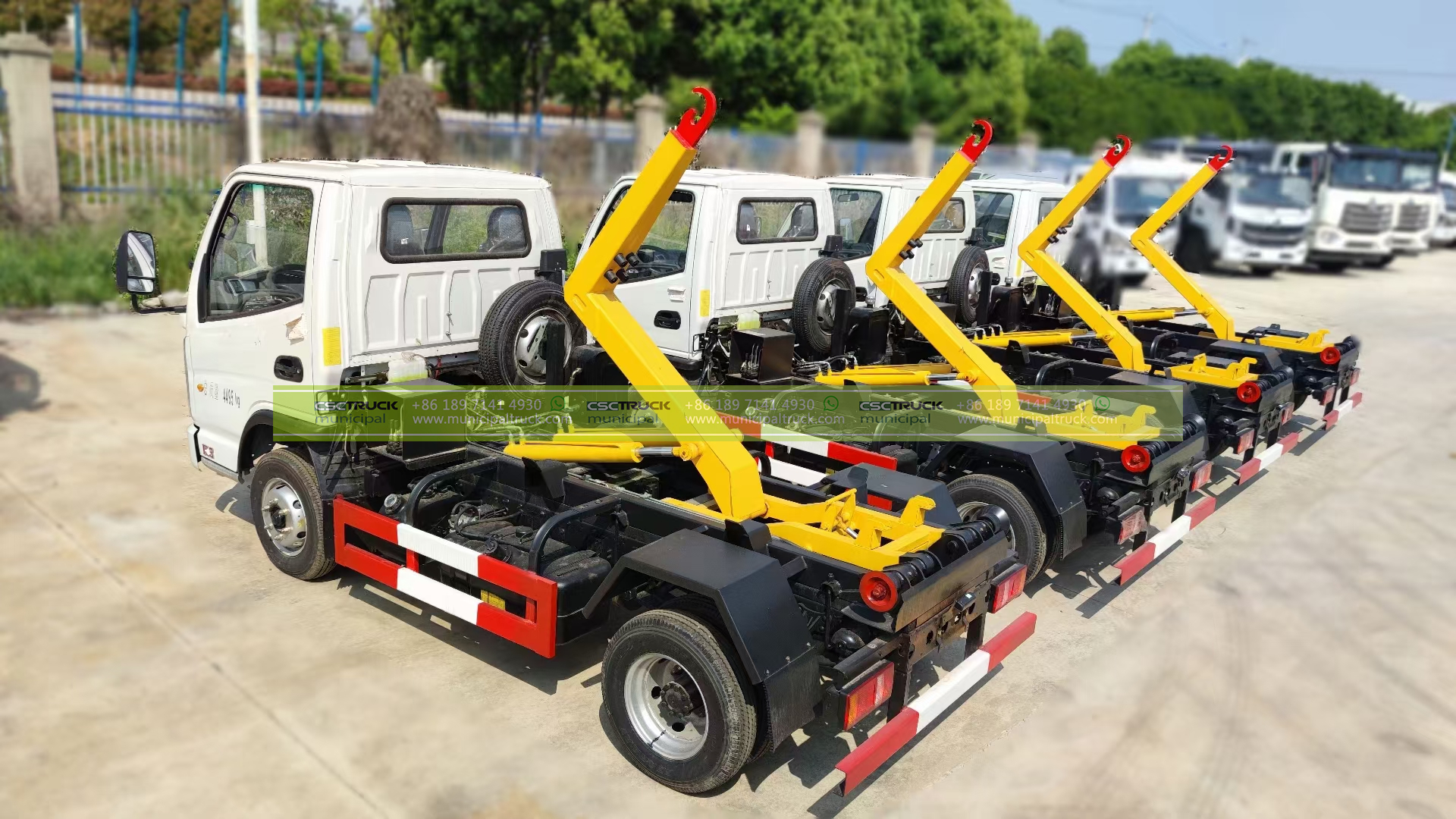

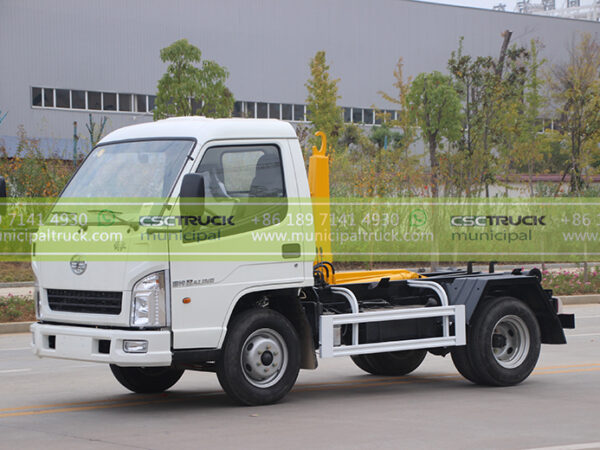

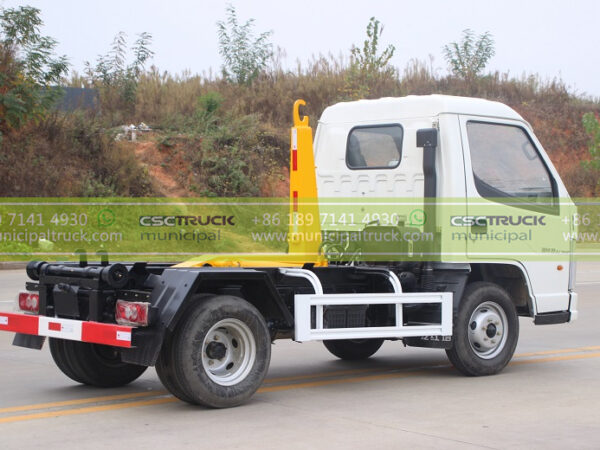

FAW 4CBM Hook Loader Garbage Truck

Chassis
Size	4900x2200x2250mm
GVW/Curb Weight	5,000/3,000kg
Wheelbase	2800mm
Front/Rear Axle	2T/3T
Tire	6.50R16 6+1 tires
Engine
Type	Diesel
Make/Model	Weichai/WP2.3NQ110E20/110hp/euro2
Transmission
Make/Model	WLY/MG85B
Gears	5F+1R
Operation	Manual
Cabin
Driving	FAW CA1040 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3

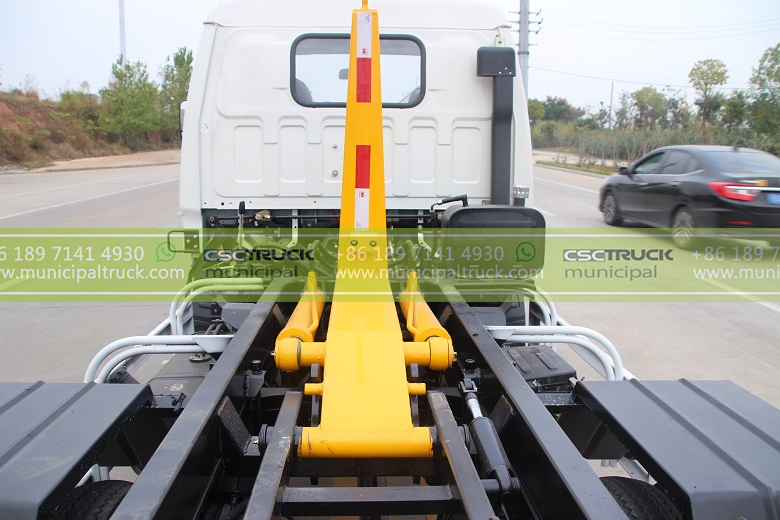

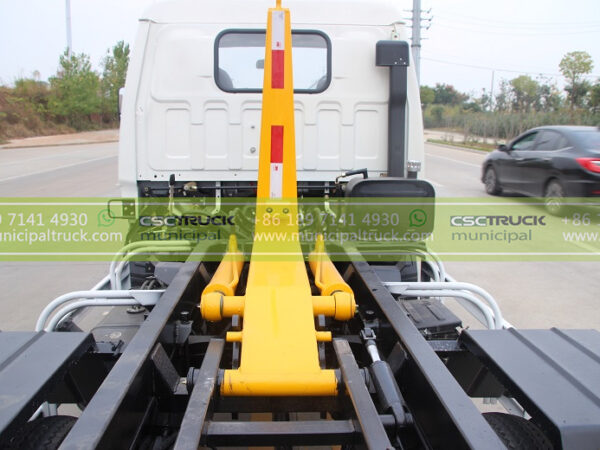

Hook Lift System
Lifting Capacity	6 Ton
Garbage Container Capacity	4 CBM
Material	Q235B Carbon Steel, 4mm Side, 5mm Bottom
Lifting Time	50s
Discharging Time	50s
Tipping Angle	50°
Locking	2 side locking system
Control System	Manual control, and smart control as options

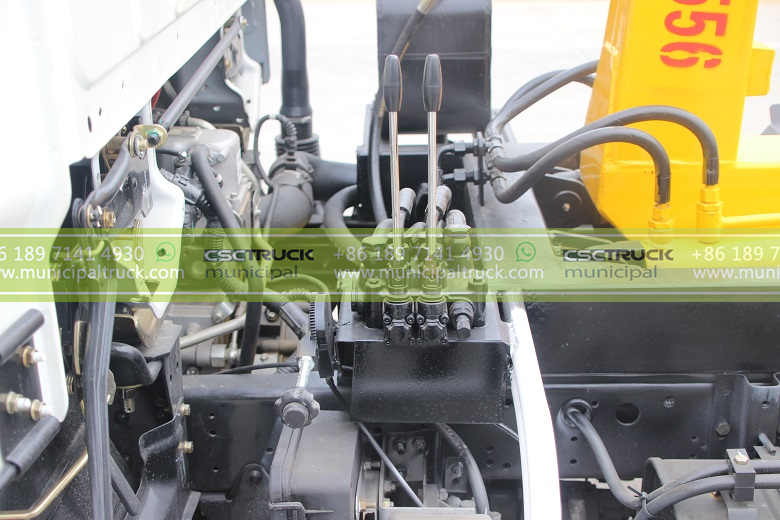

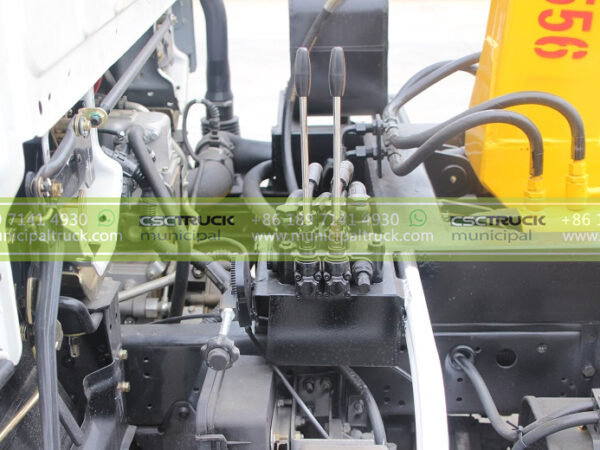

Hydraulic System	Branded multi-way valve, cylinders
Include	Underframe, linkage frame, fixed arm, hook arm, locking system, hydraulic system.

Certification	ISO9001:2015
Chassis Truck	FAW
Color	Customized Color
Condition	New
Delivery Time	50 Days
Drive Mode	4×2
Country of Origin	Made in China
Customized	Yes
Emission Standard	Euro II
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Light Duty
Warranty Period	12 Months
