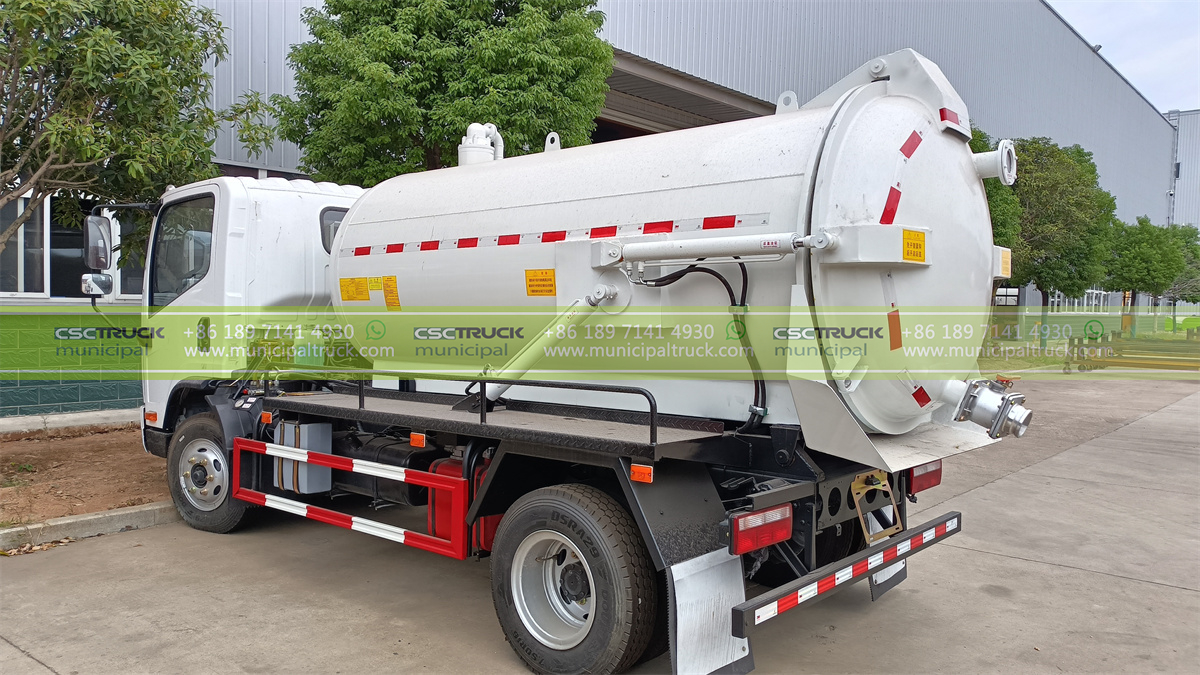

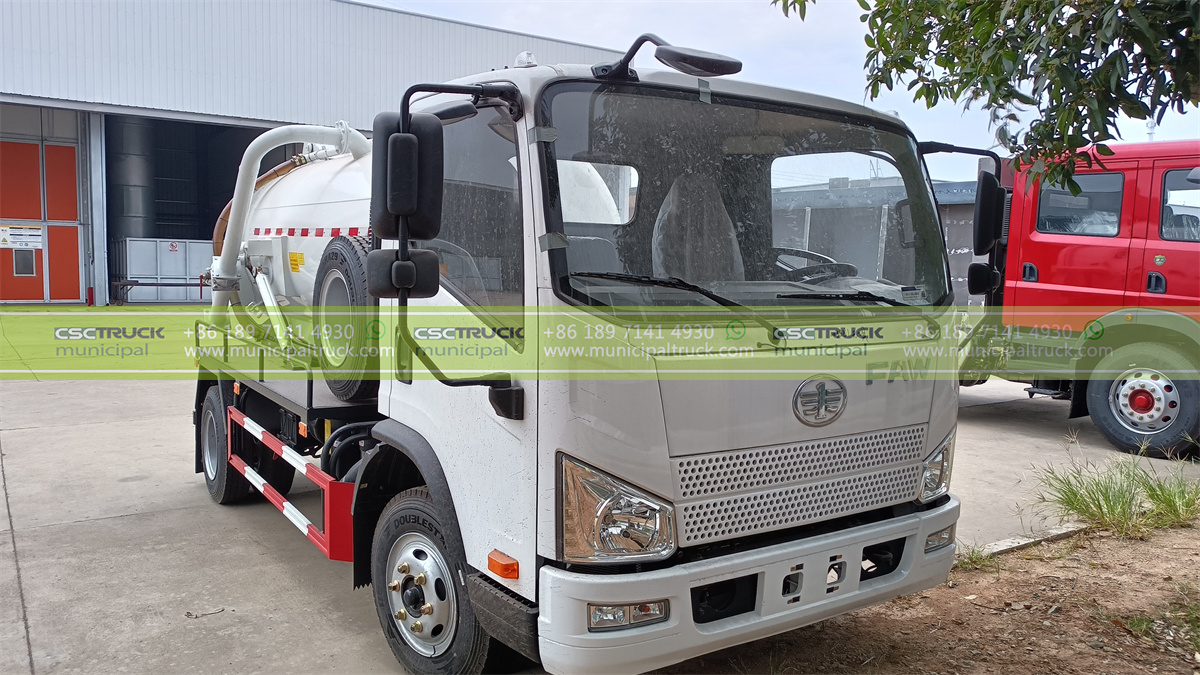

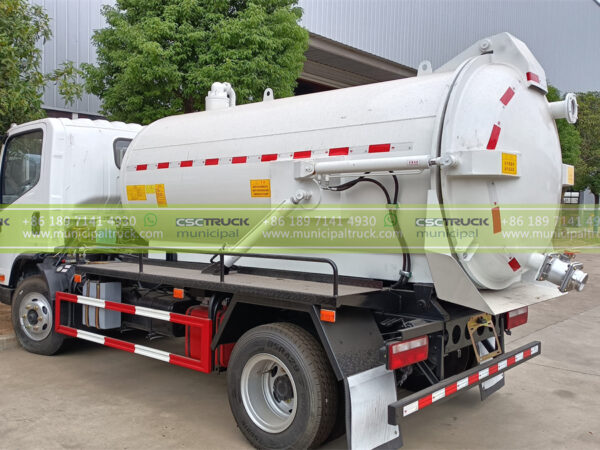

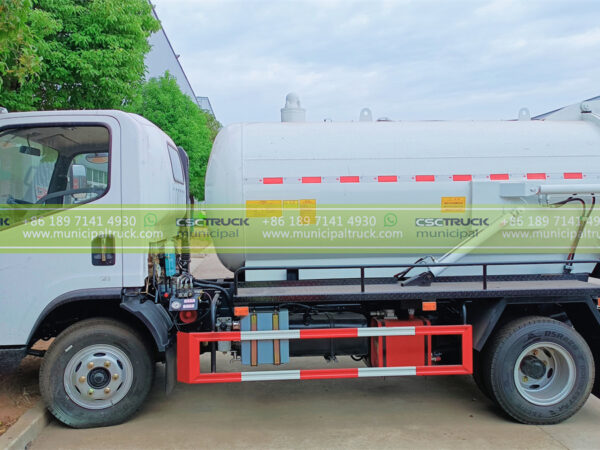

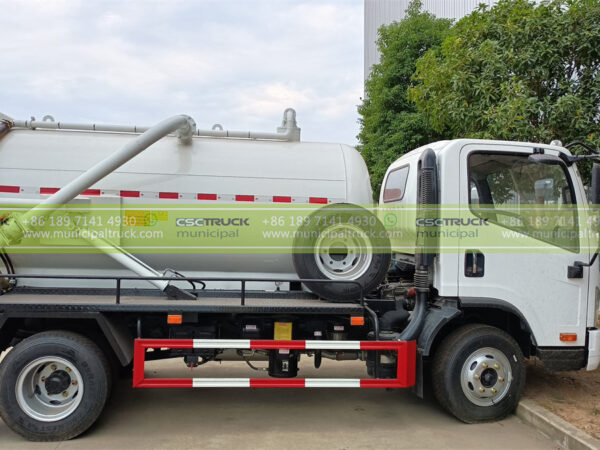

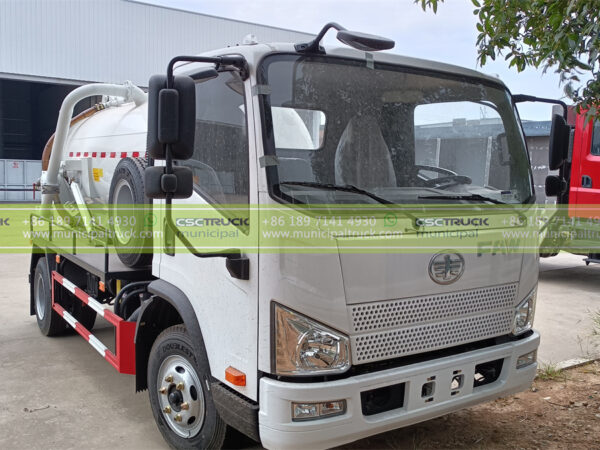

FAW 8 Ton Exhauster Sewage Suction Truck

Make/Model	CSCTRUCK/VS05CA120L3
GVW	8,000kg, Light Duty Vehicle
Cab Truck	FAW 4×2 Day Cab
Engine	DACHAI/CA498E3-12/120hp/Euro3
Transmission	WLY5-35 manual 5+1 Speed
Sludge Tank Capacity	5,000 Liters, 5 Cubic Meters, 1320 Gallon
Vacuum Pump	VERYONG/68-7000, Sliding Vanes, Volume Flow 4,080LPM

Chassis
Size	6,500×2,300×2,570mm
GVW/Curb Weight	8,000kg/4,390kg
Wheelbase	4,600mm
Front/Rear Axle	3T/5T
Tire	8.00R16 6+1 tires
Engine
Type	Diesel
Make/Model	DACHAI/CA498E3-12/120hp/Euro3
Transmission
Make/Model	WLY5-35
Gears	5F+1R
Operation	Manual

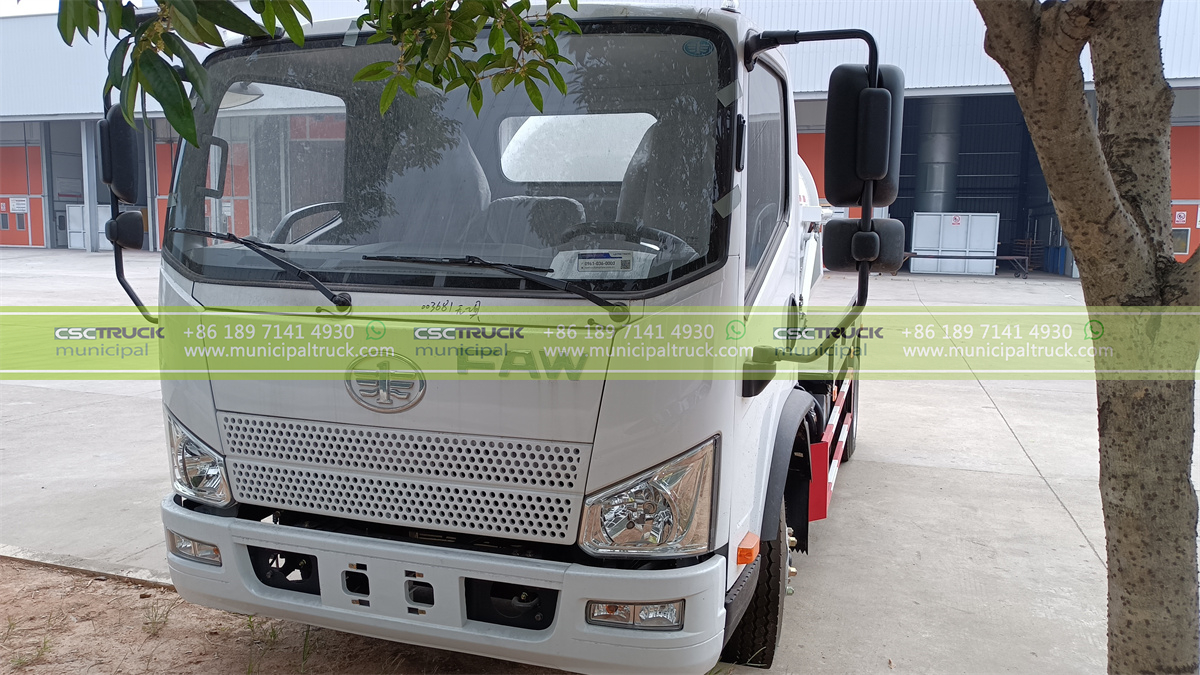

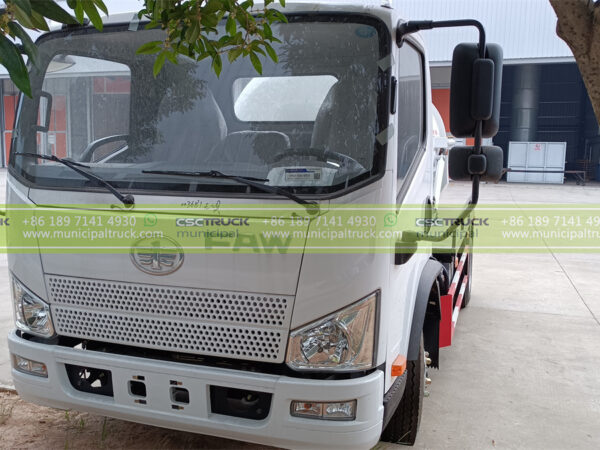

Cabin
Driving	FAW 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3

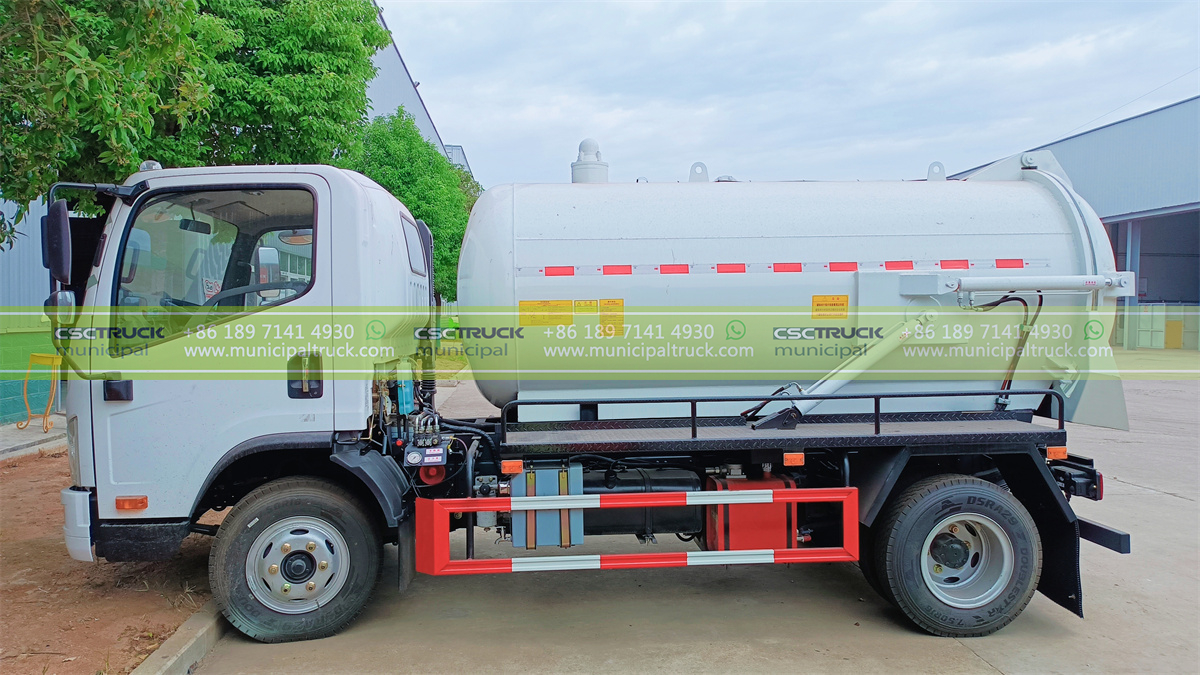

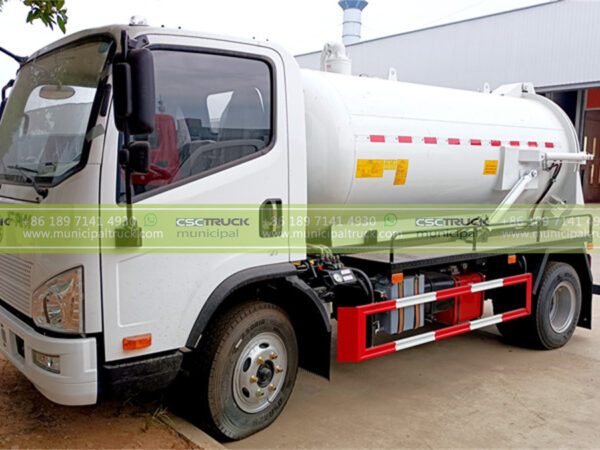

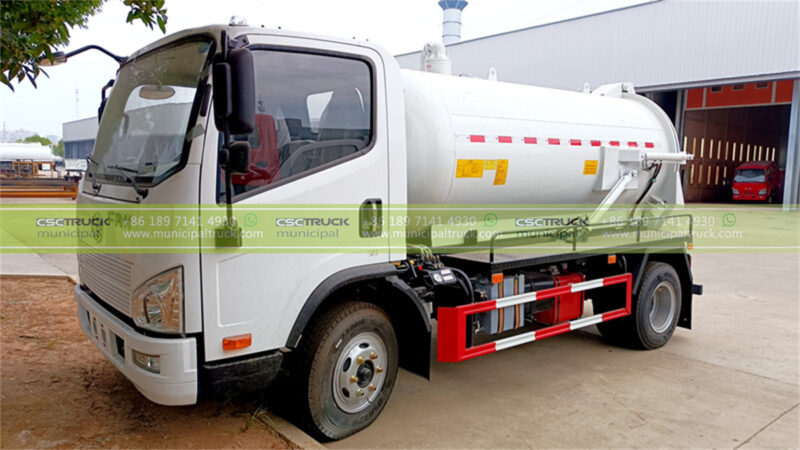

Body System
Capacity	5,000L
Shape	Cylindrical
Material	Q235B Carbon Steel
Thickness	Shell Cover 8mm, Tank Body 6mm
Vacuum Pump	VERYONG/68-7000
Pumping Rate	800m3/h
Ultimate Pressure	-90000Pa
Speed	950r/min
Inlet and Outlet Pipe Diameter	φ50 mm
Max. Pump Temperature	≤ 90°C
Sewage Pipe	5 meters long plastic pipe with steel wire inside
Suction Depth	9m
Suction Time	≤5min
Basic Equipment	Vacuum pump, ball valve, suction pipe, pressure meter, inspect windows, cleaning system, hoist base, oil-water separators, overflow valve, etc.
Basic Equipment	Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices

Certification	ISO9001:2015
Chassis Truck	FAW
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	4×2
Emission Standard	Euro III
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Light Duty
Warranty Period	12 Months
