Brief
Rear Loader Garbage Truck is designed to load municipal solid wastes and compact the waste within the vehicle superstructure thus avoiding long-range travel for little wastes and transporting them to waste treatment facilities.
Rear Loader Garbage Truck is consist of a discharge plate, body, compaction plate, hopper, and hydraulic-pneumatic-electric diagrams produced as a set and distributed or installed on vehicles.
features
Safety Design
- Tailgate safety check valves and automatic tailgate lock
- Bin lifter safety interlocks
- Integrated self-aligning tailgate props
- Anti-burst valves in cylinders
- In-cab warning system and emergency stops at all control stations
Garbage Container
Optional rectangular or arc-shaped box. It is welded with high-strength wear-resistant steel plates. The structure is light and improves the fluidity of garbage, and the discharge is clean and thorough.

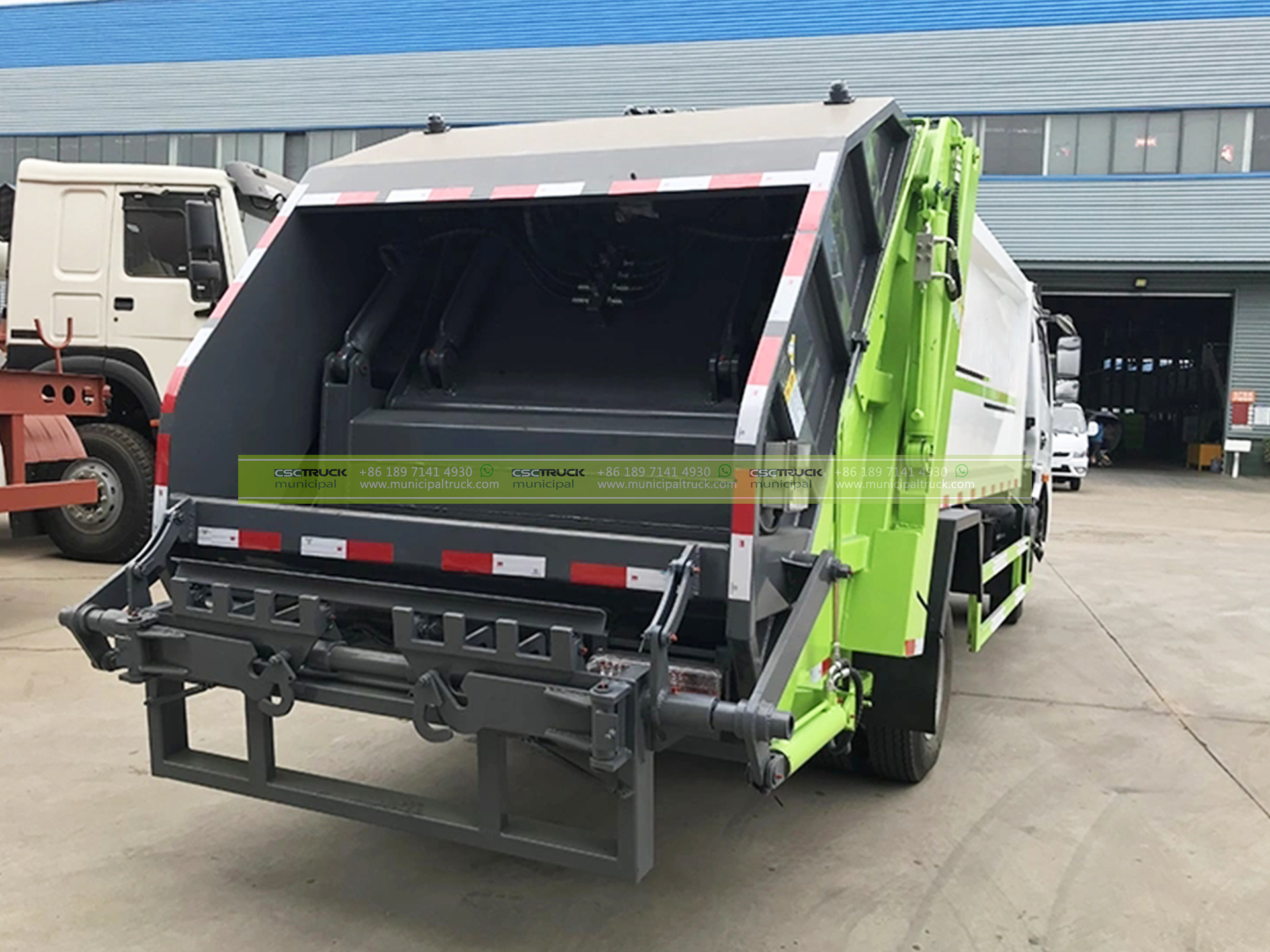

Hopper and Tailgate
-Powder-coated blades and ejector panel offers improved product protection and durability.
-Standard high-level tailgate to body seal interface provides for enhanced leachate containment when handling waste.
-Q235 high tensile steel sheet of thickness 5~6 mm.(equivalent as IS-2062 Grade A or ASTM a36)
Control
Automatic control system, operation in cab and intergrated control of the front and rear hydraulics.
Bin Lifter Options
Optional rear-mounted garbage bin tippers, on-ground spacious lifter, skip lifter, cart tipper, and shovel loader etc.
Hydraulic System
-Controlled inside the cab, original P.T.O of the truck
Hydraulic Cylinder
-9 units of hydraulic cylinders; Telescopic cylinder with 3 extensions.
-All cylinders are double-acting cylinders.
-Pipes to be made of honed drawn steel pipe, and cylinder miles.
-Are grinded and chrome coated against corrosion.
specification
| Size | 7150 * 2285 * 2950 |
| Gross/ Rated/ Kerb Mass (kg) | 9400/ 2500/ 6705 |
| Wheelbase (mm)/ Axis No. | 3800/2 |
| Driving type | 4*2 LHD |

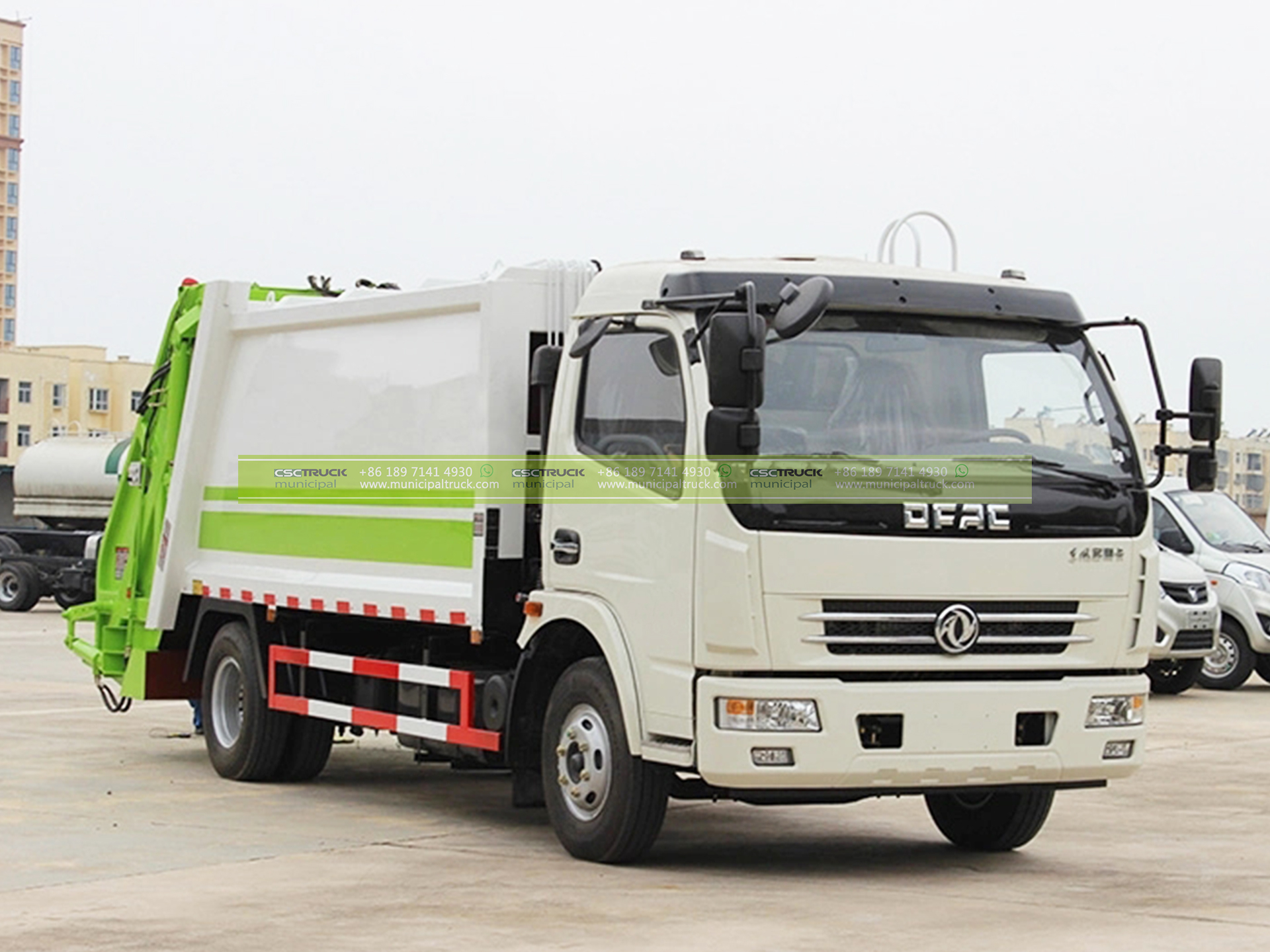

| Chassis model | Dongfeng DFAC |
| Tire size | 8.25R16 |
| Engine | CHAOCHAI,119hp ,Euro 3 |
| Container Capacity | 6CBM |
| Compaction Ratio | 0.6~0.8T/m3 |
| Lifting weight capacity | 750 kg |
| Tailgate Lifting Cycle (s) | 10-15s |
| Compaction Plate Working Cycle (s) | 15-20s |
| Hopper Opening (°) | 67 |
| Container Opening (°) | 48 |
| Steel Material | High corrosion resistance Q235 carbon steel 5-6mm |
| Painting | Metallic Paint |
