| Chassis | |
| Size | 6,050*2,450*3,040mm |
| GVW/Curb Weight | 11,990/4,450kg |
| Wheelbase | 3800mm |
| Front/Rear Axle | 4.3T/7.69T |
| Tire | 8.25R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUNNEI/YNF40E1/170hp/euro5 |
| Transmission | |
| Make/Model | WLY/WLY6G55 |
| Gears | 6F+1R |
| Operation | Manual |
| Cabin | |
| Driving | Dongfeng Dollica 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |

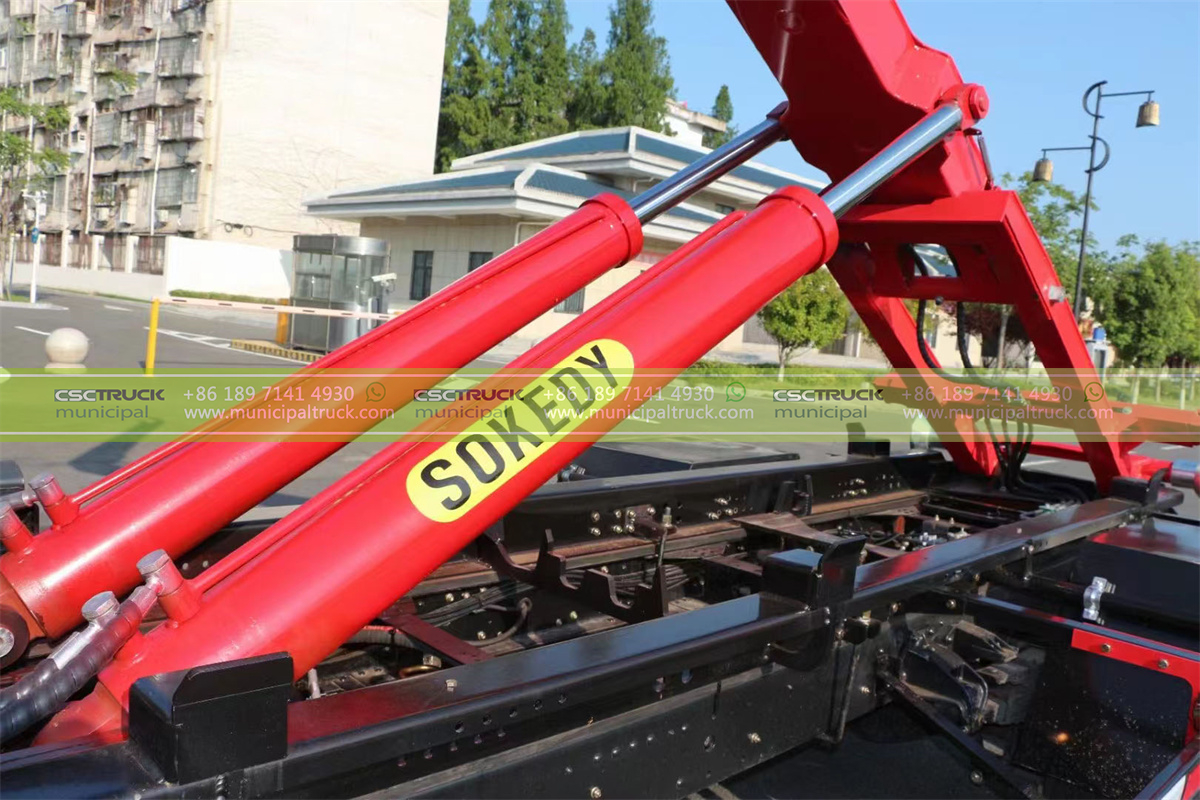

| Hook Lift System | |
| Lifting Capacity | 10 Ton |
| Material | Q235B Carbon Steel, 4mm Side, 5mm Bottom |
| Lifting Time | 50s |
| Discharging Time | 50s |
| Tipping Angle | 50° |
| Locking | 2 side locking system |
| Control System | Manual control, and smart control as options |

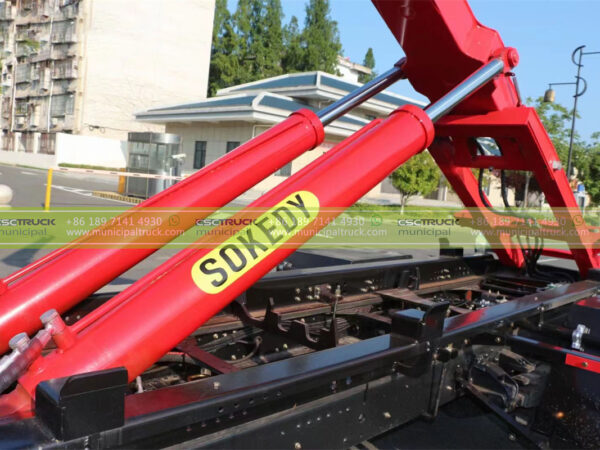

| Hydraulic System | Branded multi-way valve, cylinders |
| Include | Underframe, linkage frame, fixed arm, hook arm, locking system, hydraulic system. |

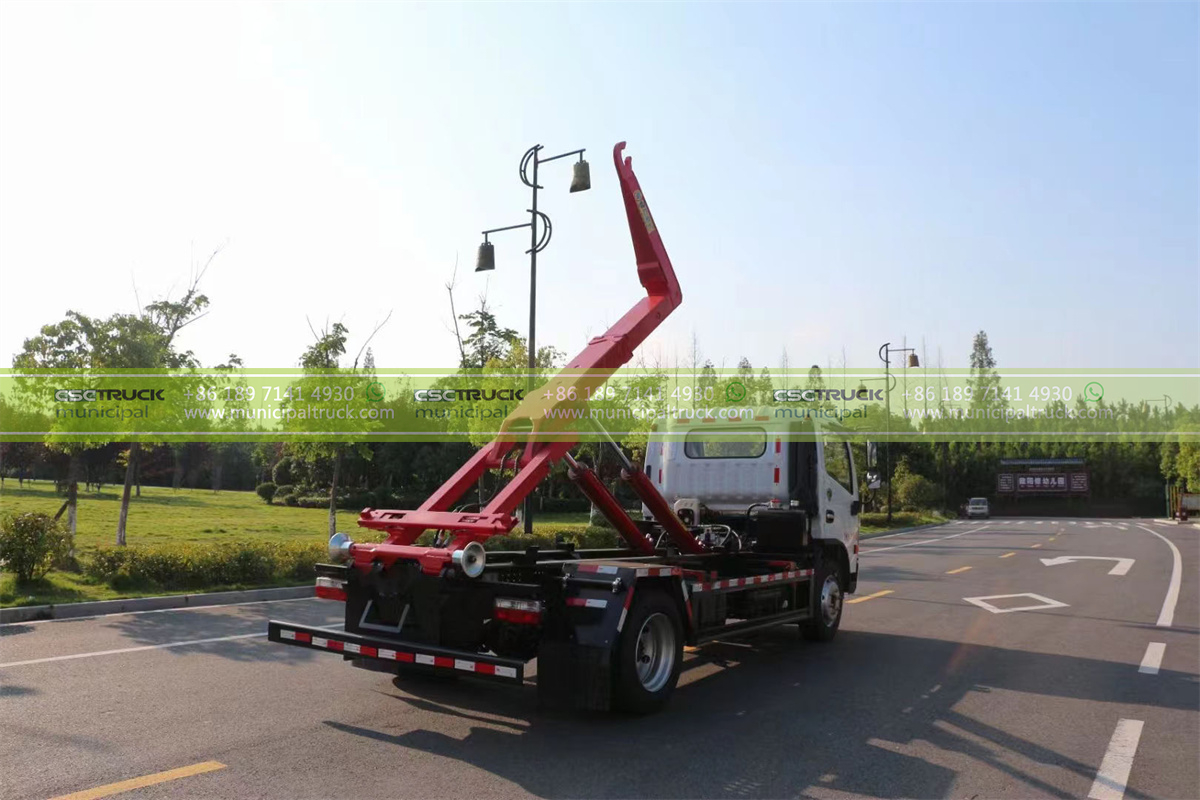

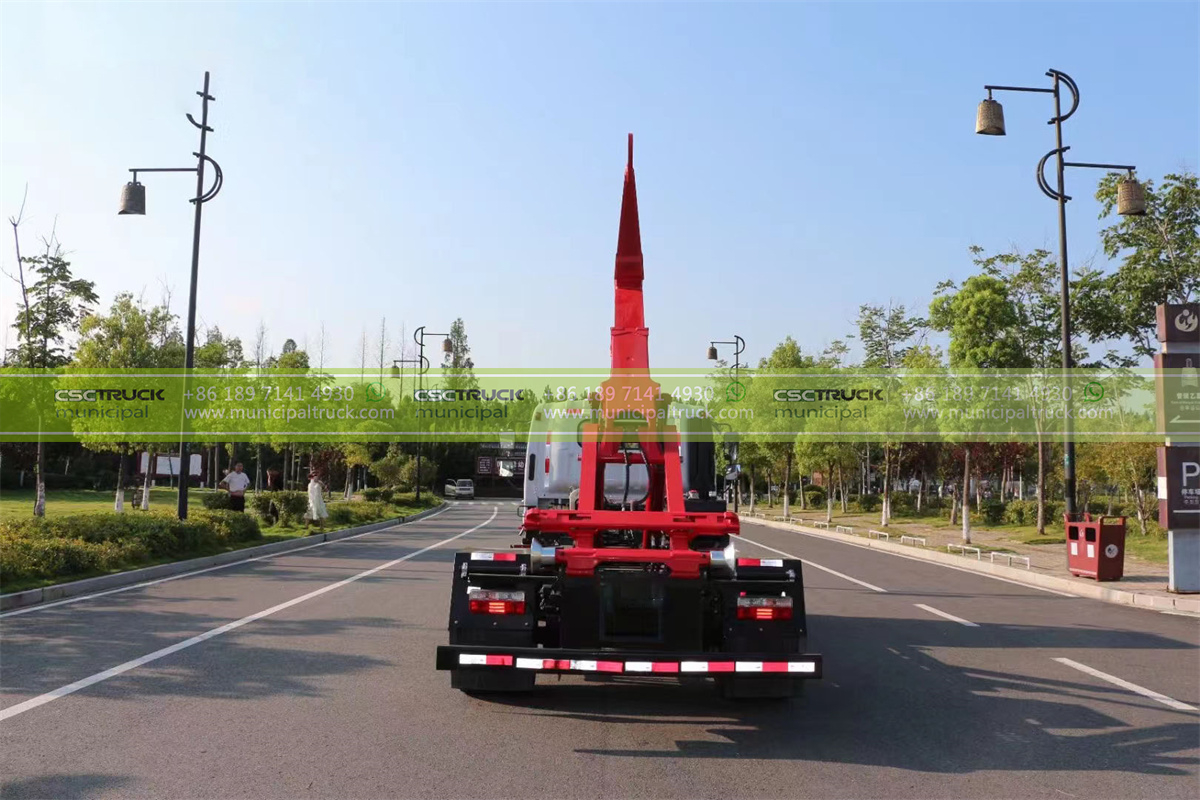

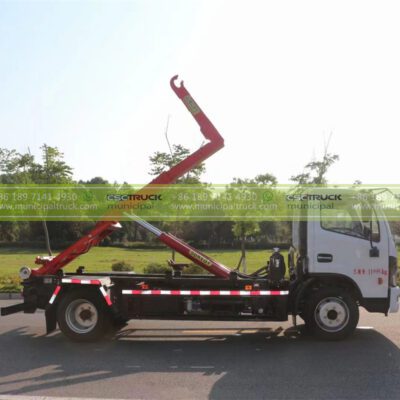

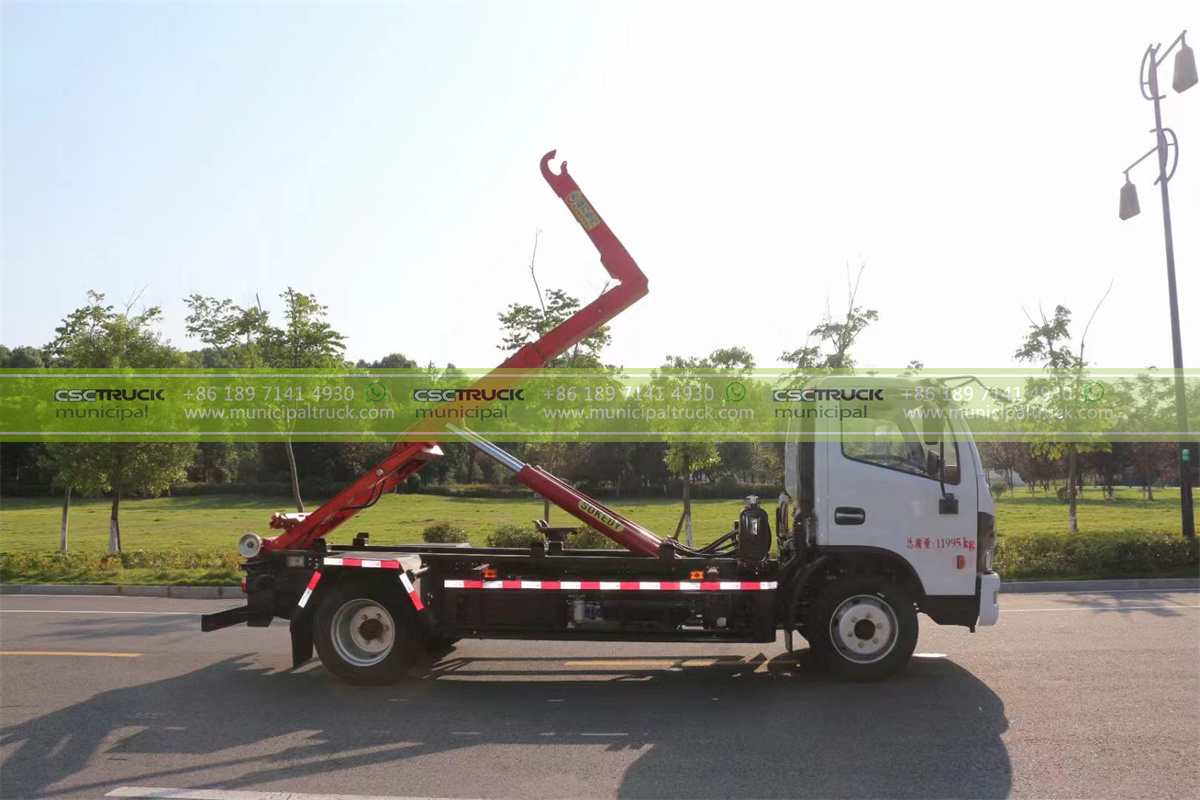

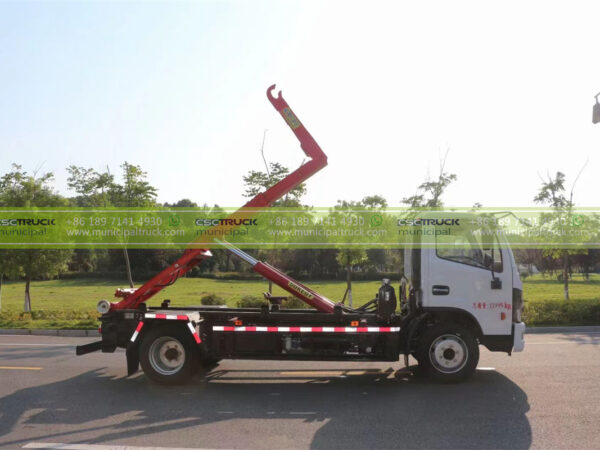

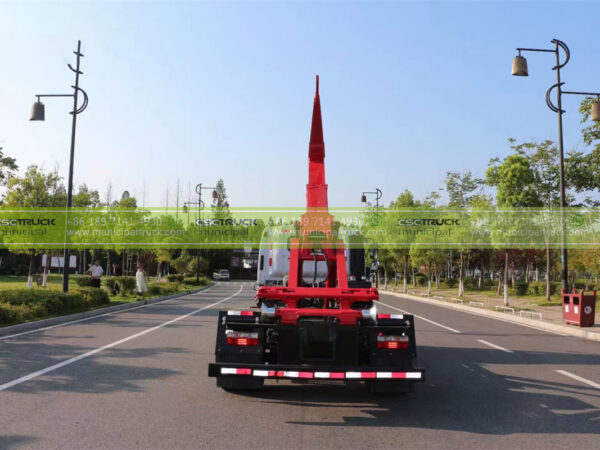

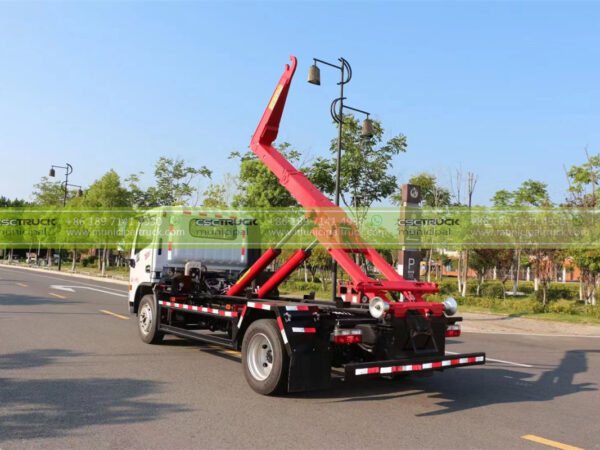

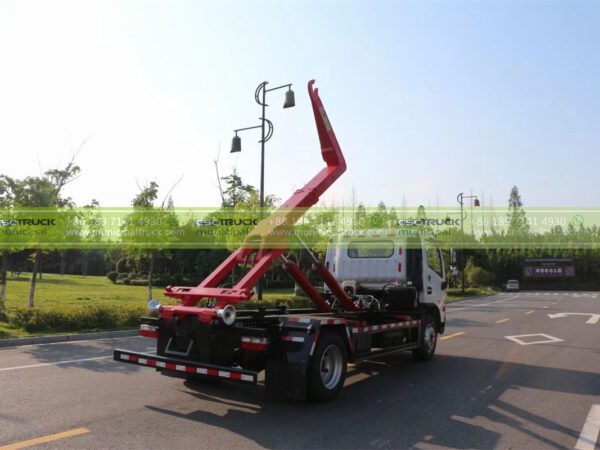

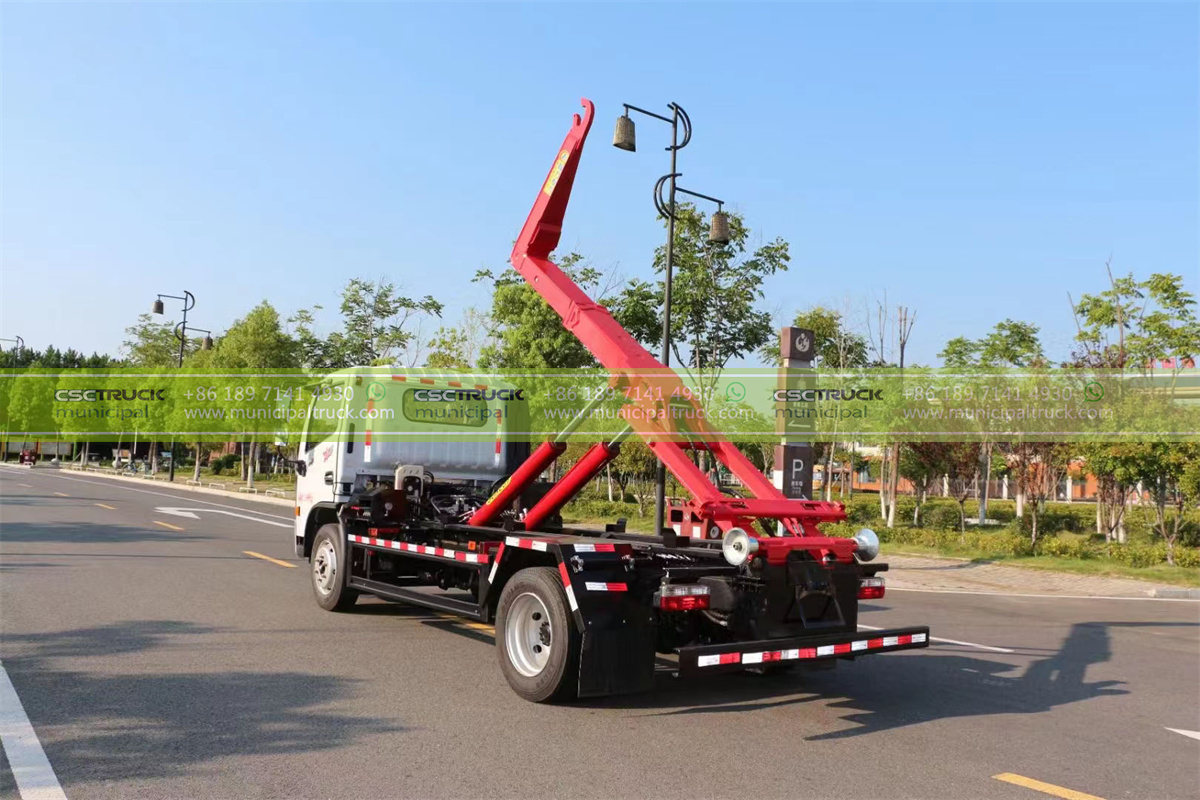

Dongfeng 10T Hook Loader Garbage Truck
| Make/Model | CSCTRUCK/HL10EQ170L5 |
| GVW | 11,990kg, Medium Duty Vehicle |
| Cab Truck | Dongfeng Dollica 4×2 Day Cab |
| Engine | YUNNEI/YNF40E1/170hp/euro5 |
| Transmission | WLY/WLY6G55/Manual 6+1 Speed |
| Garbage Container Capacity | 10 Cubic Meter |
| Certification | ISO9001:2015 |
|---|---|
| Chassis Truck | DONGFENG |
| Color | Customized Color |
| Condition | New |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Country of Origin | |
| Customized | Yes |
| Emission Standard | Euro V |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | LHD |
| Terms of Payment | T/T |
| Truck Class | Medium Duty |
| Warranty Period | 12 Months |
